Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

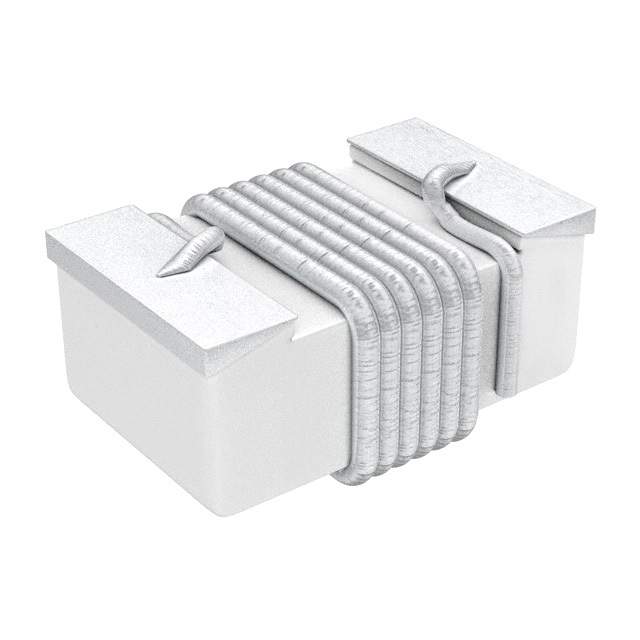

Series : 5508
Part Status : Active
Type : Wirewound
Material - Core : Ceramic
Inductance : 220nH
Tolerance : ±5%
Current Rating : 240mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 550 mOhm Max
Q @ Freq : 35 @ 100MHz
Frequency - Self Resonant : 950MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Supplier Device Package : 0805 (2012 Metric)
Size / Dimension : 0.087" L x 0.055" W (2.20mm x 1.40mm)
Height - Seated (Max) : 0.056" (1.42mm)
0
6713 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5508
Part Status : Active
Type : Wirewound
Material - Core : Ceramic
Inductance : 270nH
Tolerance : ±5%
Current Rating : 180mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1 Ohm Max
Q @ Freq : 35 @ 100MHz
Frequency - Self Resonant : 870MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Supplier Device Package : 0805 (2012 Metric)
Size / Dimension : 0.087" L x 0.055" W (2.20mm x 1.40mm)
Height - Seated (Max) : 0.056" (1.42mm)
0
4261 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5508
Part Status : Active
Type : Wirewound
Material - Core : Ceramic
Inductance : 330nH
Tolerance : ±5%
Current Rating : 180mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1 Ohm Max
Q @ Freq : 35 @ 100MHz
Frequency - Self Resonant : 800MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Supplier Device Package : 0805 (2012 Metric)
Size / Dimension : 0.087" L x 0.055" W (2.20mm x 1.40mm)
Height - Seated (Max) : 0.056" (1.42mm)
0
10349 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5508
Part Status : Active
Type : Wirewound
Material - Core : Ceramic
Inductance : 390nH
Tolerance : ±5%
Current Rating : 130mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 1.9 Ohm Max
Q @ Freq : 35 @ 100MHz
Frequency - Self Resonant : 730MHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Supplier Device Package : 0805 (2012 Metric)
Size / Dimension : 0.087" L x 0.055" W (2.20mm x 1.40mm)
Height - Seated (Max) : 0.056" (1.42mm)
0
6654 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : -
Series : -
Part Status : Obsolete
Filter Type : -
Number of Lines : -
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : -
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : -
Size / Dimension : -
Height (Max) : -
Package / Case : -
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : -
Series : *
Part Status : Obsolete
Filter Type : -
Number of Lines : -
Impedance @ Frequency : -
Inductance @ Frequency : -
Current Rating (Max) : -
DC Resistance (DCR) (Max) : -
Voltage Rating - DC : -
Voltage Rating - AC : -
Operating Temperature : -
Ratings : -
Approvals : -
Features : -
Mounting Type : -
Size / Dimension : -
Height (Max) : -
Package / Case : -
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Bulk
Series : -
Part Status : Active
Frequency : 125kHz
Features : -
Size / Dimension : -
0
2508 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CEEH
Part Status : Active
Type : -
Applications : Flyback Converters
Intended Chipset : -
Chipset Manufacturer : -
Voltage - Primary : -
Voltage - Auxiliary : -
Voltage - Isolation : -
Inductance @ Frequency : 3.38µH @ 100kHz
Frequency : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Size / Dimension : 0.386" L x 0.343" W (9.80mm x 8.70mm)
Height - Seated (Max) : 0.270" (6.85mm)
Footprint : 0.386" L x 0.480" W (9.80mm x 12.20mm)
Style : -
0
1591 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Frequency : 125kHz
Features : -
Size / Dimension : -
0
436 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

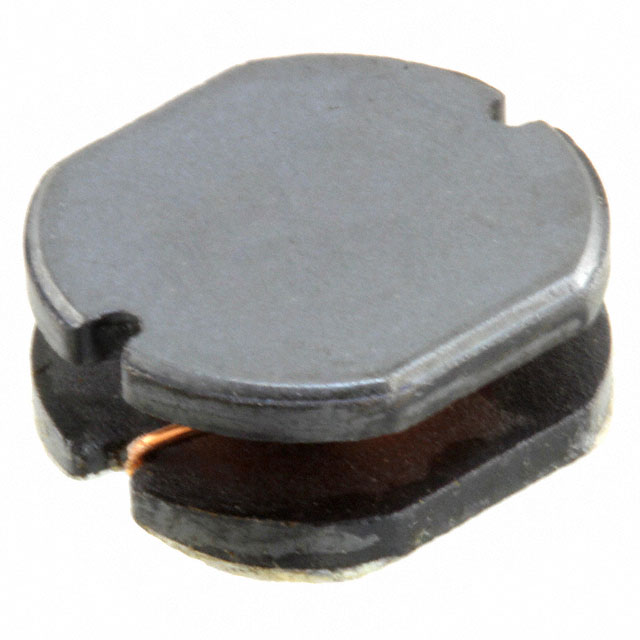

Series : CD104
Part Status : Active
Type : -
Material - Core : -
Inductance : 10µH
Tolerance : ±20%
Current Rating : 2.38A
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 53 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : 29.9MHz
Ratings : -
Operating Temperature : -40°C ~ 100°C
Inductance Frequency - Test : 2.52MHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.394" L x 0.354" W (10.00mm x 9.00mm)
Height - Seated (Max) : 0.177" (4.50mm)
0
4485 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

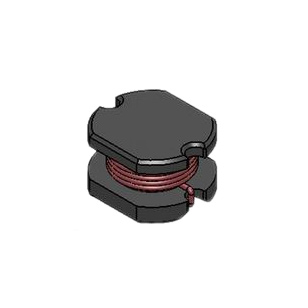

Series : CD30D22
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 10µH
Tolerance : ±20%
Current Rating : 950mA
Current - Saturation : 1.02A
Shielding : Unshielded
DC Resistance (DCR) : 313 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.138" L x 0.118" W (3.50mm x 3.00mm)
Height - Seated (Max) : 0.098" (2.50mm)
0
5485 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CD30D22
Part Status : Active
Type : Wirewound
Material - Core : Ferrite
Inductance : 2.2µH
Tolerance : ±20%
Current Rating : 2A
Current - Saturation : 2.08A
Shielding : Unshielded
DC Resistance (DCR) : 69.4 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -40°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : -
Size / Dimension : 0.138" L x 0.118" W (3.50mm x 3.00mm)
Height - Seated (Max) : 0.098" (2.50mm)
0
5809 in stock
