Sumida
- Sumida is one of the leading manufacturers of coils and wire wound electronic products. Sumida currently has over 31000 products in its coil catalog-attesting to the diversity to which coil technology can be applied in the present day information age. All of Sumida's products are manufactured outside of Japan in various locations in the Asian region as well as in Mexico. This has allowed Sumida to keep costs to a minimum, spread risk and increase response times.
Sumida components can be found in audio visual equipment, CD-ROM drives, DVD/MD products, modems, networking hardware, liquid crystal display monitors, computer peripherals, air-conditioners, electronic automotive products such as Anti Lock Braking Systems, and a plethora of other electronic devices. See the product section of our site for more on our extensive range.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 177CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 4.7µH
Tolerance : ±20%
Current Rating : 18A
Current - Saturation : 35A
Shielding : Shielded
DC Resistance (DCR) : 4.83 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : SMD
Size / Dimension : 0.675" L x 0.675" W (17.15mm x 17.15mm)
Height - Seated (Max) : 0.276" (7.00mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 177CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 6.8µH
Tolerance : ±20%
Current Rating : 16.7A
Current - Saturation : 24.7A
Shielding : Shielded
DC Resistance (DCR) : 7.13 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : SMD
Size / Dimension : 0.675" L x 0.675" W (17.15mm x 17.15mm)
Height - Seated (Max) : 0.276" (7.00mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 177CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 8.2µH
Tolerance : ±20%
Current Rating : 14.5A
Current - Saturation : 22.6A
Shielding : Shielded
DC Resistance (DCR) : 9.2 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : SMD
Size / Dimension : 0.675" L x 0.675" W (17.15mm x 17.15mm)
Height - Seated (Max) : 0.276" (7.00mm)
0
400 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 177CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 470nH
Tolerance : ±20%
Current Rating : 57A
Current - Saturation : 85.5A
Shielding : Shielded
DC Resistance (DCR) : 0.9 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : SMD
Size / Dimension : 0.675" L x 0.675" W (17.15mm x 17.15mm)
Height - Seated (Max) : 0.276" (7.00mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 177CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 680nH
Tolerance : ±20%
Current Rating : 47A
Current - Saturation : 80A
Shielding : Shielded
DC Resistance (DCR) : 1.21 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 100kHz
Features : -
Mounting Type : Surface Mount
Package / Case : Nonstandard
Supplier Device Package : SMD
Size / Dimension : 0.675" L x 0.675" W (17.15mm x 17.15mm)
Height - Seated (Max) : 0.276" (7.00mm)
0
400 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 252012CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 2.2µH
Tolerance : ±20%
Current Rating : 2A
Current - Saturation : 2.8A
Shielding : Shielded
DC Resistance (DCR) : 113 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1008 (2520 Metric)
Supplier Device Package : 1008
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
6000 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 252012CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 3.3µH
Tolerance : ±20%
Current Rating : 1.5A
Current - Saturation : 1.9A
Shielding : Shielded
DC Resistance (DCR) : 222 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1008 (2520 Metric)
Supplier Device Package : 1008
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
6000 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 252012CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 4.7µH
Tolerance : ±20%
Current Rating : 1.4A
Current - Saturation : 1.7A
Shielding : Shielded
DC Resistance (DCR) : 264 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1008 (2520 Metric)
Supplier Device Package : 1008
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
100 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 252012CDMCC/DS
Part Status : Active
Type : Molded
Material - Core : Metal
Inductance : 470nH
Tolerance : ±20%
Current Rating : 4.8A
Current - Saturation : 6.1A
Shielding : Shielded
DC Resistance (DCR) : 25 mOhm Max
Q @ Freq : -
Frequency - Self Resonant : -
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 1MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 1008 (2520 Metric)
Supplier Device Package : 1008
Size / Dimension : 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) : 0.047" (1.20mm)
0
100 in stock

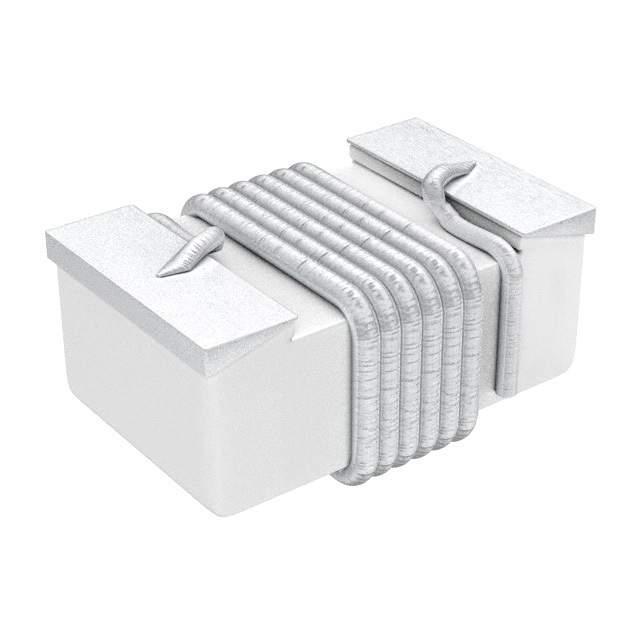

Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5508
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ceramic
Inductance : 10nH
Tolerance : ±5%
Current Rating : 700mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 60 mOhm Max
Q @ Freq : 40 @ 250MHz
Frequency - Self Resonant : 4.5GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 250MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Supplier Device Package : 0805 (2012 Metric)
Size / Dimension : 0.087" L x 0.055" W (2.20mm x 1.40mm)
Height - Seated (Max) : 0.056" (1.42mm)
0
1157 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5508
Part Status : Active
Type : Wirewound
Material - Core : Ceramic
Inductance : 100nH
Tolerance : ±5%
Current Rating : 350mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 260 mOhm Max
Q @ Freq : 40 @ 150MHz
Frequency - Self Resonant : 1.31GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Supplier Device Package : 0805 (2012 Metric)
Size / Dimension : 0.087" L x 0.055" W (2.20mm x 1.40mm)
Height - Seated (Max) : 0.056" (1.42mm)
0
583 in stock
Sumida Corporation
Manufacturer : Sumida America Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : 5508
Part Status : Discontinued at
Type : Wirewound
Material - Core : Ceramic
Inductance : 120nH
Tolerance : ±5%
Current Rating : 270mA
Current - Saturation : -
Shielding : Unshielded
DC Resistance (DCR) : 440 mOhm Max
Q @ Freq : 40 @ 150MHz
Frequency - Self Resonant : 1.21GHz
Ratings : -
Operating Temperature : -55°C ~ 125°C
Inductance Frequency - Test : 150MHz
Features : -
Mounting Type : Surface Mount
Package / Case : 0805 (2012 Metric)
Supplier Device Package : 0805 (2012 Metric)
Size / Dimension : 0.087" L x 0.055" W (2.20mm x 1.40mm)
Height - Seated (Max) : 0.056" (1.42mm)
0
916 in stock
