Sanken Electric Co., Ltd.
- Sanken Electric Co., Ltd., a leading global supplier of analog power semiconductor products, designs and manufactures a wide range of power management ICs, motor control ICs, LED lighting ICs as well as high quality automotive semiconductor devices and discrete components.
Part Number
Manufacturer
Description
Unit Price
In Stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
Output Configuration : Half Bridge (3)
Applications : DC Motors, General Purpose
Interface : Logic
Load Type : Inductive
Technology : DMOS
Rds On (Typ) : -
Current - Output / Channel : 3A
Current - Peak Output : -
Voltage - Supply : 13 V ~ 33 V
Voltage - Load : 13 V ~ 33 V
Operating Temperature : -20°C ~ 150°C (TJ)
Features : -
Fault Protection : Current Limiting, Over Temperature, UVLO
Mounting Type : Surface Mount

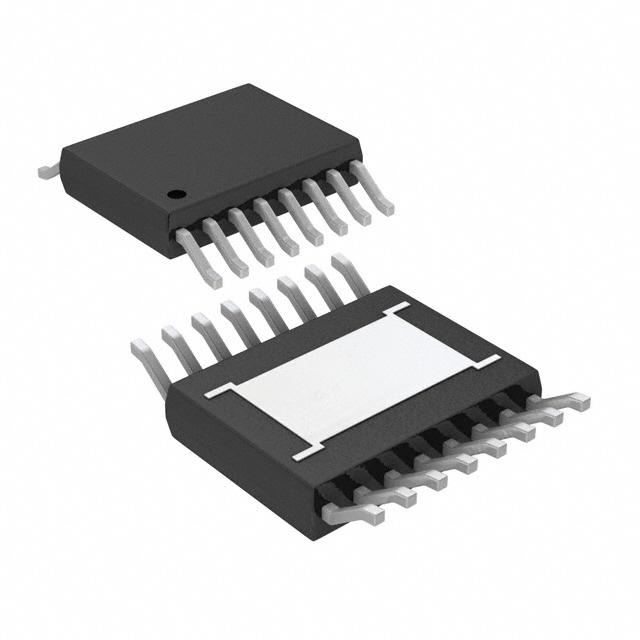

Package / Case : 16-SOIC (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package : 16-HSOP
0
100 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 2
Voltage - Input (Min) : 4V
Voltage - Input (Max) : 20V
Voltage - Output (Min/Fixed) : 1V
Voltage - Output (Max) : 16V
Current - Output : 1.5A
Frequency - Switching : 250kHz
Synchronous Rectifier : No
Operating Temperature : -30°C ~ 135°C (TJ)
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-HSOP
0
1392 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 2
Voltage - Input (Min) : 4V
Voltage - Input (Max) : 38V
Voltage - Output (Min/Fixed) : 1V
Voltage - Output (Max) : 24V
Current - Output : 1.5A
Frequency - Switching : 250kHz
Synchronous Rectifier : No
Operating Temperature : -30°C ~ 135°C (TJ)
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-HSOP
0
1330 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 2
Voltage - Input (Min) : 4V
Voltage - Input (Max) : 38V
Voltage - Output (Min/Fixed) : 1V
Voltage - Output (Max) : 24V
Current - Output : 1.5A
Frequency - Switching : 200kHz ~ 400kHz
Synchronous Rectifier : No
Operating Temperature : -30°C ~ 135°C (TJ)
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package : 16-HSOP
0
1400 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Function : Step-Down
Output Configuration : Positive
Topology : Buck
Output Type : Adjustable
Number of Outputs : 1
Voltage - Input (Min) : 8V
Voltage - Input (Max) : 50V
Voltage - Output (Min/Fixed) : 1V
Voltage - Output (Max) : 14V
Current - Output : 3A
Frequency - Switching : 250kHz
Synchronous Rectifier : No
Operating Temperature : -30°C ~ 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 16-SOIC (0.295", 7.50mm Width) Exposed Pad
Supplier Device Package : 16-HSOP
0
1147 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : -
Series : *
Part Status : Obsolete
Output Isolation : -
Internal Switch(s) : -
Voltage - Breakdown : -
Topology : -
Voltage - Start Up : -
Voltage - Supply (Vcc/Vdd) : -
Duty Cycle : -
Frequency - Switching : -
Power (Watts) : -
Fault Protection : -
Control Features : -
Operating Temperature : -
Package / Case : -
Supplier Device Package : -
Mounting Type : -
0
100 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Mode : Continuous Conduction (CCM)
Frequency - Switching : 57kHz ~ 70kHz
Current - Startup : -
Voltage - Supply : 15V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 8-SOP
0
585 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Mode : Critical Conduction (CRM)
Frequency - Switching : -
Current - Startup : -
Voltage - Supply : 10.5 V ~ 13.5 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SOIC
0
2487 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Mode : Critical Conduction (CRM)
Frequency - Switching : -
Current - Startup : -
Voltage - Supply : 14 V ~ 26 V
Operating Temperature : -40°C ~ 110°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 8-SOP
0
3956 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tape & Reel (TR)
Series : -
Part Status : Not For New Designs
Mode : Discontinuous Conduction (DCM)
Frequency - Switching : -
Current - Startup : -
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 8-SOP
0
100 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Mode : Discontinuous Conduction (DCM)
Frequency - Switching : -
Current - Startup : -
Voltage - Supply : -
Operating Temperature : -40°C ~ 85°C
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 8-SOP
0
2619 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Mode : Discontinuous Conduction (DCM)
Frequency - Switching : -
Current - Startup : -
Voltage - Supply : -
Operating Temperature : -
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.173", 4.40mm Width)
Supplier Device Package : 8-SOP
0
2353 in stock
