Sanken Electric Co., Ltd.
- Sanken Electric Co., Ltd., a leading global supplier of analog power semiconductor products, designs and manufactures a wide range of power management ICs, motor control ICs, LED lighting ICs as well as high quality automotive semiconductor devices and discrete components.
Part Number
Manufacturer
Description
Unit Price
In Stock

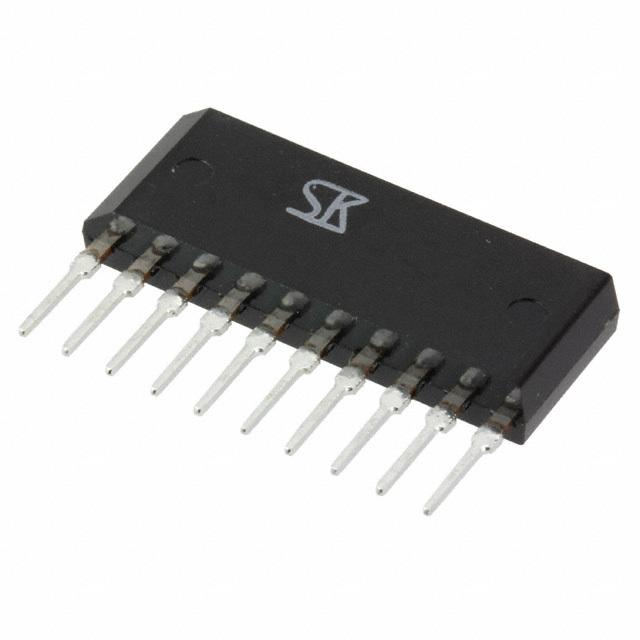

Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Transistor Type : 4 PNP (Quad)
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 1V @ 200mA, 2A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 40 @ 1A, 4V
Power - Max : 4W
Frequency - Transition : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
100 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 2 NPN, 2 PNP (H-Bridge)
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 1V @ 200mA, 2A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 40 @ 1A, 4V
Power - Max : 4W
Frequency - Transition : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
90 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 2 NPN, 2 PNP Darlington (H-Bridge)
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 2V @ 10mA, 3A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 1000 @ 3A, 4V
Power - Max : 4W
Frequency - Transition : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
3014 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 2 NPN, 2 PNP Darlington (H-Bridge)
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 4mA, 2A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 2A, 4V
Power - Max : 4W
Frequency - Transition : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
56 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 2 NPN Darlington (Dual)
Current - Collector (Ic) (Max) : 6A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 150mV @ 15mA, 1.5A
Current - Collector Cutoff (Max) : 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 700 @ 1A, 1V
Power - Max : 3.2W
Frequency - Transition : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
92 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 4 NPN Darlington (Quad)
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 2mA, 1A
Current - Collector Cutoff (Max) : 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 1A, 4V
Power - Max : 4W
Frequency - Transition : 50MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
2530 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Not For New Designs
Transistor Type : 4 PNP Darlington (Quad)
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 2mA, 1A
Current - Collector Cutoff (Max) : 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 1A, 4V
Power - Max : 4W
Frequency - Transition : 100MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
100 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 4 NPN Darlington (Quad)
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 2mA, 1A
Current - Collector Cutoff (Max) : 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 1A, 4V
Power - Max : 4W
Frequency - Transition : 50MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
104 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 4 NPN Darlington (Quad)
Current - Collector (Ic) (Max) : 2A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 2mA, 1A
Current - Collector Cutoff (Max) : 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 1A, 4V
Power - Max : 4W
Frequency - Transition : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
467 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 4 NPN Darlington (Quad)
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 1mA, 500mA
Current - Collector Cutoff (Max) : 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 500mA, 4V
Power - Max : 4W
Frequency - Transition : 50MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
253 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 4 NPN Darlington (Quad)
Current - Collector (Ic) (Max) : 1A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 1mA, 500mA
Current - Collector Cutoff (Max) : 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 500mA, 4V
Power - Max : 4W
Frequency - Transition : 50MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
174 in stock

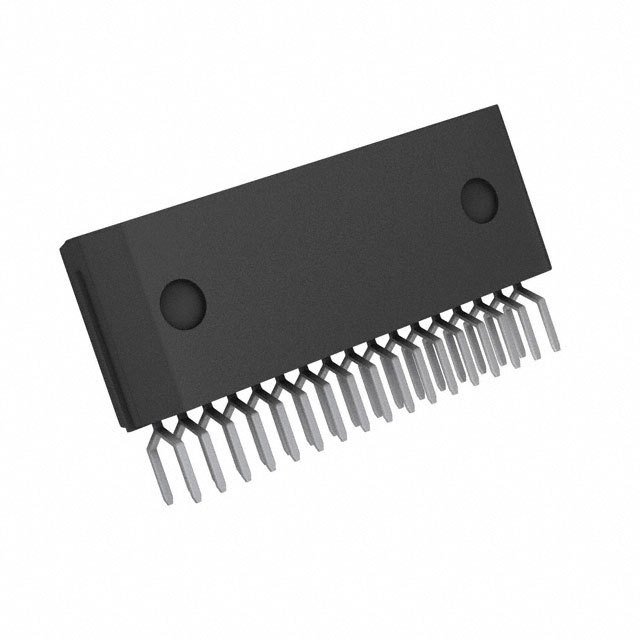

Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Motor Type - Stepper : -
Motor Type - AC, DC : Brushed DC
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (2)
Interface : Parallel
Technology : Power MOSFET
Step Resolution : -
Applications : General Purpose
Current - Output : 4A
Voltage - Supply : 3 V ~ 5.5 V
Voltage - Load : 10 V ~ 40 V
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 18-SSIP Formed Leads
Supplier Device Package : 18-ZIP
0
927 in stock
