Sanken Electric Co., Ltd.
- Sanken Electric Co., Ltd., a leading global supplier of analog power semiconductor products, designs and manufactures a wide range of power management ICs, motor control ICs, LED lighting ICs as well as high quality automotive semiconductor devices and discrete components.
Part Number
Manufacturer
Description
Unit Price
In Stock

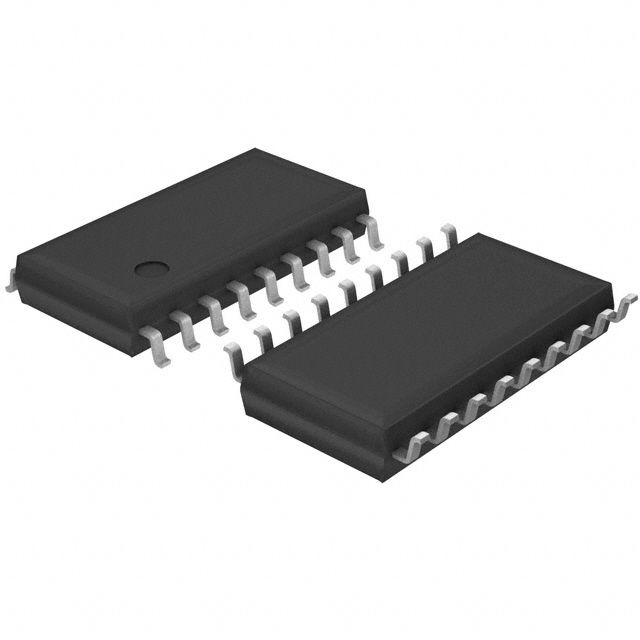

Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : SSC9520S
Part Status : Active
Output Isolation : Isolated
Internal Switch(s) : No
Voltage - Breakdown : -
Topology : Half-Bridge
Voltage - Start Up : 11.8V
Voltage - Supply (Vcc/Vdd) : 9.8 V ~ 35 V
Duty Cycle : -
Frequency - Switching : 28.3kHz ~ 300kHz
Power (Watts) : -
Fault Protection : Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features : Soft Start
Operating Temperature : -20°C ~ 85°C (TA)
Package / Case : 18-SOIC (0.213", 5.40mm Width)
Supplier Device Package : 18-SOP
Mounting Type : Surface Mount
0
3950 in stock

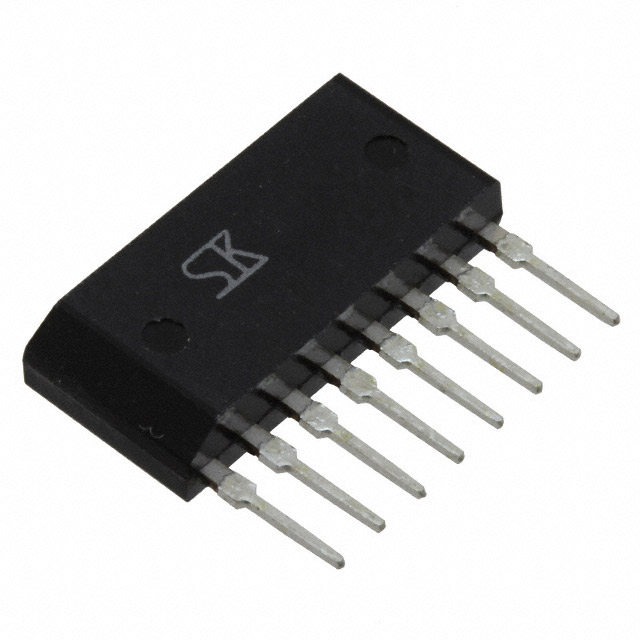

Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 3 NPN Darlington (Emitter Coupled)
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 2V @ 10mA, 3A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 1000 @ 3A, 4V
Power - Max : 3W
Frequency - Transition : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 8-SIP
Supplier Device Package : 8-SIP
0
115 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 3 PNP Darlington (Emitter Coupled)
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 2V @ 10mA, 3A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 1000 @ 3A, 4V
Power - Max : 3W
Frequency - Transition : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 8-SIP
Supplier Device Package : 8-SIP
0
3834 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 3 NPN Darlington (Emitter Coupled)
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 2V @ 10mA, 2A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 1000 @ 2A, 4V
Power - Max : 3W
Frequency - Transition : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 8-SIP
Supplier Device Package : 8-SIP
0
3599 in stock

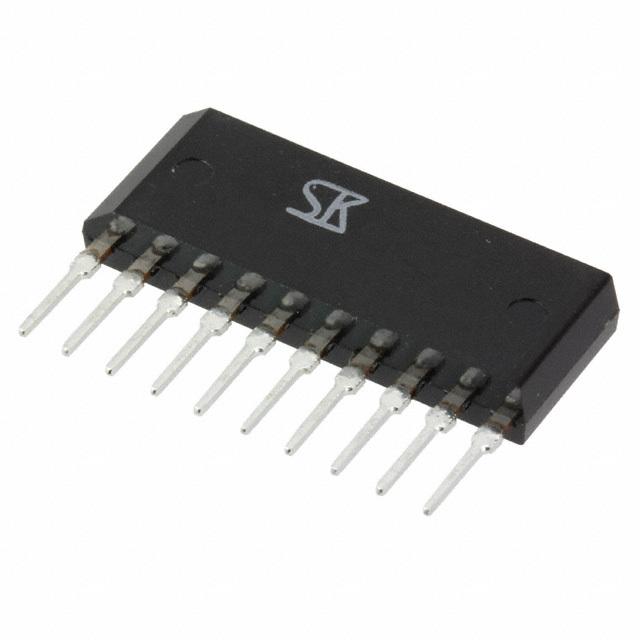

Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 4 NPN Darlington (Quad)
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 2V @ 10mA, 3A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 1000 @ 3A, 4V
Power - Max : 4W
Frequency - Transition : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
3854 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 4 PNP Darlington (Quad)
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 50V
Vce Saturation (Max) @ Ib, Ic : 2V @ 10mA, 3A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 1000 @ 3A, 4V
Power - Max : 4W
Frequency - Transition : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
800 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 4 NPN Darlington (Quad)
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 100V
Vce Saturation (Max) @ Ib, Ic : 100V @ 10mA
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 1000 @ 2A, 4V
Power - Max : 4W
Frequency - Transition : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
100 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 4 NPN Darlington (Quad)
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 200V
Vce Saturation (Max) @ Ib, Ic : 2V @ 1.5mA, 1A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 1000 @ 1A, 4V
Power - Max : 4W
Frequency - Transition : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
3087 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 4 NPN Darlington (Quad)
Current - Collector (Ic) (Max) : 6A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 10mA, 3A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 3A, 2V
Power - Max : 4W
Frequency - Transition : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
3176 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 4 PNP Darlington (Quad)
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 120V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 4mA, 2A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 2A, 4V
Power - Max : 4W
Frequency - Transition : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
3131 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 4 NPN (Quad)
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 1V @ 10mA, 1A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 300 @ 500mA, 4V
Power - Max : 4W
Frequency - Transition : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
2121 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
Transistor Type : 4 NPN (Quad)
Current - Collector (Ic) (Max) : 3A
Voltage - Collector Emitter Breakdown (Max) : 35V
Vce Saturation (Max) @ Ib, Ic : 500mV @ 5mA, 1A
Current - Collector Cutoff (Max) : 10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 500 @ 500mA, 4V
Power - Max : 4W
Frequency - Transition : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 10-SIP
Supplier Device Package : 10-SIP
0
720 in stock
