Sanken Electric Co., Ltd.
- Sanken Electric Co., Ltd., a leading global supplier of analog power semiconductor products, designs and manufactures a wide range of power management ICs, motor control ICs, LED lighting ICs as well as high quality automotive semiconductor devices and discrete components.
Part Number
Manufacturer
Description
Unit Price
In Stock

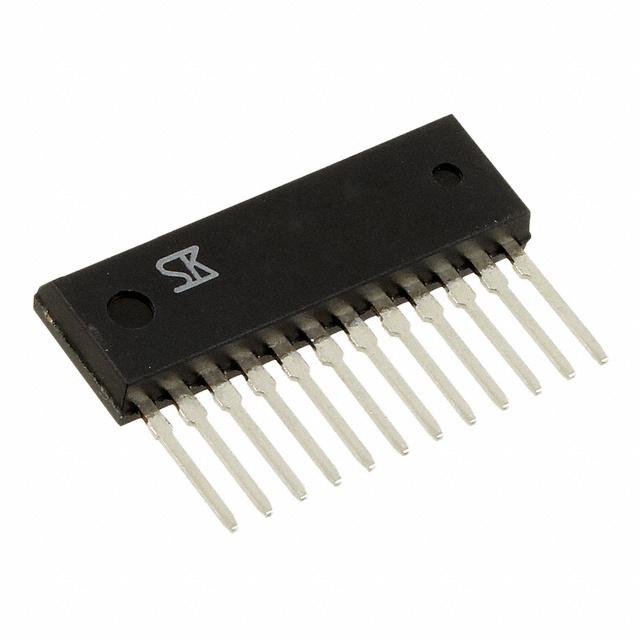

Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
FET Type : 3 N and 3 P-Channel (3-Phase Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 2A
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : 12-SIP
Supplier Device Package : 12-SIP
0
105 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
FET Type : 3 N and 3 P-Channel (3-Phase Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 500V
Current - Continuous Drain (Id) @ 25°C : 1.5A
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : 12-SIP
Supplier Device Package : 12-SIP
0
105 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
FET Type : 3 N and 3 P-Channel (3-Phase Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 500V
Current - Continuous Drain (Id) @ 25°C : 2.5A
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : 12-SIP
Supplier Device Package : 12-SIP
0
100 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : 3 NPN, 3 PNP Darlington (3-Phase Bridge)
Current - Collector (Ic) (Max) : 4A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 6mA, 3A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 3A, 4V
Power - Max : 4W
Frequency - Transition : 75MHz
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 12-SIP
Supplier Device Package : 12-SIP
0
347 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Transistor Type : 4 NPN, 1 PNP Darlington
Current - Collector (Ic) (Max) : 1.5A, 3A
Voltage - Collector Emitter Breakdown (Max) : 60V
Vce Saturation (Max) @ Ib, Ic : 1.5V @ 2mA, 1A
Current - Collector Cutoff (Max) : 100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce : 2000 @ 1A, 4V
Power - Max : 4W
Frequency - Transition : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 12-SIP
Supplier Device Package : 12-SIP
0
91 in stock

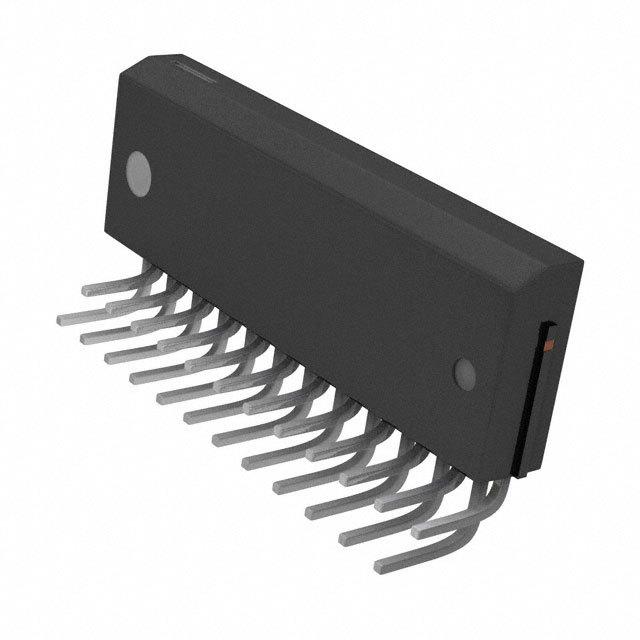

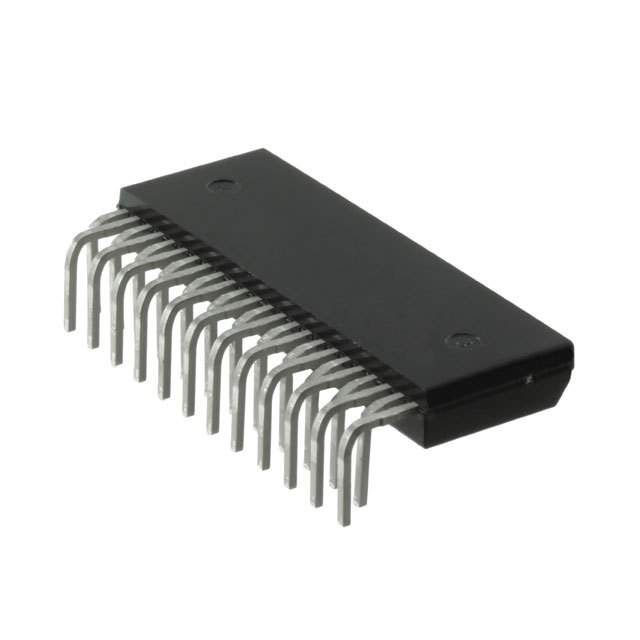

Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Motor Type - Stepper : -
Motor Type - AC, DC : AC, Synchronous
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (3)
Interface : Parallel
Technology : Power MOSFET
Step Resolution : -
Applications : Appliance
Current - Output : 2A
Voltage - Supply : 13.5 V ~ 16.5 V
Voltage - Load : 200V (Max)
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 24-SSIP Formed Leads
Supplier Device Package : 24-SIP, LF2451
0
1083 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Motor Type - Stepper : -
Motor Type - AC, DC : AC, Synchronous
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (3)
Interface : Parallel
Technology : Power MOSFET
Step Resolution : -
Applications : Appliance
Current - Output : 1.5A
Voltage - Supply : 13.5 V ~ 16.5 V
Voltage - Load : 400V (Max)
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 24-SSIP Formed Leads
Supplier Device Package : 24-SIP, LF2451
0
1054 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : -
Series : *
Part Status : Obsolete
Motor Type - Stepper : -
Motor Type - AC, DC : -
Function : -
Output Configuration : -
Interface : -
Technology : -
Step Resolution : -
Applications : -
Current - Output : -
Voltage - Supply : -
Voltage - Load : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
0
100 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Motor Type - Stepper : -
Motor Type - AC, DC : AC, Synchronous
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (3)
Interface : Parallel
Technology : Power MOSFET
Step Resolution : -
Applications : Appliance
Current - Output : 2.5A
Voltage - Supply : 13.5 V ~ 16.5 V
Voltage - Load : 400V (Max)
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 24-SSIP Formed Leads
Supplier Device Package : 24-SIP, LF2451
0
1056 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : -
Series : *
Part Status : Obsolete
Motor Type - Stepper : -
Motor Type - AC, DC : -
Function : -
Output Configuration : -
Interface : -
Technology : -
Step Resolution : -
Applications : -
Current - Output : -
Voltage - Supply : -
Voltage - Load : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
0
100 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Obsolete
Motor Type - Stepper : -
Motor Type - AC, DC : AC, Synchronous
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (3)
Interface : Parallel
Technology : Power MOSFET
Step Resolution : -
Applications : Appliance
Current - Output : 1.5A
Voltage - Supply : 13.5 V ~ 16.5 V
Voltage - Load : 400V (Max)
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 24-SIP Formed Leads
Supplier Device Package : 24-SIP
0
100 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
Motor Type - Stepper : -
Motor Type - AC, DC : AC, Synchronous
Function : Driver - Fully Integrated, Control and Power Stage
Output Configuration : Half Bridge (3)
Interface : Parallel
Technology : Power MOSFET
Step Resolution : -
Applications : Appliance
Current - Output : 2.5A
Voltage - Supply : 13.5 V ~ 16.5 V
Voltage - Load : 400V (Max)
Operating Temperature : -20°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : 24-SSIP Formed Leads
Supplier Device Package : 24-SIP, LF2451
0
164 in stock
