Sanken Electric Co., Ltd.
- Sanken Electric Co., Ltd., a leading global supplier of analog power semiconductor products, designs and manufactures a wide range of power management ICs, motor control ICs, LED lighting ICs as well as high quality automotive semiconductor devices and discrete components.
Part Number
Manufacturer
Description
Unit Price
In Stock

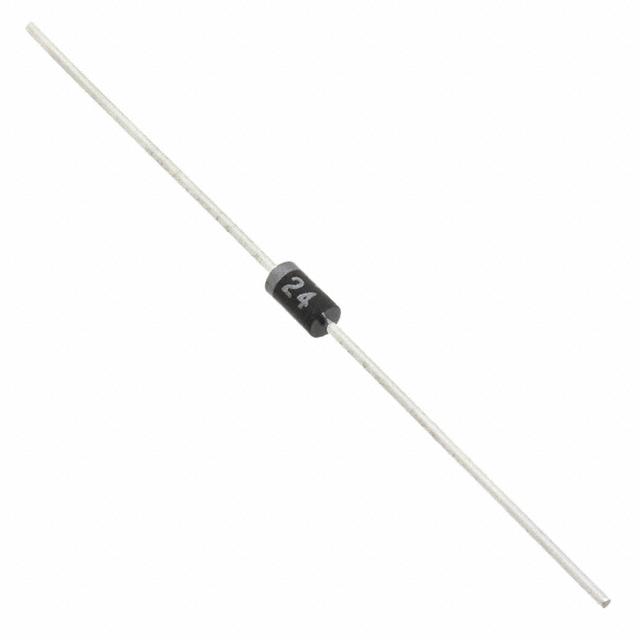

Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tape & Box (TB)
Alternate Packaging
Series : -
Part Status : Obsolete
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 90V
Current - Average Rectified (Io) : 1.5A
Voltage - Forward (Vf) (Max) @ If : 810mV @ 1.5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2mA @ 90V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
100 in stock

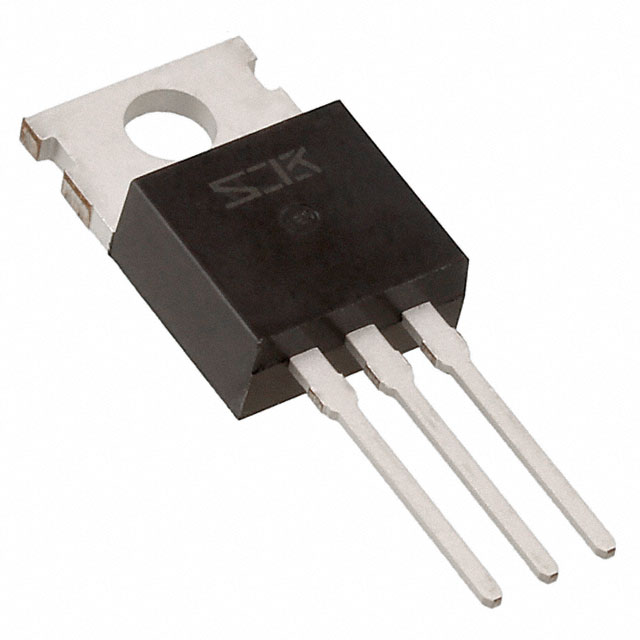

Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 3.8 mOhm @ 58.5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 63.2nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3910pF @ 25V
FET Feature : -
Power Dissipation (Max) : 116W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220-3
Package / Case : TO-220-3
0
180 in stock

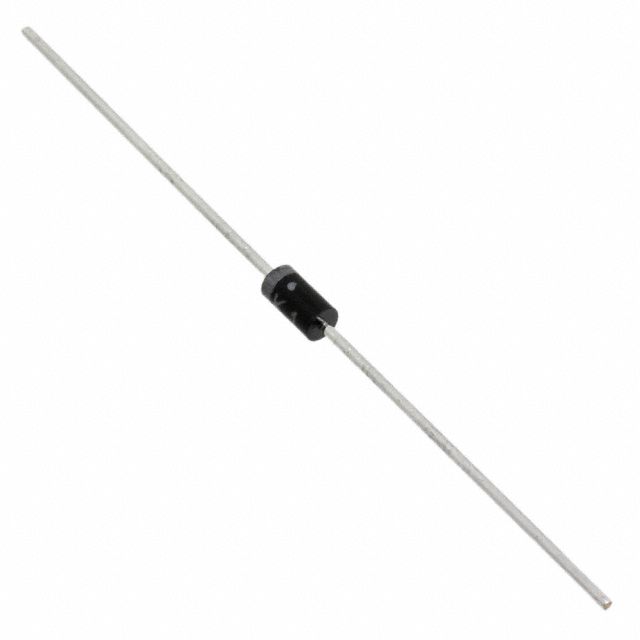

Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tape & Box (TB)
Alternate Packaging
Series : -
Part Status : Obsolete
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1.5A
Voltage - Forward (Vf) (Max) @ If : 1.3V @ 1.5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 10µA @ 400V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
100 in stock

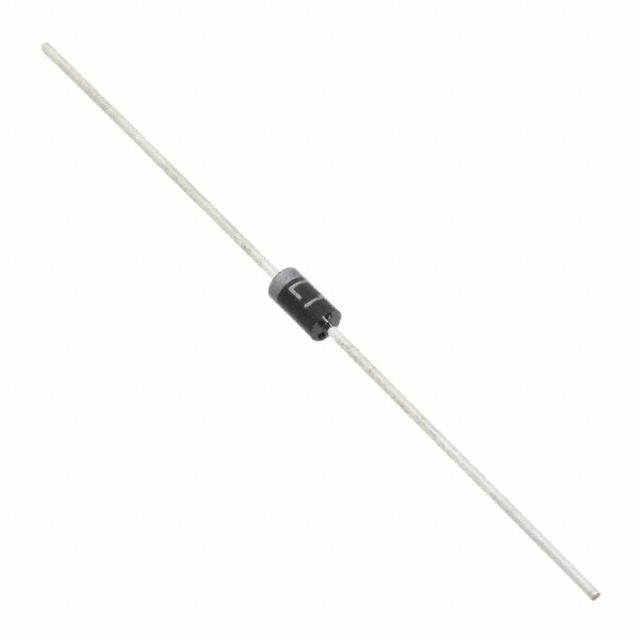

Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 970mV @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
534 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 800V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.05V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 20µA @ 800V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
1950 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.05V @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 20µA @ 1000V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
8367 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 970mV @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 400V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
892 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 970mV @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
1297 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 1.2A
Voltage - Forward (Vf) (Max) @ If : 920mV @ 1.2A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
7163 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 800V
Current - Average Rectified (Io) : 1.2A
Voltage - Forward (Vf) (Max) @ If : 920mV @ 1.2A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 800V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
1890 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1.2A
Voltage - Forward (Vf) (Max) @ If : 920mV @ 1.2A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 400V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
9709 in stock
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 970mV @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
1958 in stock
