Welcome to Weijie Semiconductor
Sanken Electric Co., Ltd.
- Sanken Electric Co., Ltd., a leading global supplier of analog power semiconductor products, designs and manufactures a wide range of power management ICs, motor control ICs, LED lighting ICs as well as high quality automotive semiconductor devices and discrete components.
Part Number
Manufacturer
Description
Unit Price
In Stock

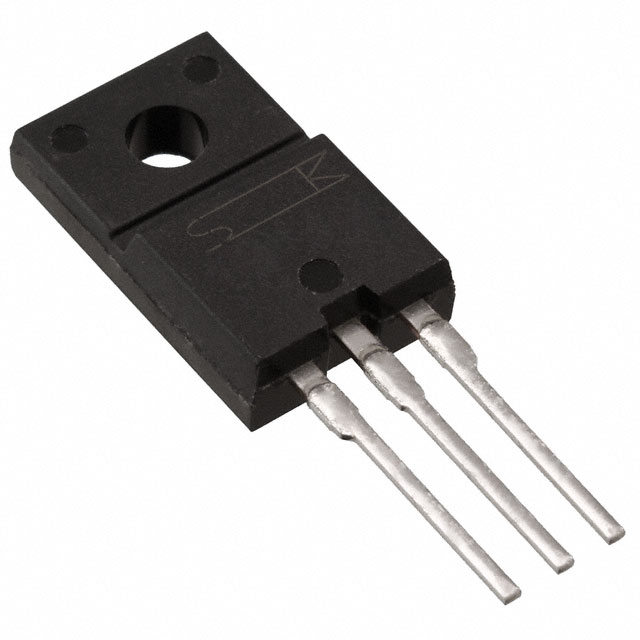

FKV575
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 50V
Current - Continuous Drain (Id) @ 25°C : 75A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 10 mOhm @ 37A, 10V
Vgs(th) (Max) @ Id : 4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 70nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3200pF @ 10V
FET Feature : -
Power Dissipation (Max) : 40W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220
Package / Case : TO-220-3 Full Pack
Packaging : Bulk
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 50V
Current - Continuous Drain (Id) @ 25°C : 75A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 10 mOhm @ 37A, 10V
Vgs(th) (Max) @ Id : 4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 70nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3200pF @ 10V
FET Feature : -
Power Dissipation (Max) : 40W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220
Package / Case : TO-220-3 Full Pack
0
2776 in stock
FM2-2202
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 980mV @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 200µA @ 200V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) (per Diode) : 20A
Voltage - Forward (Vf) (Max) @ If : 980mV @ 10A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 50ns
Current - Reverse Leakage @ Vr : 200µA @ 200V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
102 in stock
FMB-2304
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 40V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 15mA @ 40V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
357 in stock
FMB-2306
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 700mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 8mA @ 60V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 700mV @ 15A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 8mA @ 60V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
168 in stock
FMB-24
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) (per Diode) : 4A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2mA @ 40V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) (per Diode) : 4A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2mA @ 40V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
295 in stock
FMB-24H
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 7.5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 7.5mA @ 40V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) (per Diode) : 15A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 7.5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 7.5mA @ 40V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
4070 in stock
FMB-24L
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5mA @ 40V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) (per Diode) : 10A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5mA @ 40V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
4113 in stock

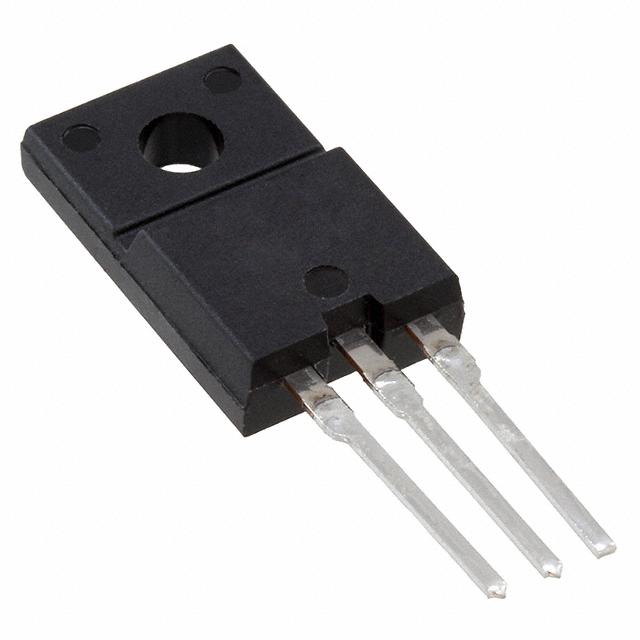

FMB-24M
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) (per Diode) : 6A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5mA @ 40V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) (per Diode) : 6A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 3A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5mA @ 40V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
355 in stock
FMB-26
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 4A
Voltage - Forward (Vf) (Max) @ If : 620mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2mA @ 60V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 60V
Current - Average Rectified (Io) (per Diode) : 4A
Voltage - Forward (Vf) (Max) @ If : 620mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 2mA @ 60V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
393 in stock
FMB-29
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 90V
Current - Average Rectified (Io) (per Diode) : 4A
Voltage - Forward (Vf) (Max) @ If : 810mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 3mA @ 90V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 90V
Current - Average Rectified (Io) (per Diode) : 4A
Voltage - Forward (Vf) (Max) @ If : 810mV @ 2A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 3mA @ 90V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
6090 in stock
FMB-29L
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 90V
Current - Average Rectified (Io) (per Diode) : 8A
Voltage - Forward (Vf) (Max) @ If : 810mV @ 4A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 3mA @ 90V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
Packaging : Bulk
Series : -
Part Status : Obsolete
Diode Configuration : 1 Pair Common Cathode
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 90V
Current - Average Rectified (Io) (per Diode) : 8A
Voltage - Forward (Vf) (Max) @ If : 810mV @ 4A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 3mA @ 90V
Operating Temperature - Junction : -40°C ~ 150°C
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220F
0
139 in stock

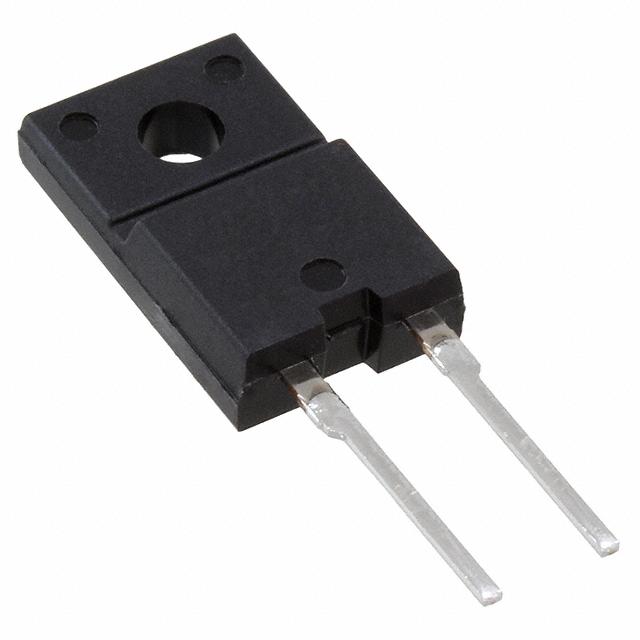

FMB-G14L
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Obsolete
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 5A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5mA @ 40V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2 Full Pack
Supplier Device Package : TO-220F-2L
Operating Temperature - Junction : -40°C ~ 150°C
Packaging : Tube
Series : -
Part Status : Obsolete
Diode Type : Schottky
Voltage - DC Reverse (Vr) (Max) : 40V
Current - Average Rectified (Io) : 5A
Voltage - Forward (Vf) (Max) @ If : 550mV @ 5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 5mA @ 40V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : TO-220-2 Full Pack
Supplier Device Package : TO-220F-2L
Operating Temperature - Junction : -40°C ~ 150°C
0
167 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
