Sanken Electric Co., Ltd.
- Sanken Electric Co., Ltd., a leading global supplier of analog power semiconductor products, designs and manufactures a wide range of power management ICs, motor control ICs, LED lighting ICs as well as high quality automotive semiconductor devices and discrete components.
Part Number
Manufacturer
Description
Unit Price
In Stock
EM01V1
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 970mV @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 400V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 970mV @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 400V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
1785 in stock

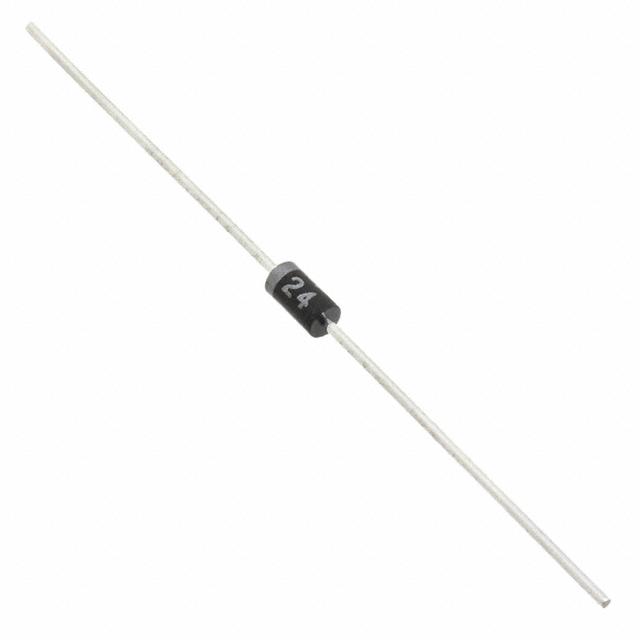

EM01ZV1
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 970mV @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 970mV @ 1A
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : -
Current - Reverse Leakage @ Vr : 10µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
911 in stock
EN 01ZV1
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tape & Box (TB)
Alternate Packaging
Series : -
Part Status : Obsolete
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 1.5A
Voltage - Forward (Vf) (Max) @ If : 920mV @ 1.5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 100ns
Current - Reverse Leakage @ Vr : 10µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
Packaging : Tape & Box (TB)
Alternate Packaging
Series : -
Part Status : Obsolete
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 200V
Current - Average Rectified (Io) : 1.5A
Voltage - Forward (Vf) (Max) @ If : 920mV @ 1.5A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 100ns
Current - Reverse Leakage @ Vr : 10µA @ 200V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
100 in stock
EP01CV1
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 200mA
Voltage - Forward (Vf) (Max) @ If : 4V @ 200mA
Speed : Small Signal =
200ns
5µA @ 1000V
-
Through Hole
Axial
-
-40°C ~ 150°C
Reverse Recovery Time (trr) : 200ns
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1000V
Current - Average Rectified (Io) : 200mA
Voltage - Forward (Vf) (Max) @ If : 4V @ 200mA
Speed : Small Signal =
200ns
5µA @ 1000V
-
Through Hole
Axial
-
-40°C ~ 150°C
Reverse Recovery Time (trr) : 200ns
Current - Reverse Leakage @ Vr : 5µA @ 1000V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
1737 in stock
ES 1FV1
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1500V
Current - Average Rectified (Io) : 500mA
Voltage - Forward (Vf) (Max) @ If : 2V @ 500mA
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 1.5µs
Current - Reverse Leakage @ Vr : 10µA @ 1500V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1500V
Current - Average Rectified (Io) : 500mA
Voltage - Forward (Vf) (Max) @ If : 2V @ 500mA
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 1.5µs
Current - Reverse Leakage @ Vr : 10µA @ 1500V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
45 in stock
ES01FV1
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1500V
Current - Average Rectified (Io) : 500mA
Voltage - Forward (Vf) (Max) @ If : 2V @ 500mA
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 1.5µs
Current - Reverse Leakage @ Vr : 10µA @ 1500V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 1500V
Current - Average Rectified (Io) : 500mA
Voltage - Forward (Vf) (Max) @ If : 2V @ 500mA
Speed : Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) : 1.5µs
Current - Reverse Leakage @ Vr : 10µA @ 1500V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
1494 in stock
EU 2AV1
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.4V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 400ns
Current - Reverse Leakage @ Vr : 10µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.4V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 400ns
Current - Reverse Leakage @ Vr : 10µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
133 in stock
EU02AV1
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.4V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 400ns
Current - Reverse Leakage @ Vr : 10µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 600V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.4V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 400ns
Current - Reverse Leakage @ Vr : 10µA @ 600V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
1799 in stock
EU02V1
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.4V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 400ns
Current - Reverse Leakage @ Vr : 10µA @ 400V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Diode Type : Standard
Voltage - DC Reverse (Vr) (Max) : 400V
Current - Average Rectified (Io) : 1A
Voltage - Forward (Vf) (Max) @ If : 1.4V @ 1A
Speed : Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) : 400ns
Current - Reverse Leakage @ Vr : 10µA @ 400V
Capacitance @ Vr, F : -
Mounting Type : Through Hole
Package / Case : Axial
Supplier Device Package : -
Operating Temperature - Junction : -40°C ~ 150°C
0
1619 in stock
FGM603
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 60W
Switching Energy : -
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 130ns/340ns
Test Condition : 300V, 30A
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-3PF
Packaging : Bulk
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 60W
Switching Energy : -
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 130ns/340ns
Test Condition : 300V, 30A
Reverse Recovery Time (trr) : -
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-3PF
0
100 in stock
FKI06269
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Tube
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 24A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 21.8 mOhm @ 15.8A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 16nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1050pF @ 25V
FET Feature : -
Power Dissipation (Max) : 29W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220F
Package / Case : TO-220-3 Full Pack
Packaging : Tube
Series : -
Part Status : Active
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 24A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 21.8 mOhm @ 15.8A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 16nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1050pF @ 25V
FET Feature : -
Power Dissipation (Max) : 29W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220F
Package / Case : TO-220-3 Full Pack
0
321 in stock
FKP253
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Bulk
Series : -
Part Status : Not For New Designs
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 20A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 95 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id : 4.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 1600pF @ 25V
FET Feature : -
Power Dissipation (Max) : 40W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220
Package / Case : TO-220-3 Full Pack
Packaging : Bulk
Series : -
Part Status : Not For New Designs
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 250V
Current - Continuous Drain (Id) @ 25°C : 20A (Ta)
Drive Voltage (Max Rds On, Min Rds On) : 10V
Rds On (Max) @ Id, Vgs : 95 mOhm @ 10A, 10V
Vgs(th) (Max) @ Id : 4.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : -
Vgs (Max) : ±30V
Input Capacitance (Ciss) (Max) @ Vds : 1600pF @ 25V
FET Feature : -
Power Dissipation (Max) : 40W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Supplier Device Package : TO-220
Package / Case : TO-220-3 Full Pack
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
