Sanken Electric Co., Ltd.
- Sanken Electric Co., Ltd., a leading global supplier of analog power semiconductor products, designs and manufactures a wide range of power management ICs, motor control ICs, LED lighting ICs as well as high quality automotive semiconductor devices and discrete components.
Part Number
Manufacturer
Description
Unit Price
In Stock

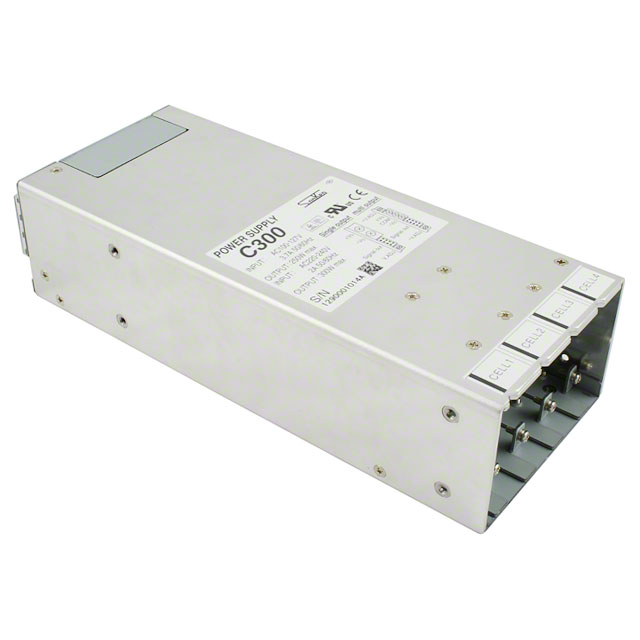

C300H
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Series : C
User Configuration : -
Type : Standard
Number of Positions : 4
Voltage - Input : 85 ~ 264 VAC
Power (Watts) : 300W
Voltage - Isolation : 4kV
Efficiency : 89%
Features : -
Operating Temperature : -20°C ~ 70°C (With Derating)
Size / Dimension : 10.00" L x 4.06" W (254.0mm x 103.0mm)
Height : 2.5" (63.5mm)
Series : C
User Configuration : -
Type : Standard
Number of Positions : 4
Voltage - Input : 85 ~ 264 VAC
Power (Watts) : 300W
Voltage - Isolation : 4kV
Efficiency : 89%
Features : -
Operating Temperature : -20°C ~ 70°C (With Derating)
Size / Dimension : 10.00" L x 4.06" W (254.0mm x 103.0mm)
Height : 2.5" (63.5mm)
0
11 in stock

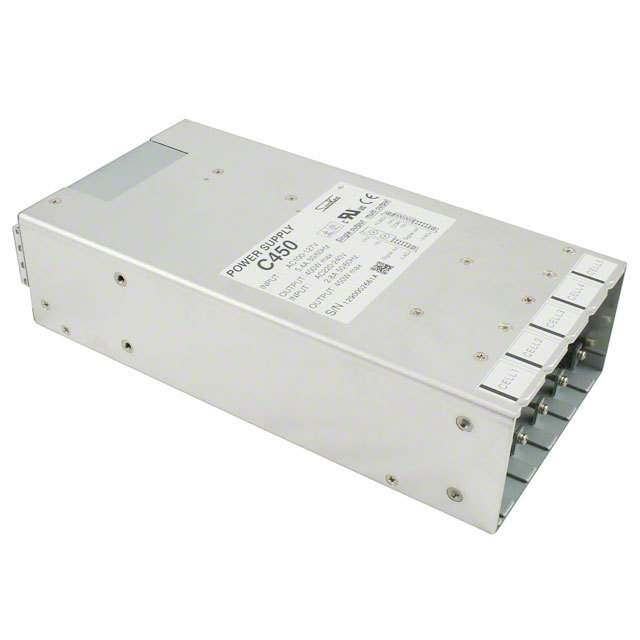

C450H
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Series : C
User Configuration : -
Type : Standard
Number of Positions : 5
Voltage - Input : 85 ~ 264 VAC
Power (Watts) : 450W
Voltage - Isolation : 4kV
Efficiency : 91%
Features : -
Operating Temperature : -20°C ~ 70°C (With Derating)
Size / Dimension : 10.00" L x 5.00" W (254.0mm x 127.0mm)
Height : 2.5" (63.5mm)
Series : C
User Configuration : -
Type : Standard
Number of Positions : 5
Voltage - Input : 85 ~ 264 VAC
Power (Watts) : 450W
Voltage - Isolation : 4kV
Efficiency : 91%
Features : -
Operating Temperature : -20°C ~ 70°C (With Derating)
Size / Dimension : 10.00" L x 5.00" W (254.0mm x 127.0mm)
Height : 2.5" (63.5mm)
0
8 in stock

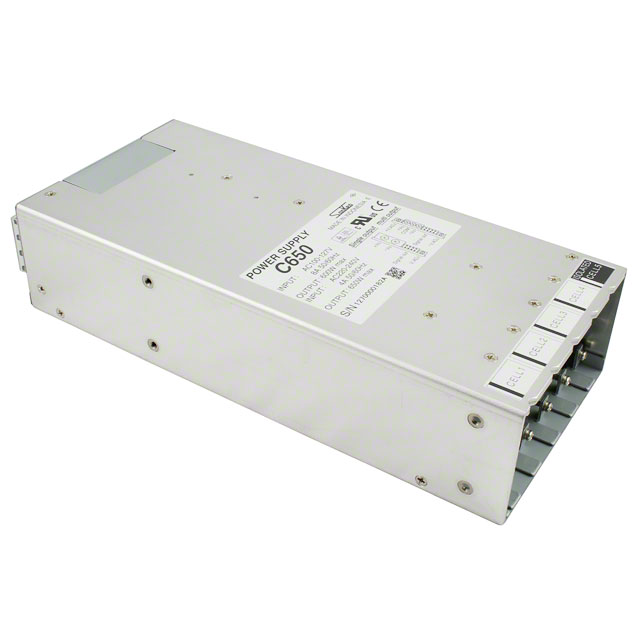

C650H
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Series : C
User Configuration : -
Type : Standard
Number of Positions : 5
Voltage - Input : 85 ~ 264 VAC
Power (Watts) : 650W
Voltage - Isolation : 4kV
Efficiency : 92%
Features : -
Operating Temperature : -20°C ~ 70°C (With Derating)
Size / Dimension : 10.98" L x 5.00" W (279.0mm x 127.0mm)
Height : 2.5" (63.5mm)
Series : C
User Configuration : -
Type : Standard
Number of Positions : 5
Voltage - Input : 85 ~ 264 VAC
Power (Watts) : 650W
Voltage - Isolation : 4kV
Efficiency : 92%
Features : -
Operating Temperature : -20°C ~ 70°C (With Derating)
Size / Dimension : 10.98" L x 5.00" W (279.0mm x 127.0mm)
Height : 2.5" (63.5mm)
0
4 in stock
DKI03038
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 48A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 4 mOhm @ 47.2A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 650µA
Gate Charge (Qg) (Max) @ Vgs : 38.8nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2460pF @ 15V
FET Feature : -
Power Dissipation (Max) : 47W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 48A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 4 mOhm @ 47.2A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 650µA
Gate Charge (Qg) (Max) @ Vgs : 38.8nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2460pF @ 15V
FET Feature : -
Power Dissipation (Max) : 47W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
33 in stock
DKI03062
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 48A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 6.5 mOhm @ 31A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 350µA
Gate Charge (Qg) (Max) @ Vgs : 24.6nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1480pF @ 15V
FET Feature : -
Power Dissipation (Max) : 37W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 48A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 6.5 mOhm @ 31A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 350µA
Gate Charge (Qg) (Max) @ Vgs : 24.6nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1480pF @ 15V
FET Feature : -
Power Dissipation (Max) : 37W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
100 in stock
DKI03082
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 29A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 8.4 mOhm @ 25A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 16.3nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1030pF @ 15V
FET Feature : -
Power Dissipation (Max) : 32W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 29A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 8.4 mOhm @ 25A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 16.3nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1030pF @ 15V
FET Feature : -
Power Dissipation (Max) : 32W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
40 in stock
DKI04035
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 48A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 4 mOhm @ 51A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 63.2nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3910pF @ 25V
FET Feature : -
Power Dissipation (Max) : 61W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 48A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 4 mOhm @ 51A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 63.2nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3910pF @ 25V
FET Feature : -
Power Dissipation (Max) : 61W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
100 in stock
DKI04046
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 48A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5.2 mOhm @ 35.4A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 650µA
Gate Charge (Qg) (Max) @ Vgs : 35.3nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2410pF @ 25V
FET Feature : -
Power Dissipation (Max) : 47W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 48A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 5.2 mOhm @ 35.4A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 650µA
Gate Charge (Qg) (Max) @ Vgs : 35.3nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2410pF @ 25V
FET Feature : -
Power Dissipation (Max) : 47W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
100 in stock

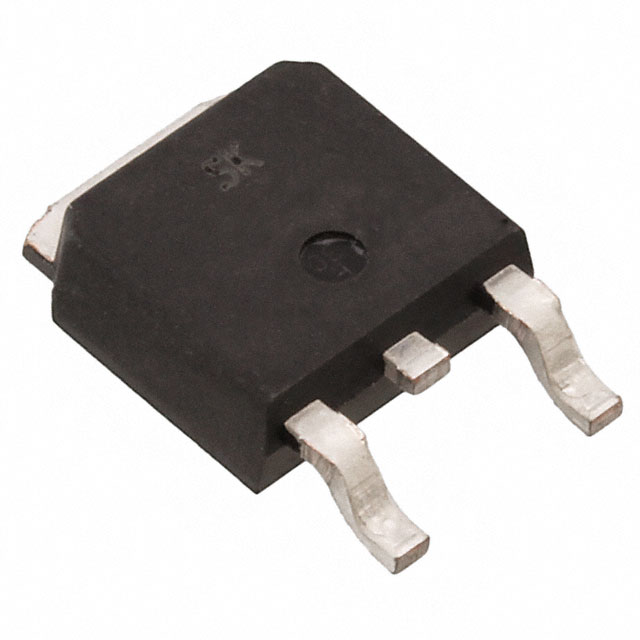

DKI04077
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 47A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 8.9 mOhm @ 23.3A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 350µA
Gate Charge (Qg) (Max) @ Vgs : 18.5nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1470pF @ 25V
FET Feature : -
Power Dissipation (Max) : 37W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 47A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 8.9 mOhm @ 23.3A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 350µA
Gate Charge (Qg) (Max) @ Vgs : 18.5nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 1470pF @ 25V
FET Feature : -
Power Dissipation (Max) : 37W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
100 in stock
DKI04103
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 29A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 11.5 mOhm @ 18.8A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 14.5nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 990pF @ 25V
FET Feature : -
Power Dissipation (Max) : 32W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 40V
Current - Continuous Drain (Id) @ 25°C : 29A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 11.5 mOhm @ 18.8A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 14.5nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 990pF @ 25V
FET Feature : -
Power Dissipation (Max) : 32W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
2 in stock
DKI06075
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 48A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 6.5 mOhm @ 34A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 53.6nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3810pF @ 25V
FET Feature : -
Power Dissipation (Max) : 61W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 48A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 6.5 mOhm @ 34A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 53.6nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 3810pF @ 25V
FET Feature : -
Power Dissipation (Max) : 61W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
100 in stock
DKI06108
Sanken Electric Co., Ltd.
Manufacturer : Sanken
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 47A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 9.1 mOhm @ 23.6A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 650µA
Gate Charge (Qg) (Max) @ Vgs : 38.6nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2520pF @ 25V
FET Feature : -
Power Dissipation (Max) : 47W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : N-Channel
Technology : MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) : 60V
Current - Continuous Drain (Id) @ 25°C : 47A (Tc)
Drive Voltage (Max Rds On, Min Rds On) : 4.5V, 10V
Rds On (Max) @ Id, Vgs : 9.1 mOhm @ 23.6A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 650µA
Gate Charge (Qg) (Max) @ Vgs : 38.6nC @ 10V
Vgs (Max) : ±20V
Input Capacitance (Ciss) (Max) @ Vds : 2520pF @ 25V
FET Feature : -
Power Dissipation (Max) : 47W (Tc)
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Supplier Device Package : TO-252
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
0
12 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
