Orion Fans
- For nearly two decades Orion Fans, a division of Knight Electronics has been supplying and designing thermal management solutions for demanding applications worldwide. Orion provides one of the industry’s broadest lines of AC, DC fans, blowers, fan trays and accessories. Fast response and short lead times provide customers the right product when they need it. Orion offers price, quality and availability.
Part Number
Manufacturer
Description
Unit Price
In Stock
Orion Fans
Manufacturer : Orion Fans
Series : OA172SAP
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 51.00mm
Air Flow : 210.0 CFM (5.88m鲁/min)
Static Pressure : 0.490 in H2O (122.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB(A)
Power (Watts) : 42.00W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus
Weight : 2.7 lbs (1.2kg)
0
8 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA172SAPL
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 38.50mm
Air Flow : 228.0 CFM (6.38m鲁/min)
Static Pressure : 0.870 in H2O (216.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB
Power (Watts) : 28.00W
RPM : 3400 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
85 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA172SAPL
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 38.00mm
Air Flow : 228.0 CFM (6.38m鲁/min)
Static Pressure : 0.870 in H2O (216.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB
Power (Watts) : 28.00W
RPM : 3400 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
21 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA172SAPL
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 38.50mm
Air Flow : 162.0 CFM (4.54m鲁/min)
Static Pressure : 0.350 in H2O (87.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 50.0 dB
Power (Watts) : 27.00W
RPM : 2750 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
15 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA172SAPL
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 38.50mm
Air Flow : 103.0 CFM (2.88m鲁/min)
Static Pressure : 0.260 in H2O (64.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 44.0 dB
Power (Watts) : 26.00W
RPM : 1700 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
10 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA172SAPL
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 38.50mm
Air Flow : 228.0 CFM (6.38m鲁/min)
Static Pressure : 0.870 in H2O (216.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB
Power (Watts) : 28.00W
RPM : 3400 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
415 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA172SAPL
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 38.00mm
Air Flow : 228.0 CFM (6.38m鲁/min)
Static Pressure : 0.870 in H2O (216.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB
Power (Watts) : 28.00W
RPM : 3400 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
51 in stock

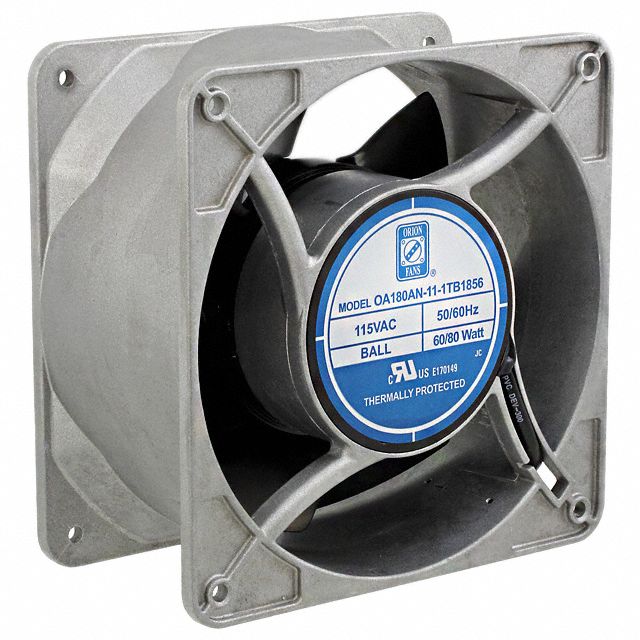

Orion Fans
Manufacturer : Orion Fans
Series : OA180AN
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 176mm L x 176mm H
Width : 89.00mm
Air Flow : 380.0 CFM (10.64m鲁/min)
Static Pressure : 0.760 in H2O (189.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 63.0 dB(A)
Power (Watts) : 50.0W
RPM : 3250 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 4.1 lbs (1.9kg)
0
10 in stock

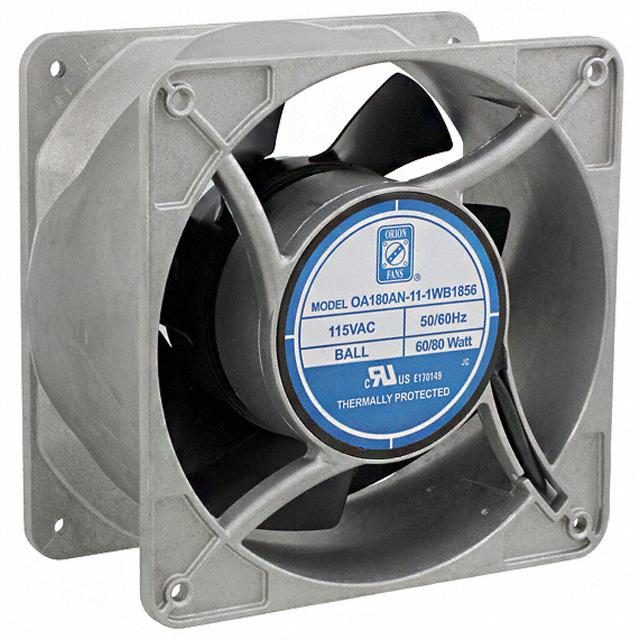

Orion Fans
Manufacturer : Orion Fans
Series : OA180AN
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 176mm L x 176mm H
Width : 89.00mm
Air Flow : 380.0 CFM (10.64m鲁/min)
Static Pressure : 0.760 in H2O (189.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 63.0 dB(A)
Power (Watts) : 50.0W
RPM : 3250 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 4.1 lbs (1.9kg)
0
27 in stock

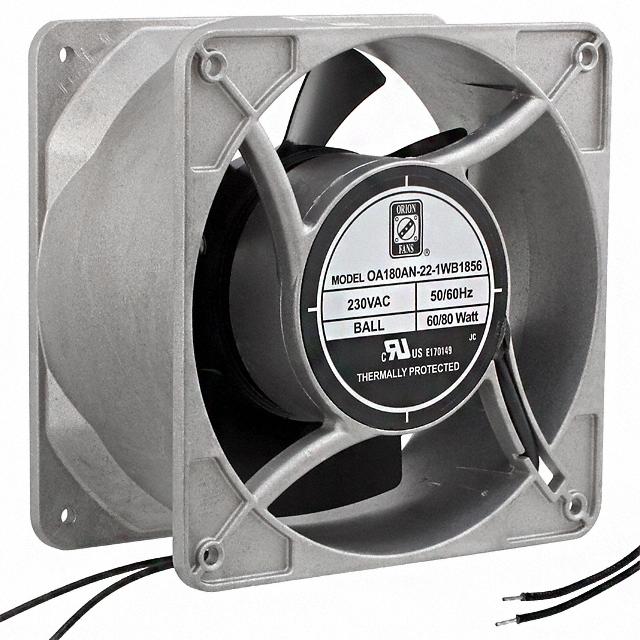

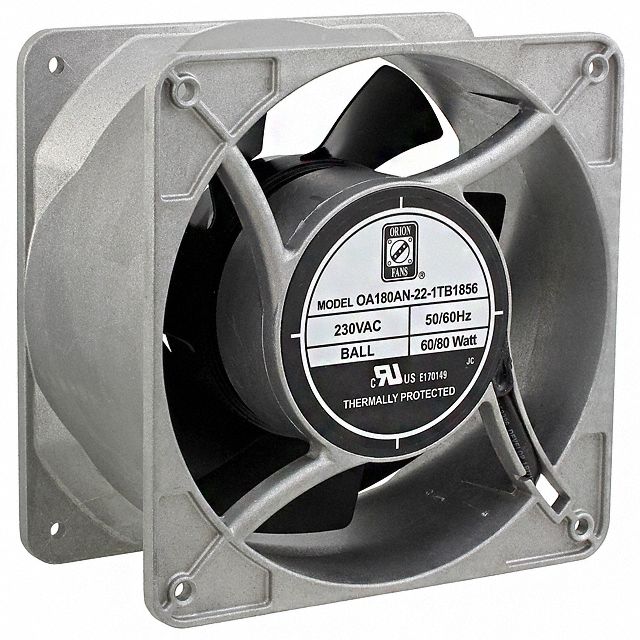

Orion Fans
Manufacturer : Orion Fans
Series : OA180AN
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 176mm L x 176mm H
Width : 89.00mm
Air Flow : 380.0 CFM (10.64m鲁/min)
Static Pressure : 0.760 in H2O (189.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 63.0 dB(A)
Power (Watts) : 50.0W
RPM : 3250 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 4.1 lbs (1.9kg)
0
19 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA180AN
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 176mm L x 176mm H
Width : 89.00mm
Air Flow : 380.0 CFM (10.64m鲁/min)
Static Pressure : 0.760 in H2O (189.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 63.0 dB(A)
Power (Watts) : 50.0W
RPM : 3250 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 4.1 lbs (1.9kg)
0
5 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA180APL
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 180mm L x 180mm H
Width : 65.00mm
Air Flow : 370.0 CFM (10.36m鲁/min)
Static Pressure : 0.750 in H2O (186.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 63.0 dB(A)
Power (Watts) : 76.0W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 3.7 lbs (1.7kg)
0
5 in stock
