- For nearly two decades Orion Fans, a division of Knight Electronics has been supplying and designing thermal management solutions for demanding applications worldwide. Orion provides one of the industry’s broadest lines of AC, DC fans, blowers, fan trays and accessories. Fast response and short lead times provide customers the right product when they need it. Orion offers price, quality and availability.
Part Number
Manufacturer
Description
Unit Price
In Stock
Orion Fans
Manufacturer : Orion Fans
Series : OA180APL
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 180mm L x 180mm H
Width : 65.00mm
Air Flow : 370.0 CFM (10.36m鲁/min)
Static Pressure : 0.750 in H2O (186.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 63.0 dB(A)
Power (Watts) : 76.0W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 3.7 lbs (1.7kg)
0
1 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA180APL
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 180mm L x 180mm H
Width : 65.00mm
Air Flow : 370.0 CFM (10.36m鲁/min)
Static Pressure : 0.750 in H2O (186.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 63.0 dB(A)
Power (Watts) : 76.0W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 3.7 lbs (1.7kg)
0
9 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA180APL
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 180mm L x 180mm H
Width : 65.00mm
Air Flow : 370.0 CFM (10.36m鲁/min)
Static Pressure : 0.750 in H2O (186.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 63.0 dB(A)
Power (Watts) : 76.0W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 3.7 lbs (1.7kg)
0
7 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA180AP
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 180mm L x 180mm H
Width : 89.00mm
Air Flow : 375.0 CFM (10.50m鲁/min)
Static Pressure : 0.860 in H2O (214.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 62.0 dB
Power (Watts) : 70.0W
RPM : 3350 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
25 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA180AP
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 180mm L x 180mm H
Width : 89.00mm
Air Flow : 375.0 CFM (10.50m鲁/min)
Static Pressure : 0.860 in H2O (214.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 62.0 dB
Power (Watts) : 70.0W
RPM : 3350 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
26 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA180AP
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 180mm L x 180mm H
Width : 89.00mm
Air Flow : 375.0 CFM (10.50m鲁/min)
Static Pressure : 0.860 in H2O (214.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 62.0 dB
Power (Watts) : 70.0W
RPM : 3350 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
86 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA180AP
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 180mm L x 180mm H
Width : 89.00mm
Air Flow : 375.0 CFM (10.50m鲁/min)
Static Pressure : 0.860 in H2O (214.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 62.0 dB
Power (Watts) : 70.0W
RPM : 3350 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
24 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA180APL
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 180mm L x 180mm H
Width : 65.00mm
Air Flow : 405.0 CFM (11.34m鲁/min)
Static Pressure : 0.830 in H2O (206.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 60.0 dB
Power (Watts) : 70.0W
RPM : 3300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
35 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA180APL
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 180mm L x 180mm H
Width : 65.00mm
Air Flow : 405.0 CFM (11.34m鲁/min)
Static Pressure : 0.830 in H2O (206.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 60.0 dB
Power (Watts) : 70.0W
RPM : 3300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
15 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA180APL
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 180mm L x 180mm H
Width : 65.00mm
Air Flow : 405.0 CFM (11.34m鲁/min)
Static Pressure : 0.830 in H2O (206.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 60.0 dB
Power (Watts) : 70.0W
RPM : 3300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
83 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA180APL
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 180mm L x 180mm H
Width : 65.00mm
Air Flow : 405.0 CFM (11.34m鲁/min)
Static Pressure : 0.830 in H2O (206.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 60.0 dB
Power (Watts) : 70.0W
RPM : 3300 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -4 ~ 176°F (-20 ~ 80°C)
Approvals : cURus, TUV
Weight : -
0
10 in stock

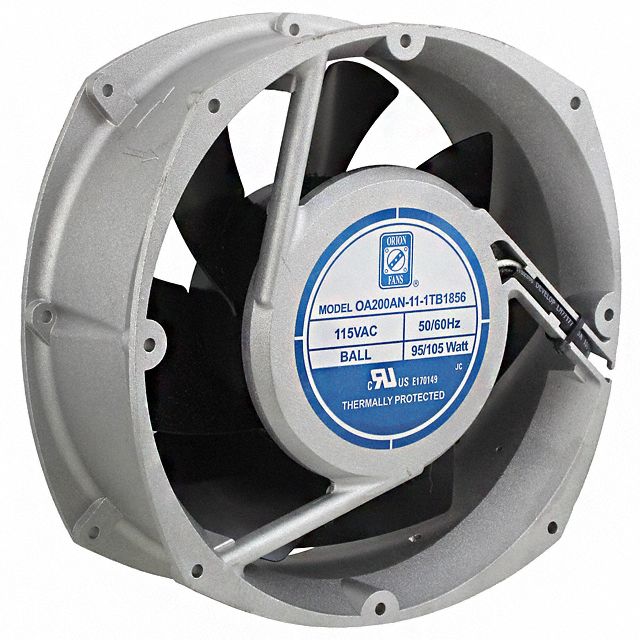

Orion Fans
Manufacturer : Orion Fans
Series : OA200AN
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Round - 200mm Dia
Width : 70.00mm
Air Flow : 485.0 CFM (13.58m鲁/min)
Static Pressure : 0.930 in H2O (231.7 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 68.0 dB(A)
Power (Watts) : 105W
RPM : 3300 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus, TUV
Weight : 3.9 lbs (1.8kg)
0
5 in stock
