Orion Fans

- For nearly two decades Orion Fans, a division of Knight Electronics has been supplying and designing thermal management solutions for demanding applications worldwide. Orion provides one of the industry’s broadest lines of AC, DC fans, blowers, fan trays and accessories. Fast response and short lead times provide customers the right product when they need it. Orion offers price, quality and availability.


Part Number

Manufacturer

Description

Unit Price

In Stock

OA172SAP-11-1TBIP55

Orion Fans

Manufacturer : Orion Fans
Series : OA172SAP
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 51.00mm
Air Flow : 226.0 CFM (6.33m鲁/min)
Static Pressure : 0.790 in H2O (196.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB
Power (Watts) : 31.00W
RPM : 3400 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : cURus, TUV
Weight : -

12 in stock

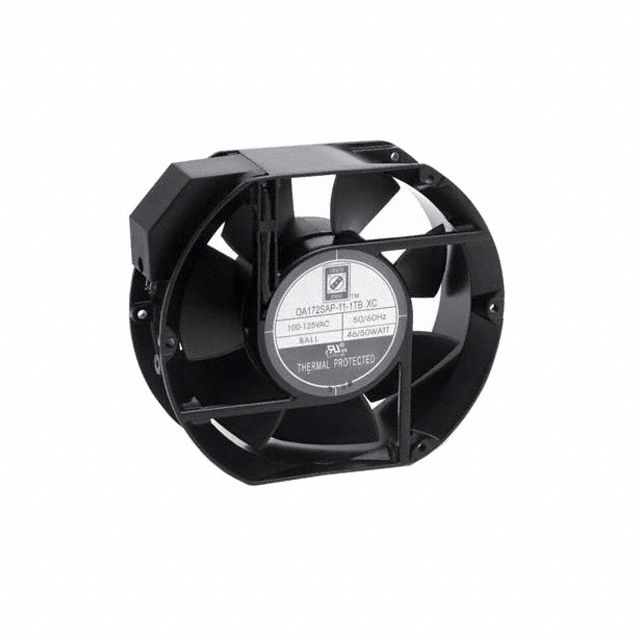

OA172SAP-11-1TBXC

Orion Fans

Manufacturer : Orion Fans
Series : OA172SAP
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 300.0 CFM (8.40m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB
Power (Watts) : 50.0W
RPM : 3300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -

312 in stock

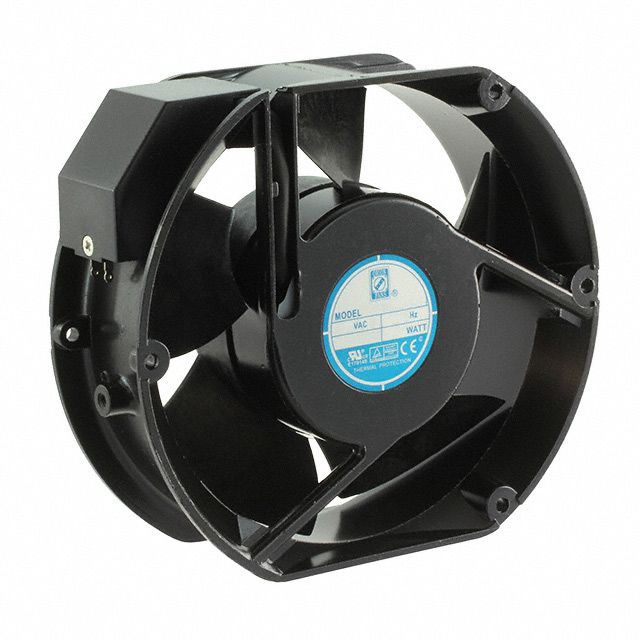

OA172SAP-11-1TBXC(SF)

Orion Fans

Manufacturer : Orion Fans
Series : OA172SAP
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 55.00mm
Air Flow : 293.0 CFM (8.20m鲁/min)
Static Pressure : 0.900 in H2O (224.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Salt Fog Rated
Noise : 60.0 dB
Power (Watts) : 38.00W
RPM : 3400 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : cURus, TUV
Weight : -

9 in stock

OA172SAP-11-1WB

Orion Fans

Manufacturer : Orion Fans
Series : OA172SAP
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 235.0 CFM (6.58m鲁/min)
Static Pressure : 0.700 in H2O (174.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB
Power (Watts) : 35.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -

8 in stock

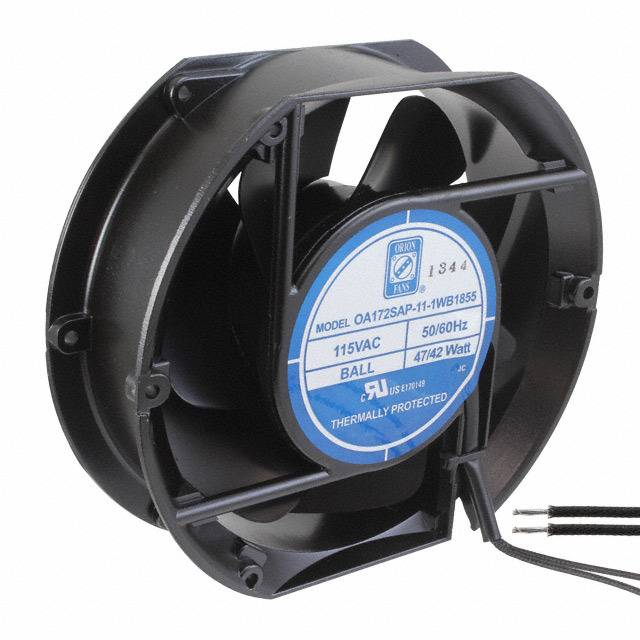

OA172SAP-11-1WB1855

Orion Fans

Manufacturer : Orion Fans
Series : OA172SAP
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 51.00mm
Air Flow : 210.0 CFM (5.88m鲁/min)
Static Pressure : 0.490 in H2O (122.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB(A)
Power (Watts) : 42.00W
RPM : 3100 RPM
Termination : 2 Wire Leads
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -22 ~ 176°F (-30 ~ 80°C)
Approvals : cURus
Weight : 2.7 lbs (1.2kg)

17 in stock

OA172SAP-11-2TB

Orion Fans

Manufacturer : Orion Fans
Series : OA172SAP
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 170.0 CFM (4.76m鲁/min)
Static Pressure : 0.490 in H2O (122.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 42.0 dB
Power (Watts) : 20.00W
RPM : 2400 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -

17 in stock

OA172SAP-11-3TB

Orion Fans

Manufacturer : Orion Fans
Series : OA172SAP
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 135.0 CFM (3.78m鲁/min)
Static Pressure : 0.430 in H2O (107.1 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 33.0 dB
Power (Watts) : 16.00W
RPM : 1800 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -

34 in stock

OA172SAP-22-1TB

Orion Fans

Manufacturer : Orion Fans
Series : OA172SAP
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 235.0 CFM (6.58m鲁/min)
Static Pressure : 0.700 in H2O (174.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB
Power (Watts) : 35.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -

68 in stock

OA172SAP-22-1TBIP55

Orion Fans

Manufacturer : Orion Fans
Series : OA172SAP
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 51.00mm
Air Flow : 226.0 CFM (6.33m鲁/min)
Static Pressure : 0.790 in H2O (196.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 58.0 dB
Power (Watts) : 29.00W
RPM : 3400 RPM
Termination : 2 Terminals
Ingress Protection : IP55 - Dust Protected, Water Resistant
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : cURus, TUV
Weight : -

4 in stock

OA172SAP-22-1TBXC

Orion Fans

Manufacturer : Orion Fans
Series : OA172SAP
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 300.0 CFM (8.40m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 61.0 dB
Power (Watts) : 50.0W
RPM : 3300 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -

512 in stock

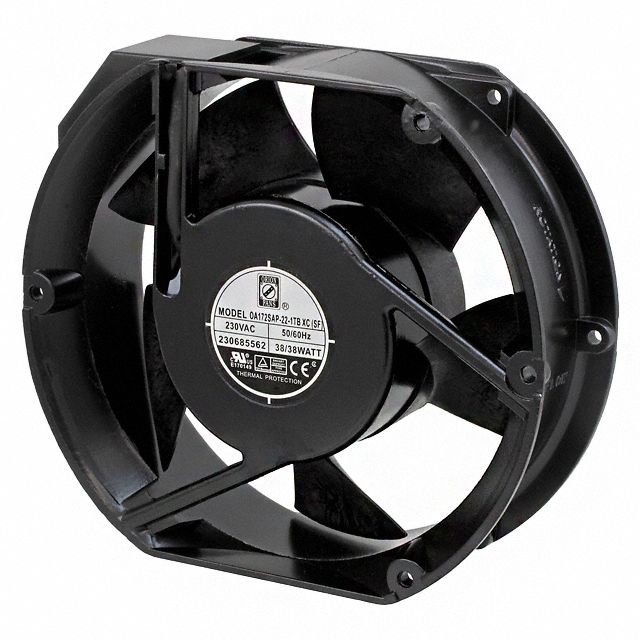

OA172SAP-22-1TBXC(SF)

Orion Fans

Manufacturer : Orion Fans
Series : OA172SAP
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 55.00mm
Air Flow : 293.0 CFM (8.20m鲁/min)
Static Pressure : 0.900 in H2O (224.2 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Salt Fog Rated
Noise : 60.0 dB
Power (Watts) : 38.00W
RPM : 3400 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : cURus, TUV
Weight : -

11 in stock

OA172SAP-22-1WB

Orion Fans

Manufacturer : Orion Fans
Series : OA172SAP
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 235.0 CFM (6.58m鲁/min)
Static Pressure : 0.700 in H2O (174.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB
Power (Watts) : 35.00W
RPM : 3200 RPM
Termination : 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -

10 in stock
