Orion Fans
- For nearly two decades Orion Fans, a division of Knight Electronics has been supplying and designing thermal management solutions for demanding applications worldwide. Orion provides one of the industry’s broadest lines of AC, DC fans, blowers, fan trays and accessories. Fast response and short lead times provide customers the right product when they need it. Orion offers price, quality and availability.
Part Number
Manufacturer
Description
Unit Price
In Stock

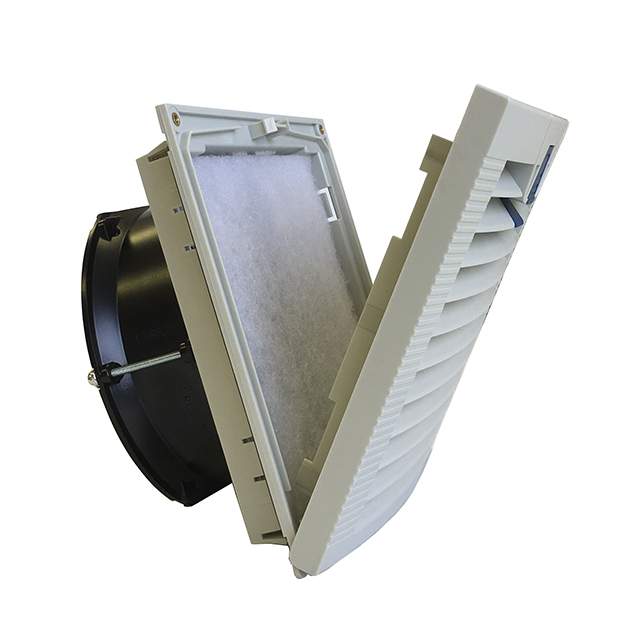

Orion Fans
Manufacturer : Orion Fans
Series : OA172LFGH
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 207mm L x 207mm H
Width : 112.3mm
Air Flow : 235.0 CFM (6.58m鲁/min)
Static Pressure : 0.700 in H2O (174.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 52.0 dB
Power (Watts) : 35.00W
RPM : 3200 RPM
Termination : 2 Terminals or 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
6 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA172LFGH XC
Part Status : Active
Voltage - Rated : 120VAC
Size / Dimension : Square - 207mm L x 207mm H
Width : 112.3mm
Air Flow : 300.0 CFM (8.40m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 61.0 dB
Power (Watts) : 50.0W
RPM : 3300 RPM
Termination : 2 Terminals or 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
11 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA172LFGH
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 207mm L x 207mm H
Width : 112.3mm
Air Flow : 235.0 CFM (6.58m鲁/min)
Static Pressure : 0.700 in H2O (174.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 52.0 dB
Power (Watts) : 35.00W
RPM : 3200 RPM
Termination : 2 Terminals or 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
6 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA172LFGH XC
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 207mm L x 207mm H
Width : 112.3mm
Air Flow : 300.0 CFM (8.40m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 61.0 dB
Power (Watts) : 50.0W
RPM : 3300 RPM
Termination : 2 Terminals or 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
6 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA172LFGS
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Square - 209mm L x 209mm H
Width : 101.3mm
Air Flow : 235.0 CFM (6.58m鲁/min)
Static Pressure : 0.700 in H2O (174.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 52.0 dB
Power (Watts) : 35.00W
RPM : 3200 RPM
Termination : 2 Terminals or 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
6 in stock

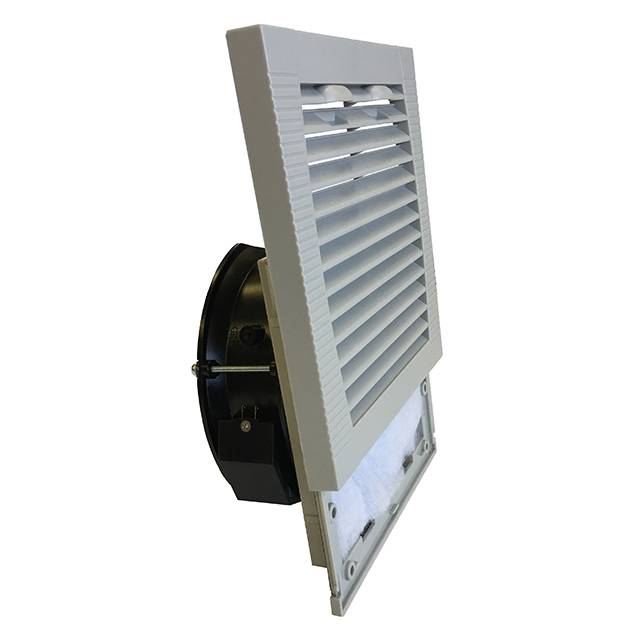

Orion Fans
Manufacturer : Orion Fans
Series : OA172LFGS XC
Part Status : Active
Voltage - Rated : 120VAC
Size / Dimension : Square - 209mm L x 209mm H
Width : 101.3mm
Air Flow : 300.0 CFM (8.40m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 61.0 dB
Power (Watts) : 50.0W
RPM : 3300 RPM
Termination : 2 Terminals or 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
3 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA172LFGS
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 209mm L x 209mm H
Width : 101.3mm
Air Flow : 235.0 CFM (6.58m鲁/min)
Static Pressure : 0.700 in H2O (174.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 52.0 dB
Power (Watts) : 35.00W
RPM : 3200 RPM
Termination : 2 Terminals or 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
6 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA172LFGS XC
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Square - 209mm L x 209mm H
Width : 101.3mm
Air Flow : 300.0 CFM (8.40m鲁/min)
Static Pressure : 0.780 in H2O (194.3 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Kit
Noise : 61.0 dB
Power (Watts) : 50.0W
RPM : 3300 RPM
Termination : 2 Terminals or 2 Wire Leads
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
6 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA172S
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 235.0 CFM (6.58m鲁/min)
Static Pressure : 0.700 in H2O (174.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB
Power (Watts) : 35.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
15 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA172S
Part Status : Active
Voltage - Rated : 230VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 235.0 CFM (6.58m鲁/min)
Static Pressure : 0.700 in H2O (174.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB
Power (Watts) : 35.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
19 in stock

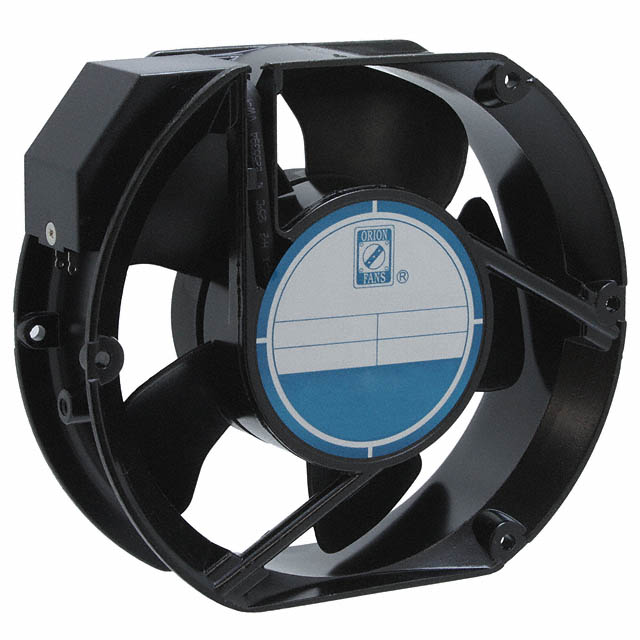

Orion Fans
Manufacturer : Orion Fans
Series : OA172SAP
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 50.80mm
Air Flow : 235.0 CFM (6.58m鲁/min)
Static Pressure : 0.700 in H2O (174.4 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : -
Noise : 52.0 dB
Power (Watts) : 35.00W
RPM : 3200 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -40 ~ 158°F (-40 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
892 in stock
Orion Fans
Manufacturer : Orion Fans
Series : OA172SAP
Part Status : Active
Voltage - Rated : 115VAC
Size / Dimension : Rectangular/Rounded - 172mm L x 150mm H
Width : 51.00mm
Air Flow : 226.0 CFM (6.33m鲁/min)
Static Pressure : 0.790 in H2O (196.8 Pa)
Bearing Type : Ball
Fan Type : Tubeaxial
Features : Salt Fog Rated
Noise : 58.0 dB
Power (Watts) : 31.00W
RPM : 3400 RPM
Termination : 2 Terminals
Ingress Protection : -
Operating Temperature : -4 ~ 158°F (-20 ~ 70°C)
Approvals : cURus, TUV
Weight : -
0
31 in stock

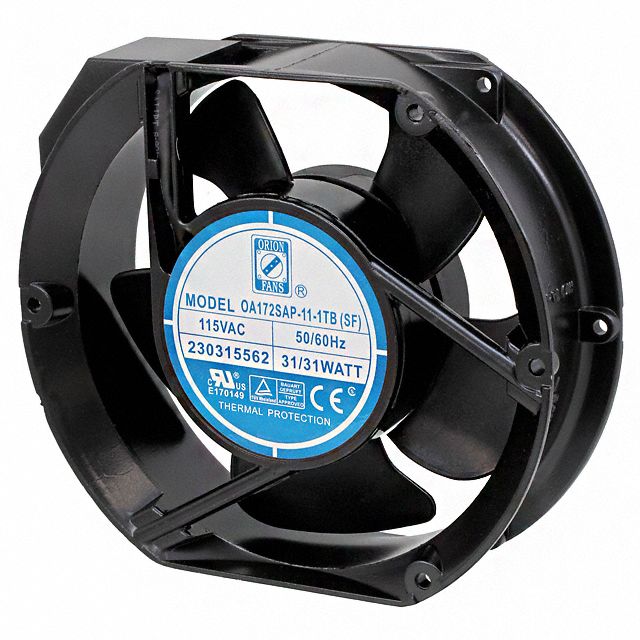

.jpg "Show details for OA172SAP-11-1TB(SF)")
