Cardinal Components

- Cardinal Components is a leading quartz crystal and oscillator manufacturer offering a broad range of frequency control products in standard through-hole and surface mount packages made of metal, plastic or ceramic materials. Specialities include TCXO, VCXO, and VCTCXO oscillators as well as standard clock oscillators, and quartz crystals with tight tolerances, wide temperature ranges, as well as standard specifications. Cardinal has introduced the world's first Field Instantly Programmable Oscillator called FIPO. The company is ISO-9002 certified.


Part Number

Manufacturer

Description

Unit Price

In Stock

CSM1Z-A5B2C5-40-14.7456D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 14.7456MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 40 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)

1783 in stock

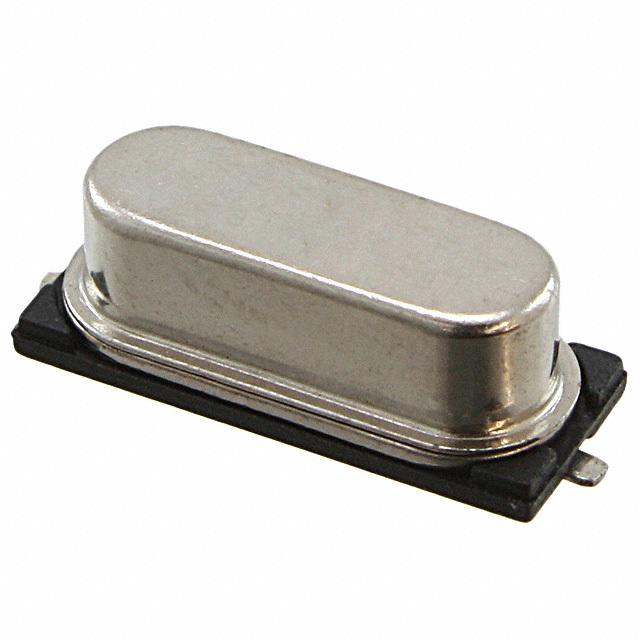

CSM1Z-A5B2C5-50-20.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Active
Type : MHz Crystal
Frequency : 20MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)

527 in stock

CSM1Z-A5B2C5-60-24.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Active
Type : MHz Crystal
Frequency : 24MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)

446 in stock

CSM1Z-A5B2C5-60-8.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 8MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)

302 in stock

CSM4Z-A2B3C3-180-4.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM4
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 4MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 180 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.138" (3.50mm)

649 in stock

CSM4Z-A2B3C3-40-10.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM4
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 10MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 40 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.138" (3.50mm)

993 in stock

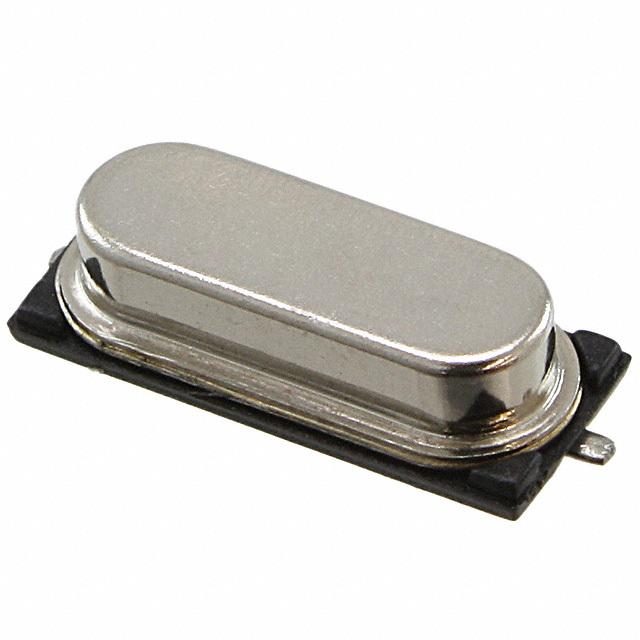

CSM4Z-A2B3C3-40-12.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM4
Part Status : Active
Type : MHz Crystal
Frequency : 12MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 40 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.138" (3.50mm)

3409 in stock

CSM4Z-A2B3C3-40-16.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM4
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 16MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 40 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.138" (3.50mm)

126 in stock

CSM4Z-A2B3C3-40-20.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM4
Part Status : Active
Type : MHz Crystal
Frequency : 20MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 40 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.138" (3.50mm)

480 in stock

CSM4Z-A2B3C3-40-25.0D18-F

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM4
Part Status : Active
Type : MHz Crystal
Frequency : 25MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 40 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.138" (3.50mm)

1197 in stock

CSM4Z-A2B3C3-40-26.0D18-F

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM4
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 26MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 40 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.138" (3.50mm)

795 in stock

CSM4Z-A2B3C3-40-29.49152D18-F

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM4
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 29.49152MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 40 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.138" (3.50mm)

984 in stock
