Cardinal Components

- Cardinal Components is a leading quartz crystal and oscillator manufacturer offering a broad range of frequency control products in standard through-hole and surface mount packages made of metal, plastic or ceramic materials. Specialities include TCXO, VCXO, and VCTCXO oscillators as well as standard clock oscillators, and quartz crystals with tight tolerances, wide temperature ranges, as well as standard specifications. Cardinal has introduced the world's first Field Instantly Programmable Oscillator called FIPO. The company is ISO-9002 certified.


Part Number

Manufacturer

Description

Unit Price

In Stock

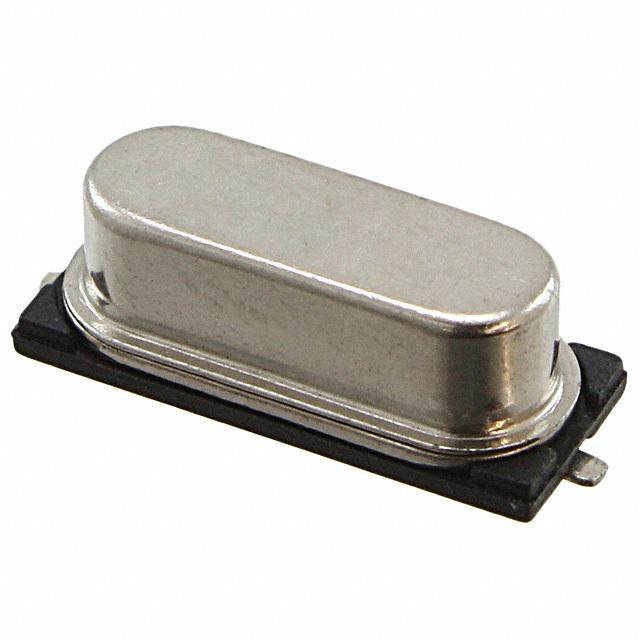

CSM1Z-A0B2C3-50-16.257D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 16.257MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)

982 in stock

CSM1Z-A0B2C3-50-18.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 18MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)

977 in stock

CSM1Z-A0B2C3-50-19.6608D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 19.6608MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)

995 in stock

CSM1Z-A0B2C3-50-22.1184D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 22.1184MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)

925 in stock

CSM1Z-A0B2C3-50-24.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 24MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)

663 in stock

CSM1Z-A0B2C3-50-25.175D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 25.175MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)

952 in stock

CSM1Z-A0B2C3-50-28.63636D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 28.63636MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)

815 in stock

CSM1Z-A0B2C3-80-10.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 10MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 80 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)

470 in stock

CSM1Z-A0B2C3-80-12.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 12MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 80 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)

414 in stock

CSM1Z-A0B2C3-80-13.5D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 13.5MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 80 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)

987 in stock

CSM1Z-A1B2C3-90-8.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 8MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 90 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)

310 in stock

CSM1Z-A2B2C3-40-30.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Active
Type : MHz Crystal
Frequency : 30MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 40 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)

1554 in stock
