Cardinal Components
- Cardinal Components is a leading quartz crystal and oscillator manufacturer offering a broad range of frequency control products in standard through-hole and surface mount packages made of metal, plastic or ceramic materials. Specialities include TCXO, VCXO, and VCTCXO oscillators as well as standard clock oscillators, and quartz crystals with tight tolerances, wide temperature ranges, as well as standard specifications. Cardinal has introduced the world's first Field Instantly Programmable Oscillator called FIPO. The company is ISO-9002 certified.
Part Number
Manufacturer
Description
Unit Price
In Stock

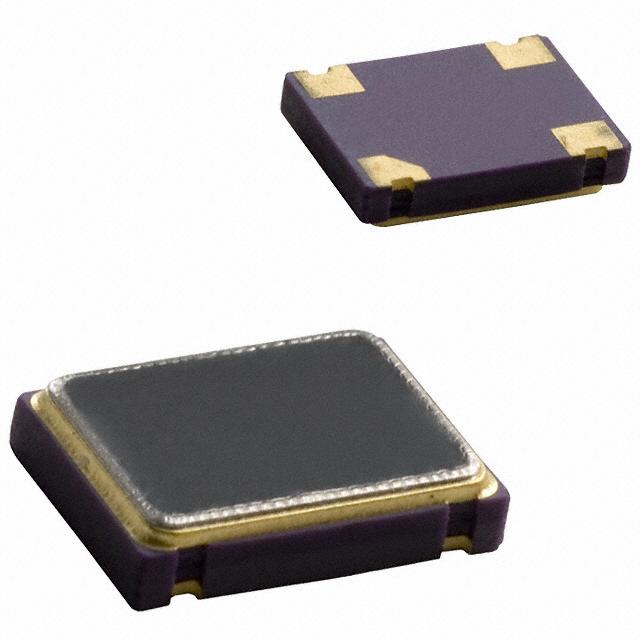

Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Strip
Series : FIPO™CPP
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Blank (User Must Program)
Available Frequency Range : 1MHz ~ 133MHz
Function : Enable/Disable, Standby
Output : CMOS, TTL
Voltage - Supply : 3 V ~ 5.5 V
Frequency Stability : ±25ppm
Frequency Stability (Total) : -
Operating Temperature : -20°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height : 0.067" (1.70mm)
0
1117 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Strip
Series : FIPO™CPP
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Blank (User Must Program)
Available Frequency Range : 1MHz ~ 133MHz
Function : Enable/Disable, Standby
Output : CMOS, TTL
Voltage - Supply : 3 V ~ 5.5 V
Frequency Stability : ±50ppm
Frequency Stability (Total) : -
Operating Temperature : -40°C ~ 85°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height : 0.067" (1.70mm)
0
1570 in stock

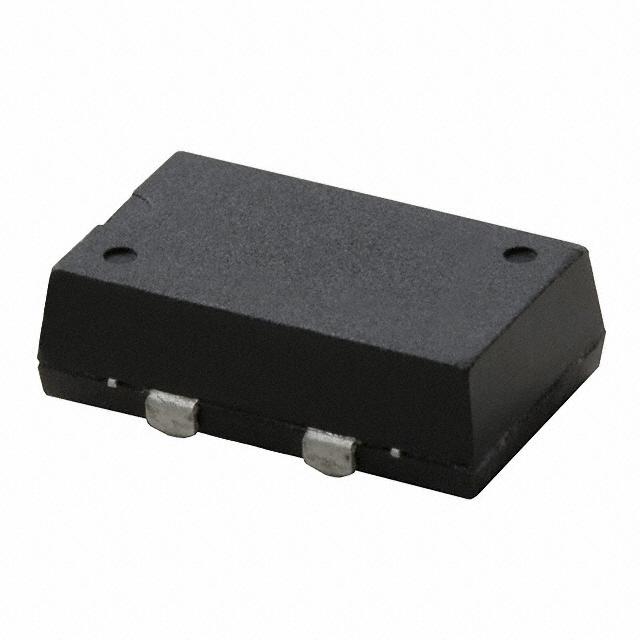

Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Strip
Series : FIPO™CPP
Part Status : Active
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Blank (User Must Program)
Available Frequency Range : 500kHz ~ 133MHz
Function : Enable/Disable, Standby
Output : CMOS, TTL
Voltage - Supply : 3 V ~ 5.5 V
Frequency Stability : ±25ppm
Frequency Stability (Total) : -
Operating Temperature : -20°C ~ 70°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SOJ, 7.62mm pitch
Size / Dimension : 0.551" L x 0.341" W (14.00mm x 8.65mm)
Height : 0.185" (4.70mm)
0
385 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Tube
Series : FIPO™CPP
Part Status : Discontinued at
Base Resonator : Crystal
Type : XO (Standard)
Programmable Type : Programmed by (Enter your frequency in Web Order Notes)
Available Frequency Range : 1MHz ~ 133MHz
Function : Standby
Output : TTL
Voltage - Supply : 5V
Frequency Stability : ±100ppm
Frequency Stability (Total) : -
Operating Temperature : -40°C ~ 85°C
Spread Spectrum Bandwidth : -
Current - Supply (Max) : 45mA
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SOJ, 7.62mm pitch
Size / Dimension : 0.551" L x 0.341" W (14.00mm x 8.65mm)
Height : 0.185" (4.70mm)
0
100 in stock

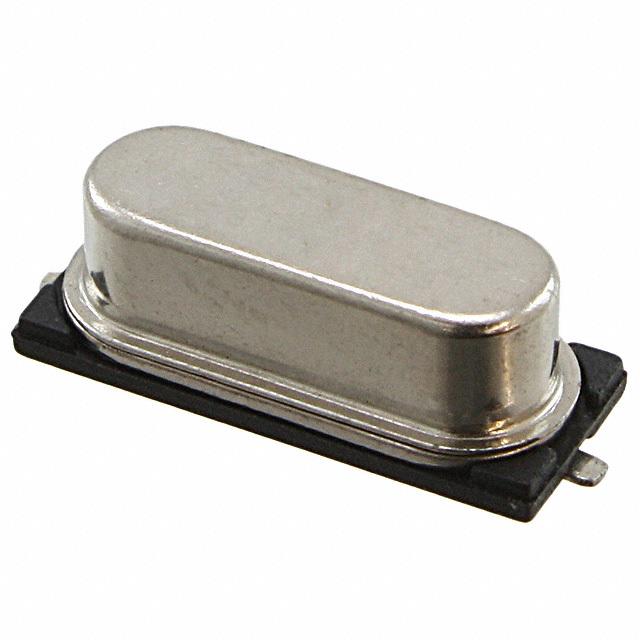

Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 20MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 16pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)
0
440 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 3.579545MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 180 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)
0
230 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 5MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 100 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)
0
1811 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 6.144MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 100 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)
0
850 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 7.3728MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 100 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)
0
898 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 4.915MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 150 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)
0
951 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 15.36MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)
0
978 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM1
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 16MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.169" (4.30mm)
0
100 in stock
