Cardinal Components

- Cardinal Components is a leading quartz crystal and oscillator manufacturer offering a broad range of frequency control products in standard through-hole and surface mount packages made of metal, plastic or ceramic materials. Specialities include TCXO, VCXO, and VCTCXO oscillators as well as standard clock oscillators, and quartz crystals with tight tolerances, wide temperature ranges, as well as standard specifications. Cardinal has introduced the world's first Field Instantly Programmable Oscillator called FIPO. The company is ISO-9002 certified.


Part Number

Manufacturer

Description

Unit Price

In Stock

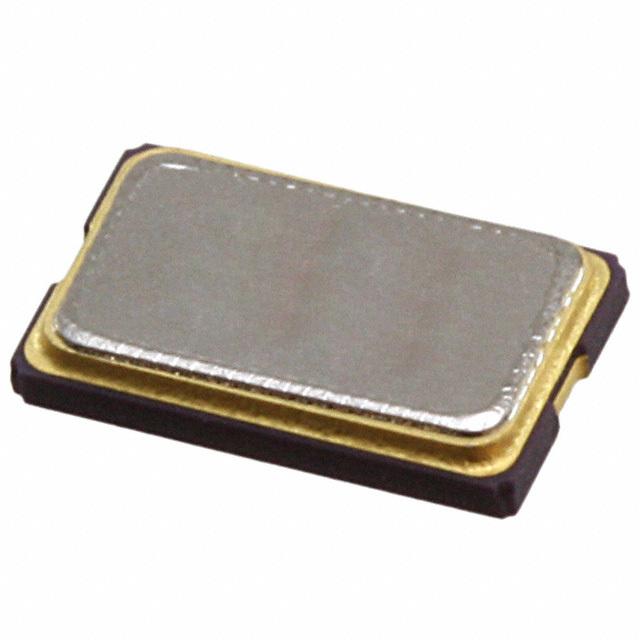

CX532Z-A2B3C5-70-30.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CX532
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 30MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)

530 in stock

CX532Z-A2B3C5-70-33.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CX532
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 33MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)

970 in stock

CX532Z-A2B3C5-70-50.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CX532
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 50MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 70 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)

773 in stock

CX532Z-A2B3C5-70-8.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CX532
Part Status : Active
Type : MHz Crystal
Frequency : 8MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 70 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)

265 in stock

CX532Z-A5B3C5-70-12.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CX532
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 12MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 70 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)

865 in stock

CX532Z-A5B3C5-70-20.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CX532
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 20MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 70 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)

962 in stock

CX532Z-A5B3C5-70-27.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CX532
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 27MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 70 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)

654 in stock

CX5Z-A0B2C5-50-16.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CX5
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 16MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 60°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.283" L x 0.205" W (7.20mm x 5.20mm)
Height - Seated (Max) : 0.051" (1.30mm)

470 in stock

CX5Z-A1B2C5-40-24.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CX5
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 24MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 40 Ohms
Operating Mode : Fundamental
Operating Temperature : -10°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.283" L x 0.205" W (7.20mm x 5.20mm)
Height - Seated (Max) : 0.051" (1.30mm)

904 in stock

CX5Z-A2B2C5-40-10.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CX5
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 10MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 40 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.283" L x 0.205" W (7.20mm x 5.20mm)
Height - Seated (Max) : 0.051" (1.30mm)

218 in stock

CX5Z-A2B2C5-40-25D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CX5
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 25MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 40 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.283" L x 0.205" W (7.20mm x 5.20mm)
Height - Seated (Max) : 0.051" (1.30mm)

100 in stock

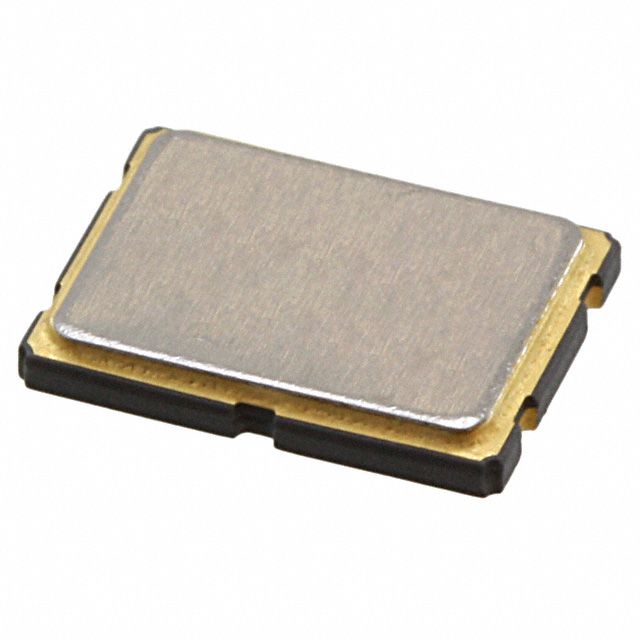

CX5Z-A2B2C5-70-8.0D18

Cardinal Components

Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CX5
Part Status : Active
Type : MHz Crystal
Frequency : 8MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 70 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.283" L x 0.205" W (7.20mm x 5.20mm)
Height - Seated (Max) : 0.051" (1.30mm)

1722 in stock
