Cardinal Components
- Cardinal Components is a leading quartz crystal and oscillator manufacturer offering a broad range of frequency control products in standard through-hole and surface mount packages made of metal, plastic or ceramic materials. Specialities include TCXO, VCXO, and VCTCXO oscillators as well as standard clock oscillators, and quartz crystals with tight tolerances, wide temperature ranges, as well as standard specifications. Cardinal has introduced the world's first Field Instantly Programmable Oscillator called FIPO. The company is ISO-9002 certified.
Part Number
Manufacturer
Description
Unit Price
In Stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

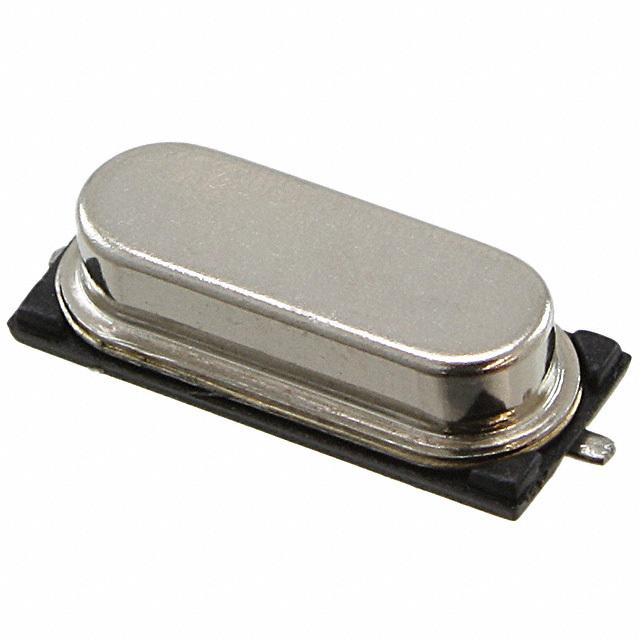

Series : CSM4
Part Status : Active
Type : MHz Crystal
Frequency : 6MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
313 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM4
Part Status : Active
Type : MHz Crystal
Frequency : 8MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
3425 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CSM4
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 9.8304MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±30ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 60 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : HC-49S
Size / Dimension : 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) : 0.138" (3.50mm)
0
633 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Bulk

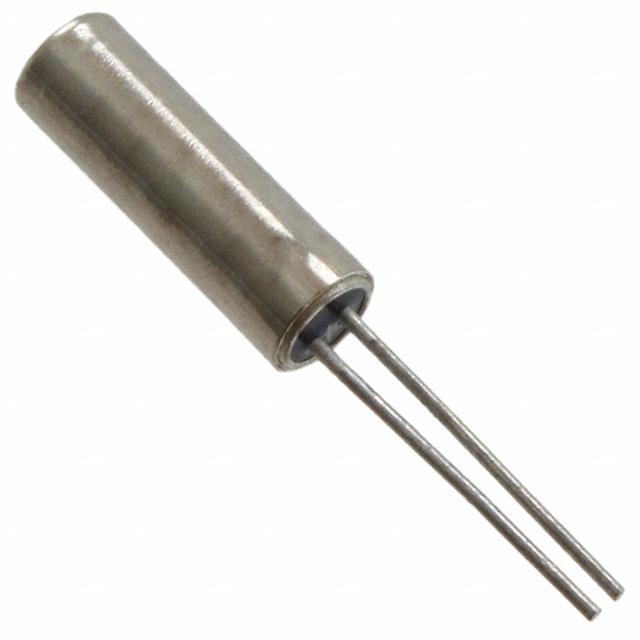

Series : CTF6
Part Status : Active
Type : kHz Crystal (Tuning Fork)
Frequency : 32.768kHz
Frequency Stability : -
Frequency Tolerance : ±20ppm
Load Capacitance : 12.5pF
ESR (Equivalent Series Resistance) : 50 kOhms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Cylindrical Can, Radial
Size / Dimension : 0.079" Dia x 0.236" L (2.00mm x 6.00mm)
Height - Seated (Max) : 0.236" (6.00mm)
0
456 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

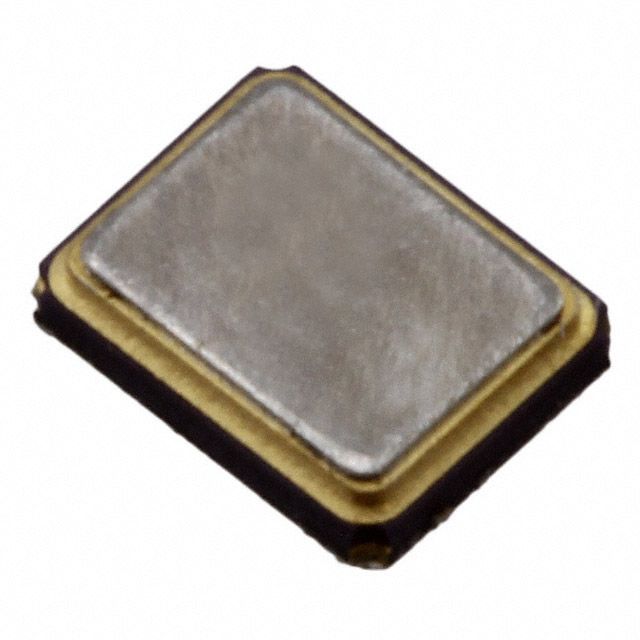

Series : CX325
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 20MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 50 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : 0.039" (1.00mm)
0
1943 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CX532
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 25MHz
Frequency Stability : ±50ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 70 Ohms
Operating Mode : Fundamental
Operating Temperature : -20°C ~ 70°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD, No Lead
Size / Dimension : 0.283" L x 0.205" W (7.20mm x 5.20mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
564 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CX532
Part Status : Active
Type : MHz Crystal
Frequency : 12MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 70 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
916 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging

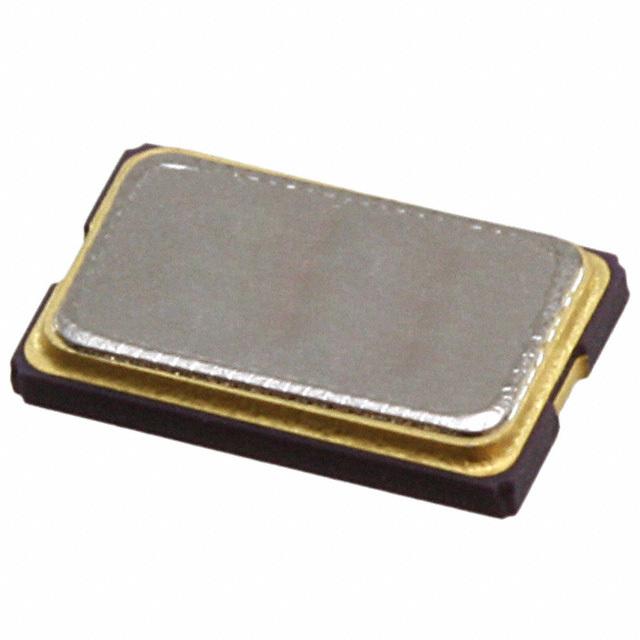

Series : CX532
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 12.288MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 70 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
195 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CX532
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 14.7456MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 70 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
924 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CX532
Part Status : Active
Type : MHz Crystal
Frequency : 16MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 70 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
995 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CX532
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 19.6608MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 70 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
998 in stock
Cardinal Components
Manufacturer : Cardinal Components Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CX532
Part Status : Discontinued at
Type : MHz Crystal
Frequency : 27MHz
Frequency Stability : ±30ppm
Frequency Tolerance : ±20ppm
Load Capacitance : 18pF
ESR (Equivalent Series Resistance) : 70 Ohms
Operating Mode : Fundamental
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 2-SMD, No Lead
Size / Dimension : 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) : 0.059" (1.50mm)
0
329 in stock
