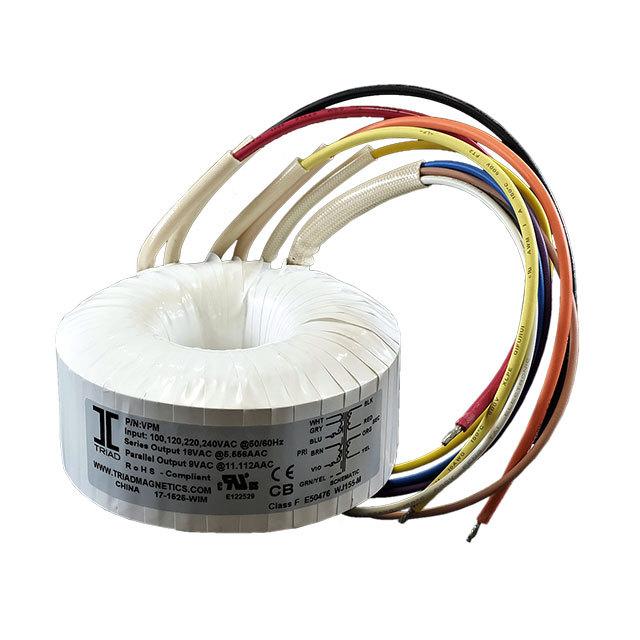

VPM48-3300
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 6.66A, Series 3.33A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 113.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 4 lbs (1.8kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 6.66A, Series 3.33A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 113.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 4 lbs (1.8kg)
0
3 in stock
VPM48-520
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 1.04A, Series 520mA
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 84.00mm Dia
Height - Seated (Max) : 37.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.1 lbs (499g)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 1.04A, Series 520mA
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 84.00mm Dia
Height - Seated (Max) : 37.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.1 lbs (499g)
0
21 in stock
VPM48-5200
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 10.4A, Series 5.2A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 123.00mm Dia
Height - Seated (Max) : 60.00mm
Voltage - Isolation : 4000Vrms
Weight : 5.6 lbs (2.5kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 10.4A, Series 5.2A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 123.00mm Dia
Height - Seated (Max) : 60.00mm
Voltage - Isolation : 4000Vrms
Weight : 5.6 lbs (2.5kg)
0
5 in stock

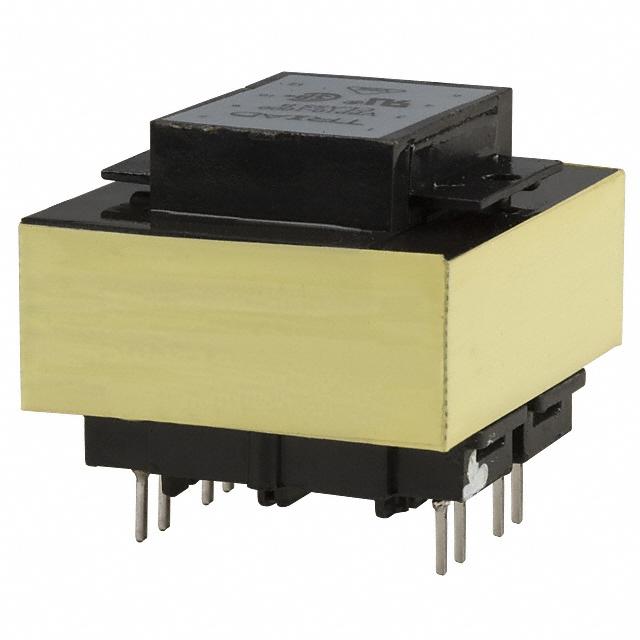

VPP10-1000
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 2A, Series 1A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.63mm L x 39.67mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 4000Vrms
Weight : 0.53 lb (240.4g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 2A, Series 1A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.63mm L x 39.67mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 4000Vrms
Weight : 0.53 lb (240.4g)
0
3609 in stock
VPP10-2000
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 4A, Series 2A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 4000Vrms
Weight : 0.9 lb (408.23g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 4A, Series 2A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 4000Vrms
Weight : 0.9 lb (408.23g)
0
13 in stock
VPP10-250
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 33.32mm W
Height - Seated (Max) : 28.58mm
Voltage - Isolation : 4000Vrms
Weight : 0.25 lb (113.4g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 33.32mm W
Height - Seated (Max) : 28.58mm
Voltage - Isolation : 4000Vrms
Weight : 0.25 lb (113.4g)
0
1213 in stock
VPP10-3000
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 6A, Series 3A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 30 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.67mm
Voltage - Isolation : 4000Vrms
Weight : 1.2 lbs (544.3g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 6A, Series 3A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 30 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.67mm
Voltage - Isolation : 4000Vrms
Weight : 1.2 lbs (544.3g)
0
207 in stock

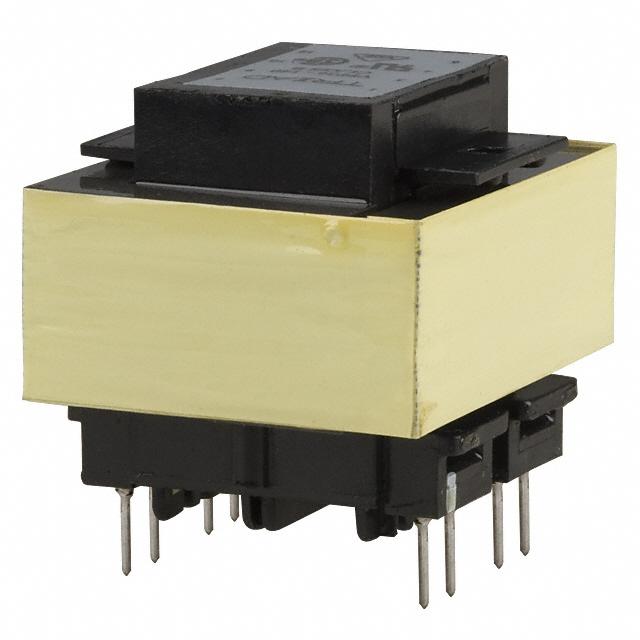

VPP10-500
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 1A, Series 500mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 33.32mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 4000Vrms
Weight : 0.37 lb (167.83g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 1A, Series 500mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 33.32mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 4000Vrms
Weight : 0.37 lb (167.83g)
0
287 in stock

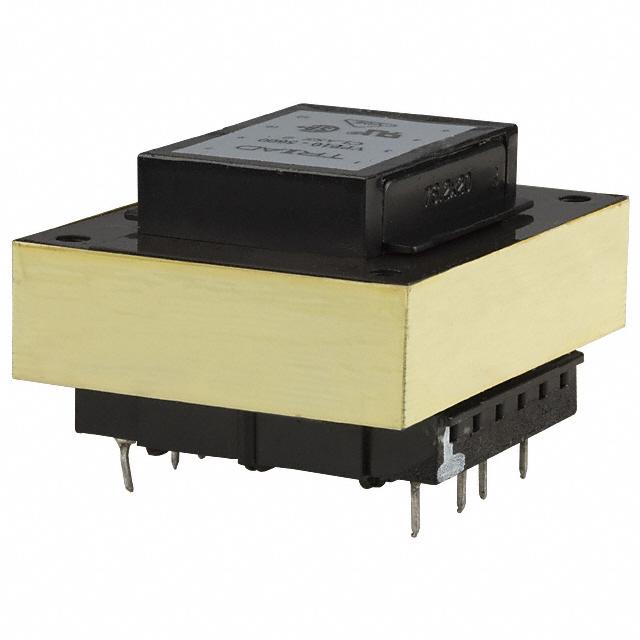

VPP10-5600
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 11.2A, Series 5.6A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 63.50mm W
Height - Seated (Max) : 46.02mm
Voltage - Isolation : 4000Vrms
Weight : 1.7 lbs (771.1g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 5V, Series 10V
Current - Output (Max) : Parallel 11.2A, Series 5.6A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 63.50mm W
Height - Seated (Max) : 46.02mm
Voltage - Isolation : 4000Vrms
Weight : 1.7 lbs (771.1g)
0
160 in stock

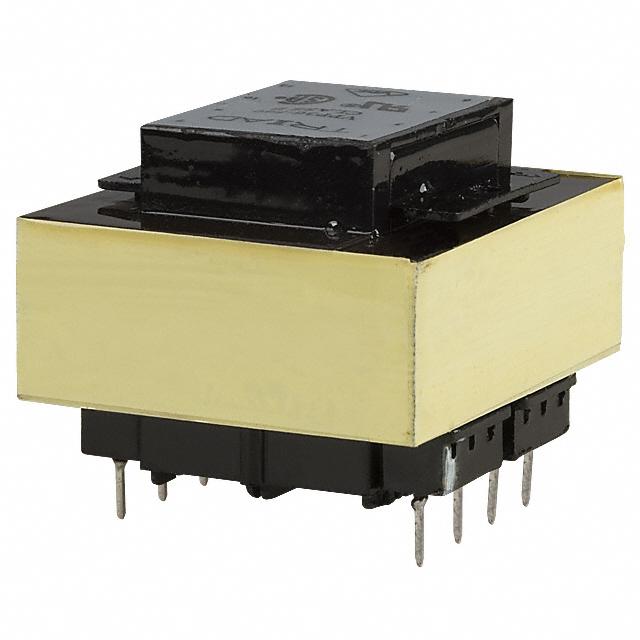

VPP12-1600
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 3.2A, Series 1.6A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 4000Vrms
Weight : 0.9 lb (408.23g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 3.2A, Series 1.6A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 4000Vrms
Weight : 0.9 lb (408.23g)
0
350 in stock
VPP12-200
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 400mA, Series 200mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 33.32mm W
Height - Seated (Max) : 28.58mm
Voltage - Isolation : 4000Vrms
Weight : 0.25 lb (113.4g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 400mA, Series 200mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 33.32mm W
Height - Seated (Max) : 28.58mm
Voltage - Isolation : 4000Vrms
Weight : 0.25 lb (113.4g)
0
413 in stock
VPP12-2400
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 4.8A, Series 2.4A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 30 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.67mm
Voltage - Isolation : 4000Vrms
Weight : 1.2 lbs (544.3g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 6.3V, Series 12.6V
Current - Output (Max) : Parallel 4.8A, Series 2.4A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 30 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.67mm
Voltage - Isolation : 4000Vrms
Weight : 1.2 lbs (544.3g)
0
2628 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
