VPM30-3330
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 6.66A, Series 3.33A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 2.7 lbs (1.2kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 6.66A, Series 3.33A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 2.7 lbs (1.2kg)
0
1 in stock
VPM30-5330
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 10.66A, Series 5.33A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 113.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 4 lbs (1.8kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 10.66A, Series 5.33A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 113.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 4 lbs (1.8kg)
0
3 in stock
VPM30-830
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 1.66A, Series 830mA
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 84.00mm Dia
Height - Seated (Max) : 37.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.1 lbs (499g)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 15V, Series 30V
Current - Output (Max) : Parallel 1.66A, Series 830mA
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 84.00mm Dia
Height - Seated (Max) : 37.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.1 lbs (499g)
0
8 in stock
VPM36-1390
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 2.78A, Series 1.39A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 92.00mm Dia
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.1 lbs (499g)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 2.78A, Series 1.39A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 92.00mm Dia
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.1 lbs (499g)
0
14 in stock
VPM36-2780
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 5.56A, Series 2.78A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 2.7 lbs (1.2kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 5.56A, Series 2.78A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 2.7 lbs (1.2kg)
0
4 in stock
VPM36-4440
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 8.88A, Series 4.44A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 113.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 4.2 lbs (1.9kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 8.88A, Series 4.44A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 113.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 4.2 lbs (1.9kg)
0
32 in stock

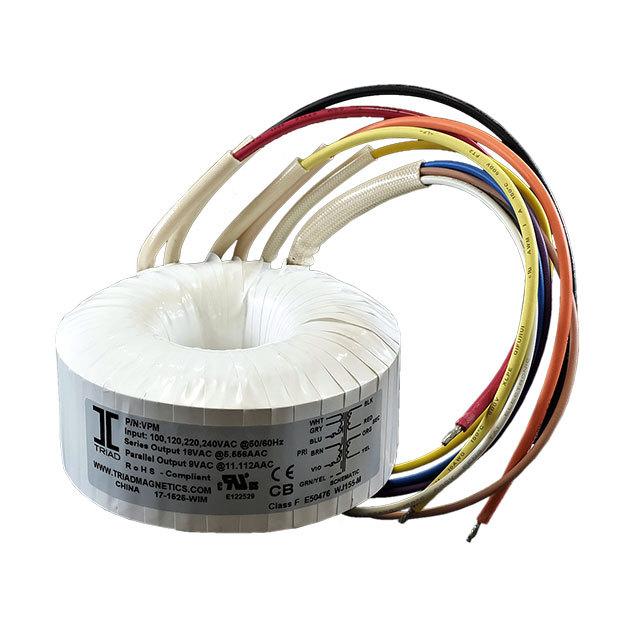

VPM36-690
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 1.38A, Series 690mA
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 84.00mm Dia
Height - Seated (Max) : 37.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.1 lbs (499g)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 1.38A, Series 690mA
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 84.00mm Dia
Height - Seated (Max) : 37.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.1 lbs (499g)
0
9 in stock
VPM36-6940
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 13.88A, Series 6.94A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 123.00mm Dia
Height - Seated (Max) : 60.00mm
Voltage - Isolation : 4000Vrms
Weight : 5.6 lbs (2.5kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 18V, Series 36V
Current - Output (Max) : Parallel 13.88A, Series 6.94A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 123.00mm Dia
Height - Seated (Max) : 60.00mm
Voltage - Isolation : 4000Vrms
Weight : 5.6 lbs (2.5kg)
0
12 in stock
VPM48-1040
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 2.08A, Series 1.04A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 92.00mm Dia
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.6 lbs (725.7g)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 2.08A, Series 1.04A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 92.00mm Dia
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.6 lbs (725.7g)
0
15 in stock
VPM48-10400
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 20.8A, Series 10.4A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 147.00mm Dia
Height - Seated (Max) : 64.00mm
Voltage - Isolation : 4000Vrms
Weight : 10 lbs (4.5kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 20.8A, Series 10.4A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 147.00mm Dia
Height - Seated (Max) : 64.00mm
Voltage - Isolation : 4000Vrms
Weight : 10 lbs (4.5kg)
0
6 in stock
VPM48-2080
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 4.16A, Series 2.08A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 2.7 lbs (1.2kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 4.16A, Series 2.08A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 2.7 lbs (1.2kg)
0
15 in stock
VPM48-20830
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 41.66A, Series 20.83A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 183.00mm Dia
Height - Seated (Max) : 74.00mm
Voltage - Isolation : 4000Vrms
Weight : 19 lbs (8.6kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 24V, Series 48V
Current - Output (Max) : Parallel 41.66A, Series 20.83A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 183.00mm Dia
Height - Seated (Max) : 74.00mm
Voltage - Isolation : 4000Vrms
Weight : 19 lbs (8.6kg)
0
4 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
