Part Number
Manufacturer
Description
Unit Price
In Stock
VPM18-2780
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 5.56A, Series 2.78A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 92.00mm Dia
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.6 lbs (725.7g)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 5.56A, Series 2.78A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 92.00mm Dia
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.6 lbs (725.7g)
0
7 in stock
VPM18-5560
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 11.12A, Series 5.56A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 2.7 lbs (1.2kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 11.12A, Series 5.56A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 2.7 lbs (1.2kg)
0
13 in stock
VPM18-8800
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 17.6A, Series 8.8A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 113.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 4 lbs (1.8kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 17.6A, Series 8.8A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 113.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 4 lbs (1.8kg)
0
32 in stock
VPM240-100
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 208mA, Series 104mA
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 84.00mm Dia
Height - Seated (Max) : 37.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.1 lbs (499g)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 208mA, Series 104mA
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 84.00mm Dia
Height - Seated (Max) : 37.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.1 lbs (499g)
0
25 in stock
VPM240-1040
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 2.08A, Series 1.04A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 123.00mm Dia
Height - Seated (Max) : 60.00mm
Voltage - Isolation : 4000Vrms
Weight : 5.6 lbs (2.5kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 2.08A, Series 1.04A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 123.00mm Dia
Height - Seated (Max) : 60.00mm
Voltage - Isolation : 4000Vrms
Weight : 5.6 lbs (2.5kg)
0
13 in stock
VPM240-10400
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 21.8A, Series 10.4A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 215.00mm Dia
Height - Seated (Max) : 120.00mm
Voltage - Isolation : 4000Vrms
Weight : 47 lbs (21.3kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 21.8A, Series 10.4A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 215.00mm Dia
Height - Seated (Max) : 120.00mm
Voltage - Isolation : 4000Vrms
Weight : 47 lbs (21.3kg)
0
35 in stock
VPM240-12500
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 208V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 25A, Series 12.5A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 3000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 222.00mm Dia
Height - Seated (Max) : 130.00mm
Voltage - Isolation : 4000Vrms
Weight : 56 lbs (25.4kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 208V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 25A, Series 12.5A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 3000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 222.00mm Dia
Height - Seated (Max) : 130.00mm
Voltage - Isolation : 4000Vrms
Weight : 56 lbs (25.4kg)
0
12 in stock

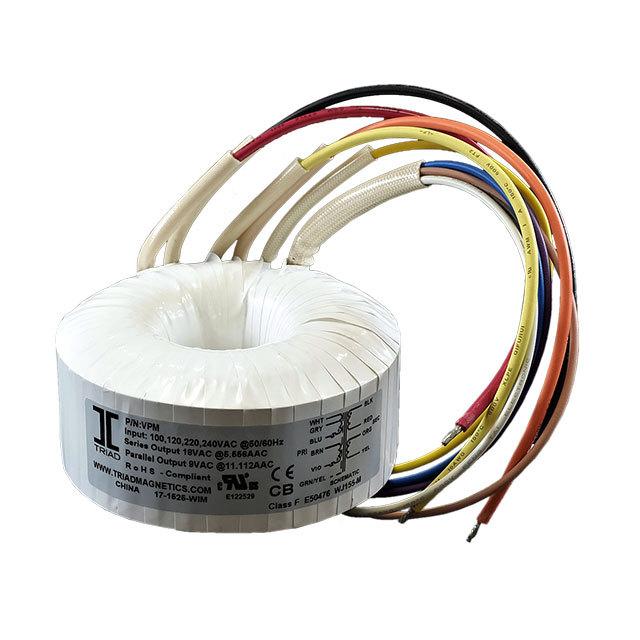

VPM240-15600
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 208V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 31.2A, Series 15.6A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 3750 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 235.00mm Dia
Height - Seated (Max) : 140.00mm
Voltage - Isolation : 4000Vrms
Weight : 67 lbs (30.4kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 208V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 31.2A, Series 15.6A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 3750 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 235.00mm Dia
Height - Seated (Max) : 140.00mm
Voltage - Isolation : 4000Vrms
Weight : 67 lbs (30.4kg)
0
13 in stock
VPM240-2080
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 4.16A, Series 2.08A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 147.00mm Dia
Height - Seated (Max) : 64.00mm
Voltage - Isolation : 4000Vrms
Weight : 11 lbs (5kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 4.16A, Series 2.08A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 147.00mm Dia
Height - Seated (Max) : 64.00mm
Voltage - Isolation : 4000Vrms
Weight : 11 lbs (5kg)
0
12 in stock
VPM240-20800
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 208V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 41.6A, Series 20.8A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 277.00mm Dia
Height - Seated (Max) : 140.00mm
Voltage - Isolation : 4000Vrms
Weight : 91 lbs (41.3kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 208V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 41.6A, Series 20.8A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 277.00mm Dia
Height - Seated (Max) : 140.00mm
Voltage - Isolation : 4000Vrms
Weight : 91 lbs (41.3kg)
0
3 in stock
VPM240-210
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 420mA, Series 210mA
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 92.00mm Dia
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.6 lbs (725.7g)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 420mA, Series 210mA
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 92.00mm Dia
Height - Seated (Max) : 38.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.6 lbs (725.7g)
0
11 in stock
VPM240-28100
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 208V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 56.2A, Series 28.1A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6750 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 310.00mm Dia
Height - Seated (Max) : 140.00mm
Voltage - Isolation : 4000Vrms
Weight : 122 lbs (55.3kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 208V, 240V
Voltage - Secondary (Full Load) : Parallel 120V, Series 240V
Current - Output (Max) : Parallel 56.2A, Series 28.1A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 6750 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 310.00mm Dia
Height - Seated (Max) : 140.00mm
Voltage - Isolation : 4000Vrms
Weight : 122 lbs (55.3kg)
0
10 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
