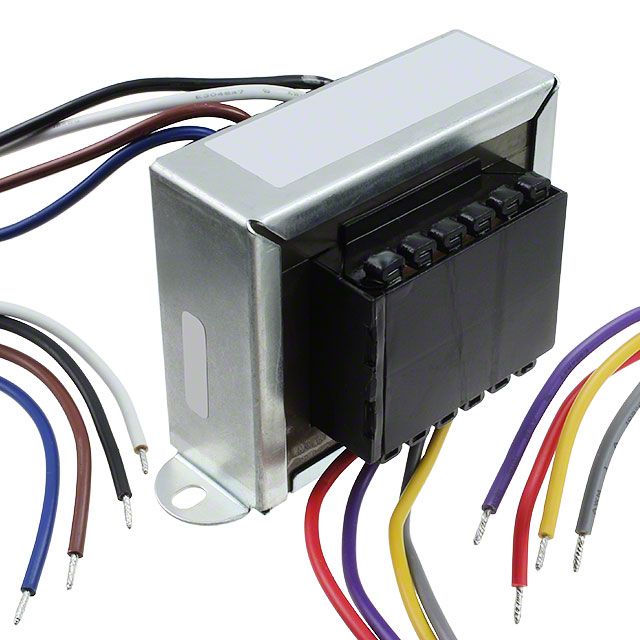

VPL36-1400
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 36V
Current - Output (Max) : 1.389A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 57.15mm L x 101.6mm W
Height - Seated (Max) : 65.09mm
Voltage - Isolation : 3500Vrms
Weight : 2.3 lbs (1kg)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 36V
Current - Output (Max) : 1.389A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 50.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 57.15mm L x 101.6mm W
Height - Seated (Max) : 65.09mm
Voltage - Isolation : 3500Vrms
Weight : 2.3 lbs (1kg)
0
8 in stock
VPL36-300
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 36V
Current - Output (Max) : 280mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 36.52mm L x 71.44mm W
Height - Seated (Max) : 44.45mm
Voltage - Isolation : 3500Vrms
Weight : 0.7 lb (317.51g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 36V
Current - Output (Max) : 280mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 36.52mm L x 71.44mm W
Height - Seated (Max) : 44.45mm
Voltage - Isolation : 3500Vrms
Weight : 0.7 lb (317.51g)
0
13 in stock

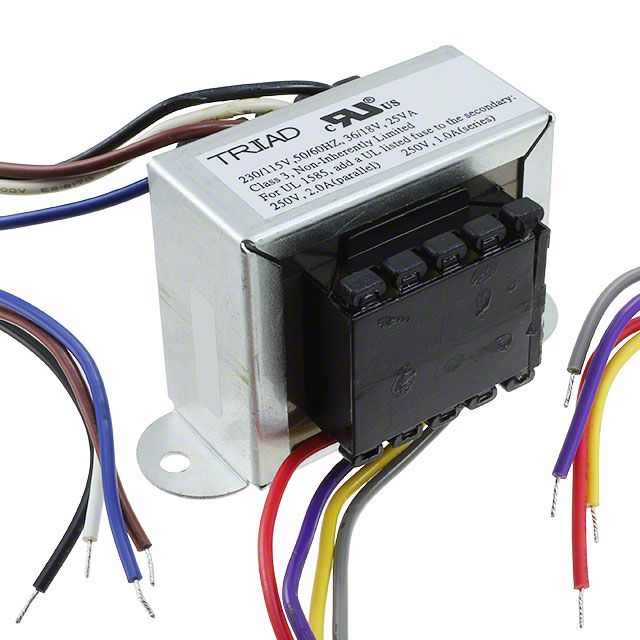

VPL36-700
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 36V
Current - Output (Max) : 700mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 57.15mm L x 101.6mm W
Height - Seated (Max) : 49.22 mm
Voltage - Isolation : 3500Vrms
Weight : 1.3 lbs (589.7g)
Series : Chassis Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : 36V
Current - Output (Max) : 700mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25.0 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 57.15mm L x 101.6mm W
Height - Seated (Max) : 49.22 mm
Voltage - Isolation : 3500Vrms
Weight : 1.3 lbs (589.7g)
0
45 in stock
VPM100-10000
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 50V, Series 100V
Current - Output (Max) : Parallel 20A, Series 10A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 183.00mm Dia
Height - Seated (Max) : 74.00mm
Voltage - Isolation : 4000Vrms
Weight : 44 lbs (20kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 50V, Series 100V
Current - Output (Max) : Parallel 20A, Series 10A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 1000 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 183.00mm Dia
Height - Seated (Max) : 74.00mm
Voltage - Isolation : 4000Vrms
Weight : 44 lbs (20kg)
0
7 in stock

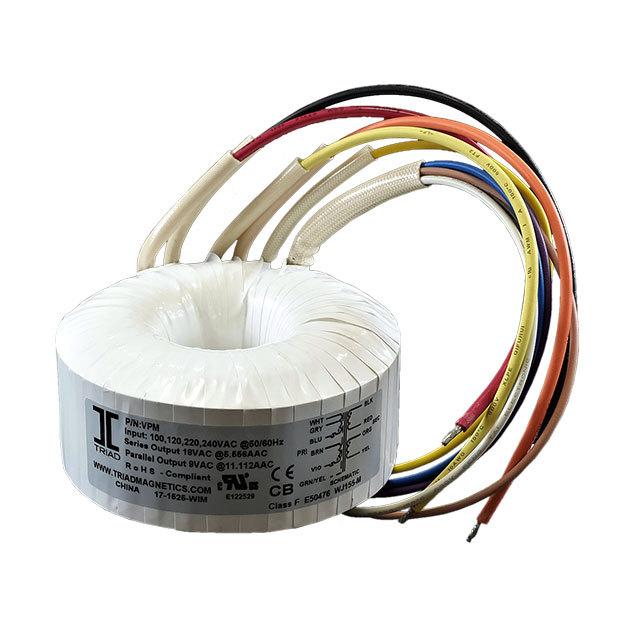

VPM100-25000
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 50V, Series 100V
Current - Output (Max) : Parallel 50A, Series 25A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 215.00mm Dia
Height - Seated (Max) : 120.00mm
Voltage - Isolation : 4000Vrms
Weight : 19 lbs (8.6kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 50V, Series 100V
Current - Output (Max) : Parallel 50A, Series 25A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 215.00mm Dia
Height - Seated (Max) : 120.00mm
Voltage - Isolation : 4000Vrms
Weight : 19 lbs (8.6kg)
0
3 in stock
VPM100-5000
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 50V, Series 100V
Current - Output (Max) : Parallel 10A, Series 5A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 147.00mm Dia
Height - Seated (Max) : 64.00mm
Voltage - Isolation : 4000Vrms
Weight : 11 lbs (5kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 50V, Series 100V
Current - Output (Max) : Parallel 10A, Series 5A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 500 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 147.00mm Dia
Height - Seated (Max) : 64.00mm
Voltage - Isolation : 4000Vrms
Weight : 11 lbs (5kg)
0
9 in stock
VPM12-13300
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 26.6A, Series 13.3A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 113.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 4 lbs (1.8kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 26.6A, Series 13.3A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 160 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 113.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 4 lbs (1.8kg)
0
4 in stock
VPM12-2080
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 4.16A, Series 2.08A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 84.00mm Dia
Height - Seated (Max) : 37.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.1 lbs (499g)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 4.16A, Series 2.08A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 84.00mm Dia
Height - Seated (Max) : 37.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.1 lbs (499g)
0
25 in stock
VPM12-20800
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 41.6A, Series 20.8A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 123.00mm Dia
Height - Seated (Max) : 60.00mm
Voltage - Isolation : 4000Vrms
Weight : 5.6 lbs (2.5kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 41.6A, Series 20.8A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 123.00mm Dia
Height - Seated (Max) : 60.00mm
Voltage - Isolation : 4000Vrms
Weight : 5.6 lbs (2.5kg)
0
8 in stock
VPM12-8330
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 16.66A, Series 8.33A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 2.7 lbs (1.2kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 6V, Series 12V
Current - Output (Max) : Parallel 16.66A, Series 8.33A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 100 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 96.00mm Dia
Height - Seated (Max) : 52.00mm
Voltage - Isolation : 4000Vrms
Weight : 2.7 lbs (1.2kg)
0
11 in stock
VPM18-13800
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 27.6A, Series 13.8A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 123.00mm Dia
Height - Seated (Max) : 60.00mm
Voltage - Isolation : 4000Vrms
Weight : 5.6 lbs (2.5kg)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 27.6A, Series 13.8A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 250 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 123.00mm Dia
Height - Seated (Max) : 60.00mm
Voltage - Isolation : 4000Vrms
Weight : 5.6 lbs (2.5kg)
0
24 in stock
VPM18-1390
Triad Magnetics
Manufacturer : Triad Magnetics
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 2.78A, Series 1.39A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 84.00mm Dia
Height - Seated (Max) : 37.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.1 lbs (499g)
Series : Toroidal Medical, VPM
Part Status : Active
Type : Toroidal
Voltage - Primary : 100V, 120V, 220V, 240V
Voltage - Secondary (Full Load) : Parallel 9V, Series 18V
Current - Output (Max) : Parallel 2.78A, Series 1.39A
Primary Winding(s) : Dual, Multiple Taps
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 25 VA
Mounting Type : Chassis Mount
Termination Style : Wire Leads
Size / Dimension : 84.00mm Dia
Height - Seated (Max) : 37.00mm
Voltage - Isolation : 4000Vrms
Weight : 1.1 lbs (499g)
0
23 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
