- Transformers
- Power Transformers
Part Number
Manufacturer
Description
Unit Price
In Stock
VPP20-1500
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 3A, Series 1.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 30 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.67mm
Voltage - Isolation : 4000Vrms
Weight : 1.2 lbs (544.3g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 3A, Series 1.5A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 30 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.67mm
Voltage - Isolation : 4000Vrms
Weight : 1.2 lbs (544.3g)
0
56 in stock
VPP20-250
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 33.32mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 4000Vrms
Weight : 0.37 lb (167.83g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 500mA, Series 250mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 33.32mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 4000Vrms
Weight : 0.37 lb (167.83g)
0
84 in stock

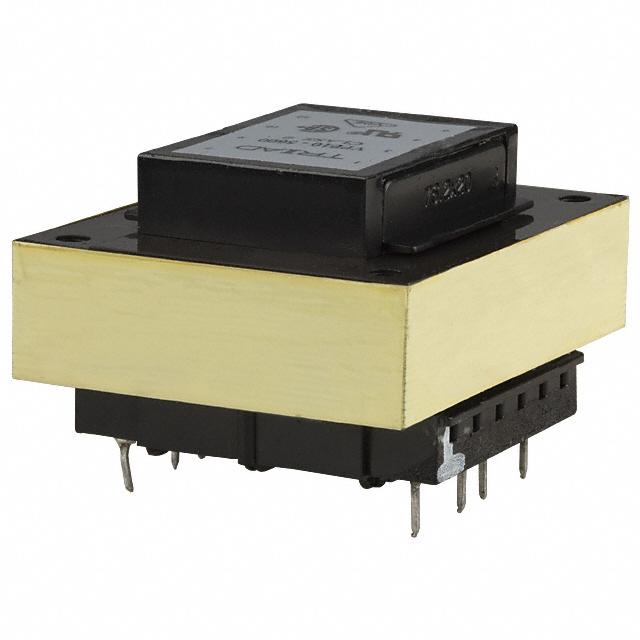

VPP20-2800
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 5.6A, Series 2.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 63.50mm W
Height - Seated (Max) : 46.02mm
Voltage - Isolation : 4000Vrms
Weight : 1.7 lbs (771.1g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 5.6A, Series 2.8A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 63.50mm W
Height - Seated (Max) : 46.02mm
Voltage - Isolation : 4000Vrms
Weight : 1.7 lbs (771.1g)
0
352 in stock

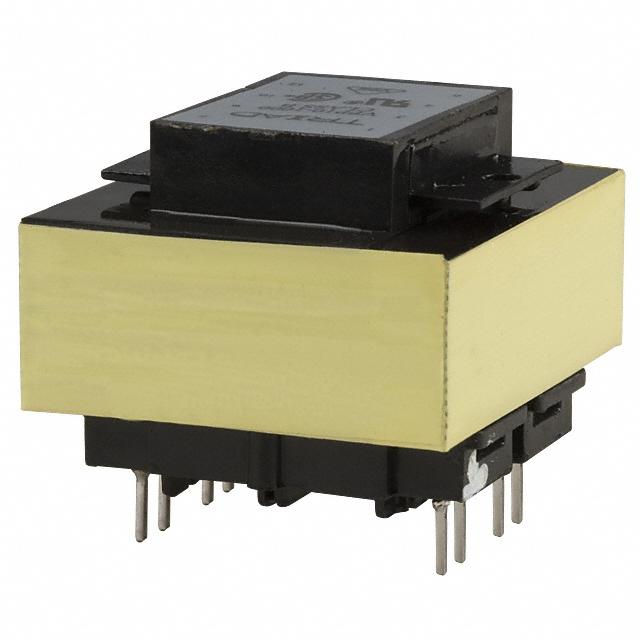

VPP20-500
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 1A, Series 500mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.63mm L x 39.67mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 4000Vrms
Weight : 0.53 lb (240.4g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 10V, Series 20V
Current - Output (Max) : Parallel 1A, Series 500mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.63mm L x 39.67mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 4000Vrms
Weight : 0.53 lb (240.4g)
0
734 in stock

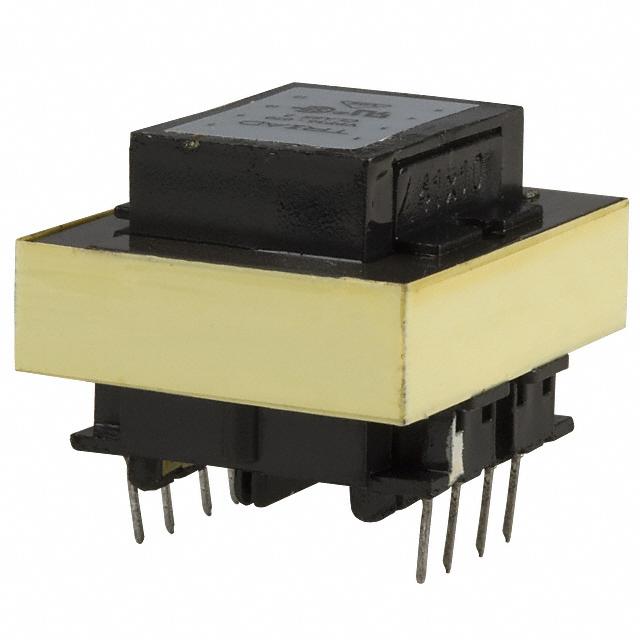

VPP24-100
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 200mA, Series 100mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 33.32mm W
Height - Seated (Max) : 28.58mm
Voltage - Isolation : 4000Vrms
Weight : 0.25 lb (113.4g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 200mA, Series 100mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 2.5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 33.32mm W
Height - Seated (Max) : 28.58mm
Voltage - Isolation : 4000Vrms
Weight : 0.25 lb (113.4g)
0
796 in stock
VPP24-1250
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 2.5A, Series 1.25A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 30 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.67mm
Voltage - Isolation : 4000Vrms
Weight : 1.2 lbs (544.3g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 2.5A, Series 1.25A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 30 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 66.68mm L x 55.55mm W
Height - Seated (Max) : 39.67mm
Voltage - Isolation : 4000Vrms
Weight : 1.2 lbs (544.3g)
0
333 in stock
VPP24-210
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 420mA, Series 210mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 33.32mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 4000Vrms
Weight : 0.37 lb (167.83g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 420mA, Series 210mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 33.32mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 4000Vrms
Weight : 0.37 lb (167.83g)
0
2426 in stock

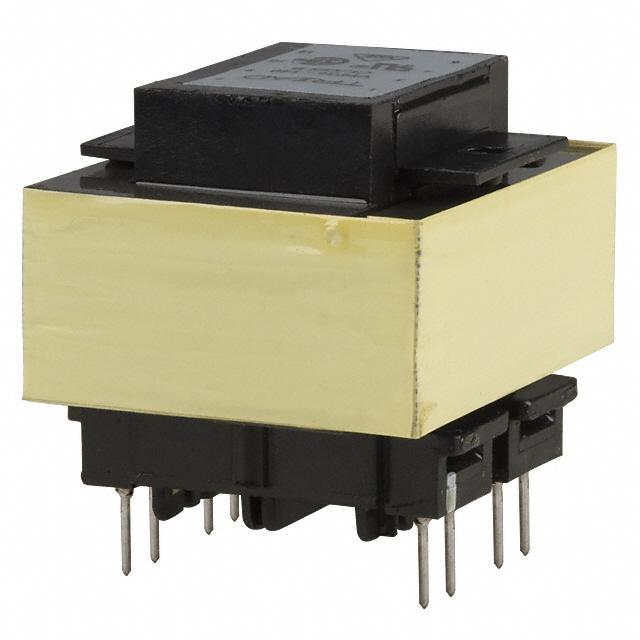

VPP24-210-B
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 420mA, Series 210mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 33.32mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 4000Vrms
Weight : 0.37 lb (167.83g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 420mA, Series 210mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 5 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 41.28mm L x 33.32mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 4000Vrms
Weight : 0.37 lb (167.83g)
0
160 in stock
VPP24-2330
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 4.66A, Series 2.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 63.50mm W
Height - Seated (Max) : 46.02mm
Voltage - Isolation : 4000Vrms
Weight : 1.7 lbs (771.1g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 4.66A, Series 2.33A
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 56 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 76.20mm L x 63.50mm W
Height - Seated (Max) : 46.02mm
Voltage - Isolation : 4000Vrms
Weight : 1.7 lbs (771.1g)
0
5749 in stock
VPP24-420
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 840mA, Series 420mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.63mm L x 39.67mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 4000Vrms
Weight : 0.53 lb (240.4g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 840mA, Series 420mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.63mm L x 39.67mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 4000Vrms
Weight : 0.53 lb (240.4g)
0
5754 in stock
VPP24-420-B
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 840mA, Series 420mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.63mm L x 39.67mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 4000Vrms
Weight : 0.53 lb (240.4g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 840mA, Series 420mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 10 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 47.63mm L x 39.67mm W
Height - Seated (Max) : 34.93mm
Voltage - Isolation : 4000Vrms
Weight : 0.53 lb (240.4g)
0
6 in stock
VPP24-830
Triad Magnetics
Manufacturer : Triad Magnetics
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 1.66A, Series 830mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 4000Vrms
Weight : 0.9 lb (408.23g)
Series : PC Mount: World Series™
Part Status : Active
Type : Laminated Core
Voltage - Primary : 115V, 230V
Voltage - Secondary (Full Load) : Parallel 12V, Series 24V
Current - Output (Max) : Parallel 1.66A, Series 830mA
Primary Winding(s) : Dual
Secondary Winding(s) : Dual
Center Tap : No
Power - Max : 20 VA
Mounting Type : Through Hole
Termination Style : PC Pin
Size / Dimension : 57.15mm L x 47.63mm W
Height - Seated (Max) : 41.28mm
Voltage - Isolation : 4000Vrms
Weight : 0.9 lb (408.23g)
0
2014 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
