- Integrated Circuits (ICs)
- Interface - Analog Switches, Multiplexers, Demultiplexers
Part Number
Manufacturer
Description
Unit Price
In Stock

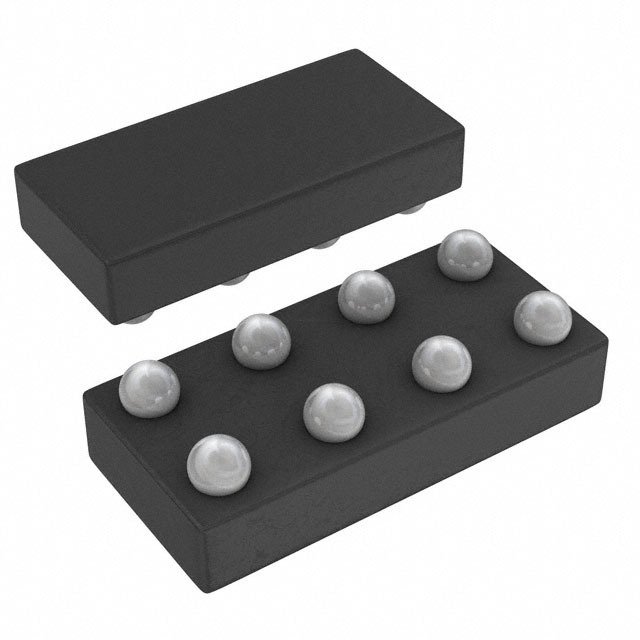

TS5A2066YZPR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 5.8ns, 3.6ns
-3db Bandwidth : 300MHz
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 5.5pF, 5.5pF
Current - Leakage (IS(off)) (Max) : 30nA
Crosstalk : -68dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-XFBGA, DSBGA
Supplier Device Package : 8-DSBGA, 8-WCSP (1.9x0.9)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 5.8ns, 3.6ns
-3db Bandwidth : 300MHz
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 5.5pF, 5.5pF
Current - Leakage (IS(off)) (Max) : 30nA
Crosstalk : -68dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-XFBGA, DSBGA
Supplier Device Package : 8-DSBGA, 8-WCSP (1.9x0.9)
0
35044 in stock

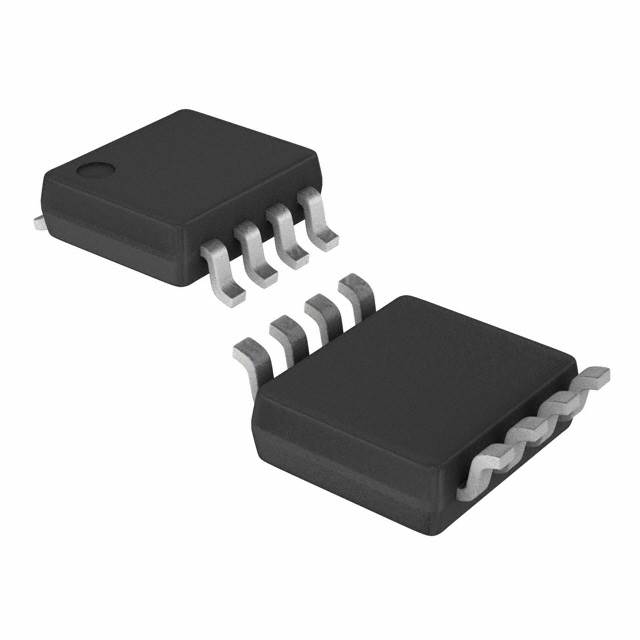

TS5A21366DCUR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 1 Ohm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 72ns, 318ns
-3db Bandwidth : 260MHz
Charge Injection : 1.3pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 17pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -98dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : US8
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 1 Ohm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 72ns, 318ns
-3db Bandwidth : 260MHz
Charge Injection : 1.3pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 17pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -98dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : US8
0
31128 in stock

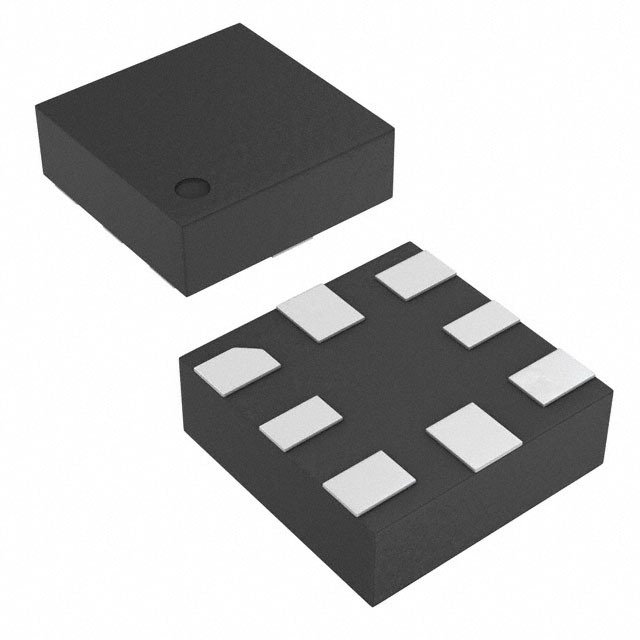

TS5A21366RSER
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 1 Ohm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 72ns, 318ns
-3db Bandwidth : 260MHz
Charge Injection : 1.3pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 17pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -98dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-UFQFN
Supplier Device Package : 8-UQFN (1.5x1.5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 1 Ohm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 72ns, 318ns
-3db Bandwidth : 260MHz
Charge Injection : 1.3pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 17pF
Current - Leakage (IS(off)) (Max) : 10nA
Crosstalk : -98dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-UFQFN
Supplier Device Package : 8-UQFN (1.5x1.5)
0
40156 in stock
TS5A22362DGSR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 740 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 80ns, 70ns
-3db Bandwidth : 18.3MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 70pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -78dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-VSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 740 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 80ns, 70ns
-3db Bandwidth : 18.3MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 70pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -78dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-VSSOP
0
63755 in stock
TS5A22362DRCR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 740 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 80ns, 70ns
-3db Bandwidth : 18.3MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 70pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -78dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-VFDFN Exposed Pad
Supplier Device Package : 10-VSON (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 740 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 80ns, 70ns
-3db Bandwidth : 18.3MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 70pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -78dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-VFDFN Exposed Pad
Supplier Device Package : 10-VSON (3x3)
0
6949 in stock
TS5A22362DRCT-NM
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 740 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 80ns, 70ns
-3db Bandwidth : 18.3MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 70pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -78dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-VFDFN Exposed Pad
Supplier Device Package : 10-VSON (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 740 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 80ns, 70ns
-3db Bandwidth : 18.3MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 70pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -78dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-VFDFN Exposed Pad
Supplier Device Package : 10-VSON (3x3)
0
523 in stock
TS5A22362YZPR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 740 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 80ns, 70ns
-3db Bandwidth : 18.3MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 70pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -78dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-XFBGA, DSBGA
Supplier Device Package : 10-DSBGA
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 740 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 80ns, 70ns
-3db Bandwidth : 18.3MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 70pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -78dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-XFBGA, DSBGA
Supplier Device Package : 10-DSBGA
0
4551 in stock
TS5A22364DGSR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 740 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 80ns, 70ns
-3db Bandwidth : 18.3MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 70pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -78dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-VSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 740 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 80ns, 70ns
-3db Bandwidth : 18.3MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 70pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -78dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-VSSOP
0
5659 in stock

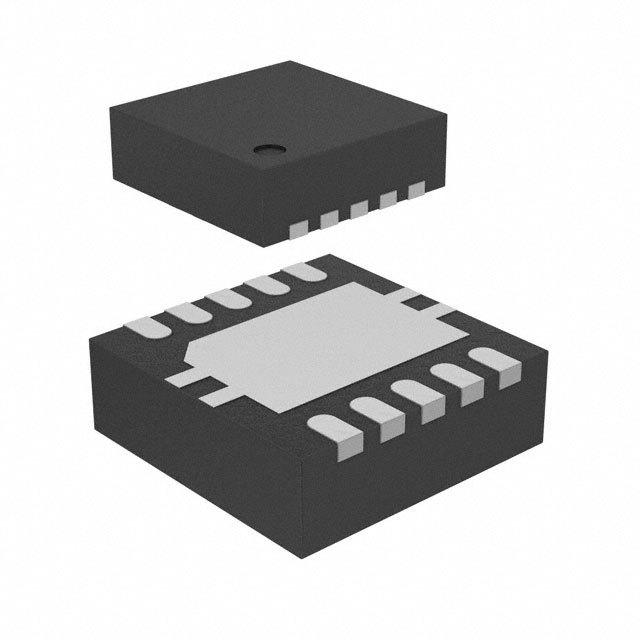

TS5A22364DRCR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 740 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 80ns, 70ns
-3db Bandwidth : 18.3MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 70pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -78dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-VFDFN Exposed Pad
Supplier Device Package : 10-VSON (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 740 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 80ns, 70ns
-3db Bandwidth : 18.3MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 70pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -78dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-VFDFN Exposed Pad
Supplier Device Package : 10-VSON (3x3)
0
1325 in stock
TS5A22364QDGSRQ1
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 740 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 80ns, 70ns
-3db Bandwidth : 18.3MHz
Charge Injection : 500pC
Channel Capacitance (CS(off), CD(off)) : 2.6pF
Current - Leakage (IS(off)) (Max) : -
Crosstalk : -78dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-VSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q100
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 740 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 80ns, 70ns
-3db Bandwidth : 18.3MHz
Charge Injection : 500pC
Channel Capacitance (CS(off), CD(off)) : 2.6pF
Current - Leakage (IS(off)) (Max) : -
Crosstalk : -78dB @ 100kHz
Operating Temperature : -40°C ~ 125°C (TA)
Package / Case : 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 10-VSSOP
0
1337 in stock

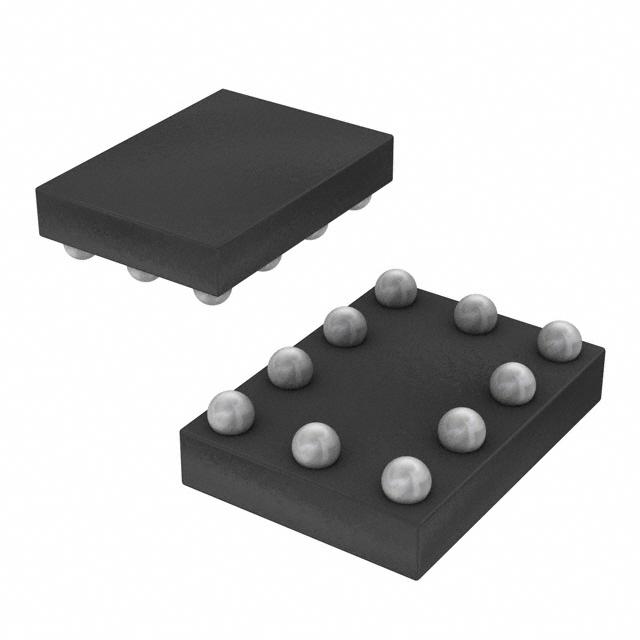

TS5A22364YZPR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 740 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 80ns, 70ns
-3db Bandwidth : 18.3MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 70pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -78dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-XFBGA, DSBGA
Supplier Device Package : 10-DSBGA
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 740 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 80ns, 70ns
-3db Bandwidth : 18.3MHz
Charge Injection : 10pC
Channel Capacitance (CS(off), CD(off)) : 70pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -78dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-XFBGA, DSBGA
Supplier Device Package : 10-DSBGA
0
2119 in stock

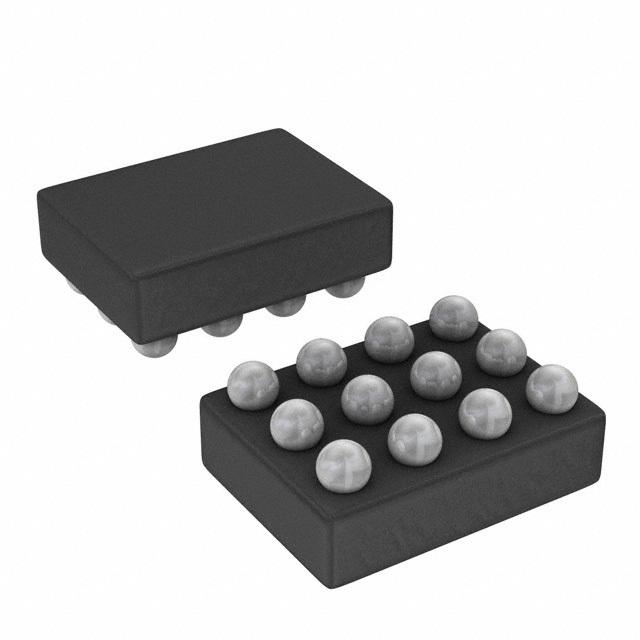

TS5A22366YFCR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 1 Ohm
Channel-to-Channel Matching (δRon) : 100 mOhm
Voltage - Supply, Single (V+) : 2.25 V ~ 5.5 V
Voltage - Supply, Dual (V±) : ±2.25 V ~ 5.5 V
Switch Time (Ton, Toff) (Max) : 374ns, 325ns
-3db Bandwidth : 32MHz
Charge Injection : 168pC
Channel Capacitance (CS(off), CD(off)) : 48pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -70dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 12-UFBGA, DSBGA
Supplier Device Package : 12-DSBGA (1.57x1.17)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 1 Ohm
Channel-to-Channel Matching (δRon) : 100 mOhm
Voltage - Supply, Single (V+) : 2.25 V ~ 5.5 V
Voltage - Supply, Dual (V±) : ±2.25 V ~ 5.5 V
Switch Time (Ton, Toff) (Max) : 374ns, 325ns
-3db Bandwidth : 32MHz
Charge Injection : 168pC
Channel Capacitance (CS(off), CD(off)) : 48pF
Current - Leakage (IS(off)) (Max) : 50nA
Crosstalk : -70dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 12-UFBGA, DSBGA
Supplier Device Package : 12-DSBGA (1.57x1.17)
0
460 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
