Part Number
Manufacturer
Description
Unit Price
In Stock

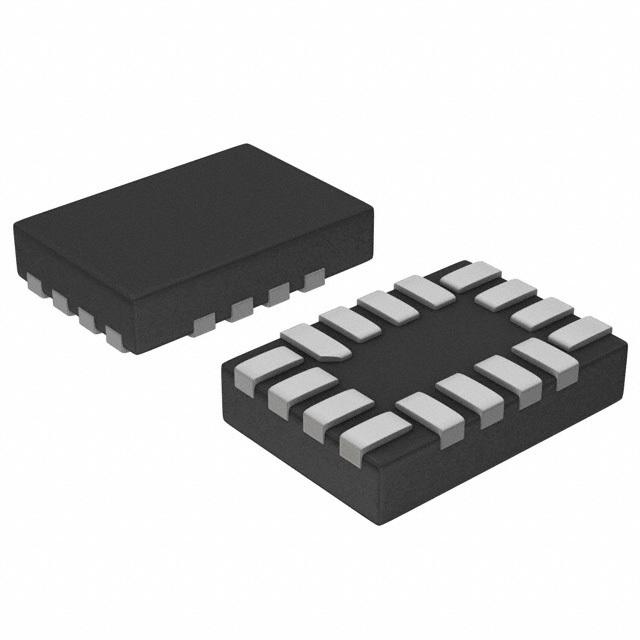

TS3A5018RSVR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 4
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 300 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 8ns, 6.5ns
-3db Bandwidth : 300MHz
Charge Injection : 2pC
Channel Capacitance (CS(off), CD(off)) : 4.5pF, 9pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -48dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-UFQFN
Supplier Device Package : 16-UQFN (2.6x1.8)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 4
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 300 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 8ns, 6.5ns
-3db Bandwidth : 300MHz
Charge Injection : 2pC
Channel Capacitance (CS(off), CD(off)) : 4.5pF, 9pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -48dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-UFQFN
Supplier Device Package : 16-UQFN (2.6x1.8)
0
27817 in stock
TS3A5223RSWR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 600 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 70ns, 75ns
-3db Bandwidth : 80MHz
Charge Injection : 40pC
Channel Capacitance (CS(off), CD(off)) : 50pF
Current - Leakage (IS(off)) (Max) : 5nA
Crosstalk : -75dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFQFN
Supplier Device Package : 10-UQFN (1.8x1.4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 600 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 70ns, 75ns
-3db Bandwidth : 80MHz
Charge Injection : 40pC
Channel Capacitance (CS(off), CD(off)) : 50pF
Current - Leakage (IS(off)) (Max) : 5nA
Crosstalk : -75dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 10-UFQFN
Supplier Device Package : 10-UQFN (1.8x1.4)
0
151131 in stock

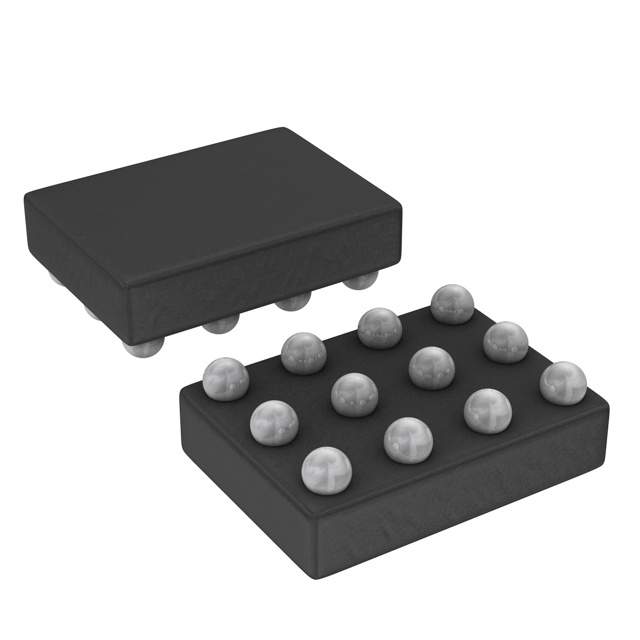

TS3DS26227YZTR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 5 Ohm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 9ns, 4ns
-3db Bandwidth : 80MHz
Charge Injection : 5.5pC
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 5nA
Crosstalk : -39dB @ 200MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 12-UFBGA, DSBGA
Supplier Device Package : 12-DSBGA (1.9x1.4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 5 Ohm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 2.3 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 9ns, 4ns
-3db Bandwidth : 80MHz
Charge Injection : 5.5pC
Channel Capacitance (CS(off), CD(off)) : 3.5pF
Current - Leakage (IS(off)) (Max) : 5nA
Crosstalk : -39dB @ 200MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 12-UFBGA, DSBGA
Supplier Device Package : 12-DSBGA (1.9x1.4)
0
1839 in stock

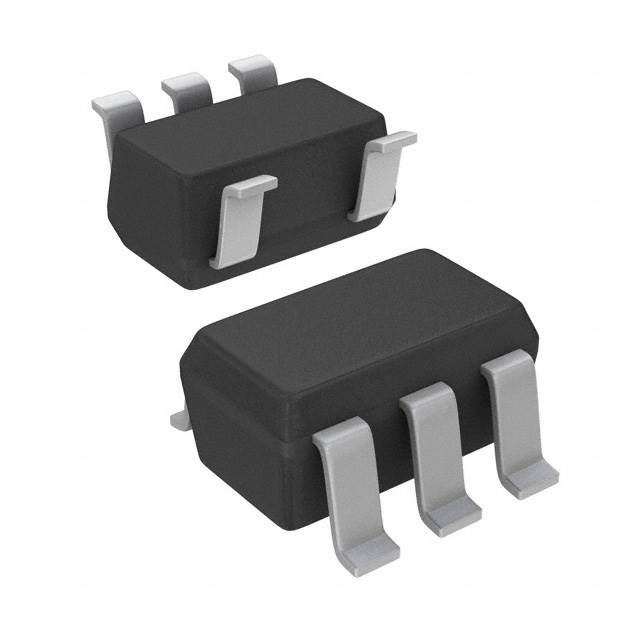

TS5A1066DBVR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 5.5ns, 4.5ns
-3db Bandwidth : 400MHz
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 6.8pF, 6.8pF
Current - Leakage (IS(off)) (Max) : 200nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SC-74A, SOT-753
Supplier Device Package : SOT-23-5
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 5.5ns, 4.5ns
-3db Bandwidth : 400MHz
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 6.8pF, 6.8pF
Current - Leakage (IS(off)) (Max) : 200nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SC-74A, SOT-753
Supplier Device Package : SOT-23-5
0
14314 in stock

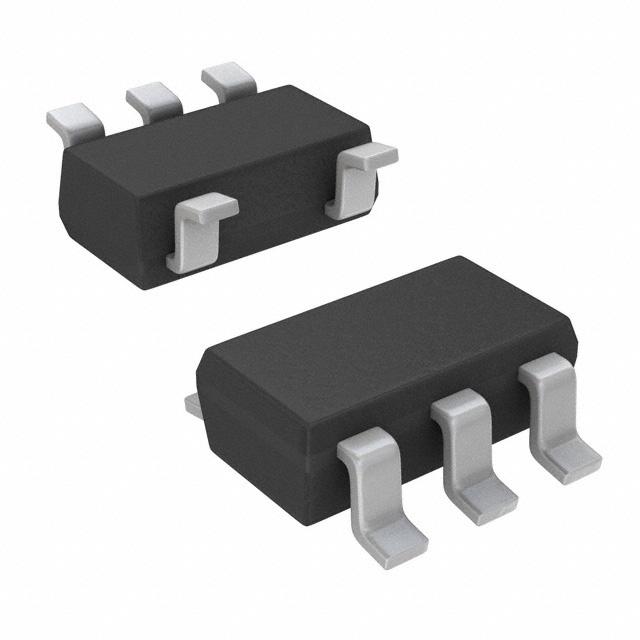

TS5A1066DCKR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 5.5ns, 4.5ns
-3db Bandwidth : 400MHz
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 6.8pF, 6.8pF
Current - Leakage (IS(off)) (Max) : 200nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package : SC-70-5
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 5.5ns, 4.5ns
-3db Bandwidth : 400MHz
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 6.8pF, 6.8pF
Current - Leakage (IS(off)) (Max) : 200nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 5-TSSOP, SC-70-5, SOT-353
Supplier Device Package : SC-70-5
0
20233 in stock

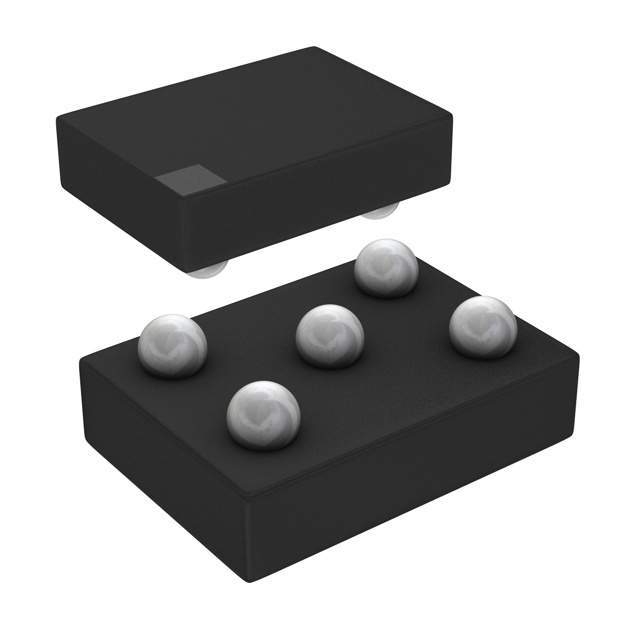

TS5A1066YZPR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 5.5ns, 4.5ns
-3db Bandwidth : 400MHz
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 6.8pF, 6.8pF
Current - Leakage (IS(off)) (Max) : 200nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 5-XFBGA, DSBGA
Supplier Device Package : 5-DSBGA, 5-WCSP (1.4x0.9)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : -
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 5.5ns, 4.5ns
-3db Bandwidth : 400MHz
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 6.8pF, 6.8pF
Current - Leakage (IS(off)) (Max) : 200nA
Crosstalk : -
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 5-XFBGA, DSBGA
Supplier Device Package : 5-DSBGA, 5-WCSP (1.4x0.9)
0
431 in stock

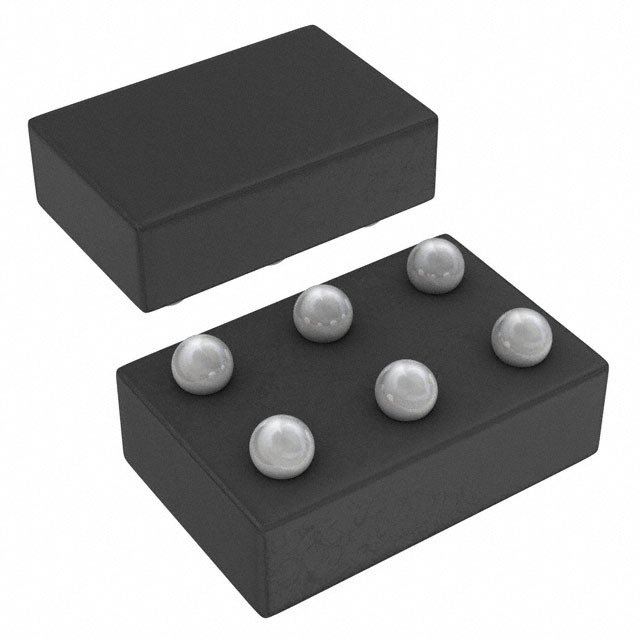

TS5A12301EYFPR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 2.25 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 225ns, 215ns
-3db Bandwidth : 55MHz
Charge Injection : 97pC
Channel Capacitance (CS(off), CD(off)) : 28pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -63dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-XFBGA, DSBGA
Supplier Device Package : 6-DSBGA
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 2.25 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 225ns, 215ns
-3db Bandwidth : 55MHz
Charge Injection : 97pC
Channel Capacitance (CS(off), CD(off)) : 28pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -63dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-XFBGA, DSBGA
Supplier Device Package : 6-DSBGA
0
11082 in stock
TS5A2053DCTR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 13.8 Ohm
Channel-to-Channel Matching (δRon) : 800 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 6.8ns, 4.1ns
-3db Bandwidth : 330MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 6pF, 9.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -68dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
Supplier Device Package : SM8 (SSOP)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 13.8 Ohm
Channel-to-Channel Matching (δRon) : 800 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 6.8ns, 4.1ns
-3db Bandwidth : 330MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 6pF, 9.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -68dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
Supplier Device Package : SM8 (SSOP)
0
1989 in stock
TS5A2053DCUR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 13.8 Ohm
Channel-to-Channel Matching (δRon) : 800 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 6.8ns, 4.1ns
-3db Bandwidth : 330MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 6pF, 9.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -68dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : US8
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 13.8 Ohm
Channel-to-Channel Matching (δRon) : 800 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 6.8ns, 4.1ns
-3db Bandwidth : 330MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 6pF, 9.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -68dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : US8
0
9656 in stock
TS5A2066DCTR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 5.8ns, 3.6ns
-3db Bandwidth : 300MHz
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 5.5pF, 5.5pF
Current - Leakage (IS(off)) (Max) : 30nA
Crosstalk : -68dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
Supplier Device Package : SM8 (SSOP)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 5.8ns, 3.6ns
-3db Bandwidth : 300MHz
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 5.5pF, 5.5pF
Current - Leakage (IS(off)) (Max) : 30nA
Crosstalk : -68dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-LSSOP, 8-MSOP (0.110", 2.80mm Width)
Supplier Device Package : SM8 (SSOP)
0
4412 in stock
TS5A2066DCUR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 5.8ns, 3.6ns
-3db Bandwidth : 300MHz
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 5.5pF, 5.5pF
Current - Leakage (IS(off)) (Max) : 30nA
Crosstalk : -68dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : US8
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 5.8ns, 3.6ns
-3db Bandwidth : 300MHz
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 5.5pF, 5.5pF
Current - Leakage (IS(off)) (Max) : 30nA
Crosstalk : -68dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : US8
0
24964 in stock

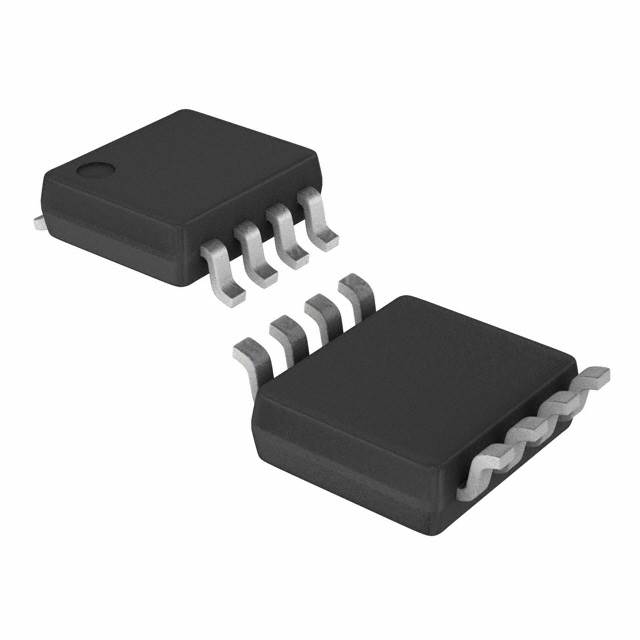

TS5A2066DCURG4
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 5.8ns, 3.6ns
-3db Bandwidth : 300MHz
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 5.5pF, 5.5pF
Current - Leakage (IS(off)) (Max) : 30nA
Crosstalk : -68dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : 8-VSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 5.8ns, 3.6ns
-3db Bandwidth : 300MHz
Charge Injection : 1pC
Channel Capacitance (CS(off), CD(off)) : 5.5pF, 5.5pF
Current - Leakage (IS(off)) (Max) : 30nA
Crosstalk : -68dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : 8-VSSOP
0
2052 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
