Part Number
Manufacturer
Description
Unit Price
In Stock

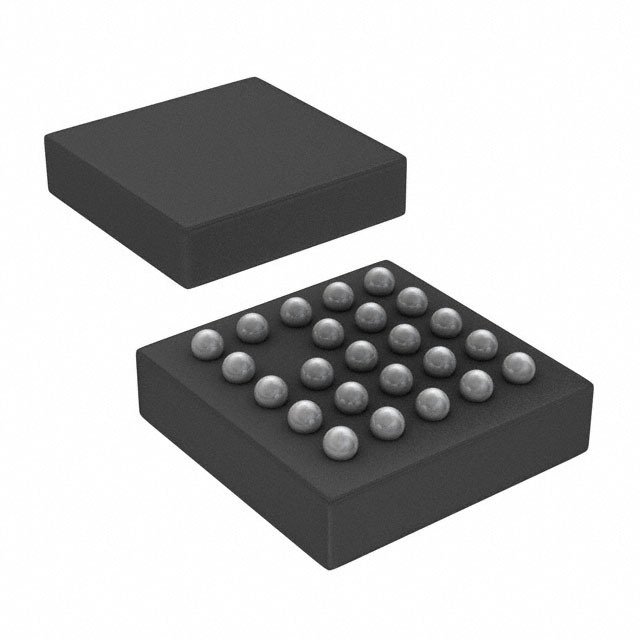

TS3A27518EZQSR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 6
On-State Resistance (Max) : 6.2 Ohm
Channel-to-Channel Matching (δRon) : 300 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 59ns, 60.6ns
-3db Bandwidth : 240MHz
Charge Injection : 0.81pC
Channel Capacitance (CS(off), CD(off)) : 13pF, 8.5pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -62dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 24-VFBGA
Supplier Device Package : 24-BGA MICROSTAR JUNIOR (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 6
On-State Resistance (Max) : 6.2 Ohm
Channel-to-Channel Matching (δRon) : 300 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 59ns, 60.6ns
-3db Bandwidth : 240MHz
Charge Injection : 0.81pC
Channel Capacitance (CS(off), CD(off)) : 13pF, 8.5pF
Current - Leakage (IS(off)) (Max) : 1µA
Crosstalk : -62dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 24-VFBGA
Supplier Device Package : 24-BGA MICROSTAR JUNIOR (3x3)
0
4400 in stock
TS3A44159PWR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 4
On-State Resistance (Max) : 450 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 23ns, 32ns
-3db Bandwidth : 35MHz
Charge Injection : 139pC
Channel Capacitance (CS(off), CD(off)) : 50pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -73dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 4
On-State Resistance (Max) : 450 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 23ns, 32ns
-3db Bandwidth : 35MHz
Charge Injection : 139pC
Channel Capacitance (CS(off), CD(off)) : 50pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -73dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 16-TSSOP
0
32883 in stock

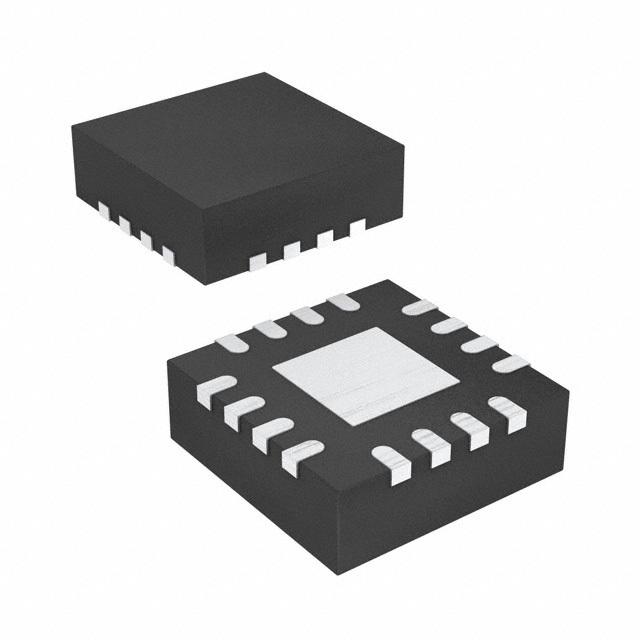

TS3A44159RGTR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 4
On-State Resistance (Max) : 450 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 23ns, 32ns
-3db Bandwidth : 35MHz
Charge Injection : 139pC
Channel Capacitance (CS(off), CD(off)) : 50pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -73dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-VFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 4
On-State Resistance (Max) : 450 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 23ns, 32ns
-3db Bandwidth : 35MHz
Charge Injection : 139pC
Channel Capacitance (CS(off), CD(off)) : 50pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -73dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-VFQFN Exposed Pad
Supplier Device Package : 16-QFN (3x3)
0
64689 in stock

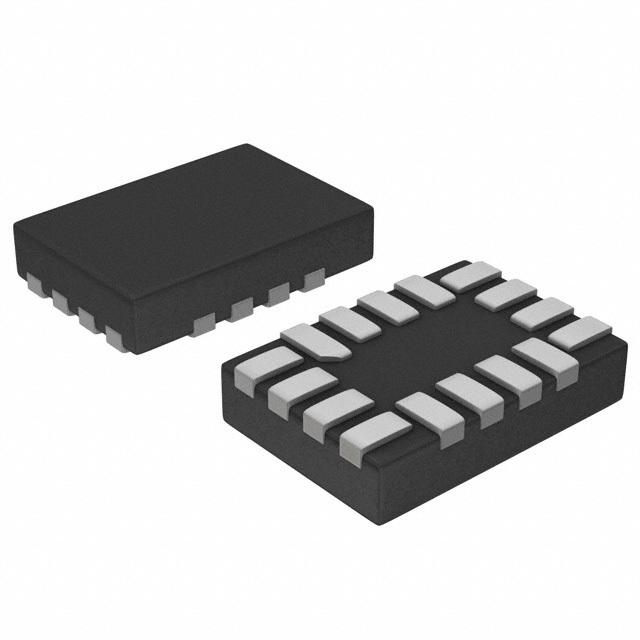

TS3A44159RSVR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 4
On-State Resistance (Max) : 450 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 23ns, 32ns
-3db Bandwidth : 35MHz
Charge Injection : 139pC
Channel Capacitance (CS(off), CD(off)) : 50pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -73dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-UFQFN
Supplier Device Package : 16-UQFN (2.6x1.8)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 4
On-State Resistance (Max) : 450 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 4.3 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 23ns, 32ns
-3db Bandwidth : 35MHz
Charge Injection : 139pC
Channel Capacitance (CS(off), CD(off)) : 50pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -73dB @ 100kHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-UFQFN
Supplier Device Package : 16-UQFN (2.6x1.8)
0
2172 in stock
TS3A4741DCNR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 1.6 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 14ns, 9ns
-3db Bandwidth : 125MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 23pF, 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -95dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SOT-23-8
Supplier Device Package : SOT-23-8
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 1.6 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 14ns, 9ns
-3db Bandwidth : 125MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 23pF, 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -95dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SOT-23-8
Supplier Device Package : SOT-23-8
0
18926 in stock
TS3A4741DGKR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 1.6 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 14ns, 9ns
-3db Bandwidth : 125MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 23pF, 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -95dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-VSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 1.6 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 14ns, 9ns
-3db Bandwidth : 125MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 23pF, 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -95dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-VSSOP
0
4549 in stock
TS3A4742DCNR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 1.6 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 14ns, 9ns
-3db Bandwidth : 125MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 23pF, 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -95dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SOT-23-8
Supplier Device Package : SOT-23-8
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 1.6 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 14ns, 9ns
-3db Bandwidth : 125MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 23pF, 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -95dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SOT-23-8
Supplier Device Package : SOT-23-8
0
7676 in stock
TS3A4742DGKR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 1.6 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 14ns, 9ns
-3db Bandwidth : 125MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 23pF, 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -95dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-VSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 1.6 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 14ns, 9ns
-3db Bandwidth : 125MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 23pF, 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -95dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package : 8-VSSOP
0
3437 in stock
TS3A4751PWR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 1.6 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 14ns, 9ns
-3db Bandwidth : 125MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 23pF, 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -95dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 1.6 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 14ns, 9ns
-3db Bandwidth : 125MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 23pF, 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -95dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package : 14-TSSOP
0
145441 in stock
TS3A4751RGYR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 1.6 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 14ns, 9ns
-3db Bandwidth : 125MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 23pF, 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -95dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 14-VFQFN Exposed Pad
Supplier Device Package : 14-VQFN (3.5x3.5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 1.6 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 14ns, 9ns
-3db Bandwidth : 125MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 23pF, 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -95dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 14-VFQFN Exposed Pad
Supplier Device Package : 14-VQFN (3.5x3.5)
0
100 in stock
TS3A4751RUCR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 1.6 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 14ns, 9ns
-3db Bandwidth : 125MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 23pF, 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -95dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 14-XFQFN
Supplier Device Package : 14-QFN (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 4
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 30 mOhm
Voltage - Supply, Single (V+) : 1.6 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 14ns, 9ns
-3db Bandwidth : 125MHz
Charge Injection : 3pC
Channel Capacitance (CS(off), CD(off)) : 23pF, 20pF
Current - Leakage (IS(off)) (Max) : 2nA
Crosstalk : -95dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 14-XFQFN
Supplier Device Package : 14-QFN (2x2)
0
31750 in stock
TS3A5017D
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 2
On-State Resistance (Max) : 12 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 2.3 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 9.5ns, 3.5ns
-3db Bandwidth : 165MHz
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 4.5pF, 19pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -49dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
Packaging : Tube
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SP4T
Multiplexer/Demultiplexer Circuit : 4:1
Number of Circuits : 2
On-State Resistance (Max) : 12 Ohm
Channel-to-Channel Matching (δRon) : 1 Ohm
Voltage - Supply, Single (V+) : 2.3 V ~ 3.6 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 9.5ns, 3.5ns
-3db Bandwidth : 165MHz
Charge Injection : 5pC
Channel Capacitance (CS(off), CD(off)) : 4.5pF, 19pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -49dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 16-SOIC
0
403 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
