Welcome to Weijie Semiconductor
- Integrated Circuits (ICs)
- Interface - Analog Switches, Multiplexers, Demultiplexers
Part Number
Manufacturer
Description
Unit Price
In Stock

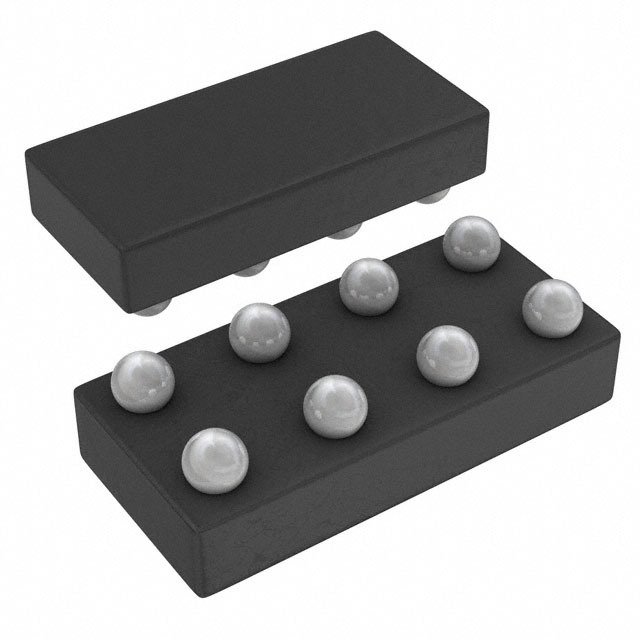

TS5A23166YZTR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 7.5ns, 11ns
-3db Bandwidth : 150MHz
Charge Injection : 6pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 18pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-UFBGA, DSBGA
Supplier Device Package : 8-DSBGA, 8-WCSP (1.9x0.9)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NO
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 7.5ns, 11ns
-3db Bandwidth : 150MHz
Charge Injection : 6pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 18pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-UFBGA, DSBGA
Supplier Device Package : 8-DSBGA, 8-WCSP (1.9x0.9)
0
3554 in stock
TS5A23167DCUR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 7.5ns, 11ns
-3db Bandwidth : 150MHz
Charge Injection : 6pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 18pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : US8
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 7.5ns, 11ns
-3db Bandwidth : 150MHz
Charge Injection : 6pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 18pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : US8
0
4143 in stock
TS5A23167YZPR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 7.5ns, 11ns
-3db Bandwidth : 150MHz
Charge Injection : 6pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 18pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-XFBGA, DSBGA
Supplier Device Package : 8-DSBGA, 8-WCSP (1.9x0.9)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPST - NC
Multiplexer/Demultiplexer Circuit : 1:1
Number of Circuits : 2
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 40 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 7.5ns, 11ns
-3db Bandwidth : 150MHz
Charge Injection : 6pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 18pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -85dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-XFBGA, DSBGA
Supplier Device Package : 8-DSBGA, 8-WCSP (1.9x0.9)
0
2994 in stock

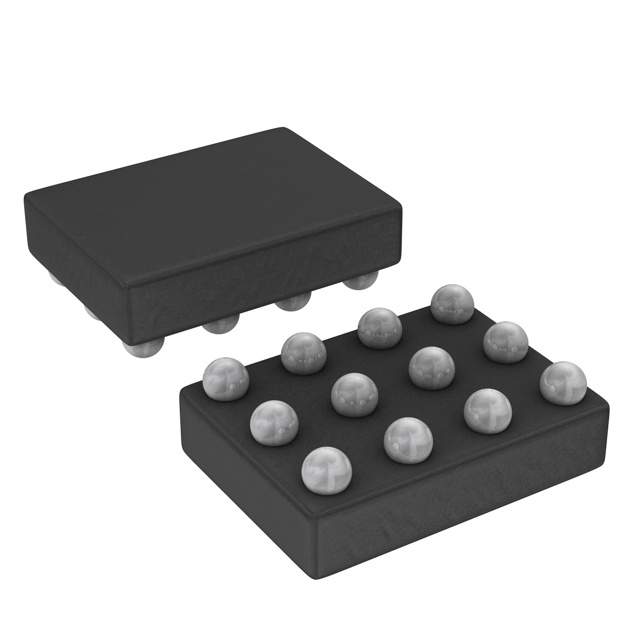

TS5A26542YZTR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 2.25 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 25ns, 20ns
-3db Bandwidth : 43MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 37pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -63dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 12-UFBGA, DSBGA
Supplier Device Package : 12-DSBGA (1.9x1.4)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 2
On-State Resistance (Max) : 750 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 2.25 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 25ns, 20ns
-3db Bandwidth : 43MHz
Charge Injection : 15pC
Channel Capacitance (CS(off), CD(off)) : 37pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -63dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 12-UFBGA, DSBGA
Supplier Device Package : 12-DSBGA (1.9x1.4)
0
2557 in stock

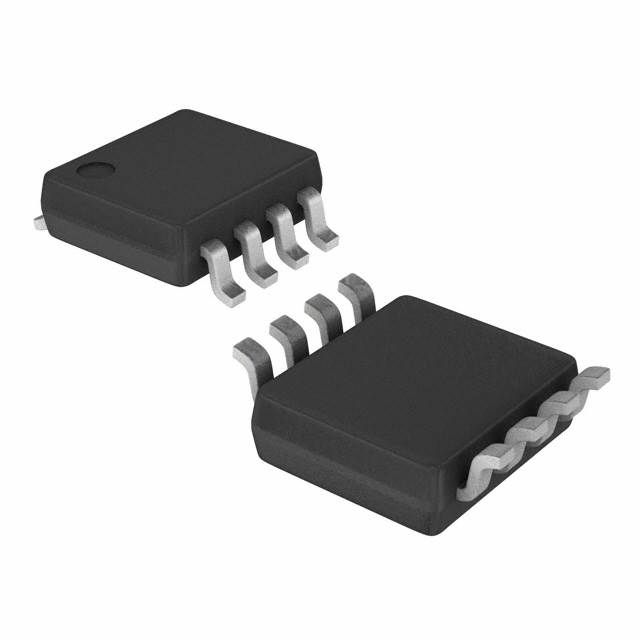

TS5A3153DCUR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 16ns, 15ns
-3db Bandwidth : 97MHz
Charge Injection : 12pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 36pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : US8
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 16ns, 15ns
-3db Bandwidth : 97MHz
Charge Injection : 12pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 36pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : US8
0
5800 in stock
TS5A3153YZPR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 16ns, 15ns
-3db Bandwidth : 97MHz
Charge Injection : 12pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 36pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-XFBGA, DSBGA
Supplier Device Package : 8-DSBGA, 8-WCSP (1.9x0.9)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 16ns, 15ns
-3db Bandwidth : 97MHz
Charge Injection : 12pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 36pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-XFBGA, DSBGA
Supplier Device Package : 8-DSBGA, 8-WCSP (1.9x0.9)
0
1776 in stock
TS5A3154DCUR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 16ns, 15ns
-3db Bandwidth : 100MHz
Charge Injection : 12pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 36pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : US8
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 16ns, 15ns
-3db Bandwidth : 100MHz
Charge Injection : 12pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 36pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-VFSOP (0.091", 2.30mm Width)
Supplier Device Package : US8
0
2556 in stock

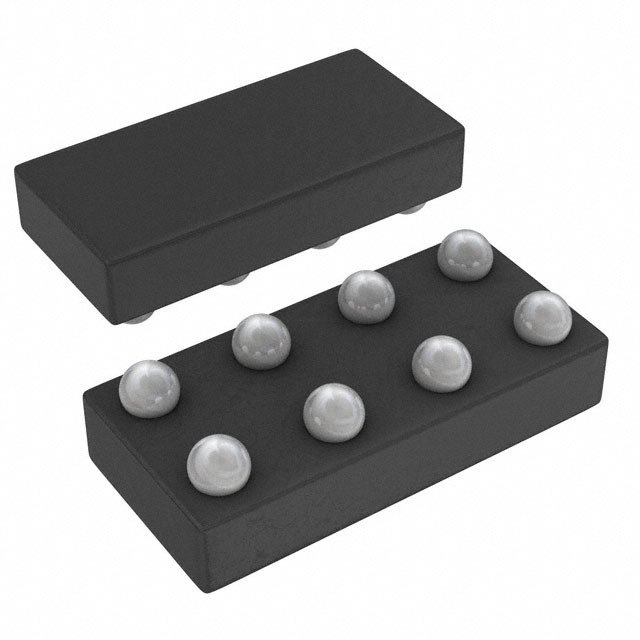

TS5A3154YZPR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 16ns, 15ns
-3db Bandwidth : 100MHz
Charge Injection : 12pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 36pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-XFBGA, DSBGA
Supplier Device Package : 8-DSBGA, 8-WCSP (1.9x0.9)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 16ns, 15ns
-3db Bandwidth : 100MHz
Charge Injection : 12pC
Channel Capacitance (CS(off), CD(off)) : 19pF, 36pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 8-XFBGA, DSBGA
Supplier Device Package : 8-DSBGA, 8-WCSP (1.9x0.9)
0
176 in stock
TS5A3157DBVR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 150 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 8.5ns, 6.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7pC
Channel Capacitance (CS(off), CD(off)) : 5.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -66dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 150 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 8.5ns, 6.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7pC
Channel Capacitance (CS(off), CD(off)) : 5.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -66dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
0
22768 in stock
TS5A3157DCKR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 150 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 8.5ns, 6.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7pC
Channel Capacitance (CS(off), CD(off)) : 5.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -66dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-70-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 150 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 8.5ns, 6.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7pC
Channel Capacitance (CS(off), CD(off)) : 5.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -66dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : SC-70-6
0
30029 in stock
TS5A3157YZPR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 150 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 8.5ns, 6.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7pC
Channel Capacitance (CS(off), CD(off)) : 5.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -66dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-XFBGA, DSBGA
Supplier Device Package : 6-DSBGA, 6-WCSP (1.4x0.9)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 10 Ohm
Channel-to-Channel Matching (δRon) : 150 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 8.5ns, 6.5ns
-3db Bandwidth : 300MHz
Charge Injection : 7pC
Channel Capacitance (CS(off), CD(off)) : 5.5pF
Current - Leakage (IS(off)) (Max) : 100nA
Crosstalk : -66dB @ 10MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : 6-XFBGA, DSBGA
Supplier Device Package : 6-DSBGA, 6-WCSP (1.4x0.9)
0
1772 in stock
TS5A3159ADBVR
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 30ns, 20ns
-3db Bandwidth : 100MHz
Charge Injection : -20pC
Channel Capacitance (CS(off), CD(off)) : 18pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Switch Circuit : SPDT
Multiplexer/Demultiplexer Circuit : 2:1
Number of Circuits : 1
On-State Resistance (Max) : 900 mOhm
Channel-to-Channel Matching (δRon) : 50 mOhm
Voltage - Supply, Single (V+) : 1.65 V ~ 5.5 V
Voltage - Supply, Dual (V±) : -
Switch Time (Ton, Toff) (Max) : 30ns, 20ns
-3db Bandwidth : 100MHz
Charge Injection : -20pC
Channel Capacitance (CS(off), CD(off)) : 18pF
Current - Leakage (IS(off)) (Max) : 20nA
Crosstalk : -64dB @ 1MHz
Operating Temperature : -40°C ~ 85°C (TA)
Package / Case : SOT-23-6
Supplier Device Package : SOT-23-6
0
64937 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
