- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock

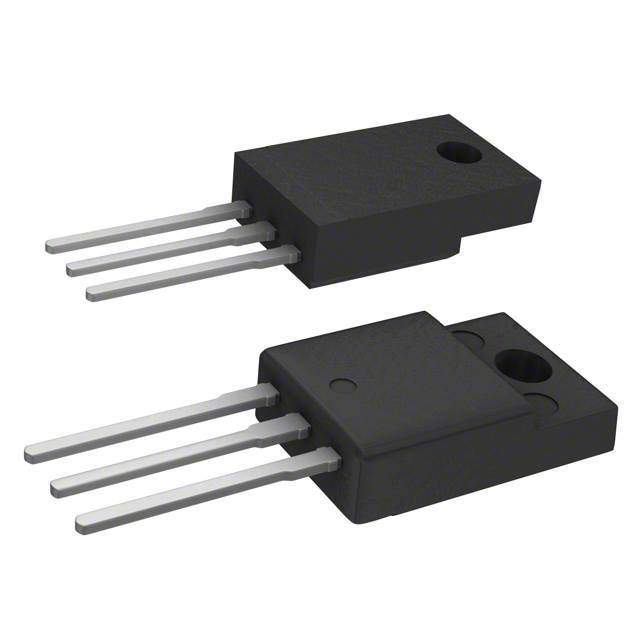

STGP10NB60SFP
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 23A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 10A
Power - Max : 25W
Switching Energy : 600µJ (on), 5mJ (off)
Input Type : Standard
Gate Charge : 33nC
Td (on/off) @ 25°C : 700ns/1.2µs
Test Condition : 480V, 10A, 1 kOhm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 23A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 10A
Power - Max : 25W
Switching Energy : 600µJ (on), 5mJ (off)
Input Type : Standard
Gate Charge : 33nC
Td (on/off) @ 25°C : 700ns/1.2µs
Test Condition : 480V, 10A, 1 kOhm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
0
100 in stock

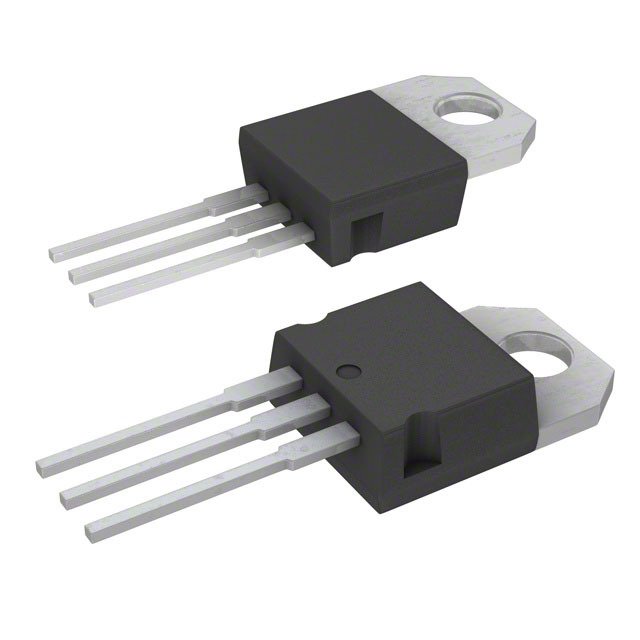

STGP10NC60H
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 5A
Power - Max : 60W
Switching Energy : 31.8µJ (on), 95µJ (off)
Input Type : Standard
Gate Charge : 19.2nC
Td (on/off) @ 25°C : 14.2ns/72ns
Test Condition : 390V, 5A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 5A
Power - Max : 60W
Switching Energy : 31.8µJ (on), 95µJ (off)
Input Type : Standard
Gate Charge : 19.2nC
Td (on/off) @ 25°C : 14.2ns/72ns
Test Condition : 390V, 5A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
209 in stock
STGP10NC60HD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 5A
Power - Max : 65W
Switching Energy : 31.8µJ (on), 95µJ (off)
Input Type : Standard
Gate Charge : 19.2nC
Td (on/off) @ 25°C : 14.2ns/72ns
Test Condition : 390V, 5A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 22ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 5A
Power - Max : 65W
Switching Energy : 31.8µJ (on), 95µJ (off)
Input Type : Standard
Gate Charge : 19.2nC
Td (on/off) @ 25°C : 14.2ns/72ns
Test Condition : 390V, 5A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 22ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
2090 in stock
STGP10NC60K
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 5A
Power - Max : 60W
Switching Energy : 55µJ (on), 85µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 17ns/72ns
Test Condition : 390V, 5A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Alternate Packaging
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 5A
Power - Max : 60W
Switching Energy : 55µJ (on), 85µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 17ns/72ns
Test Condition : 390V, 5A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
STGP10NC60KD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 5A
Power - Max : 65W
Switching Energy : 55µJ (on), 85µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 17ns/72ns
Test Condition : 390V, 5A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 22ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 5A
Power - Max : 65W
Switching Energy : 55µJ (on), 85µJ (off)
Input Type : Standard
Gate Charge : 19nC
Td (on/off) @ 25°C : 17ns/72ns
Test Condition : 390V, 5A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 22ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
1428 in stock
STGP10NC60S
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 21A
Current - Collector Pulsed (Icm) : 25A
Vce(on) (Max) @ Vge, Ic : 1.65V @ 15V, 5A
Power - Max : 62.5W
Switching Energy : 60µJ (on), 340µJ (off)
Input Type : Standard
Gate Charge : 18nC
Td (on/off) @ 25°C : 19ns/160ns
Test Condition : 390V, 5A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 21A
Current - Collector Pulsed (Icm) : 25A
Vce(on) (Max) @ Vge, Ic : 1.65V @ 15V, 5A
Power - Max : 62.5W
Switching Energy : 60µJ (on), 340µJ (off)
Input Type : Standard
Gate Charge : 18nC
Td (on/off) @ 25°C : 19ns/160ns
Test Condition : 390V, 5A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
911 in stock
STGP12NB60HD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 12A
Power - Max : 125W
Switching Energy : 210µJ (off)
Input Type : Standard
Gate Charge : 68nC
Td (on/off) @ 25°C : 5ns/91ns
Test Condition : 480V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 80ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 12A
Power - Max : 125W
Switching Energy : 210µJ (off)
Input Type : Standard
Gate Charge : 68nC
Td (on/off) @ 25°C : 5ns/91ns
Test Condition : 480V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 80ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
STGP12NB60K
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 12A
Power - Max : 125W
Switching Energy : 258µJ (off)
Input Type : Standard
Gate Charge : 54nC
Td (on/off) @ 25°C : 25ns/96ns
Test Condition : 480V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 12A
Power - Max : 125W
Switching Energy : 258µJ (off)
Input Type : Standard
Gate Charge : 54nC
Td (on/off) @ 25°C : 25ns/96ns
Test Condition : 480V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
STGP12NB60KD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 12A
Power - Max : 125W
Switching Energy : 258µJ (off)
Input Type : Standard
Gate Charge : 54nC
Td (on/off) @ 25°C : 25ns/96ns
Test Condition : 480V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 80ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 12A
Power - Max : 125W
Switching Energy : 258µJ (off)
Input Type : Standard
Gate Charge : 54nC
Td (on/off) @ 25°C : 25ns/96ns
Test Condition : 480V, 12A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 80ns
Operating Temperature : 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
STGP14N60D
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 7A
Power - Max : 95W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : 390V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220-3
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 7A
Power - Max : 95W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -
Test Condition : 390V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220-3
0
100 in stock
STGP14NC60KD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 7A
Power - Max : 80W
Switching Energy : 82µJ (on), 155µJ (off)
Input Type : Standard
Gate Charge : 34.4nC
Td (on/off) @ 25°C : 22.5ns/116ns
Test Condition : 390V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 25A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 7A
Power - Max : 80W
Switching Energy : 82µJ (on), 155µJ (off)
Input Type : Standard
Gate Charge : 34.4nC
Td (on/off) @ 25°C : 22.5ns/116ns
Test Condition : 390V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
STGP15M65DF2
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 15A
Power - Max : 136W
Switching Energy : 90µJ (on), 450µJ (off)
Input Type : Standard
Gate Charge : 45nC
Td (on/off) @ 25°C : 24ns/93ns
Test Condition : 400V, 15A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 142ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 30A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 15A
Power - Max : 136W
Switching Energy : 90µJ (on), 450µJ (off)
Input Type : Standard
Gate Charge : 45nC
Td (on/off) @ 25°C : 24ns/93ns
Test Condition : 400V, 15A, 12 Ohm, 15V
Reverse Recovery Time (trr) : 142ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220
0
947 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2024 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
