- Discrete Semiconductor Products
- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
STGFW30H65FB
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 58W
Switching Energy : 151µJ (on), 293µJ (off)
Input Type : Standard
Gate Charge : 149nC
Td (on/off) @ 25°C : 37ns/146ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3PFM, SC-93-3
Supplier Device Package : TO-3PF-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 30A
Power - Max : 58W
Switching Energy : 151µJ (on), 293µJ (off)
Input Type : Standard
Gate Charge : 149nC
Td (on/off) @ 25°C : 37ns/146ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3PFM, SC-93-3
Supplier Device Package : TO-3PF-3
0
291 in stock

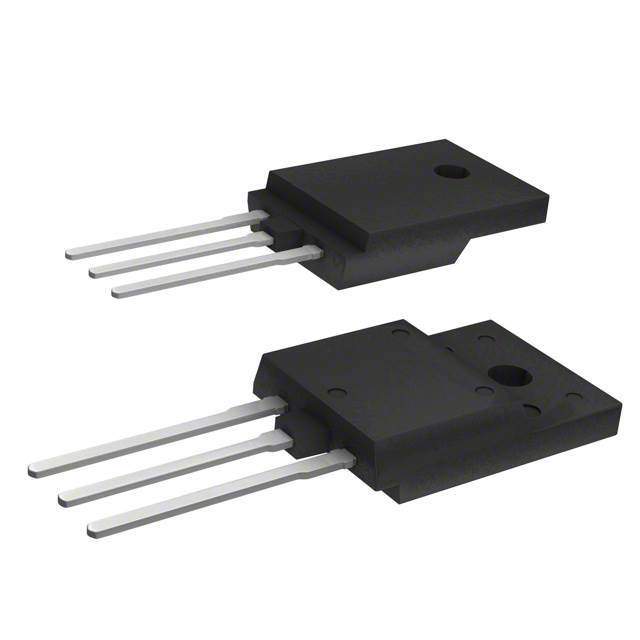

STGFW30NC60V
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 36A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 80W
Switching Energy : 220µJ (on), 330µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 31ns/100ns
Test Condition : 390V, 20A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-3PF
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 36A
Current - Collector Pulsed (Icm) : 100A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 80W
Switching Energy : 220µJ (on), 330µJ (off)
Input Type : Standard
Gate Charge : 100nC
Td (on/off) @ 25°C : 31ns/100ns
Test Condition : 390V, 20A, 3.3 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-3PF
0
279 in stock
STGFW30V60DF
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 30A
Power - Max : 58W
Switching Energy : 383µJ (on), 233µJ (off)
Input Type : Standard
Gate Charge : 163nC
Td (on/off) @ 25°C : 45ns/189ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 53ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-3PF
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 30A
Power - Max : 58W
Switching Energy : 383µJ (on), 233µJ (off)
Input Type : Standard
Gate Charge : 163nC
Td (on/off) @ 25°C : 45ns/189ns
Test Condition : 400V, 30A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 53ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-3PF
0
513 in stock

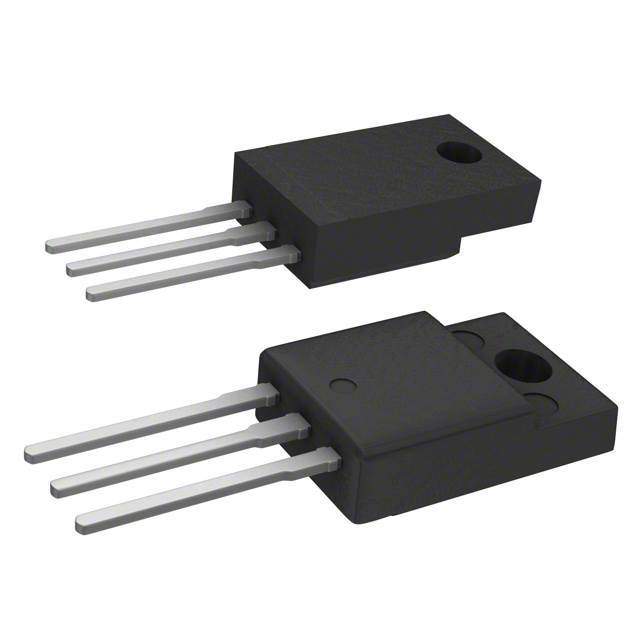

STGFW35HF60W
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 36A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 88W
Switching Energy : 290µJ (on), 185µJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 30ns/175ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-3PF
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 36A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 20A
Power - Max : 88W
Switching Energy : 290µJ (on), 185µJ (off)
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : 30ns/175ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-3PF
0
285 in stock
STGFW40H65FB
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 40A
Power - Max : 62.5W
Switching Energy : 498µJ (on), 363µJ (off)
Input Type : Standard
Gate Charge : 210nC
Td (on/off) @ 25°C : 40ns/142ns
Test Condition : 400V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-3PF-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 40A
Power - Max : 62.5W
Switching Energy : 498µJ (on), 363µJ (off)
Input Type : Standard
Gate Charge : 210nC
Td (on/off) @ 25°C : 40ns/142ns
Test Condition : 400V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-3PF-3
0
443 in stock
STGFW40V60DF
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 62.5W
Switching Energy : 456µJ (on), 411µJ (off)
Input Type : Standard
Gate Charge : 226nC
Td (on/off) @ 25°C : 52ns/208ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 41ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : -
Package / Case : TO-3PFM, SC-93-3
Supplier Device Package : TO-3PF-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 62.5W
Switching Energy : 456µJ (on), 411µJ (off)
Input Type : Standard
Gate Charge : 226nC
Td (on/off) @ 25°C : 52ns/208ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 41ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : -
Package / Case : TO-3PFM, SC-93-3
Supplier Device Package : TO-3PF-3
0
106 in stock
STGFW40V60F
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 62.5W
Switching Energy : 456µJ (on), 411µJ (off)
Input Type : Standard
Gate Charge : 226nC
Td (on/off) @ 25°C : 52ns/208ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-3PF
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 40A
Power - Max : 62.5W
Switching Energy : 456µJ (on), 411µJ (off)
Input Type : Standard
Gate Charge : 226nC
Td (on/off) @ 25°C : 52ns/208ns
Test Condition : 400V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-3PF
0
236 in stock
STGFW80V60F
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 80A
Power - Max : 79W
Switching Energy : 1.8mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 448nC
Td (on/off) @ 25°C : 60ns/220ns
Test Condition : 400V, 80A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-3PF
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 120A
Current - Collector Pulsed (Icm) : 240A
Vce(on) (Max) @ Vge, Ic : 2.3V @ 15V, 80A
Power - Max : 79W
Switching Energy : 1.8mJ (on), 1mJ (off)
Input Type : Standard
Gate Charge : 448nC
Td (on/off) @ 25°C : 60ns/220ns
Test Condition : 400V, 80A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-3PF
0
203 in stock
STGP100N30
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : STripFET™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 330V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 50A
Power - Max : 250W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -/134ns
Test Condition : 180V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220
Packaging : Tube
Series : STripFET™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 330V
Current - Collector (Ic) (Max) : 90A
Current - Collector Pulsed (Icm) : -
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 50A
Power - Max : 250W
Switching Energy : -
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : -/134ns
Test Condition : 180V, 25A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220
0
865 in stock
STGP10M65DF2
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 10A
Power - Max : 115W
Switching Energy : 120µJ (on), 270µJ (off)
Input Type : Standard
Gate Charge : 28nC
Td (on/off) @ 25°C : 19ns/91ns
Test Condition : 400V, 10A, 22 Ohm, 15V
Reverse Recovery Time (trr) : 96ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 10A
Power - Max : 115W
Switching Energy : 120µJ (on), 270µJ (off)
Input Type : Standard
Gate Charge : 28nC
Td (on/off) @ 25°C : 19ns/91ns
Test Condition : 400V, 10A, 22 Ohm, 15V
Reverse Recovery Time (trr) : 96ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220
0
66 in stock
STGP10NB37LZ
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 440V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 4.5V, 10A
Power - Max : 125W
Switching Energy : 2.4mJ (on), 5mJ (off)
Input Type : Standard
Gate Charge : 28nC
Td (on/off) @ 25°C : 1.3µs/8µs
Test Condition : 328V, 10A, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -65°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 440V
Current - Collector (Ic) (Max) : 20A
Current - Collector Pulsed (Icm) : 40A
Vce(on) (Max) @ Vge, Ic : 1.8V @ 4.5V, 10A
Power - Max : 125W
Switching Energy : 2.4mJ (on), 5mJ (off)
Input Type : Standard
Gate Charge : 28nC
Td (on/off) @ 25°C : 1.3µs/8µs
Test Condition : 328V, 10A, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -65°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
100 in stock
STGP10NB60SD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 29A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 10A
Power - Max : 80W
Switching Energy : 600µJ (on), 5mJ (off)
Input Type : Standard
Gate Charge : 33nC
Td (on/off) @ 25°C : 700ns/1.2µs
Test Condition : 480V, 10A, 1 kOhm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 29A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 1.75V @ 15V, 10A
Power - Max : 80W
Switching Energy : 600µJ (on), 5mJ (off)
Input Type : Standard
Gate Charge : 33nC
Td (on/off) @ 25°C : 700ns/1.2µs
Test Condition : 480V, 10A, 1 kOhm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220AB
0
66 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
