- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
STGF3NC120HD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 3A
Power - Max : 25W
Switching Energy : 236µJ (on), 290µJ (off)
Input Type : Standard
Gate Charge : 24nC
Td (on/off) @ 25°C : 15ns/118ns
Test Condition : 800V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 51ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 3A
Power - Max : 25W
Switching Energy : 236µJ (on), 290µJ (off)
Input Type : Standard
Gate Charge : 24nC
Td (on/off) @ 25°C : 15ns/118ns
Test Condition : 800V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 51ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
0
1880 in stock
STGF4M65DF2
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : M
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 16A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 4A
Power - Max : 23W
Switching Energy : 40µJ (on), 136µJ (off)
Input Type : Standard
Gate Charge : 15.2nC
Td (on/off) @ 25°C : 12ns/86ns
Test Condition : 400V, 4A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 133ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220FP
Packaging : Tube
Series : M
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 8A
Current - Collector Pulsed (Icm) : 16A
Vce(on) (Max) @ Vge, Ic : 2.1V @ 15V, 4A
Power - Max : 23W
Switching Energy : 40µJ (on), 136µJ (off)
Input Type : Standard
Gate Charge : 15.2nC
Td (on/off) @ 25°C : 12ns/86ns
Test Condition : 400V, 4A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 133ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : TO-220FP
0
100 in stock
STGF5H60DF
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 5A
Power - Max : 24W
Switching Energy : 56µJ (on), 78.5µJ (off)
Input Type : Standard
Gate Charge : 43nC
Td (on/off) @ 25°C : 30ns/140ns
Test Condition : 400V, 5A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 134.5ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 5A
Power - Max : 24W
Switching Energy : 56µJ (on), 78.5µJ (off)
Input Type : Standard
Gate Charge : 43nC
Td (on/off) @ 25°C : 30ns/140ns
Test Condition : 400V, 5A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 134.5ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
0
100 in stock
STGF6NC60HD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 21A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 3A
Power - Max : 20W
Switching Energy : 20µJ (on), 68µJ (off)
Input Type : Standard
Gate Charge : 13.6nC
Td (on/off) @ 25°C : 12ns/76ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 21ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 21A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 3A
Power - Max : 20W
Switching Energy : 20µJ (on), 68µJ (off)
Input Type : Standard
Gate Charge : 13.6nC
Td (on/off) @ 25°C : 12ns/76ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 21ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
0
1 in stock
STGF7H60DF
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 28A
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 7A
Power - Max : 24W
Switching Energy : 99µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 46nC
Td (on/off) @ 25°C : 30ns/160ns
Test Condition : 400V, 7A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 136ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 14A
Current - Collector Pulsed (Icm) : 28A
Vce(on) (Max) @ Vge, Ic : 1.95V @ 15V, 7A
Power - Max : 24W
Switching Energy : 99µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 46nC
Td (on/off) @ 25°C : 30ns/160ns
Test Condition : 400V, 7A, 47 Ohm, 15V
Reverse Recovery Time (trr) : 136ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
0
100 in stock

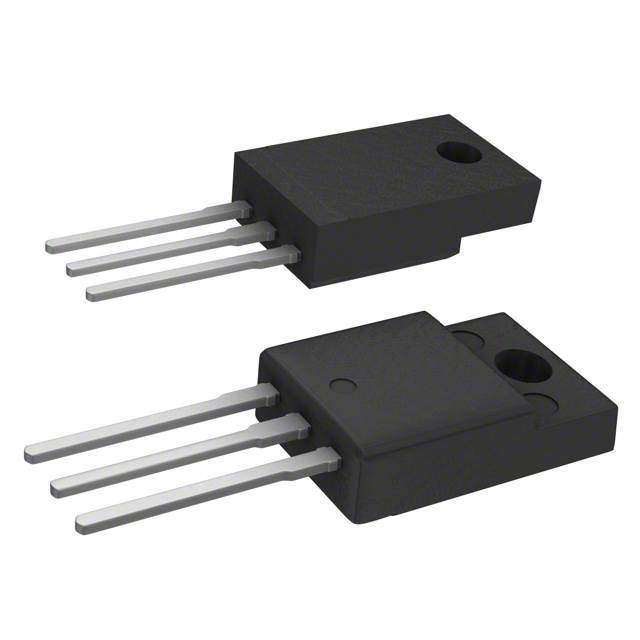

STGF7NB60SL
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 1.6V @ 4.5V, 7A
Power - Max : 25W
Switching Energy : 4.1mJ (off)
Input Type : Standard
Gate Charge : 16nC
Td (on/off) @ 25°C : 1.1µs/5.2µs
Test Condition : 480V, 7A, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 15A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 1.6V @ 4.5V, 7A
Power - Max : 25W
Switching Energy : 4.1mJ (off)
Input Type : Standard
Gate Charge : 16nC
Td (on/off) @ 25°C : 1.1µs/5.2µs
Test Condition : 480V, 7A, 1 kOhm, 5V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
0
5609 in stock
STGF7NC60HD
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 7A
Power - Max : 25W
Switching Energy : 95µJ (on), 115µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 18.5ns/72ns
Test Condition : 390V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
Packaging : Tube
Series : PowerMESH™
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 50A
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 7A
Power - Max : 25W
Switching Energy : 95µJ (on), 115µJ (off)
Input Type : Standard
Gate Charge : 35nC
Td (on/off) @ 25°C : 18.5ns/72ns
Test Condition : 390V, 7A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 37ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
0
656 in stock
STGFL6NC60D
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 7A
Current - Collector Pulsed (Icm) : 25A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 3A
Power - Max : 22W
Switching Energy : 46.5µJ (on), 23.5µJ (off)
Input Type : Standard
Gate Charge : 12nC
Td (on/off) @ 25°C : 6.7ns/46ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 30ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 7A
Current - Collector Pulsed (Icm) : 25A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 3A
Power - Max : 22W
Switching Energy : 46.5µJ (on), 23.5µJ (off)
Input Type : Standard
Gate Charge : 12nC
Td (on/off) @ 25°C : 6.7ns/46ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 30ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
0
537 in stock
STGFL6NC60DI
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 7A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 3A
Power - Max : 22W
Switching Energy : 32µJ (on), 24µJ (off)
Input Type : Standard
Gate Charge : 12nC
Td (on/off) @ 25°C : 6.7ns/46ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 23ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
Packaging : Tube
Series : PowerMESH™
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 7A
Current - Collector Pulsed (Icm) : 18A
Vce(on) (Max) @ Vge, Ic : 2.9V @ 15V, 3A
Power - Max : 22W
Switching Energy : 32µJ (on), 24µJ (off)
Input Type : Standard
Gate Charge : 12nC
Td (on/off) @ 25°C : 6.7ns/46ns
Test Condition : 390V, 3A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 23ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3 Full Pack
Supplier Device Package : TO-220FP
0
100 in stock
STGFW20H65FB
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 20A
Power - Max : 52W
Switching Energy : 77µJ (on), 170µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 30ns/139ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3PFM, SC-93-3
Supplier Device Package : TO-3PF
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 650V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2V @ 15V, 20A
Power - Max : 52W
Switching Energy : 77µJ (on), 170µJ (off)
Input Type : Standard
Gate Charge : 120nC
Td (on/off) @ 25°C : 30ns/139ns
Test Condition : 400V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3PFM, SC-93-3
Supplier Device Package : TO-3PF
0
260 in stock
STGFW20V60DF
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 20A
Power - Max : 52W
Switching Energy : 200µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 116nC
Td (on/off) @ 25°C : 38ns/149ns
Test Condition : 400V, 20A, 15V
Reverse Recovery Time (trr) : 40ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-3PF
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 20A
Power - Max : 52W
Switching Energy : 200µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 116nC
Td (on/off) @ 25°C : 38ns/149ns
Test Condition : 400V, 20A, 15V
Reverse Recovery Time (trr) : 40ns
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-3PF
0
579 in stock
STGFW20V60F
STMicroelectronics
Manufacturer : STMicroelectronics
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 20A
Power - Max : 52W
Switching Energy : 200µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 116nC
Td (on/off) @ 25°C : 38ns/149ns
Test Condition : 400V, 20A, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-3PF
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 80A
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 20A
Power - Max : 52W
Switching Energy : 200µJ (on), 130µJ (off)
Input Type : Standard
Gate Charge : 116nC
Td (on/off) @ 25°C : 38ns/149ns
Test Condition : 400V, 20A, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 175°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3 Full Pack
Supplier Device Package : TO-3PF
0
305 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
