SGL40N150TU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1500V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 4.7V @ 15V, 40A
Power - Max : 200W
Switching Energy : -
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1500V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 4.7V @ 15V, 40A
Power - Max : 200W
Switching Energy : -
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
0
100 in stock
SGL50N60RUFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 50A
Power - Max : 250W
Switching Energy : 1.68mJ (on), 1.03mJ (off)
Input Type : Standard
Gate Charge : 145nC
Td (on/off) @ 25°C : 26ns/66ns
Test Condition : 300V, 50A, 5.9 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 50A
Power - Max : 250W
Switching Energy : 1.68mJ (on), 1.03mJ (off)
Input Type : Standard
Gate Charge : 145nC
Td (on/off) @ 25°C : 26ns/66ns
Test Condition : 300V, 50A, 5.9 Ohm, 15V
Reverse Recovery Time (trr) : 100ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
0
737 in stock
SGL50N60RUFTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 50A
Power - Max : 250W
Switching Energy : 1.68mJ (on), 1.03mJ (off)
Input Type : Standard
Gate Charge : 145nC
Td (on/off) @ 25°C : 26ns/66ns
Test Condition : 300V, 50A, 5.9 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 150A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 50A
Power - Max : 250W
Switching Energy : 1.68mJ (on), 1.03mJ (off)
Input Type : Standard
Gate Charge : 145nC
Td (on/off) @ 25°C : 26ns/66ns
Test Condition : 300V, 50A, 5.9 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
0
100 in stock

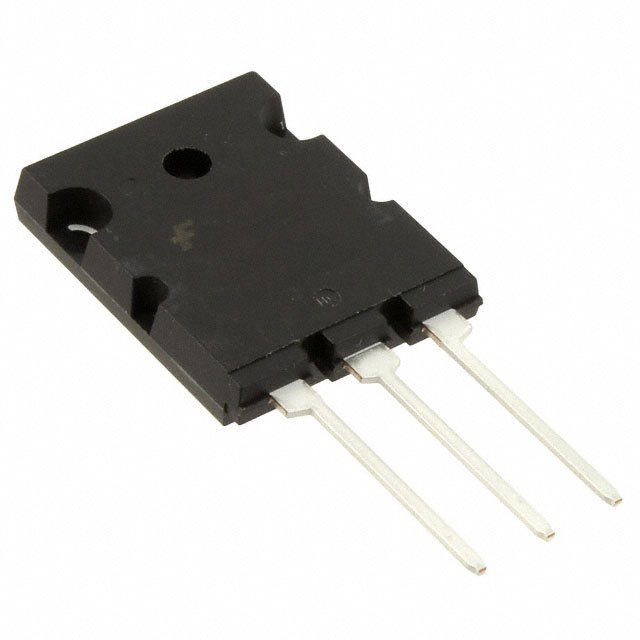

SGL5N150UFTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1500V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 5.5V @ 10V, 5A
Power - Max : 125W
Switching Energy : 190µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 30nC
Td (on/off) @ 25°C : 10ns/30ns
Test Condition : 600V, 5A, 10 Ohm, 10V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1500V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 5.5V @ 10V, 5A
Power - Max : 125W
Switching Energy : 190µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 30nC
Td (on/off) @ 25°C : 10ns/30ns
Test Condition : 600V, 5A, 10 Ohm, 10V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
0
100 in stock
SGL60N90DG3TU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 900V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 60A
Power - Max : 180W
Switching Energy : -
Input Type : Standard
Gate Charge : 260nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 1.5µs
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 900V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 60A
Power - Max : 180W
Switching Energy : -
Input Type : Standard
Gate Charge : 260nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 1.5µs
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
0
100 in stock
SGL60N90DG3YDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 900V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 60A
Power - Max : 180W
Switching Energy : -
Input Type : Standard
Gate Charge : 260nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 1.5µs
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : Trench
Voltage - Collector Emitter Breakdown (Max) : 900V
Current - Collector (Ic) (Max) : 60A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 60A
Power - Max : 180W
Switching Energy : -
Input Type : Standard
Gate Charge : 260nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 1.5µs
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
0
100 in stock

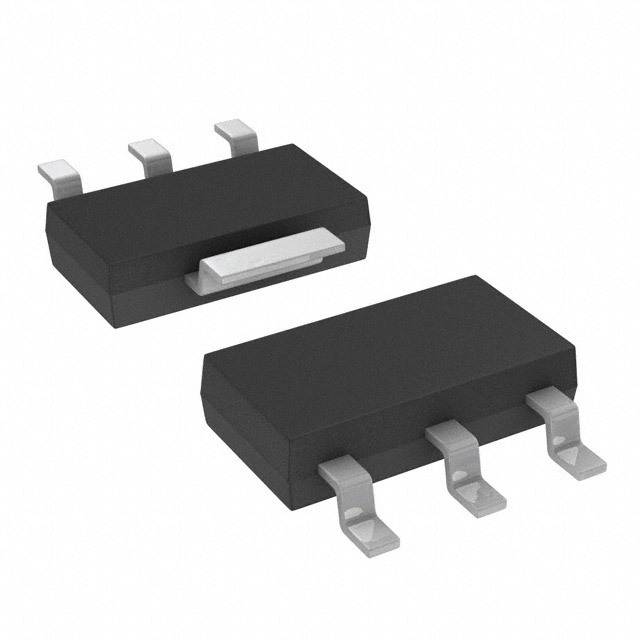

SGM2N60UFTF
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 2.4A
Current - Collector Pulsed (Icm) : 10A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 1.2A
Power - Max : 2.1W
Switching Energy : 30µJ (on), 13µJ (off)
Input Type : Standard
Gate Charge : 9nC
Td (on/off) @ 25°C : 15ns/80ns
Test Condition : 300V, 1.2A, 200 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223-4
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 2.4A
Current - Collector Pulsed (Icm) : 10A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 1.2A
Power - Max : 2.1W
Switching Energy : 30µJ (on), 13µJ (off)
Input Type : Standard
Gate Charge : 9nC
Td (on/off) @ 25°C : 15ns/80ns
Test Condition : 300V, 1.2A, 200 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-261-4, TO-261AA
Supplier Device Package : SOT-223-4
0
100 in stock
SGP02N120XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 6.2A
Current - Collector Pulsed (Icm) : 9.6A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 2A
Power - Max : 62W
Switching Energy : 220µJ
Input Type : Standard
Gate Charge : 11nC
Td (on/off) @ 25°C : 23ns/260ns
Test Condition : 800V, 2A, 91 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 6.2A
Current - Collector Pulsed (Icm) : 9.6A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 2A
Power - Max : 62W
Switching Energy : 220µJ
Input Type : Standard
Gate Charge : 11nC
Td (on/off) @ 25°C : 23ns/260ns
Test Condition : 800V, 2A, 91 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
0
100 in stock
SGP02N60XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 2A
Power - Max : 30W
Switching Energy : 64µJ
Input Type : Standard
Gate Charge : 14nC
Td (on/off) @ 25°C : 20ns/259ns
Test Condition : 400V, 2A, 118 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 6A
Current - Collector Pulsed (Icm) : 12A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 2A
Power - Max : 30W
Switching Energy : 64µJ
Input Type : Standard
Gate Charge : 14nC
Td (on/off) @ 25°C : 20ns/259ns
Test Condition : 400V, 2A, 118 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
0
100 in stock
SGP04N60XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 9.4A
Current - Collector Pulsed (Icm) : 19A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 4A
Power - Max : 50W
Switching Energy : 131µJ
Input Type : Standard
Gate Charge : 24nC
Td (on/off) @ 25°C : 22ns/237ns
Test Condition : 400V, 4A, 67 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 9.4A
Current - Collector Pulsed (Icm) : 19A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 4A
Power - Max : 50W
Switching Energy : 131µJ
Input Type : Standard
Gate Charge : 24nC
Td (on/off) @ 25°C : 22ns/237ns
Test Condition : 400V, 4A, 67 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
0
100 in stock
SGP06N60XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 6A
Power - Max : 68W
Switching Energy : 215µJ
Input Type : Standard
Gate Charge : 32nC
Td (on/off) @ 25°C : 25ns/220ns
Test Condition : 400V, 6A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 6A
Power - Max : 68W
Switching Energy : 215µJ
Input Type : Standard
Gate Charge : 32nC
Td (on/off) @ 25°C : 25ns/220ns
Test Condition : 400V, 6A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
0
100 in stock
SGP07N120XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 16.5A
Current - Collector Pulsed (Icm) : 27A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 8A
Power - Max : 125W
Switching Energy : 1mJ
Input Type : Standard
Gate Charge : 70nC
Td (on/off) @ 25°C : 27ns/440ns
Test Condition : 800V, 8A, 47 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 16.5A
Current - Collector Pulsed (Icm) : 27A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 8A
Power - Max : 125W
Switching Energy : 1mJ
Input Type : Standard
Gate Charge : 70nC
Td (on/off) @ 25°C : 27ns/440ns
Test Condition : 800V, 8A, 47 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-220-3
Supplier Device Package : PG-TO220-3
0
408 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
