- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
SGD04N60BUMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 9.4A
Current - Collector Pulsed (Icm) : 19A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 4A
Power - Max : 50W
Switching Energy : 131µJ
Input Type : Standard
Gate Charge : 24nC
Td (on/off) @ 25°C : 22ns/237ns
Test Condition : 400V, 4A, 67 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 9.4A
Current - Collector Pulsed (Icm) : 19A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 4A
Power - Max : 50W
Switching Energy : 131µJ
Input Type : Standard
Gate Charge : 24nC
Td (on/off) @ 25°C : 22ns/237ns
Test Condition : 400V, 4A, 67 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
100 in stock

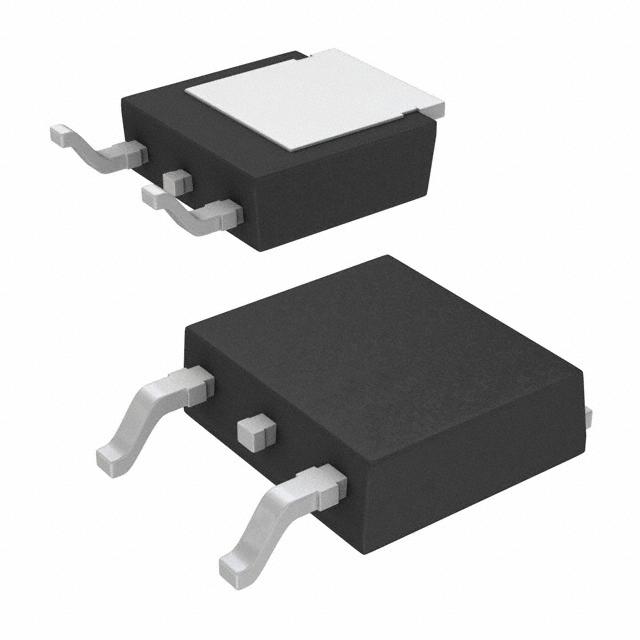

SGD06N60BUMA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 6A
Power - Max : 68W
Switching Energy : 215µJ
Input Type : Standard
Gate Charge : 32nC
Td (on/off) @ 25°C : 25ns/220ns
Test Condition : 400V, 6A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 12A
Current - Collector Pulsed (Icm) : 24A
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 6A
Power - Max : 68W
Switching Energy : 215µJ
Input Type : Standard
Gate Charge : 32nC
Td (on/off) @ 25°C : 25ns/220ns
Test Condition : 400V, 6A, 50 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package : PG-TO252-3
0
100 in stock
SGF23N60UFDM1TU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 23A
Current - Collector Pulsed (Icm) : 92A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 12A
Power - Max : 75W
Switching Energy : 115µJ (on), 135µJ (off)
Input Type : Standard
Gate Charge : 49nC
Td (on/off) @ 25°C : 17ns/60ns
Test Condition : 300V, 12A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-94
Supplier Device Package : TO-3PF
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 23A
Current - Collector Pulsed (Icm) : 92A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 12A
Power - Max : 75W
Switching Energy : 115µJ (on), 135µJ (off)
Input Type : Standard
Gate Charge : 49nC
Td (on/off) @ 25°C : 17ns/60ns
Test Condition : 300V, 12A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-94
Supplier Device Package : TO-3PF
0
100 in stock

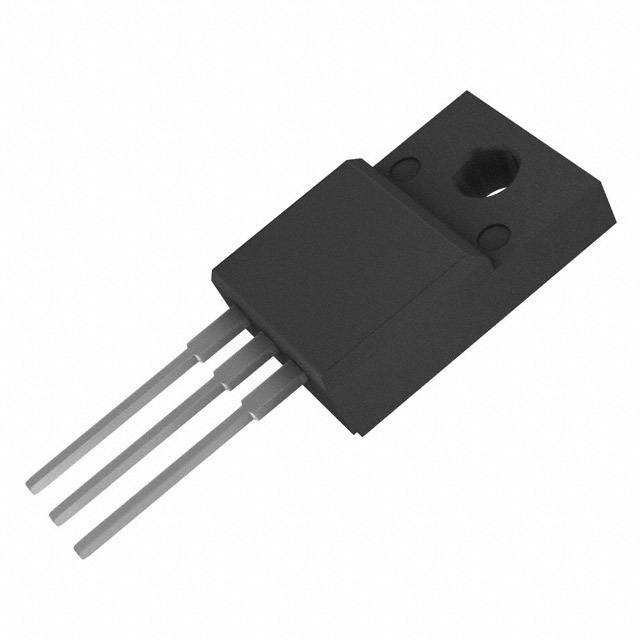

SGF23N60UFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 23A
Current - Collector Pulsed (Icm) : 92A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 12A
Power - Max : 75W
Switching Energy : 115µJ (on), 135µJ (off)
Input Type : Standard
Gate Charge : 49nC
Td (on/off) @ 25°C : 17ns/60ns
Test Condition : 300V, 12A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : SC-94
Supplier Device Package : TO-3PF
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 23A
Current - Collector Pulsed (Icm) : 92A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 12A
Power - Max : 75W
Switching Energy : 115µJ (on), 135µJ (off)
Input Type : Standard
Gate Charge : 49nC
Td (on/off) @ 25°C : 17ns/60ns
Test Condition : 300V, 12A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -
Mounting Type : Through Hole
Package / Case : SC-94
Supplier Device Package : TO-3PF
0
100 in stock
SGF23N60UFTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 23A
Current - Collector Pulsed (Icm) : 92A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 12A
Power - Max : 75W
Switching Energy : 115µJ (on), 135µJ (off)
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : 17ns/60ns
Test Condition : 300V, 12A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-94
Supplier Device Package : TO-3PF
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 23A
Current - Collector Pulsed (Icm) : 92A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 12A
Power - Max : 75W
Switching Energy : 115µJ (on), 135µJ (off)
Input Type : Standard
Gate Charge : -
Td (on/off) @ 25°C : 17ns/60ns
Test Condition : 300V, 12A, 23 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-94
Supplier Device Package : TO-3PF
0
343 in stock
SGF40N60UFTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 20A
Power - Max : 100W
Switching Energy : 160µJ (on), 200µJ (off)
Input Type : Standard
Gate Charge : 97nC
Td (on/off) @ 25°C : 15ns/65ns
Test Condition : 300V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-94
Supplier Device Package : TO-3PF
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 20A
Power - Max : 100W
Switching Energy : 160µJ (on), 200µJ (off)
Input Type : Standard
Gate Charge : 97nC
Td (on/off) @ 25°C : 15ns/65ns
Test Condition : 300V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-94
Supplier Device Package : TO-3PF
0
100 in stock
SGF5N150UFTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1500V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 5.5V @ 10V, 5A
Power - Max : 62.5W
Switching Energy : 190µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 30nC
Td (on/off) @ 25°C : 10ns/30ns
Test Condition : 600V, 5A, 10 Ohm, 10V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-94
Supplier Device Package : TO-3PF
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1500V
Current - Collector (Ic) (Max) : 10A
Current - Collector Pulsed (Icm) : 20A
Vce(on) (Max) @ Vge, Ic : 5.5V @ 10V, 5A
Power - Max : 62.5W
Switching Energy : 190µJ (on), 100µJ (off)
Input Type : Standard
Gate Charge : 30nC
Td (on/off) @ 25°C : 10ns/30ns
Test Condition : 600V, 5A, 10 Ohm, 10V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-94
Supplier Device Package : TO-3PF
0
100 in stock
SGF80N60UFTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 40A
Power - Max : 110W
Switching Energy : 570µJ (on), 590µJ (off)
Input Type : Standard
Gate Charge : 175nC
Td (on/off) @ 25°C : 23ns/90ns
Test Condition : 300V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-94
Supplier Device Package : TO-3PF
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 40A
Power - Max : 110W
Switching Energy : 570µJ (on), 590µJ (off)
Input Type : Standard
Gate Charge : 175nC
Td (on/off) @ 25°C : 23ns/90ns
Test Condition : 300V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : SC-94
Supplier Device Package : TO-3PF
0
1440 in stock
SGH10N60RUFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 10A
Power - Max : 75W
Switching Energy : 141µJ (on), 215µJ (off)
Input Type : Standard
Gate Charge : 30nC
Td (on/off) @ 25°C : 15ns/36ns
Test Condition : 300V, 10A, 20 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 16A
Current - Collector Pulsed (Icm) : 30A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 10A
Power - Max : 75W
Switching Energy : 141µJ (on), 215µJ (off)
Input Type : Standard
Gate Charge : 30nC
Td (on/off) @ 25°C : 15ns/36ns
Test Condition : 300V, 10A, 20 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock
SGH15N60RUFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 24A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 15A
Power - Max : 160W
Switching Energy : 320µJ (on), 356µJ (off)
Input Type : Standard
Gate Charge : 42nC
Td (on/off) @ 25°C : 17ns/44ns
Test Condition : 300V, 15A, 13 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 24A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 15A
Power - Max : 160W
Switching Energy : 320µJ (on), 356µJ (off)
Input Type : Standard
Gate Charge : 42nC
Td (on/off) @ 25°C : 17ns/44ns
Test Condition : 300V, 15A, 13 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock
SGH15N60RUFTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 24A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 15A
Power - Max : 160W
Switching Energy : 320µJ (on), 356µJ (off)
Input Type : Standard
Gate Charge : 42nC
Td (on/off) @ 25°C : 17ns/44ns
Test Condition : 300V, 15A, 13 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 24A
Current - Collector Pulsed (Icm) : 45A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 15A
Power - Max : 160W
Switching Energy : 320µJ (on), 356µJ (off)
Input Type : Standard
Gate Charge : 42nC
Td (on/off) @ 25°C : 17ns/44ns
Test Condition : 300V, 15A, 13 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock
SGH20N60RUFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 32A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 20A
Power - Max : 195W
Switching Energy : 524µJ (on), 473µJ (off)
Input Type : Standard
Gate Charge : 55nC
Td (on/off) @ 25°C : 30ns/48ns
Test Condition : 300V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 32A
Current - Collector Pulsed (Icm) : 60A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 20A
Power - Max : 195W
Switching Energy : 524µJ (on), 473µJ (off)
Input Type : Standard
Gate Charge : 55nC
Td (on/off) @ 25°C : 30ns/48ns
Test Condition : 300V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
