- Transistors - IGBTs - Single
Part Number
Manufacturer
Description
Unit Price
In Stock
SGH23N60UFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 23A
Current - Collector Pulsed (Icm) : 92A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 12A
Power - Max : 100W
Switching Energy : 115µJ (on), 135µJ (off)
Input Type : Standard
Gate Charge : 49nC
Td (on/off) @ 25°C : 17ns/60ns
Test Condition : 300V, 12A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 23A
Current - Collector Pulsed (Icm) : 92A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 12A
Power - Max : 100W
Switching Energy : 115µJ (on), 135µJ (off)
Input Type : Standard
Gate Charge : 49nC
Td (on/off) @ 25°C : 17ns/60ns
Test Condition : 300V, 12A, 23 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock
SGH30N60RUFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 48A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 30A
Power - Max : 235W
Switching Energy : 919µJ (on), 814µJ (off)
Input Type : Standard
Gate Charge : 85nC
Td (on/off) @ 25°C : 30ns/54ns
Test Condition : 300V, 30A, 7 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 48A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 30A
Power - Max : 235W
Switching Energy : 919µJ (on), 814µJ (off)
Input Type : Standard
Gate Charge : 85nC
Td (on/off) @ 25°C : 30ns/54ns
Test Condition : 300V, 30A, 7 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
100 in stock
SGH30N60RUFTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 48A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 30A
Power - Max : 235W
Switching Energy : 919µJ (on), 814µJ (off)
Input Type : Standard
Gate Charge : 85nC
Td (on/off) @ 25°C : 30ns/54ns
Test Condition : 300V, 30A, 7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 48A
Current - Collector Pulsed (Icm) : 90A
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 30A
Power - Max : 235W
Switching Energy : 919µJ (on), 814µJ (off)
Input Type : Standard
Gate Charge : 85nC
Td (on/off) @ 25°C : 30ns/54ns
Test Condition : 300V, 30A, 7 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
100 in stock
SGH40N60UFDM1TU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 20A
Power - Max : 160W
Switching Energy : 160µJ (on), 200µJ (off)
Input Type : Standard
Gate Charge : 97nC
Td (on/off) @ 25°C : 15ns/65ns
Test Condition : 300V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 20A
Power - Max : 160W
Switching Energy : 160µJ (on), 200µJ (off)
Input Type : Standard
Gate Charge : 97nC
Td (on/off) @ 25°C : 15ns/65ns
Test Condition : 300V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
100 in stock
SGH40N60UFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 20A
Power - Max : 160W
Switching Energy : 160µJ (on), 200µJ (off)
Input Type : Standard
Gate Charge : 97nC
Td (on/off) @ 25°C : 15ns/65ns
Test Condition : 300V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 20A
Power - Max : 160W
Switching Energy : 160µJ (on), 200µJ (off)
Input Type : Standard
Gate Charge : 97nC
Td (on/off) @ 25°C : 15ns/65ns
Test Condition : 300V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : 60ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
100 in stock
SGH40N60UFTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 20A
Power - Max : 160W
Switching Energy : 160µJ (on), 200µJ (off)
Input Type : Standard
Gate Charge : 97nC
Td (on/off) @ 25°C : 15ns/65ns
Test Condition : 300V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
Packaging : Tube
Series : -
Part Status : Active
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 160A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 20A
Power - Max : 160W
Switching Energy : 160µJ (on), 200µJ (off)
Input Type : Standard
Gate Charge : 97nC
Td (on/off) @ 25°C : 15ns/65ns
Test Condition : 300V, 20A, 10 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3P
0
421 in stock

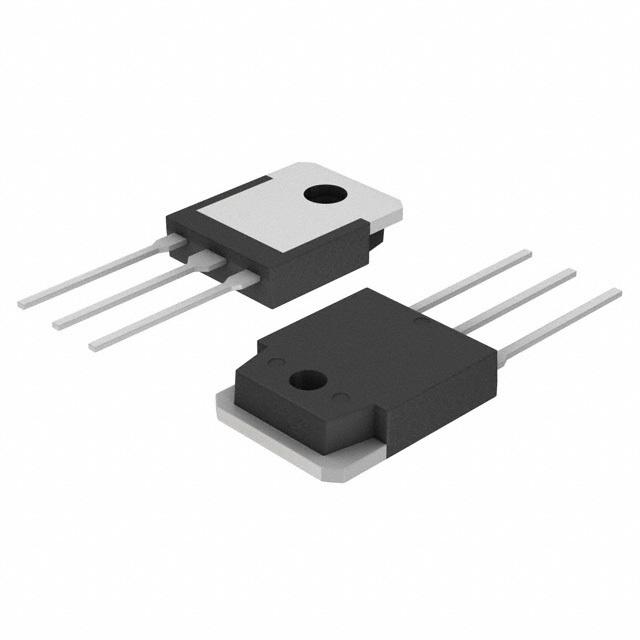

SGH80N60UFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 40A
Power - Max : 195W
Switching Energy : 570µJ (on), 590µJ (off)
Input Type : Standard
Gate Charge : 175nC
Td (on/off) @ 25°C : 23ns/90ns
Test Condition : 300V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 40A
Power - Max : 195W
Switching Energy : 570µJ (on), 590µJ (off)
Input Type : Standard
Gate Charge : 175nC
Td (on/off) @ 25°C : 23ns/90ns
Test Condition : 300V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
100 in stock
SGH80N60UFTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 40A
Power - Max : 195W
Switching Energy : 570µJ (on), 590µJ (off)
Input Type : Standard
Gate Charge : 175nC
Td (on/off) @ 25°C : 23ns/90ns
Test Condition : 300V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 80A
Current - Collector Pulsed (Icm) : 220A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 40A
Power - Max : 195W
Switching Energy : 570µJ (on), 590µJ (off)
Input Type : Standard
Gate Charge : 175nC
Td (on/off) @ 25°C : 23ns/90ns
Test Condition : 300V, 40A, 5 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-3P-3, SC-65-3
Supplier Device Package : TO-3PN
0
100 in stock

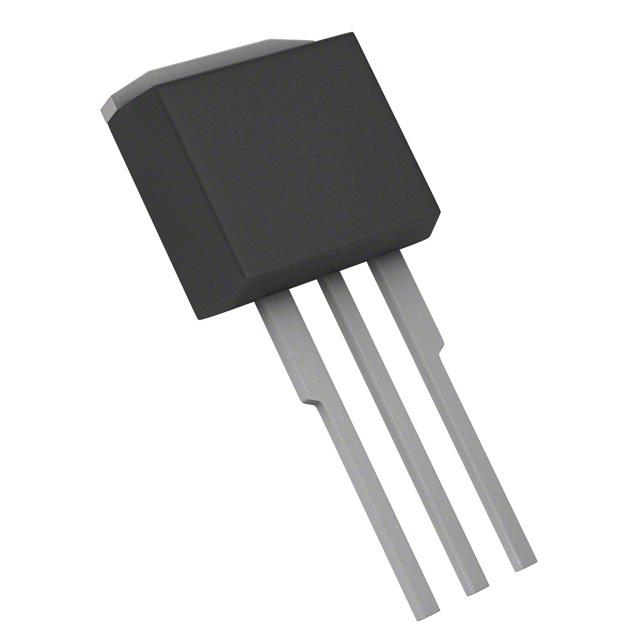

SGI02N120XKSA1
International Rectifier (Infineon Technologies)
Manufacturer : Infineon Technologies
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 6.2A
Current - Collector Pulsed (Icm) : 9.6A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 2A
Power - Max : 62W
Switching Energy : 220µJ
Input Type : Standard
Gate Charge : 11nC
Td (on/off) @ 25°C : 23ns/260ns
Test Condition : 800V, 2A, 91 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : PG-TO262-3-1
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : NPT
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 6.2A
Current - Collector Pulsed (Icm) : 9.6A
Vce(on) (Max) @ Vge, Ic : 3.6V @ 15V, 2A
Power - Max : 62W
Switching Energy : 220µJ
Input Type : Standard
Gate Charge : 11nC
Td (on/off) @ 25°C : 23ns/260ns
Test Condition : 800V, 2A, 91 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package : PG-TO262-3-1
0
100 in stock
SGL160N60UFDTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 80A
Power - Max : 250W
Switching Energy : 2.5mJ (on), 1.76mJ (off)
Input Type : Standard
Gate Charge : 345nC
Td (on/off) @ 25°C : 40ns/90ns
Test Condition : 300V, 80A, 3.9 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
Packaging : Tube
Series : -
Part Status : Not For New Designs
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 80A
Power - Max : 250W
Switching Energy : 2.5mJ (on), 1.76mJ (off)
Input Type : Standard
Gate Charge : 345nC
Td (on/off) @ 25°C : 40ns/90ns
Test Condition : 300V, 80A, 3.9 Ohm, 15V
Reverse Recovery Time (trr) : 95ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
0
671 in stock
SGL160N60UFTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 80A
Power - Max : 250W
Switching Energy : 2.5mJ (on), 1.76mJ (off)
Input Type : Standard
Gate Charge : 345nC
Td (on/off) @ 25°C : 40ns/90ns
Test Condition : 300V, 80A, 3.9 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 160A
Current - Collector Pulsed (Icm) : 300A
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 80A
Power - Max : 250W
Switching Energy : 2.5mJ (on), 1.76mJ (off)
Input Type : Standard
Gate Charge : 345nC
Td (on/off) @ 25°C : 40ns/90ns
Test Condition : 300V, 80A, 3.9 Ohm, 15V
Reverse Recovery Time (trr) : -
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
0
100 in stock
SGL40N150DTU
Aptina / ON Semiconductor
Manufacturer : ON Semiconductor
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1500V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 4.7V @ 15V, 40A
Power - Max : 200W
Switching Energy : -
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 300ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
Packaging : Tube
Series : -
Part Status : Obsolete
IGBT Type : -
Voltage - Collector Emitter Breakdown (Max) : 1500V
Current - Collector (Ic) (Max) : 40A
Current - Collector Pulsed (Icm) : 120A
Vce(on) (Max) @ Vge, Ic : 4.7V @ 15V, 40A
Power - Max : 200W
Switching Energy : -
Input Type : Standard
Gate Charge : 140nC
Td (on/off) @ 25°C : -
Test Condition : -
Reverse Recovery Time (trr) : 300ns
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : TO-264-3, TO-264AA
Supplier Device Package : TO-264
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
