Part Number
Manufacturer
Description
Unit Price
In Stock
CM300HA-12H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 300A
Power - Max : 1100W
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 30nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 300A
Power - Max : 1100W
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 30nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM300HA-24H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 2100W
Vce(on) (Max) @ Vge, Ic : 3.4V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 60nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 2100W
Vce(on) (Max) @ Vge, Ic : 3.4V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 60nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM300HA-28H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1400V
Current - Collector (Ic) (Max) : 300A
Power - Max : 2100W
Vce(on) (Max) @ Vge, Ic : 4.2V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 60nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1400V
Current - Collector (Ic) (Max) : 300A
Power - Max : 2100W
Vce(on) (Max) @ Vge, Ic : 4.2V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 60nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM30TF-12H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Power - Max : 150W
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 30A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 3nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 30A
Power - Max : 150W
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 30A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 3nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM30TF-24H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Power - Max : 310W
Vce(on) (Max) @ Vge, Ic : 3.4V @ 15V, 30A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 6nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 30A
Power - Max : 310W
Vce(on) (Max) @ Vge, Ic : 3.4V @ 15V, 30A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 6nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM35MXA-24S
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : -
Part Status : Discontinued at
IGBT Type : -
Configuration : Three Phase Inverter with Brake
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 35A
Power - Max : 355W
Vce(on) (Max) @ Vge, Ic : 2.25V @ 15V, 35A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 3.5nF @ 10V
Input : Three Phase Bridge Rectifier
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : Module
Supplier Device Package : Module
Series : -
Part Status : Discontinued at
IGBT Type : -
Configuration : Three Phase Inverter with Brake
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 35A
Power - Max : 355W
Vce(on) (Max) @ Vge, Ic : 2.25V @ 15V, 35A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 3.5nF @ 10V
Input : Three Phase Bridge Rectifier
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Through Hole
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM400DU-12F
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : Trench
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 400A
Power - Max : 960W
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 110nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : Trench
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 400A
Power - Max : 960W
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 110nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM400DU-12H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 400A
Power - Max : 1130W
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 35.2nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Active
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 400A
Power - Max : 1130W
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 35.2nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

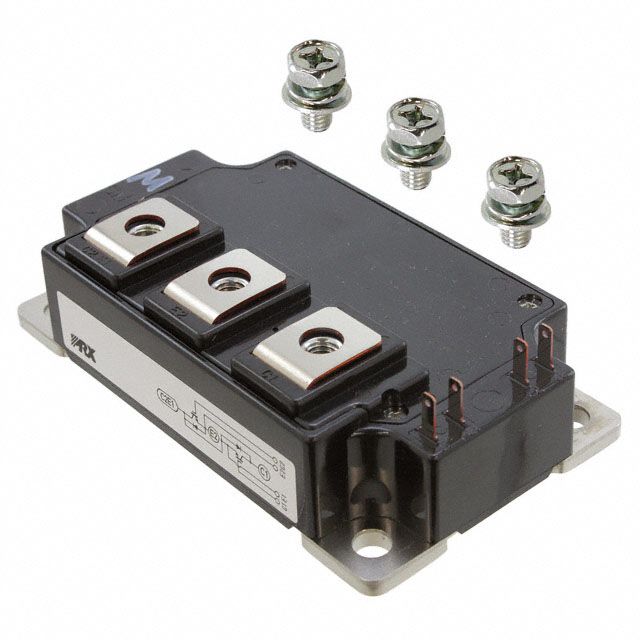

CM400DU-12NFH
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 400A
Power - Max : 960W
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 110nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 400A
Power - Max : 960W
Vce(on) (Max) @ Vge, Ic : 2.7V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 110nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM400DU-24F
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 1100W
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 400A
Current - Collector Cutoff (Max) : 2mA
Input Capacitance (Cies) @ Vce : 160nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 1100W
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 400A
Current - Collector Cutoff (Max) : 2mA
Input Capacitance (Cies) @ Vce : 160nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM400DU-24H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 2100W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 400A
Current - Collector Cutoff (Max) : 2mA
Input Capacitance (Cies) @ Vce : 60nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 2100W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 400A
Current - Collector Cutoff (Max) : 2mA
Input Capacitance (Cies) @ Vce : 60nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM400DU-24NFH
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 1040W
Vce(on) (Max) @ Vge, Ic : 6.5V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 63nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 1040W
Vce(on) (Max) @ Vge, Ic : 6.5V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 63nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
