Part Number
Manufacturer
Description
Unit Price
In Stock

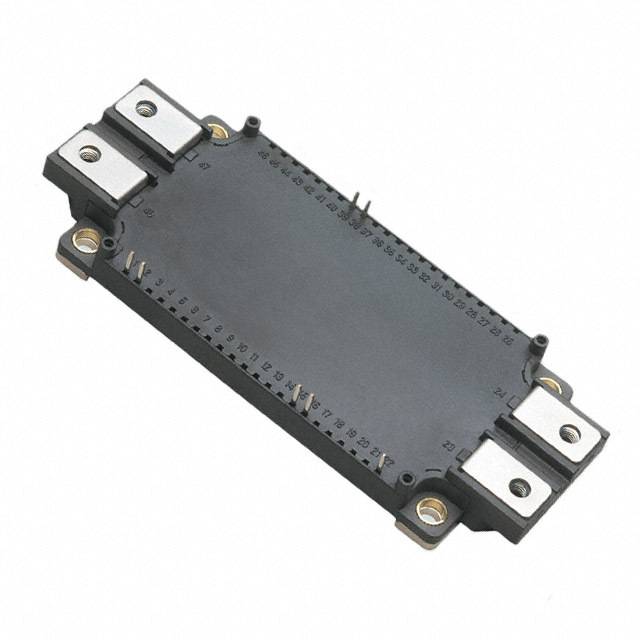

CM300DX-24S
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 2270W
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 30nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 2270W
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 30nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

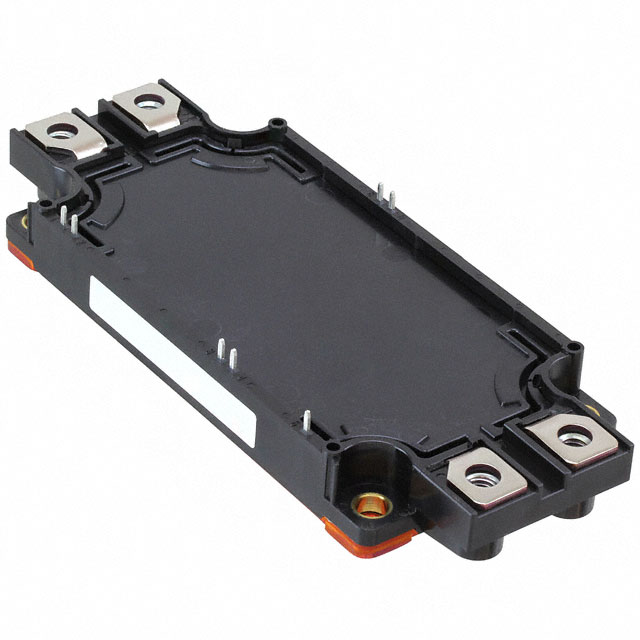

CM300DX-24S1
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : -
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 1850W
Vce(on) (Max) @ Vge, Ic : 2.25V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 30nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : -
Package / Case : Module
Supplier Device Package : Module
Series : -
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 1850W
Vce(on) (Max) @ Vge, Ic : 2.25V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 30nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : -
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

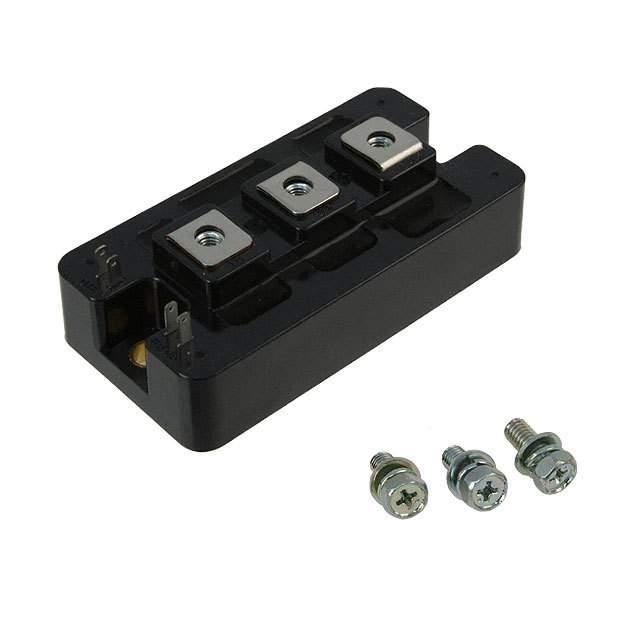

CM300DY-12H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 300A
Power - Max : 1100W
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 30nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 300A
Power - Max : 1100W
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 30nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

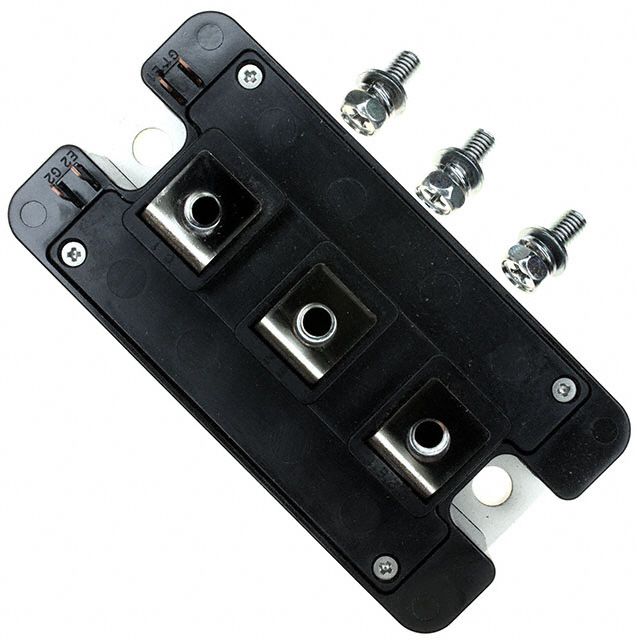

CM300DY-12NF
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 300A
Power - Max : 780W
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 45nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 300A
Power - Max : 780W
Vce(on) (Max) @ Vge, Ic : 2.2V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 45nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

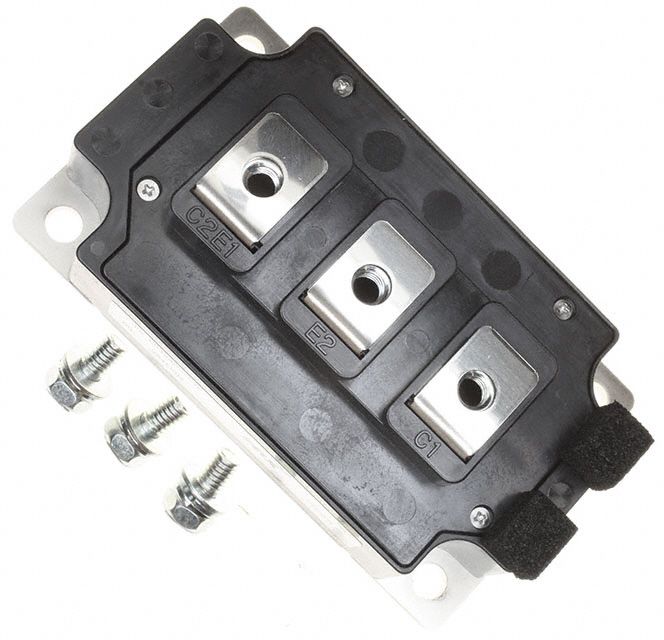

CM300DY-24A
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 1890W
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 47nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 1890W
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 47nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

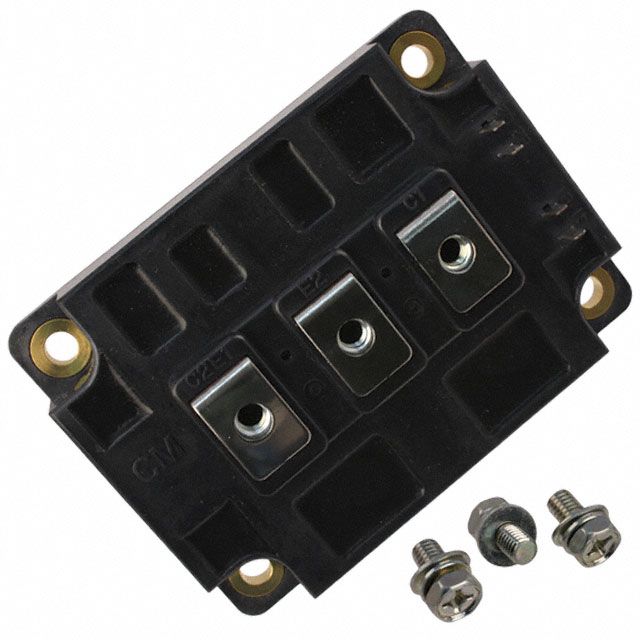

CM300DY-24H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 2100W
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 60nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 2100W
Vce(on) (Max) @ Vge, Ic : 3.2V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 60nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

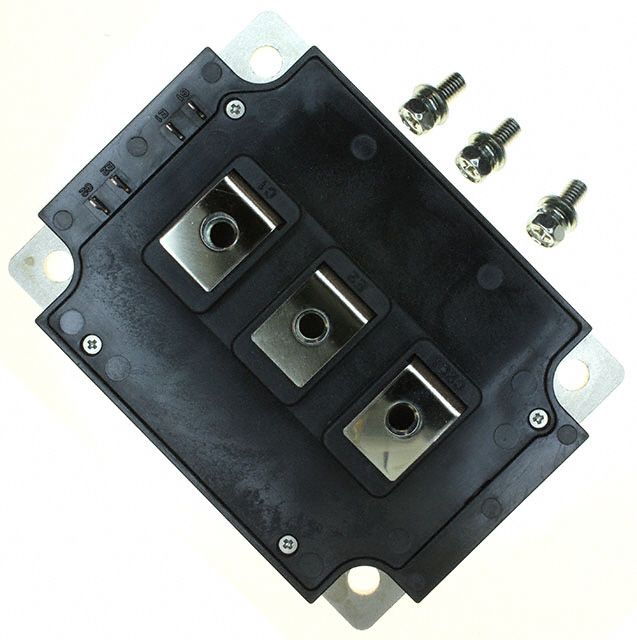

CM300DY-24NF
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 1130W
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 70nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 1130W
Vce(on) (Max) @ Vge, Ic : 2.5V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 70nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

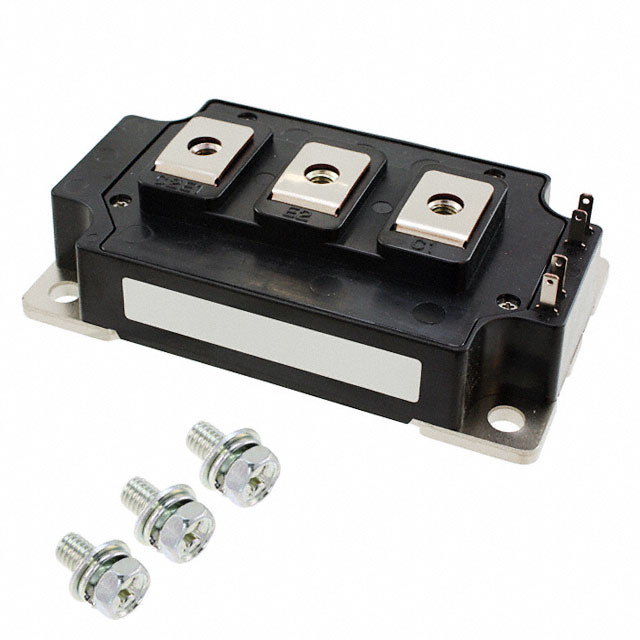

CM300DY-24S
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : -
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 2270W
Vce(on) (Max) @ Vge, Ic : 2.25V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 30nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : -
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 2270W
Vce(on) (Max) @ Vge, Ic : 2.25V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 30nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
5 in stock
CM300DY-28H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1400V
Current - Collector (Ic) (Max) : 300A
Power - Max : 2100W
Vce(on) (Max) @ Vge, Ic : 4.2V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 60nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1400V
Current - Collector (Ic) (Max) : 300A
Power - Max : 2100W
Vce(on) (Max) @ Vge, Ic : 4.2V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 60nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM300DY-34A
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 300A
Power - Max : 2900W
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 74nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 300A
Power - Max : 2900W
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 74nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM300E3U-12H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 300A
Power - Max : 890W
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 26.4nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 600V
Current - Collector (Ic) (Max) : 300A
Power - Max : 890W
Vce(on) (Max) @ Vge, Ic : 3V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 26.4nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM300EXS-24S
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : -
Part Status : Discontinued at
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 2270W
Vce(on) (Max) @ Vge, Ic : 2.25V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 30nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : -
Package / Case : Module
Supplier Device Package : Module
Series : -
Part Status : Discontinued at
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 300A
Power - Max : 2270W
Vce(on) (Max) @ Vge, Ic : 2.25V @ 15V, 300A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 30nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : -
Package / Case : Module
Supplier Device Package : Module
0
5 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
