Part Number
Manufacturer
Description
Unit Price
In Stock
CM400HA-34H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 400A
Power - Max : 4100W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 400A
Current - Collector Cutoff (Max) : 4mA
Input Capacitance (Cies) @ Vce : 85nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 400A
Power - Max : 4100W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 400A
Current - Collector Cutoff (Max) : 4mA
Input Capacitance (Cies) @ Vce : 85nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

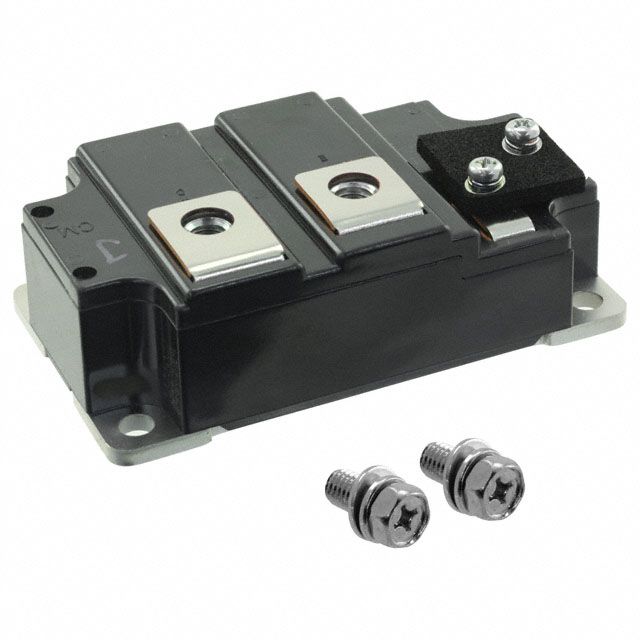

CM400HU-24F
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : Trench
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 1600W
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 400A
Current - Collector Cutoff (Max) : 2mA
Input Capacitance (Cies) @ Vce : 160nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : Trench
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 1600W
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 400A
Current - Collector Cutoff (Max) : 2mA
Input Capacitance (Cies) @ Vce : 160nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM400HU-24H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 2100W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 400A
Current - Collector Cutoff (Max) : 2mA
Input Capacitance (Cies) @ Vce : 60nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 2100W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 400A
Current - Collector Cutoff (Max) : 2mA
Input Capacitance (Cies) @ Vce : 60nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

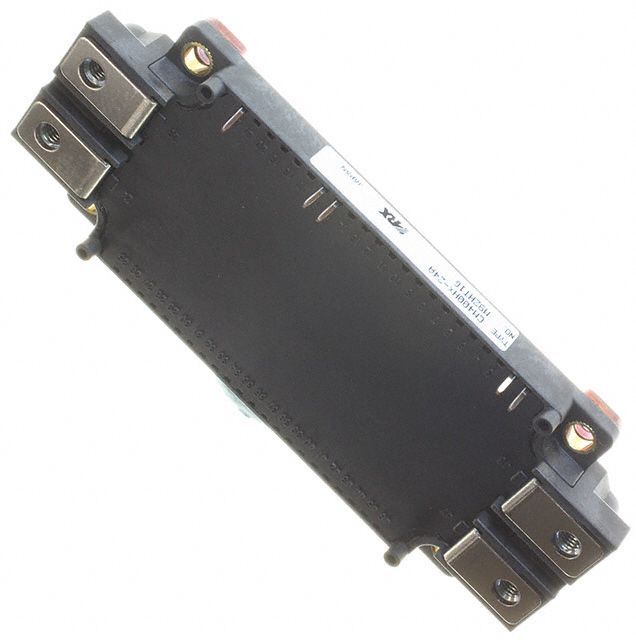

CM400HX-24A
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 2450W
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 66nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 400A
Power - Max : 2450W
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 400A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 66nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

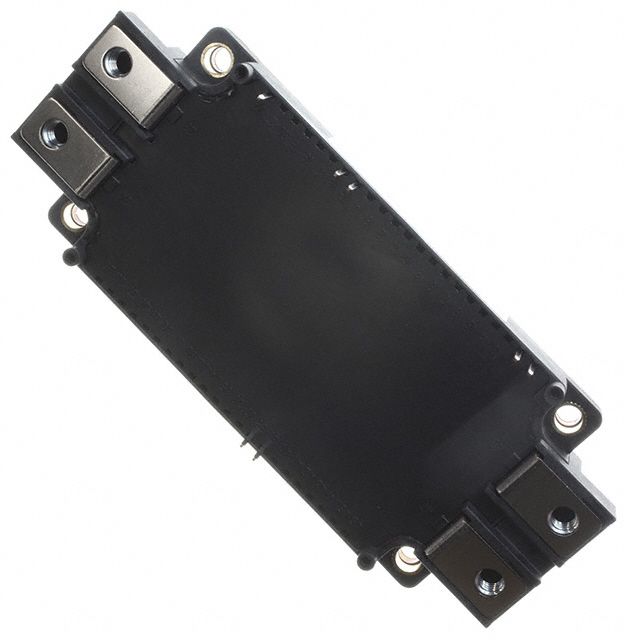

CM450DX-24A
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 450A
Power - Max : 2840W
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 450A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 68nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 450A
Power - Max : 2840W
Vce(on) (Max) @ Vge, Ic : 2.6V @ 15V, 450A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 68nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

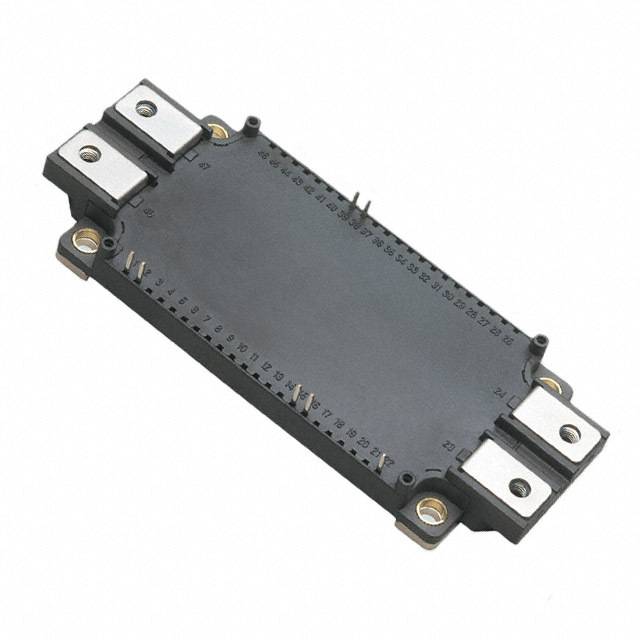

CM450DX-24S
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 450A
Power - Max : 3400W
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 450A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 45nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 450A
Power - Max : 3400W
Vce(on) (Max) @ Vge, Ic : 2.15V @ 15V, 450A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 45nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock

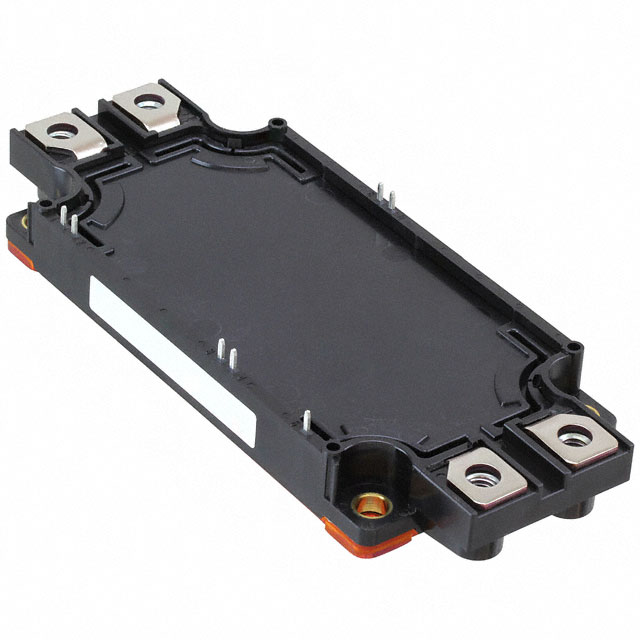

CM450DX-24S1
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : -
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 450A
Power - Max : 2775W
Vce(on) (Max) @ Vge, Ic : 2.25V @ 15V, 450A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 45nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : -
Package / Case : Module
Supplier Device Package : Module
Series : -
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 450A
Power - Max : 2775W
Vce(on) (Max) @ Vge, Ic : 2.25V @ 15V, 450A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 45nF @ 10V
Input : Standard
NTC Thermistor : Yes
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : -
Package / Case : Module
Supplier Device Package : Module
0
31 in stock

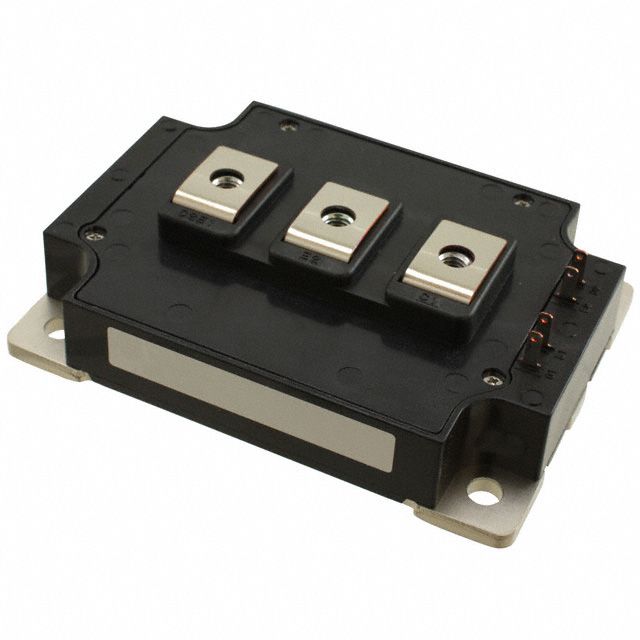

CM450DY-24S
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 410A
Power - Max : 3330W
Vce(on) (Max) @ Vge, Ic : 2.25V @ 15V, 450A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 45nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 410A
Power - Max : 3330W
Vce(on) (Max) @ Vge, Ic : 2.25V @ 15V, 450A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 45nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM450HA-5F
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : Trench
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 250V
Current - Collector (Ic) (Max) : 450A
Power - Max : 735W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 10V, 450A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 132nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : Trench
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 250V
Current - Collector (Ic) (Max) : 450A
Power - Max : 735W
Vce(on) (Max) @ Vge, Ic : 1.7V @ 10V, 450A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 132nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM500HA-34A
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 500A
Power - Max : 5000W
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 500A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 120nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : -
Configuration : Single
Voltage - Collector Emitter Breakdown (Max) : 1700V
Current - Collector (Ic) (Max) : 500A
Power - Max : 5000W
Vce(on) (Max) @ Vge, Ic : 2.8V @ 15V, 500A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 120nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM50BU-24H
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Full Bridge Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Power - Max : 400W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 50A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 7.5nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Obsolete
IGBT Type : -
Configuration : Full Bridge Inverter
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Power - Max : 400W
Vce(on) (Max) @ Vge, Ic : 3.7V @ 15V, 50A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 7.5nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
CM50DU-24F
Powerex, Inc.
Manufacturer : Powerex Inc.
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : Trench
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Power - Max : 320W
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 50A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 20nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
Series : IGBTMOD™
Part Status : Discontinued at
IGBT Type : Trench
Configuration : Half Bridge
Voltage - Collector Emitter Breakdown (Max) : 1200V
Current - Collector (Ic) (Max) : 50A
Power - Max : 320W
Vce(on) (Max) @ Vge, Ic : 2.4V @ 15V, 50A
Current - Collector Cutoff (Max) : 1mA
Input Capacitance (Cies) @ Vce : 20nF @ 10V
Input : Standard
NTC Thermistor : No
Operating Temperature : -40°C ~ 150°C (TJ)
Mounting Type : Chassis Mount
Package / Case : Module
Supplier Device Package : Module
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
