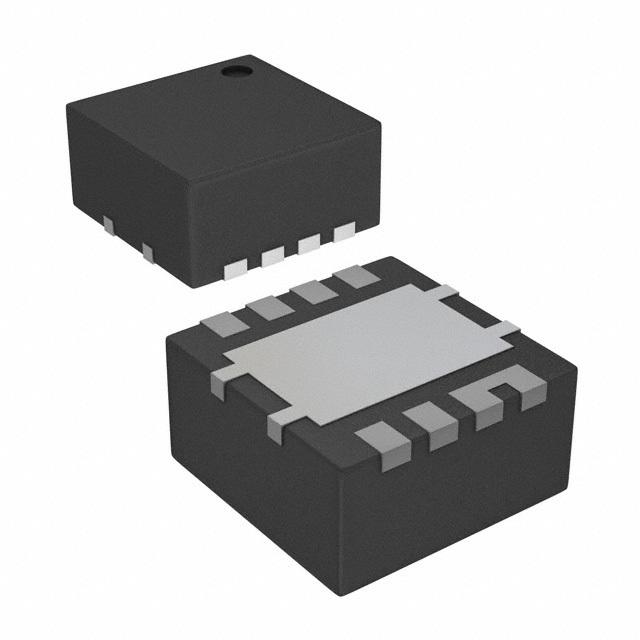

CSD87353Q5D
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 40A
Rds On (Max) @ Id, Vgs : 3.4 Ohm @ 4.5V
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 19nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 3190pF @ 15V
Power - Max : 12W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (5x6)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 40A
Rds On (Max) @ Id, Vgs : 3.4 Ohm @ 4.5V
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 19nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 3190pF @ 15V
Power - Max : 12W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (5x6)
0
70085 in stock

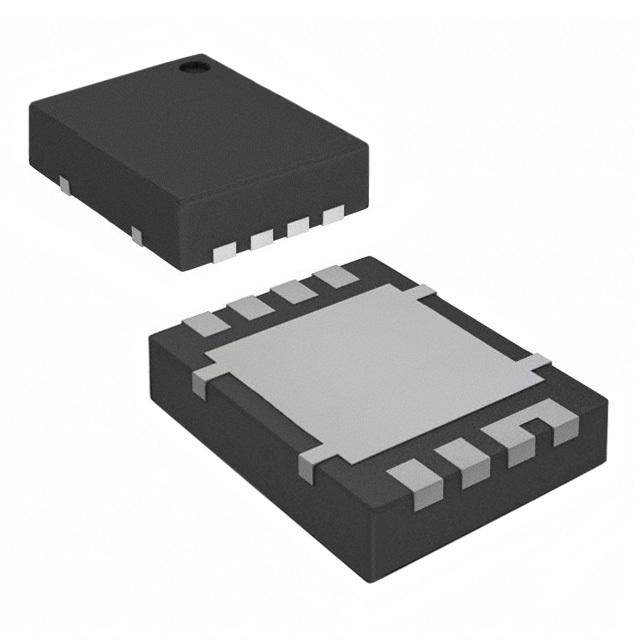

CSD87355Q5D
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Asymmetrical
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 13.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1860pF @ 15V
Power - Max : 12W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (5x6)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Asymmetrical
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 13.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1860pF @ 15V
Power - Max : 12W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (5x6)
0
1909 in stock
CSD87381P
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 15A
Rds On (Max) @ Id, Vgs : 16.3 mOhm @ 8A, 8V
Vgs(th) (Max) @ Id : 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 564pF @ 15V
Power - Max : 4W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 5-LGA
Supplier Device Package : 5-PTAB (3x2.5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 15A
Rds On (Max) @ Id, Vgs : 16.3 mOhm @ 8A, 8V
Vgs(th) (Max) @ Id : 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 564pF @ 15V
Power - Max : 4W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 5-LGA
Supplier Device Package : 5-PTAB (3x2.5)
0
100 in stock
CSD87381PT
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 15A
Rds On (Max) @ Id, Vgs : 16.3 mOhm @ 8A, 8V
Vgs(th) (Max) @ Id : 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 564pF @ 15V
Power - Max : 4W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 5-LGA
Supplier Device Package : 5-PTAB (3x2.5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 15A
Rds On (Max) @ Id, Vgs : 16.3 mOhm @ 8A, 8V
Vgs(th) (Max) @ Id : 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 564pF @ 15V
Power - Max : 4W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 5-LGA
Supplier Device Package : 5-PTAB (3x2.5)
0
100 in stock

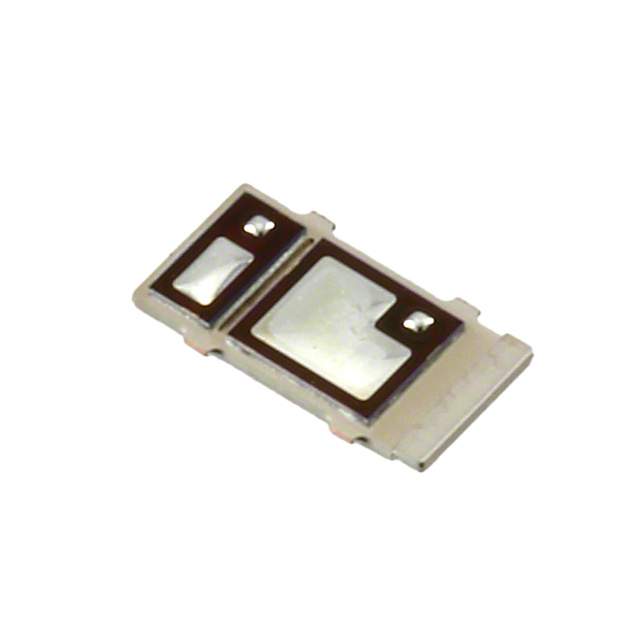

CSD87384M
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 30A
Rds On (Max) @ Id, Vgs : 7.7 mOhm @ 25A, 8V
Vgs(th) (Max) @ Id : 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1150pF @ 15V
Power - Max : 8W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 5-LGA
Supplier Device Package : 5-PTAB (5x3.5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 30A
Rds On (Max) @ Id, Vgs : 7.7 mOhm @ 25A, 8V
Vgs(th) (Max) @ Id : 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1150pF @ 15V
Power - Max : 8W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 5-LGA
Supplier Device Package : 5-PTAB (5x3.5)
0
892 in stock
CSD87384MT
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 30A
Rds On (Max) @ Id, Vgs : 7.7 mOhm @ 25A, 8V
Vgs(th) (Max) @ Id : 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1150pF @ 15V
Power - Max : 8W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 5-LGA
Supplier Device Package : 5-PTAB (5x3.5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 30A
Rds On (Max) @ Id, Vgs : 7.7 mOhm @ 25A, 8V
Vgs(th) (Max) @ Id : 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1150pF @ 15V
Power - Max : 8W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 5-LGA
Supplier Device Package : 5-PTAB (5x3.5)
0
683 in stock
CSD87501L
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 40nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : 2.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 10-XFBGA
Supplier Device Package : 10-Picostar (3.37x1.47)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 40nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : 2.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 10-XFBGA
Supplier Device Package : 10-Picostar (3.37x1.47)
0
16856 in stock

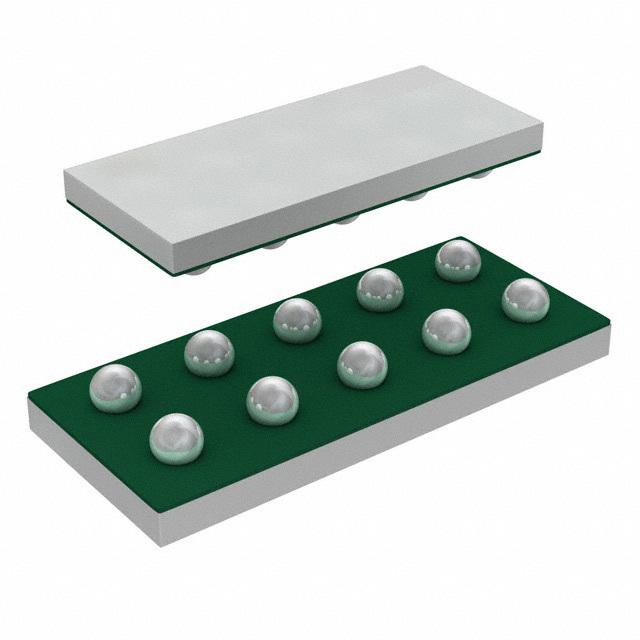

CSD87501LT
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 40nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : 2.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 10-XFBGA
Supplier Device Package : 10-Picostar (3.37x1.47)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 40nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : 2.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 10-XFBGA
Supplier Device Package : 10-Picostar (3.37x1.47)
0
280 in stock

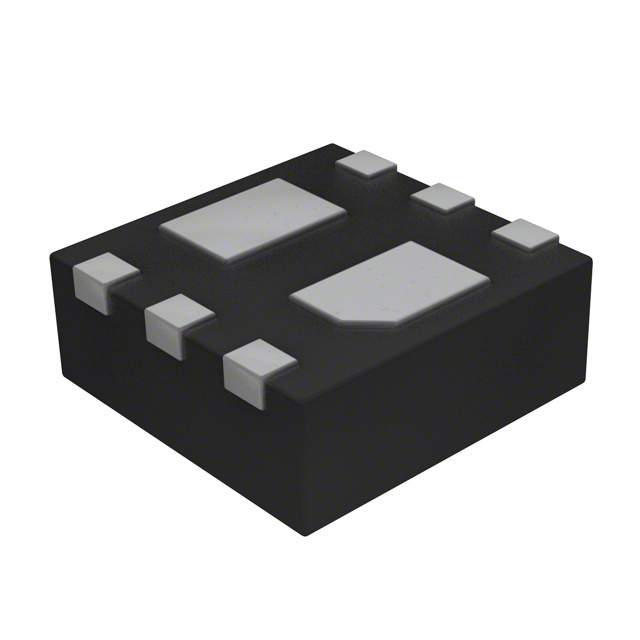

CSD87502Q2
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 5A
Rds On (Max) @ Id, Vgs : 32.4 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 353pF @ 15V
Power - Max : 2.3W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-WDFN Exposed Pad
Supplier Device Package : 6-WSON (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 5A
Rds On (Max) @ Id, Vgs : 32.4 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 353pF @ 15V
Power - Max : 2.3W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-WDFN Exposed Pad
Supplier Device Package : 6-WSON (2x2)
0
1857 in stock
CSD87502Q2T
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 5A
Rds On (Max) @ Id, Vgs : 32.4 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 353pF @ 15V
Power - Max : 2.3W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-WDFN Exposed Pad
Supplier Device Package : 6-WSON (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 5A
Rds On (Max) @ Id, Vgs : 32.4 mOhm @ 4A, 10V
Vgs(th) (Max) @ Id : 2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 353pF @ 15V
Power - Max : 2.3W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-WDFN Exposed Pad
Supplier Device Package : 6-WSON (2x2)
0
13435 in stock
CSD87503Q3ET
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Common Source
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 10A (Ta)
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 17.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1020pF @ 15V
Power - Max : 15.6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerVDFN
Supplier Device Package : 8-VSON (3.3x3.3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Common Source
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 10A (Ta)
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 17.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1020pF @ 15V
Power - Max : 15.6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerVDFN
Supplier Device Package : 8-VSON (3.3x3.3)
0
870 in stock
CSD87588N
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 25A
Rds On (Max) @ Id, Vgs : 9.6 mOhm @ 15A, 10V
Vgs(th) (Max) @ Id : 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 736pF @ 15V
Power - Max : 6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 5-XFLGA
Supplier Device Package : 5-PTAB (3x2.5)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 25A
Rds On (Max) @ Id, Vgs : 9.6 mOhm @ 15A, 10V
Vgs(th) (Max) @ Id : 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 736pF @ 15V
Power - Max : 6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 5-XFLGA
Supplier Device Package : 5-PTAB (3x2.5)
0
93744 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
