Part Number
Manufacturer
Description
Unit Price
In Stock
CSD85301Q2
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 5A
Rds On (Max) @ Id, Vgs : 27 mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id : 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 469pF @ 10V
Power - Max : 2.3W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-WDFN Exposed Pad
Supplier Device Package : 6-WSON (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 5A
Rds On (Max) @ Id, Vgs : 27 mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id : 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 469pF @ 10V
Power - Max : 2.3W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-WDFN Exposed Pad
Supplier Device Package : 6-WSON (2x2)
0
100 in stock

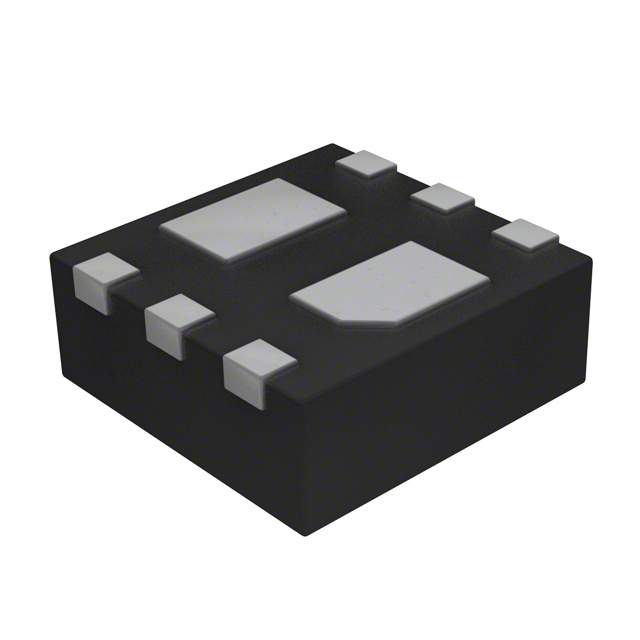

CSD85301Q2T
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 5A
Rds On (Max) @ Id, Vgs : 27 mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id : 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 469pF @ 10V
Power - Max : 2.3W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-WDFN Exposed Pad
Supplier Device Package : 6-WSON (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 5A
Rds On (Max) @ Id, Vgs : 27 mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id : 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 469pF @ 10V
Power - Max : 2.3W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-WDFN Exposed Pad
Supplier Device Package : 6-WSON (2x2)
0
1 in stock
CSD85302L
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Standard
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : 7.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : 1.7W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 4-XFLGA
Supplier Device Package : 4-Picostar (1.31x1.31)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Standard
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : 7.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : 1.7W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 4-XFLGA
Supplier Device Package : 4-Picostar (1.31x1.31)
0
100 in stock

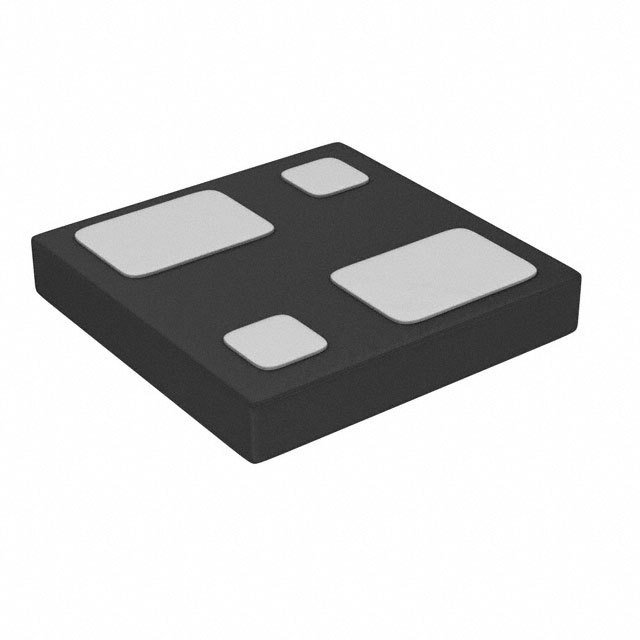

CSD85302LT
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Standard
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : 7.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : 1.7W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 4-XFLGA
Supplier Device Package : 4-Picostar (1.31x1.31)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Standard
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : 7.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : 1.7W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 4-XFLGA
Supplier Device Package : 4-Picostar (1.31x1.31)
0
2687 in stock

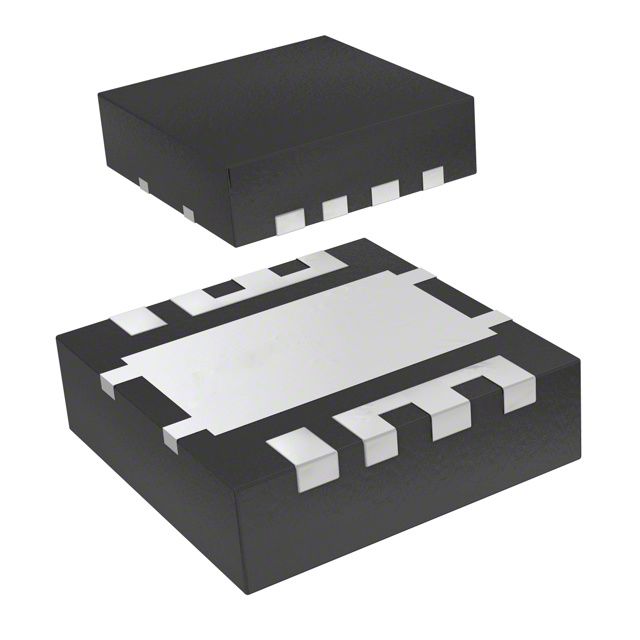

CSD85312Q3E
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Common Source
FET Feature : Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 39A
Rds On (Max) @ Id, Vgs : 12.4 mOhm @ 10A, 8V
Vgs(th) (Max) @ Id : 1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 15.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 2390pF @ 10V
Power - Max : 2.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerVDFN
Supplier Device Package : 8-VSON (3.3x3.3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Common Source
FET Feature : Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 39A
Rds On (Max) @ Id, Vgs : 12.4 mOhm @ 10A, 8V
Vgs(th) (Max) @ Id : 1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 15.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 2390pF @ 10V
Power - Max : 2.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerVDFN
Supplier Device Package : 8-VSON (3.3x3.3)
0
4967 in stock

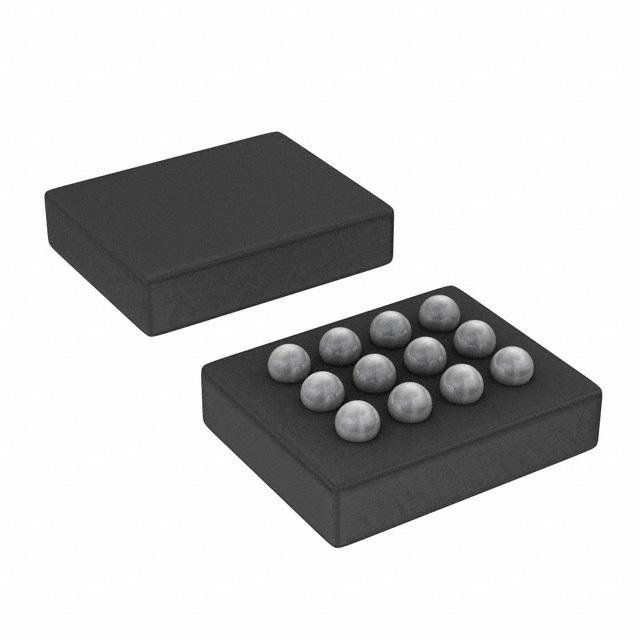

CSD86311W1723
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 4.5A
Rds On (Max) @ Id, Vgs : 39 mOhm @ 2A, 8V
Vgs(th) (Max) @ Id : 1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 585pF @ 12.5V
Power - Max : 1.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 12-UFBGA, DSBGA
Supplier Device Package : 12-DSBGA
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 4.5A
Rds On (Max) @ Id, Vgs : 39 mOhm @ 2A, 8V
Vgs(th) (Max) @ Id : 1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 585pF @ 12.5V
Power - Max : 1.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 12-UFBGA, DSBGA
Supplier Device Package : 12-DSBGA
0
21 in stock

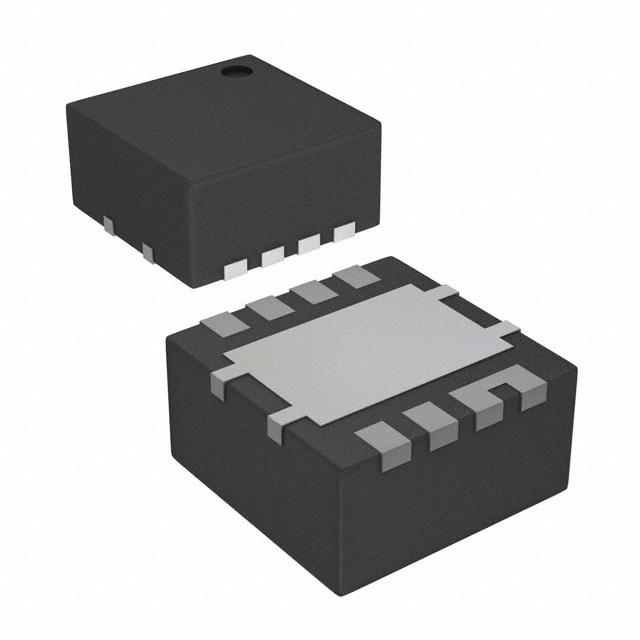

CSD86330Q3D
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 20A
Rds On (Max) @ Id, Vgs : 9.6 mOhm @ 14A, 8V
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 920pF @ 12.5V
Power - Max : 6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (3.3x3.3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 20A
Rds On (Max) @ Id, Vgs : 9.6 mOhm @ 14A, 8V
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 920pF @ 12.5V
Power - Max : 6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (3.3x3.3)
0
25397 in stock
CSD86336Q3DT
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 20A (Ta)
Rds On (Max) @ Id, Vgs : 9.1 mOhm @ 20A, 5V, 3.4 mOhm @ 20A, 5V
Vgs(th) (Max) @ Id : 1.9V @ 250µA, 1.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3.8nC @ 45V, 7.4nC @ 45V
Input Capacitance (Ciss) (Max) @ Vds : 494pF @ 12.5V, 970pF @ 12.5V
Power - Max : 6W
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : 8-VSON (3.3x3.3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 20A (Ta)
Rds On (Max) @ Id, Vgs : 9.1 mOhm @ 20A, 5V, 3.4 mOhm @ 20A, 5V
Vgs(th) (Max) @ Id : 1.9V @ 250µA, 1.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3.8nC @ 45V, 7.4nC @ 45V
Input Capacitance (Ciss) (Max) @ Vds : 494pF @ 12.5V, 970pF @ 12.5V
Power - Max : 6W
Operating Temperature : -55°C ~ 125°C
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : 8-VSON (3.3x3.3)
0
500 in stock
CSD86350Q5D
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 40A
Rds On (Max) @ Id, Vgs : 6 mOhm @ 20A, 8V
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1870pF @ 12.5V
Power - Max : 13W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (5x6)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 40A
Rds On (Max) @ Id, Vgs : 6 mOhm @ 20A, 8V
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1870pF @ 12.5V
Power - Max : 13W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (5x6)
0
2752 in stock
CSD86356Q5DT
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 40A (Ta)
Rds On (Max) @ Id, Vgs : 4.5 mOhm @ 20A, 5V, 0.8 mOhm @ 20A, 5V
Vgs(th) (Max) @ Id : 1.85V @ 250µA, 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.9nC @ 4.5V, 19.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1.04nF @ 12.5V, 2.51nF @ 12.5V
Power - Max : 12W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : 8-VSON-CLIP (5x6)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 40A (Ta)
Rds On (Max) @ Id, Vgs : 4.5 mOhm @ 20A, 5V, 0.8 mOhm @ 20A, 5V
Vgs(th) (Max) @ Id : 1.85V @ 250µA, 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.9nC @ 4.5V, 19.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1.04nF @ 12.5V, 2.51nF @ 12.5V
Power - Max : 12W (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : 8-VSON-CLIP (5x6)
0
500 in stock
CSD86360Q5D
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 50A
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 12.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 2060pF @ 12.5
Power - Max : 13W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (5x6)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 25V
Current - Continuous Drain (Id) @ 25°C : 50A
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 12.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 2060pF @ 12.5
Power - Max : 13W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (5x6)
0
3415 in stock
CSD87312Q3E
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Common Source
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 27A
Rds On (Max) @ Id, Vgs : 33 mOhm @ 7A , 8V
Vgs(th) (Max) @ Id : 1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1250pF @ 15V
Power - Max : 2.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : 8-VSON (3.3x3.3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Common Source
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 27A
Rds On (Max) @ Id, Vgs : 33 mOhm @ 7A , 8V
Vgs(th) (Max) @ Id : 1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1250pF @ 15V
Power - Max : 2.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : 8-VSON (3.3x3.3)
0
2729 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
