Welcome to Weijie Semiconductor
- Discrete Semiconductor Products
- Transistors - FETs, MOSFETs - Arrays
Part Number
Manufacturer
Description
Unit Price
In Stock

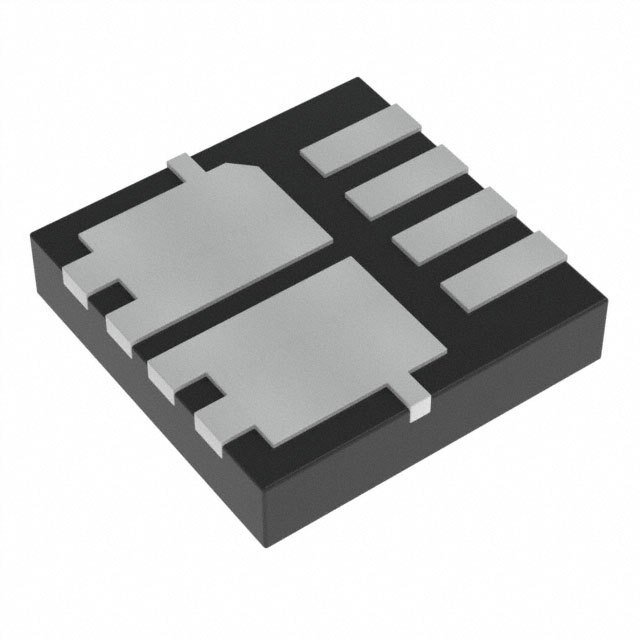

CSD87313DMST
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 28nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 4290pF @ 15V
Power - Max : 2.7W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerWDFN
Supplier Device Package : 8-WSON (3.3x3.3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 28nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 4290pF @ 15V
Power - Max : 2.7W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerWDFN
Supplier Device Package : 8-WSON (3.3x3.3)
0
1525 in stock
CSD87330Q3D
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 20A
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 900pF @ 15V
Power - Max : 6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (3.3x3.3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 20A
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 900pF @ 15V
Power - Max : 6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (3.3x3.3)
0
382 in stock
CSD87331Q3D
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 15A
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 2.1V, 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 518pF @ 15V
Power - Max : 6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (5x6)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Half Bridge)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 15A
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 2.1V, 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 518pF @ 15V
Power - Max : 6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (5x6)
0
10245 in stock

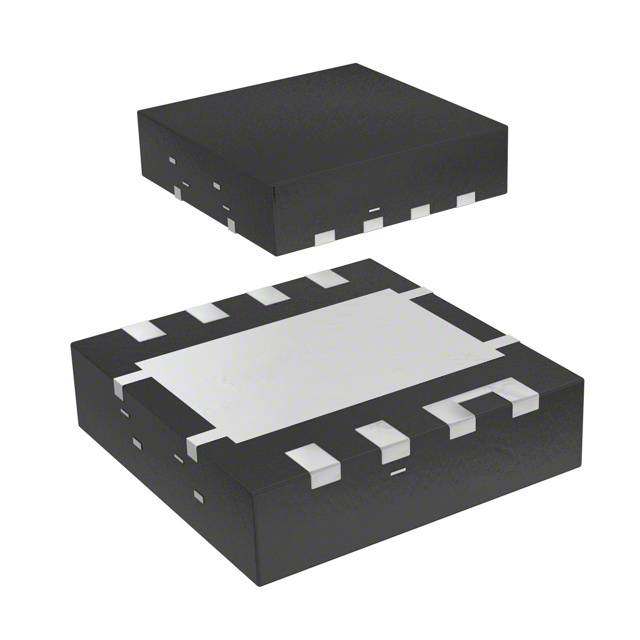

CSD87333Q3D
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Asymmetrical
FET Feature : Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 15A
Rds On (Max) @ Id, Vgs : 14.3 mOhm @ 4A, 8V
Vgs(th) (Max) @ Id : 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 662pF @ 15V
Power - Max : 6W
Operating Temperature : 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : 8-VSON (3.3x3.3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Asymmetrical
FET Feature : Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 15A
Rds On (Max) @ Id, Vgs : 14.3 mOhm @ 4A, 8V
Vgs(th) (Max) @ Id : 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 662pF @ 15V
Power - Max : 6W
Operating Temperature : 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : 8-VSON (3.3x3.3)
0
100 in stock
CSD87333Q3DT
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Asymmetrical
FET Feature : Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 15A
Rds On (Max) @ Id, Vgs : 14.3 mOhm @ 4A, 8V
Vgs(th) (Max) @ Id : 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 662pF @ 15V
Power - Max : 6W
Operating Temperature : 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : 8-VSON (3.3x3.3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Asymmetrical
FET Feature : Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 15A
Rds On (Max) @ Id, Vgs : 14.3 mOhm @ 4A, 8V
Vgs(th) (Max) @ Id : 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 662pF @ 15V
Power - Max : 6W
Operating Temperature : 125°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : 8-VSON (3.3x3.3)
0
1250 in stock
CSD87334Q3DT
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Asymmetrical
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : 6 mOhm @ 12A, 8V
Vgs(th) (Max) @ Id : 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1260pF @ 15V
Power - Max : 6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : 8-VSON (3.3x3.3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Asymmetrical
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : 6 mOhm @ 12A, 8V
Vgs(th) (Max) @ Id : 1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1260pF @ 15V
Power - Max : 6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerTDFN
Supplier Device Package : 8-VSON (3.3x3.3)
0
1044 in stock
CSD87335Q3D
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Asymmetrical
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1050pF @ 15V
Power - Max : 6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (3.3x3.3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual) Asymmetrical
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1050pF @ 15V
Power - Max : 6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (3.3x3.3)
0
26 in stock
CSD87335Q3DT
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 25A
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1050pF @ 15V
Power - Max : 6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (3.3x3.3)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 25A
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1050pF @ 15V
Power - Max : 6W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (3.3x3.3)
0
521 in stock
CSD87350Q5D
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 40A
Rds On (Max) @ Id, Vgs : 5.9 mOhm @ 20A, 8V
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1770pF @ 15V
Power - Max : 12W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (5x6)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 40A
Rds On (Max) @ Id, Vgs : 5.9 mOhm @ 20A, 8V
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 10.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1770pF @ 15V
Power - Max : 12W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (5x6)
0
10145 in stock
CSD87351Q5D
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 32A
Rds On (Max) @ Id, Vgs : 7.6 mOhm @ 20A, 8V
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1255pF @ 15V
Power - Max : 12W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (5x6)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 32A
Rds On (Max) @ Id, Vgs : 7.6 mOhm @ 20A, 8V
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1255pF @ 15V
Power - Max : 12W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (5x6)
0
15001 in stock
CSD87351ZQ5D
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Discontinued at
FET Type : 2 N-Channel (Dual) Asymmetrical
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 32A
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1255pF @ 15V
Power - Max : 12W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (5x6)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Discontinued at
FET Type : 2 N-Channel (Dual) Asymmetrical
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 32A
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1255pF @ 15V
Power - Max : 12W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (5x6)
0
100 in stock
CSD87352Q5D
Luminary Micro / Texas Instruments
Manufacturer : Texas Instruments
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 25A
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 1.15V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 12.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1800pF @ 15V
Power - Max : 8.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (5x6)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : NexFET?br/>Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 25A
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 1.15V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 12.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 1800pF @ 15V
Power - Max : 8.5W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-PowerLDFN
Supplier Device Package : 8-LSON (5x6)
0
25652 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
