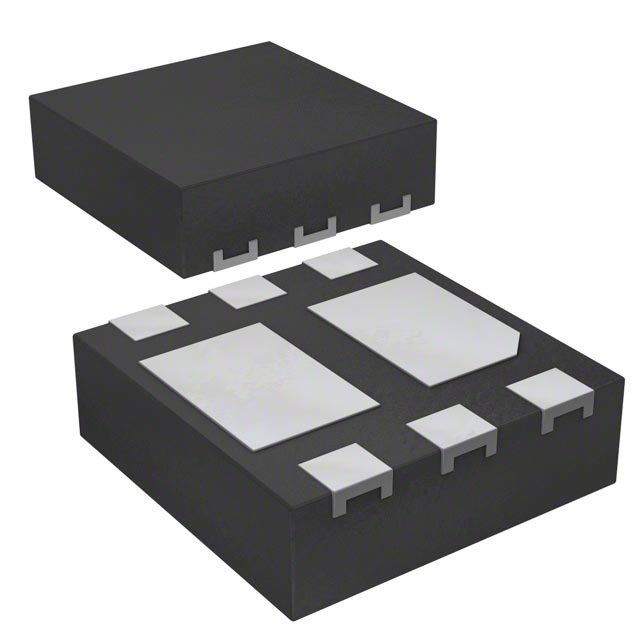

PMDPB95XNE,115
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2.4A
Rds On (Max) @ Id, Vgs : 120 mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 2.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 143pF @ 15V
Power - Max : 475mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : DFN2020-6
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2.4A
Rds On (Max) @ Id, Vgs : 120 mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 2.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 143pF @ 15V
Power - Max : 475mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : DFN2020-6
0
100 in stock
PMDPB95XNE2X
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2.7A (Ta)
Rds On (Max) @ Id, Vgs : 99 mOhm @ 2.8A, 4.5V
Vgs(th) (Max) @ Id : 1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 258pF @ 15V
Power - Max : 510mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2.7A (Ta)
Rds On (Max) @ Id, Vgs : 99 mOhm @ 2.8A, 4.5V
Vgs(th) (Max) @ Id : 1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 258pF @ 15V
Power - Max : 510mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
0
3970 in stock
PMDT290UCE,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchMOS™
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 800mA, 550mA
Rds On (Max) @ Id, Vgs : 380 mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.68nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 83pF @ 10V
Power - Max : 500mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-666
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchMOS™
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 800mA, 550mA
Rds On (Max) @ Id, Vgs : 380 mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.68nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 83pF @ 10V
Power - Max : 500mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-666
0
312 in stock
PMDT290UNE,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchMOS™
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 800mA
Rds On (Max) @ Id, Vgs : 380 mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.68nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 83pF @ 10V
Power - Max : 500mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-666
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchMOS™
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 800mA
Rds On (Max) @ Id, Vgs : 380 mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.68nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 83pF @ 10V
Power - Max : 500mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-666
0
2707 in stock
PMDT670UPE,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchMOS™
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 550mA
Rds On (Max) @ Id, Vgs : 850 mOhm @ 400mA, 4.5V
Vgs(th) (Max) @ Id : 1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.14nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 87pF @ 10V
Power - Max : 330mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-666
Packaging : Cut Tape (CT)
Alternate Packaging
Series : Automotive, AEC-Q101, TrenchMOS™
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 550mA
Rds On (Max) @ Id, Vgs : 850 mOhm @ 400mA, 4.5V
Vgs(th) (Max) @ Id : 1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.14nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 87pF @ 10V
Power - Max : 330mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : SOT-563, SOT-666
Supplier Device Package : SOT-666
0
278 in stock
PMDXB1200UPEZ
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 410mA
Rds On (Max) @ Id, Vgs : 1.4 Ohm @ 410mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 43.2pF @ 15V
Power - Max : 285mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : DFN1010B-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 410mA
Rds On (Max) @ Id, Vgs : 1.4 Ohm @ 410mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 43.2pF @ 15V
Power - Max : 285mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : DFN1010B-6
0
13568 in stock
PMDXB550UNEZ
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 590mA
Rds On (Max) @ Id, Vgs : 670 mOhm @ 590mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.05nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 30.3pF @ 15V
Power - Max : 285mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : DFN1010B-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 590mA
Rds On (Max) @ Id, Vgs : 670 mOhm @ 590mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.05nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 30.3pF @ 15V
Power - Max : 285mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : DFN1010B-6
0
5582 in stock
PMDXB600UNELZ
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 600mA
Rds On (Max) @ Id, Vgs : 620 mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 21.3pF @ 10V
Power - Max : 380mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : DFN1010B-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 600mA
Rds On (Max) @ Id, Vgs : 620 mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 21.3pF @ 10V
Power - Max : 380mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : DFN1010B-6
0
7355 in stock
PMDXB600UNEZ
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 600mA
Rds On (Max) @ Id, Vgs : 620 mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 21.3pF @ 10V
Power - Max : 265mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : DFN1010B-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET®
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 600mA
Rds On (Max) @ Id, Vgs : 620 mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 21.3pF @ 10V
Power - Max : 265mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : DFN1010B-6
0
38161 in stock
PMDXB950UPELZ
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 500mA
Rds On (Max) @ Id, Vgs : 1.4 Ohm @ 500mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 2.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 43pF @ 10V
Power - Max : 380mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : DFN1010B-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 500mA
Rds On (Max) @ Id, Vgs : 1.4 Ohm @ 500mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 2.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 43pF @ 10V
Power - Max : 380mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : DFN1010B-6
0
7155 in stock

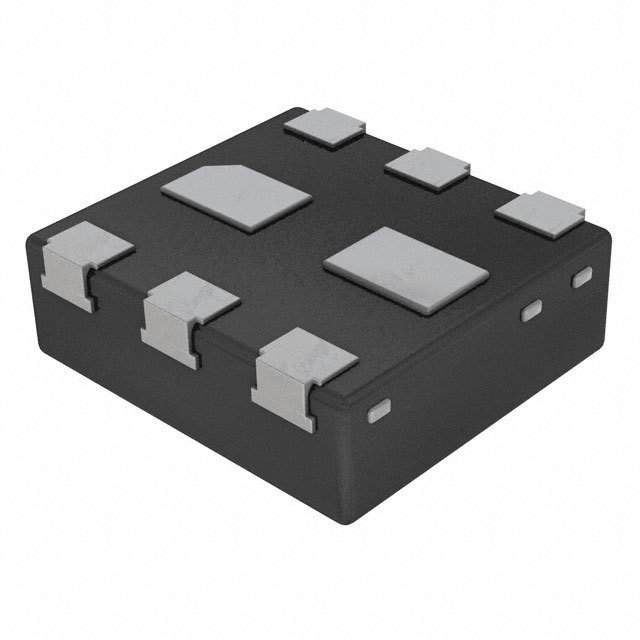

PMDXB950UPEZ
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 500mA
Rds On (Max) @ Id, Vgs : 1.4 Ohm @ 500mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 2.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 43pF @ 10V
Power - Max : 265mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : DFN1010B-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 500mA
Rds On (Max) @ Id, Vgs : 1.4 Ohm @ 500mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 2.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 43pF @ 10V
Power - Max : 265mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : DFN1010B-6
0
14696 in stock
PMGD130UN,115
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 1.2A
Rds On (Max) @ Id, Vgs : 145 mOhm @ 1.2A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 83pF @ 10V
Power - Max : 390mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : 6-TSSOP
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 1.2A
Rds On (Max) @ Id, Vgs : 145 mOhm @ 1.2A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 83pF @ 10V
Power - Max : 390mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-TSSOP, SC-88, SOT-363
Supplier Device Package : 6-TSSOP
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
