PMDPB42UN,115
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.9A
Rds On (Max) @ Id, Vgs : 50 mOhm @ 3.9A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 185pF @ 10V
Power - Max : 510mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : DFN2020-6
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.9A
Rds On (Max) @ Id, Vgs : 50 mOhm @ 3.9A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 3.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 185pF @ 10V
Power - Max : 510mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : DFN2020-6
0
100 in stock
PMDPB55XP,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.4A
Rds On (Max) @ Id, Vgs : 70 mOhm @ 3.4A, 4.5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 25nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds : 785pF @ 10V
Power - Max : 490mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.4A
Rds On (Max) @ Id, Vgs : 70 mOhm @ 3.4A, 4.5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 25nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds : 785pF @ 10V
Power - Max : 490mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
0
100 in stock
PMDPB56XN,115
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 3.1A
Rds On (Max) @ Id, Vgs : 73 mOhm @ 3.1A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 2.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 170pF @ 15V
Power - Max : 510mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : DFN2020-6
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 3.1A
Rds On (Max) @ Id, Vgs : 73 mOhm @ 3.1A, 4.5V
Vgs(th) (Max) @ Id : 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 2.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 170pF @ 15V
Power - Max : 510mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : DFN2020-6
0
100 in stock
PMDPB56XNEAX
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 3.1A (Ta)
Rds On (Max) @ Id, Vgs : 72 mOhm @ 3.1A, 4.5V
Vgs(th) (Max) @ Id : 1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 256pF @ 15V
Power - Max : 485mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : DFN2020D-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 3.1A (Ta)
Rds On (Max) @ Id, Vgs : 72 mOhm @ 3.1A, 4.5V
Vgs(th) (Max) @ Id : 1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 256pF @ 15V
Power - Max : 485mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : DFN2020D-6
0
2997 in stock
PMDPB58UPE,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.6A
Rds On (Max) @ Id, Vgs : 67 mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 804pF @ 10V
Power - Max : 515mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.6A
Rds On (Max) @ Id, Vgs : 67 mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 9.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 804pF @ 10V
Power - Max : 515mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
0
586 in stock
PMDPB65UP,115
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.5A
Rds On (Max) @ Id, Vgs : 70 mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 380pF @ 10V
Power - Max : 520mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : DFN2020-6
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3.5A
Rds On (Max) @ Id, Vgs : 70 mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 380pF @ 10V
Power - Max : 520mW
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : DFN2020-6
0
100 in stock
PMDPB70EN,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 3.5A
Rds On (Max) @ Id, Vgs : 57 mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 130pF @ 15V
Power - Max : 510mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 3.5A
Rds On (Max) @ Id, Vgs : 57 mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id : 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 130pF @ 15V
Power - Max : 510mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
0
100 in stock

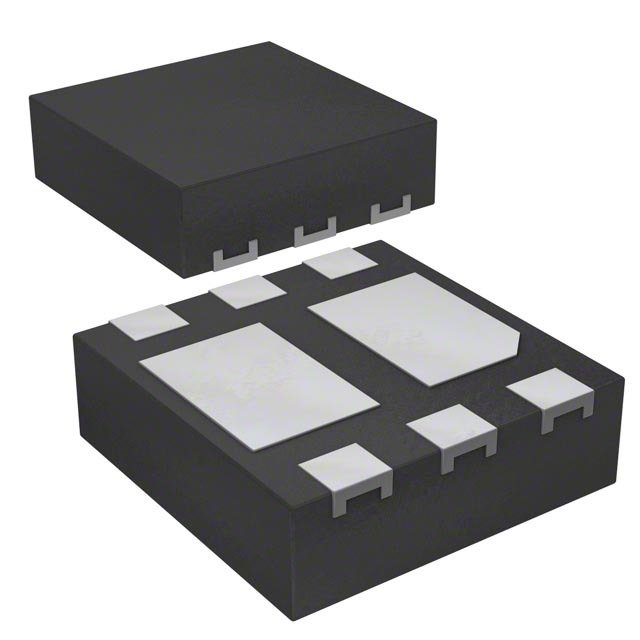

PMDPB70XP,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2.9A
Rds On (Max) @ Id, Vgs : 87 mOhm @ 2.9A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.8nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds : 680pF @ 15V
Power - Max : 490mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2.9A
Rds On (Max) @ Id, Vgs : 87 mOhm @ 2.9A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.8nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds : 680pF @ 15V
Power - Max : 490mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
0
100 in stock
PMDPB70XPE,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 79 mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id : 1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 600pF @ 10V
Power - Max : 515mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 3A
Rds On (Max) @ Id, Vgs : 79 mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id : 1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 7.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 600pF @ 10V
Power - Max : 515mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
0
21946 in stock
PMDPB760ENX
WeEn Semiconductors Co., Ltd
Manufacturer : WeEn Semiconductors
Packaging : -
Series : *
Part Status : Obsolete
FET Type : -
FET Feature : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
Packaging : -
Series : *
Part Status : Obsolete
FET Type : -
FET Feature : -
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : -
Gate Charge (Qg) (Max) @ Vgs : -
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : -
Operating Temperature : -
Mounting Type : -
Package / Case : -
Supplier Device Package : -
0
100 in stock
PMDPB80XP,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate, 1.8V Drive
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.7A
Rds On (Max) @ Id, Vgs : 102 mOhm @ 2.7A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 550pF @ 10V
Power - Max : 485mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate, 1.8V Drive
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.7A
Rds On (Max) @ Id, Vgs : 102 mOhm @ 2.7A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 550pF @ 10V
Power - Max : 485mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
0
100 in stock
PMDPB85UPE,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.9A
Rds On (Max) @ Id, Vgs : 103 mOhm @ 1.3A, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 514pF @ 10V
Power - Max : 515mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Discontinued at
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 2.9A
Rds On (Max) @ Id, Vgs : 103 mOhm @ 1.3A, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 8.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 514pF @ 10V
Power - Max : 515mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
