Part Number
Manufacturer
Description
Unit Price
In Stock
PHN203,518
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Tape & Reel (TR)
Series : TrenchMOS™
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 6.3A
Rds On (Max) @ Id, Vgs : 30 mOhm @ 7A, 10V
Vgs(th) (Max) @ Id : 2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 14.6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 560pF @ 20V
Power - Max : 2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Tape & Reel (TR)
Series : TrenchMOS™
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 6.3A
Rds On (Max) @ Id, Vgs : 30 mOhm @ 7A, 10V
Vgs(th) (Max) @ Id : 2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 14.6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 560pF @ 20V
Power - Max : 2W
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
PHN210,118
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : TrenchMOS™
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : 100 mOhm @ 2.2A, 10V
Vgs(th) (Max) @ Id : 2.8V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 250pF @ 20V
Power - Max : 2W
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Tape & Reel (TR)
Series : TrenchMOS™
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : 100 mOhm @ 2.2A, 10V
Vgs(th) (Max) @ Id : 2.8V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 250pF @ 20V
Power - Max : 2W
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
PHN210T,118
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : TrenchMOS™
Part Status : Last Time Buy
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : 100 mOhm @ 2.2A, 10V
Vgs(th) (Max) @ Id : 2.8V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 250pF @ 20V
Power - Max : 2W
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : TrenchMOS™
Part Status : Last Time Buy
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : 100 mOhm @ 2.2A, 10V
Vgs(th) (Max) @ Id : 2.8V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 250pF @ 20V
Power - Max : 2W
Operating Temperature : -65°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
100 in stock
PHP225,118
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Last Time Buy
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2.3A
Rds On (Max) @ Id, Vgs : 250 mOhm @ 1A, 10V
Vgs(th) (Max) @ Id : 2.8V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 25nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 250pF @ 20V
Power - Max : 2W
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : -
Part Status : Last Time Buy
FET Type : 2 P-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 2.3A
Rds On (Max) @ Id, Vgs : 250 mOhm @ 1A, 10V
Vgs(th) (Max) @ Id : 2.8V @ 1mA
Gate Charge (Qg) (Max) @ Vgs : 25nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds : 250pF @ 20V
Power - Max : 2W
Operating Temperature : 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package : 8-SO
0
2500 in stock

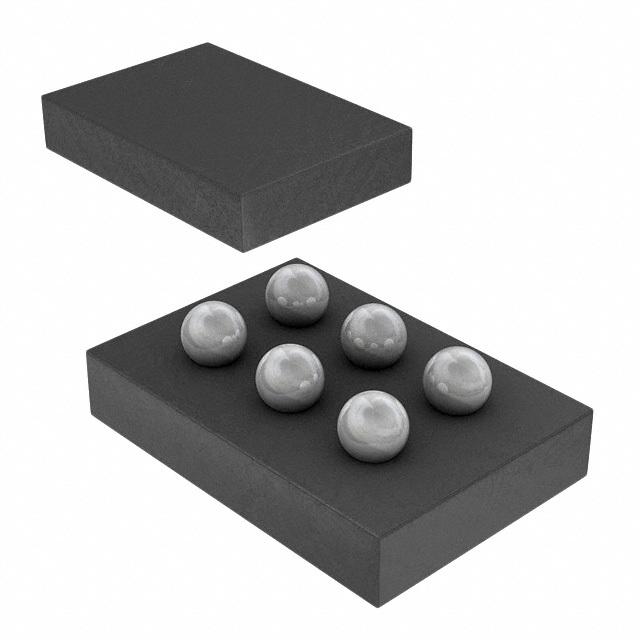

PMCM650CUNEZ
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Standard
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 13nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : 556mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFBGA, WLCSP
Supplier Device Package : 6-WLCSP (1.48x0.98)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual) Common Drain
FET Feature : Standard
Drain to Source Voltage (Vdss) : -
Current - Continuous Drain (Id) @ 25°C : -
Rds On (Max) @ Id, Vgs : -
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 13nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : -
Power - Max : 556mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFBGA, WLCSP
Supplier Device Package : 6-WLCSP (1.48x0.98)
0
4300 in stock
PMCPB5530X,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 5.3A, 3.4A
Rds On (Max) @ Id, Vgs : 34 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 21.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 660pF @ 10V
Power - Max : 490mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 5.3A, 3.4A
Rds On (Max) @ Id, Vgs : 34 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 21.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 660pF @ 10V
Power - Max : 490mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
0
42511 in stock

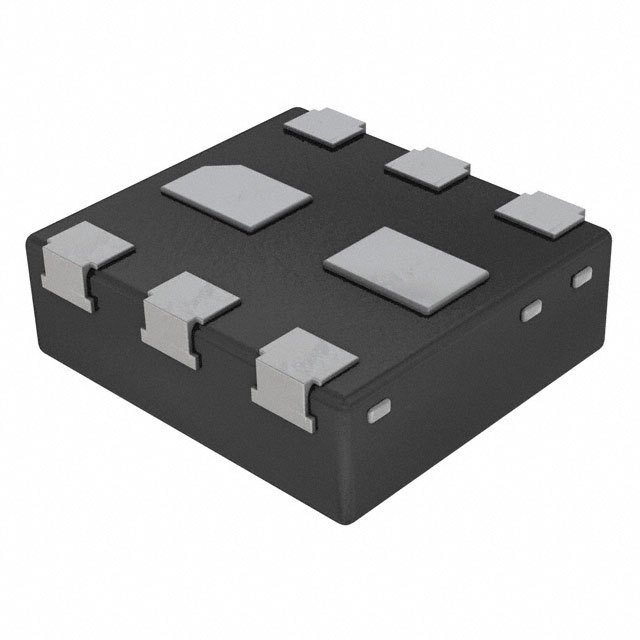

PMCXB1000UEZ
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel Complementary
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 590mA (Ta), 410mA (Ta)
Rds On (Max) @ Id, Vgs : 670 mOhm @ 590mA, 4.5V, 1.4 Ohm @ 410mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.05nC @ 4.5V, 1.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 30.3pF @ 15V, 43.2pF @ 15V
Power - Max : 285mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : DFN1010B-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel Complementary
FET Feature : Standard
Drain to Source Voltage (Vdss) : 30V
Current - Continuous Drain (Id) @ 25°C : 590mA (Ta), 410mA (Ta)
Rds On (Max) @ Id, Vgs : 670 mOhm @ 590mA, 4.5V, 1.4 Ohm @ 410mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 1.05nC @ 4.5V, 1.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 30.3pF @ 15V, 43.2pF @ 15V
Power - Max : 285mW (Ta)
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : DFN1010B-6
0
4588 in stock
PMCXB900UELZ
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel Complementary
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 600mA
Rds On (Max) @ Id, Vgs : 620 mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 21.3pF @ 10V
Power - Max : 380mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : DFN1010B-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : N and P-Channel Complementary
FET Feature : Standard
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 600mA
Rds On (Max) @ Id, Vgs : 620 mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 21.3pF @ 10V
Power - Max : 380mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : DFN1010B-6
0
11131 in stock
PMCXB900UEZ
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET®
Part Status : Active
FET Type : N and P-Channel Complementary
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 600mA, 500mA
Rds On (Max) @ Id, Vgs : 620 mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 21.3pF @ 10V
Power - Max : 265mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : DFN1010B-6
Packaging : Cut Tape (CT)
Alternate Packaging
Series : TrenchFET®
Part Status : Active
FET Type : N and P-Channel Complementary
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 600mA, 500mA
Rds On (Max) @ Id, Vgs : 620 mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id : 950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 0.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 21.3pF @ 10V
Power - Max : 265mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-XFDFN Exposed Pad
Supplier Device Package : DFN1010B-6
0
56431 in stock
PMDPB28UN,115
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 4.6A
Rds On (Max) @ Id, Vgs : 37 mOhm @ 4.6A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 265pF @ 10V
Power - Max : 510mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : DFN2020-6
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 4.6A
Rds On (Max) @ Id, Vgs : 37 mOhm @ 4.6A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 265pF @ 10V
Power - Max : 510mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : DFN2020-6
0
100 in stock
PMDPB30XN,115
Nexperia
Manufacturer : Nexperia USA Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 4A
Rds On (Max) @ Id, Vgs : 40 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 21.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 660pF @ 10V
Power - Max : 490mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 4A
Rds On (Max) @ Id, Vgs : 40 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id : 900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 21.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 660pF @ 10V
Power - Max : 490mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : 6-HUSON-EP (2x2)
0
759 in stock
PMDPB38UNE,115
NXP Semiconductors / Freescale
Manufacturer : NXP USA Inc.
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 4A
Rds On (Max) @ Id, Vgs : 46 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 268pF @ 10V
Power - Max : 510mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : DFN2020-6
Packaging : Tape & Reel (TR)
Series : -
Part Status : Obsolete
FET Type : 2 N-Channel (Dual)
FET Feature : Logic Level Gate
Drain to Source Voltage (Vdss) : 20V
Current - Continuous Drain (Id) @ 25°C : 4A
Rds On (Max) @ Id, Vgs : 46 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id : 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs : 4.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds : 268pF @ 10V
Power - Max : 510mW
Operating Temperature : -55°C ~ 150°C (TJ)
Mounting Type : Surface Mount
Package / Case : 6-UDFN Exposed Pad
Supplier Device Package : DFN2020-6
0
100 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
