Part Number

Manufacturer

Description

Unit Price

In Stock

1943-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1943
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.067" (1.70mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.100" (2.54mm)
Length - Below Flange : -
Length - Overall : 0.120" (3.05mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : 0.110" (2.79mm)
Mounting Type : Surface Mount
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

3358 in stock

1944-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1944
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.067" (1.70mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.100" (2.54mm)
Length - Below Flange : -
Length - Overall : 0.120" (3.05mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : 0.110" (2.79mm)
Mounting Type : Surface Mount
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

10244 in stock

1945-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1945
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.030" (0.76mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.110" (2.79mm)
Length - Below Flange : -
Length - Overall : 0.230" (5.84mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : -
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

23274 in stock

1946-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1946
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.030" (0.76mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.110" (2.79mm)
Length - Below Flange : -
Length - Overall : 0.230" (5.84mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : -
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

5773 in stock

1960-0-00-15-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 1960
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.018" (0.46mm) Dia
Pin Size - Below Flange : 0.072" (1.83mm) Dia
Length - Above Flange : 0.299" (7.60mm)
Length - Below Flange : 0.058" (1.47mm)
Length - Overall : 0.382" (9.70mm)
Flange Diameter : 0.059" (1.50mm)
Mounting Hole Diameter : 0.057" (1.45mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

925 in stock

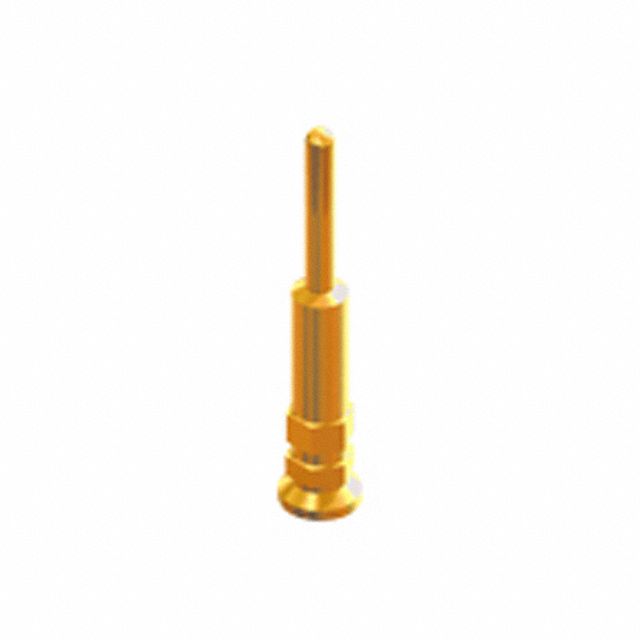

1997-2

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.279" (7.09mm)
Length - Below Flange : -
Length - Overall : 0.295" (7.49mm)
Flange Diameter : 0.055" (1.40mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

790 in stock

1998-3

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.250" (6.35mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 0.370" (9.40mm)
Flange Diameter : 0.045" (1.14mm)
Mounting Hole Diameter : 0.024" (0.61mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.093" (2.36mm)
Contact Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

19217 in stock

1999-3

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.425" (10.80mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 0.545" (13.84mm)
Flange Diameter : 0.045" (1.14mm)
Mounting Hole Diameter : 0.024" (0.61mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.093" (2.36mm)
Contact Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

4839 in stock

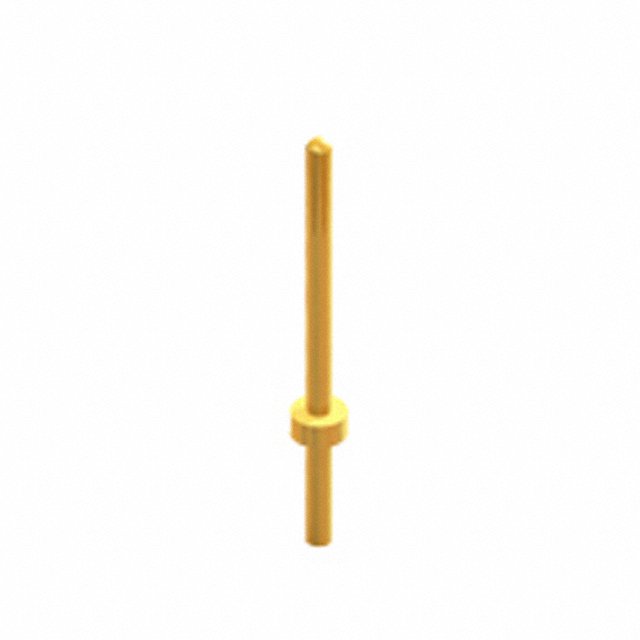

2000-3

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.250" (6.35mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 0.370" (9.40mm)
Flange Diameter : 0.045" (1.14mm)
Mounting Hole Diameter : 0.024" (0.61mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.093" (2.36mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

6387 in stock

2001-3

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.425" (10.80mm)
Length - Below Flange : 0.100" (2.54mm)
Length - Overall : 0.545" (13.84mm)
Flange Diameter : 0.045" (1.14mm)
Mounting Hole Diameter : 0.024" (0.61mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.093" (2.36mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

4534 in stock

2104-2-01-44-00-00-07-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 2104
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Slotted
Pin Size - Above Flange : 0.047" (1.19mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.070" (1.78mm)
Length - Below Flange : 0.086" (2.18mm)
Length - Overall : 0.156" (3.96mm)
Flange Diameter : 0.047" (1.19mm)
Mounting Hole Diameter : 0.036" (0.91mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)

1150 in stock

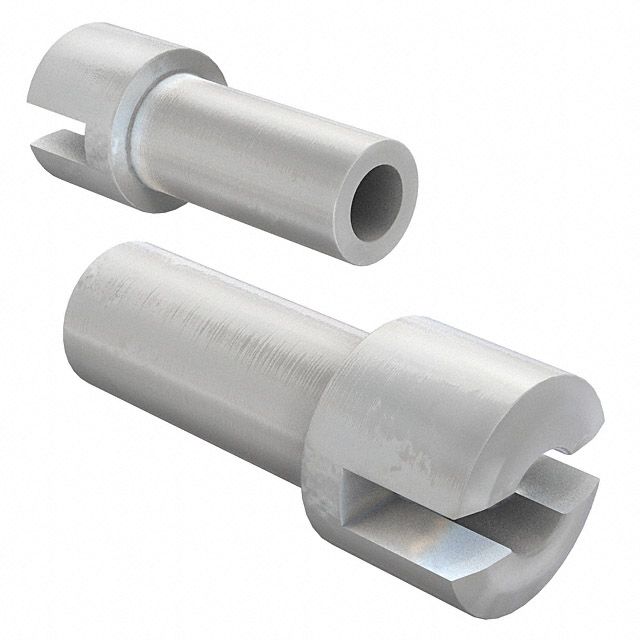

2104-3-01-44-00-00-07-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 2104
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Slotted
Pin Size - Above Flange : 0.047" (1.19mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.070" (1.78mm)
Length - Below Flange : 0.117" (2.97mm)
Length - Overall : 0.187" (4.75mm)
Flange Diameter : 0.047" (1.19mm)
Mounting Hole Diameter : 0.036" (0.91mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.094" (2.39mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)

1170 in stock
