Part Number

Manufacturer

Description

Unit Price

In Stock

2104-4-01-01-00-00-07-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 2104
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Slotted
Pin Size - Above Flange : 0.047" (1.19mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.070" (1.78mm)
Length - Below Flange : 0.148" (3.76mm)
Length - Overall : 0.218" (5.54mm)
Flange Diameter : 0.047" (1.19mm)
Mounting Hole Diameter : 0.036" (0.91mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.125" (3.18mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 200.0µin (5.08µm)

4620 in stock

2302-2-01-44-00-00-07-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 2302
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Slotted
Pin Size - Above Flange : 0.094" (2.39mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.156" (3.96mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.240" (6.10mm)
Flange Diameter : 0.094" (2.39mm)
Mounting Hole Diameter : 0.067" (1.70mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)

1000 in stock

2302-4-01-01-00-00-07-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 2302
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Slotted
Pin Size - Above Flange : 0.094" (2.39mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.156" (3.96mm)
Length - Below Flange : 0.147" (3.73mm)
Length - Overall : 0.303" (7.70mm)
Flange Diameter : 0.094" (2.39mm)
Mounting Hole Diameter : 0.067" (1.70mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.125" (3.18mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 200.0µin (5.08µm)

7336 in stock

2303-2-01-80-00-00-07-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 2303
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Slotted
Pin Size - Above Flange : 0.094" (2.39mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.156" (3.96mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.240" (6.10mm)
Flange Diameter : 0.094" (2.39mm)
Mounting Hole Diameter : 0.064" (1.63mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

6000 in stock

2315-2-01-50-00-00-07-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 2315
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Slotted
Pin Size - Above Flange : 0.094" (2.39mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.156" (3.96mm)
Length - Below Flange : 0.094" (2.39mm)
Length - Overall : 0.250" (6.35mm)
Flange Diameter : 0.094" (2.39mm)
Mounting Hole Diameter : 0.067" (1.70mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 300.0µin (7.62µm)

1000 in stock

2352-2-01-44-00-00-07-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 2352
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Slotted
Pin Size - Above Flange : 0.094" (2.39mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.156" (3.96mm)
Length - Below Flange : 0.094" (2.39mm)
Length - Overall : 0.250" (6.35mm)
Flange Diameter : 0.094" (2.39mm)
Mounting Hole Diameter : 0.067" (1.70mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)

2042 in stock

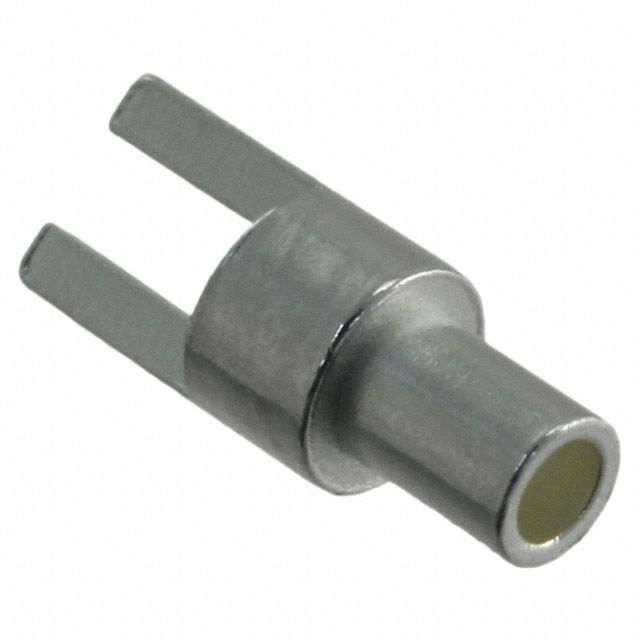

2362-2-01-44-00-00-07-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 2362
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Slotted
Pin Size - Above Flange : 0.094" (2.39mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.156" (3.96mm)
Length - Below Flange : 0.084" (2.13mm)
Length - Overall : 0.240" (6.10mm)
Flange Diameter : 0.094" (2.39mm)
Mounting Hole Diameter : 0.067" (1.70mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)

455 in stock

2381-0-00-15-00-00-33-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 2381
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.050" (1.27mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.145" (3.68mm)
Length - Below Flange : -
Length - Overall : 0.155" (3.94mm)
Flange Diameter : 0.080" (2.03mm)
Mounting Hole Diameter : 0.054" (1.37mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

17814 in stock

2516-2-01-80-00-00-07-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 2516
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Slotted
Pin Size - Above Flange : 0.063" (1.60mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.184" (4.67mm)
Length - Below Flange : 0.105" (2.67mm)
Length - Overall : 0.324" (8.23mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

1000 in stock

2617-0-01-34-00-00-03-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 2617
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.044" (1.12mm) Dia
Pin Size - Below Flange : 0.020" (0.51mm) Dia
Length - Above Flange : 0.077" (1.96mm)
Length - Below Flange : 0.119" (3.02mm)
Length - Overall : 0.227" (5.77mm)
Flange Diameter : 0.055" (1.40mm)
Mounting Hole Diameter : 0.040" (1.02mm)
Mounting Type : Through Hole
Termination : Press-Fit
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Gold
Contact Finish Thickness : 50.0µin (1.27µm)

350 in stock

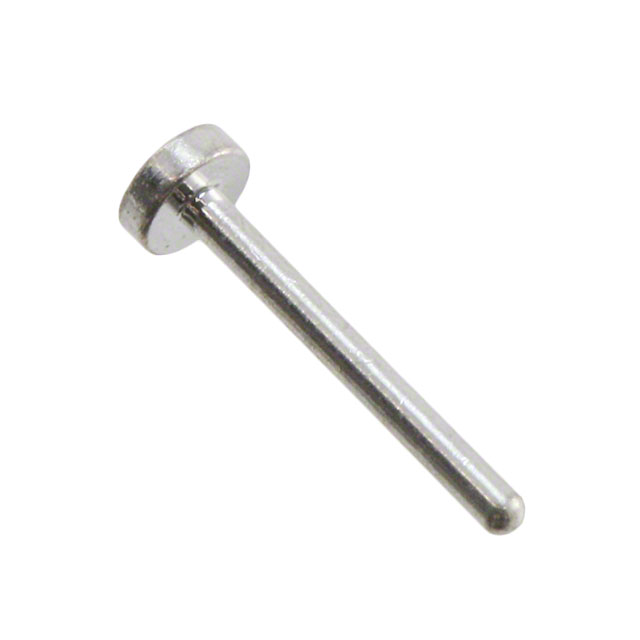

2650-0-00-01-00-00-33-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 2650
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Nail Head
Pin Size - Above Flange : 0.025" (0.64mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.250" (6.35mm)
Length - Below Flange : -
Length - Overall : 0.272" (6.91mm)
Flange Diameter : 0.072" (1.83mm)
Mounting Hole Diameter : 0.029" (0.74mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : -
Contact Material : Brass Alloy
Contact Finish : Tin-Lead
Contact Finish Thickness : 200.0µin (5.08µm)

1000 in stock

2807-2-01-44-00-00-07-0

Mill-Max

Manufacturer : Mill-Max Manufacturing Corp.
Packaging : Bulk
Series : 2807
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End, Slotted
Pin Size - Above Flange : 0.188" (4.78mm) Dia
Pin Size - Below Flange : 0.112" (2.84mm) Dia
Length - Above Flange : 0.328" (8.33mm)
Length - Below Flange : 0.109" (2.77mm)
Length - Overall : 0.437" (11.10mm)
Flange Diameter : 0.188" (4.78mm)
Mounting Hole Diameter : 0.116" (2.95mm)
Mounting Type : Through Hole
Termination : Swage, Knurled
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass Alloy
Contact Finish : Silver
Contact Finish Thickness : 300.0µin (7.62µm)

965 in stock
