Part Number

Manufacturer

Description

Unit Price

In Stock

1364-2

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.500" (12.70mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.612" (15.54mm)
Flange Diameter : 0.156" (3.96mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1578 in stock

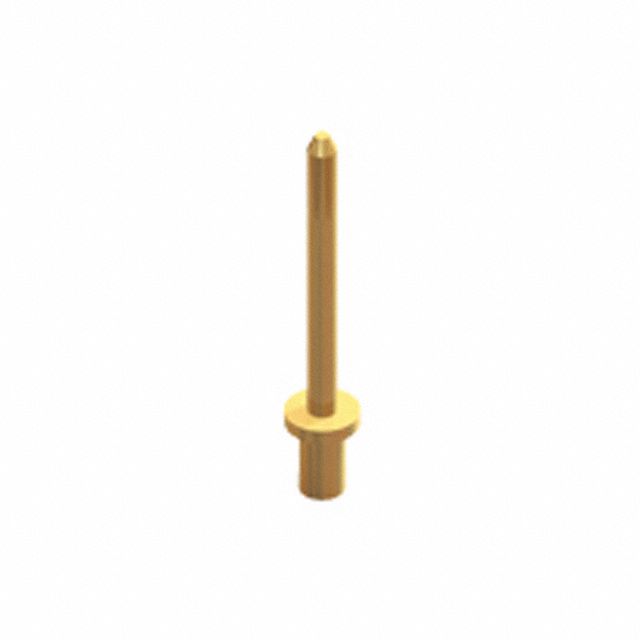

1366-1

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.215" (5.46mm)
Length - Below Flange : 0.051" (1.30mm)
Length - Overall : 0.276" (7.01mm)
Flange Diameter : 0.050" (1.27mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.032" (0.81mm)
Contact Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1343 in stock

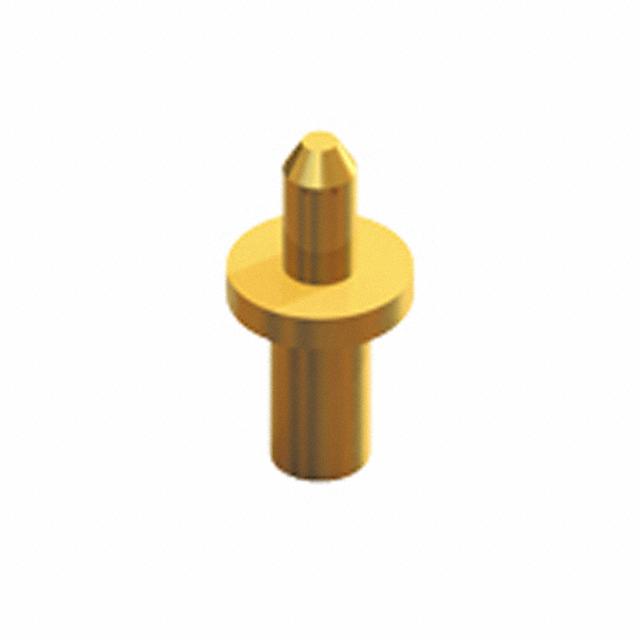

1372-1

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.020" (0.51mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.040" (1.02mm)
Length - Below Flange : 0.051" (1.30mm)
Length - Overall : 0.101" (2.57mm)
Flange Diameter : 0.050" (1.27mm)
Mounting Hole Diameter : 0.031" (0.79mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.032" (0.81mm)
Contact Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1601 in stock

1376-2

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.258" (6.55mm)
Length - Below Flange : 0.105" (2.67mm)
Length - Overall : 0.405" (10.29mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

270 in stock

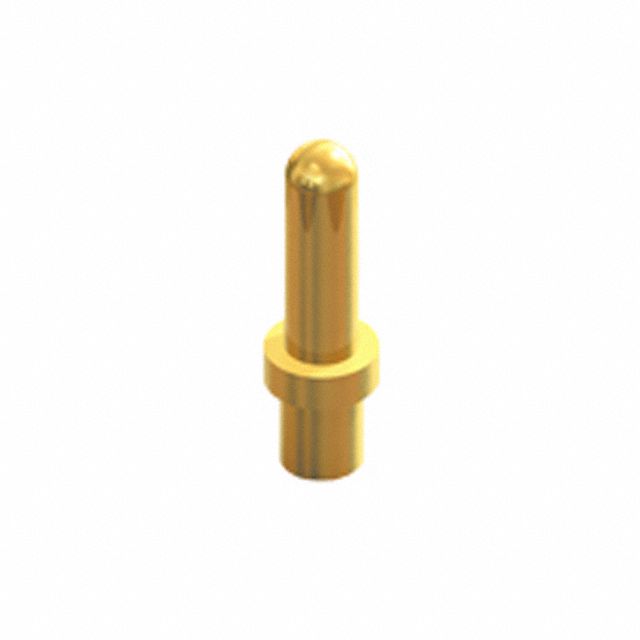

1377-2

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.080" (2.03mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.258" (6.55mm)
Length - Below Flange : 0.105" (2.67mm)
Length - Overall : 0.405" (10.29mm)
Flange Diameter : 0.125" (3.18mm)
Mounting Hole Diameter : 0.094" (2.39mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Tin
Contact Finish Thickness : 200.0µin (5.08µm)

5843 in stock

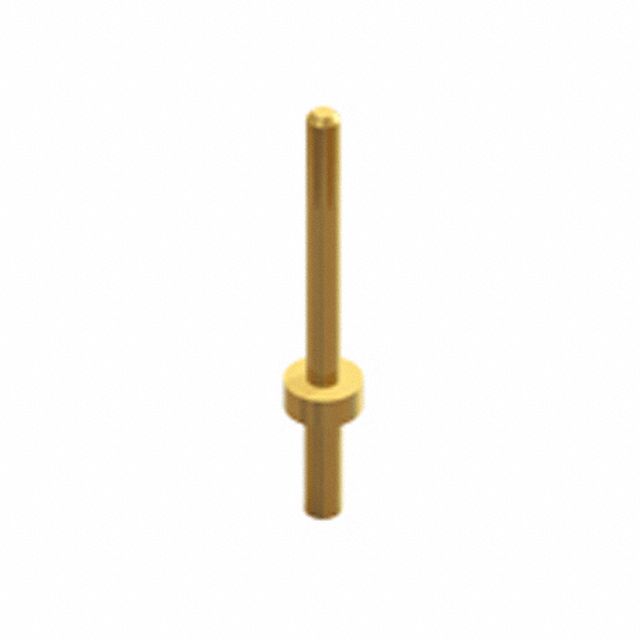

1378-1

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.017" (0.43mm) Dia
Pin Size - Below Flange : 0.019" (0.48mm) Dia
Length - Above Flange : 0.157" (3.99mm)
Length - Below Flange : 0.061" (1.55mm)
Length - Overall : 0.234" (5.94mm)
Flange Diameter : 0.039" (0.99mm)
Mounting Hole Diameter : 0.022" (0.56mm)
Mounting Type : Through Hole
Termination : Solder
Insulation : Non-Insulated
Board Thickness : 0.032" (0.81mm)
Contact Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

4774 in stock

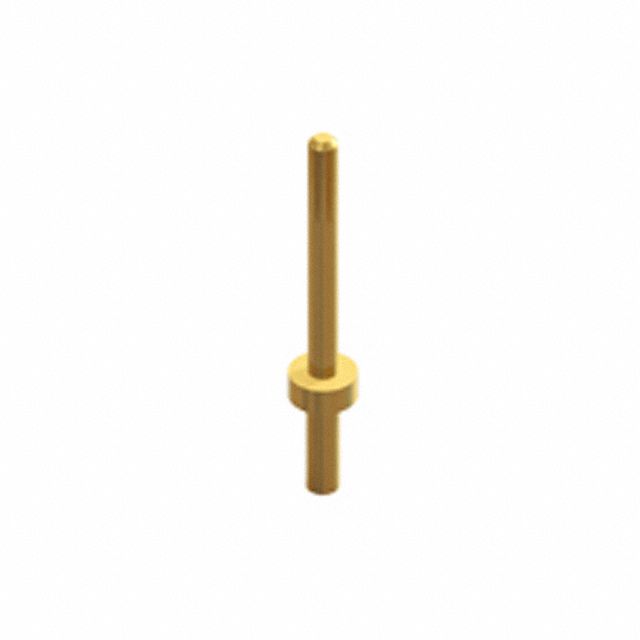

1379-1

Keystone Electronics Corp.

4506 in stock

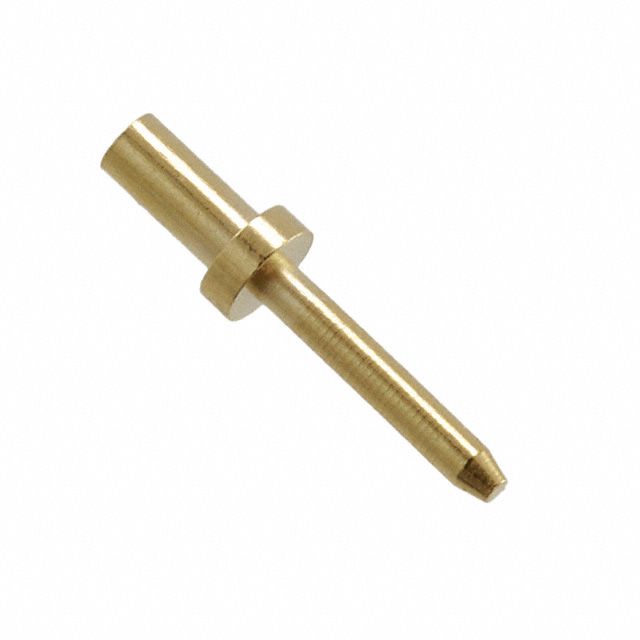

1402-3

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.240" (6.10mm)
Length - Below Flange : 0.125" (3.18mm)
Length - Overall : 0.395" (10.03mm)
Flange Diameter : 0.093" (2.36mm)
Mounting Hole Diameter : 0.062" (1.57mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.093" (2.36mm)
Contact Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1683 in stock

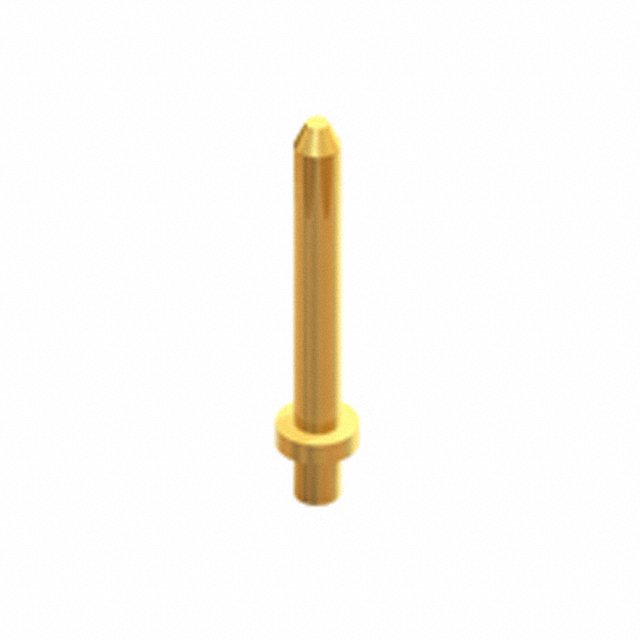

1405-2

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.300" (7.62mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.402" (10.20mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

27169 in stock

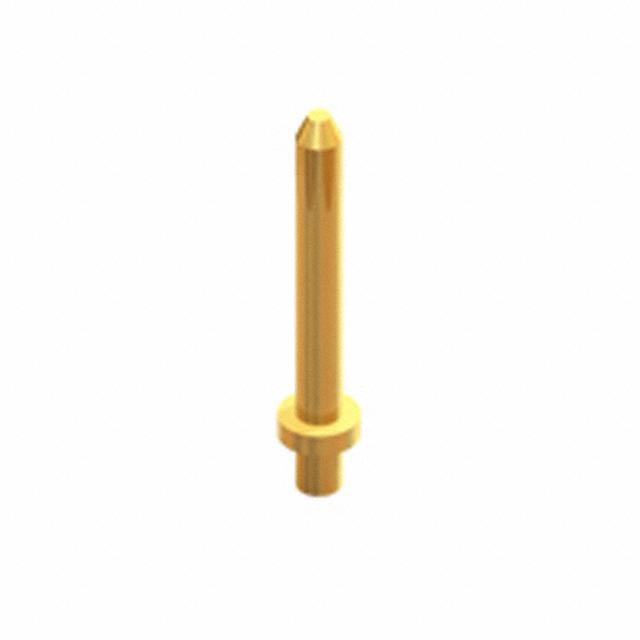

1405-3

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.040" (1.02mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.300" (7.62mm)
Length - Below Flange : 0.113" (2.87mm)
Length - Overall : 0.433" (11.00mm)
Flange Diameter : 0.070" (1.77mm)
Mounting Hole Diameter : 0.043" (1.09mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.093" (2.36mm)
Contact Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

1957 in stock

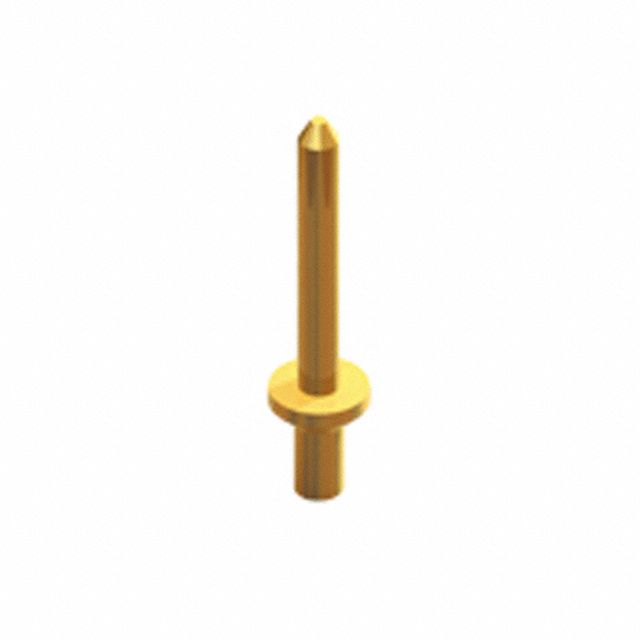

1406-2

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.024" (0.61mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.188" (4.78mm)
Length - Below Flange : 0.078" (1.98mm)
Length - Overall : 0.291" (7.39mm)
Flange Diameter : 0.060" (1.52mm)
Mounting Hole Diameter : 0.035" (0.89mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

2000 in stock

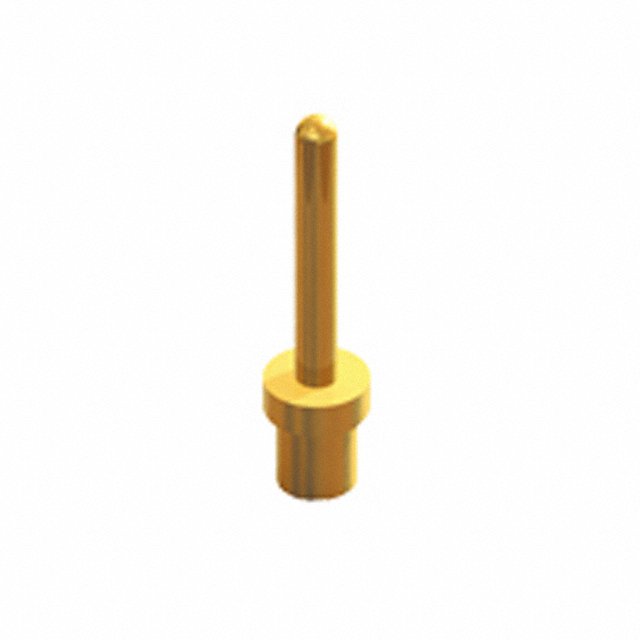

1407-2

Keystone Electronics Corp.

Manufacturer : Keystone Electronics
Packaging : Bulk
Series : -
Part Status : Active
Terminal Type : PC Pin
Terminal Style : Single End
Pin Size - Above Flange : 0.025" (0.64mm) Dia
Pin Size - Below Flange : -
Length - Above Flange : 0.179" (4.55mm)
Length - Below Flange : 0.082" (2.08mm)
Length - Overall : 0.282" (7.16mm)
Flange Diameter : 0.062" (1.57mm)
Mounting Hole Diameter : 0.052" (1.32mm)
Mounting Type : Through Hole
Termination : Swage
Insulation : Non-Insulated
Board Thickness : 0.062" (1.57mm)
Contact Material : Brass
Contact Finish : Gold
Contact Finish Thickness : 10.0µin (0.25µm)

7340 in stock
