Part Number
Manufacturer
Description
Unit Price
In Stock

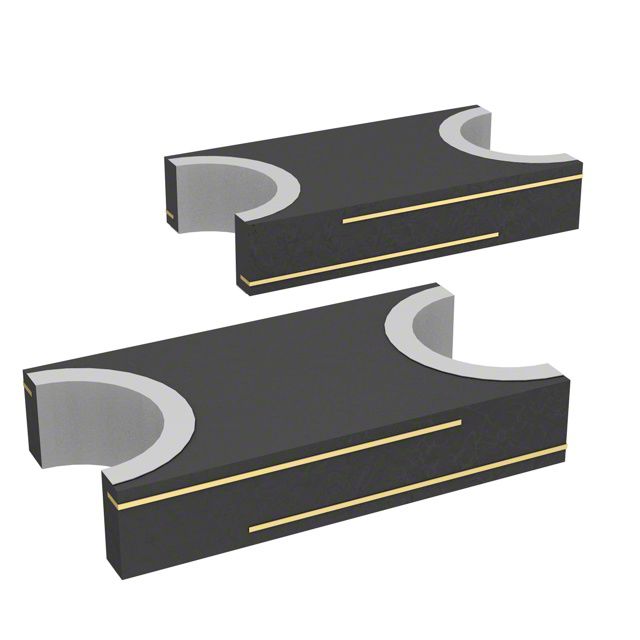

FEMTOSMDC035F-02
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, femtoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 700mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 280 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), Concave
Size / Dimension : 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, femtoSMD
Part Status : Active
Type : Polymeric
Voltage - Max : 6V
Current - Max : 40A
Current - Hold (Ih) (Max) : 350mA
Current - Trip (It) : 700mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : 280 mOhms
Resistance - Post Trip (R1) (Max) : 1 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 0603 (1608 Metric), Concave
Size / Dimension : 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height - Seated (Max) : -
Thickness (Max) : 0.030" (0.75mm)
Lead Spacing : -
0
7870 in stock

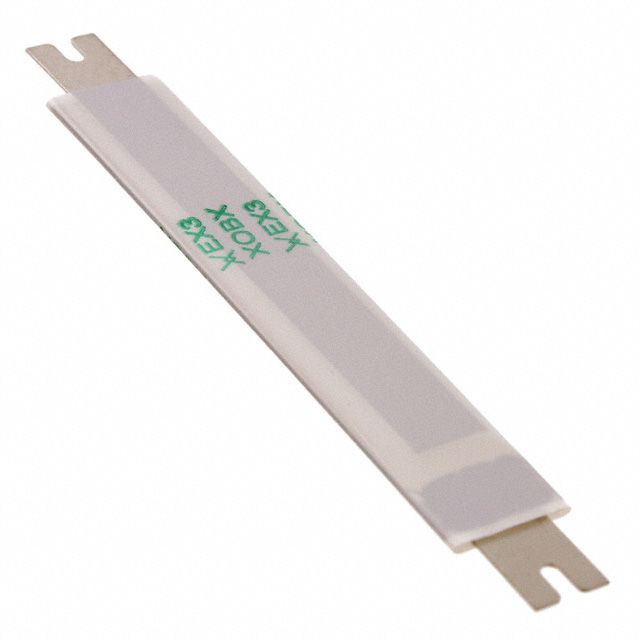

LR4-1300SSF
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, LR4
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 13A
Current - Trip (It) : 21.2A
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 3.5 mOhms
Resistance - Post Trip (R1) (Max) : 9 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 2.520" L x 0.382" W (64.00mm x 9.70mm)
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, LR4
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 13A
Current - Trip (It) : 21.2A
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 3.5 mOhms
Resistance - Post Trip (R1) (Max) : 9 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 2.520" L x 0.382" W (64.00mm x 9.70mm)
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : -
0
7418 in stock

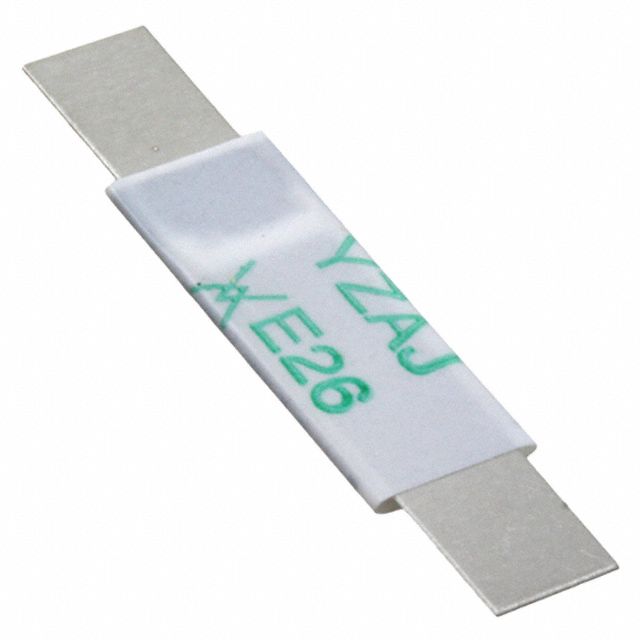

LR4-260F
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, LR4
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5.8A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 63 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.866" L x 0.205" W (22.00mm x 5.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, LR4
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5.8A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 63 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.866" L x 0.205" W (22.00mm x 5.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
7125 in stock
LR4-260SF
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, LR4
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5.8A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 63 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.866" L x 0.205" W (22.00mm x 5.20mm)
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, LR4
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 2.6A
Current - Trip (It) : 5.8A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 20 mOhms
Resistance - Post Trip (R1) (Max) : 63 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.866" L x 0.205" W (22.00mm x 5.20mm)
Height - Seated (Max) : -
Thickness (Max) : -
Lead Spacing : -
0
5700 in stock

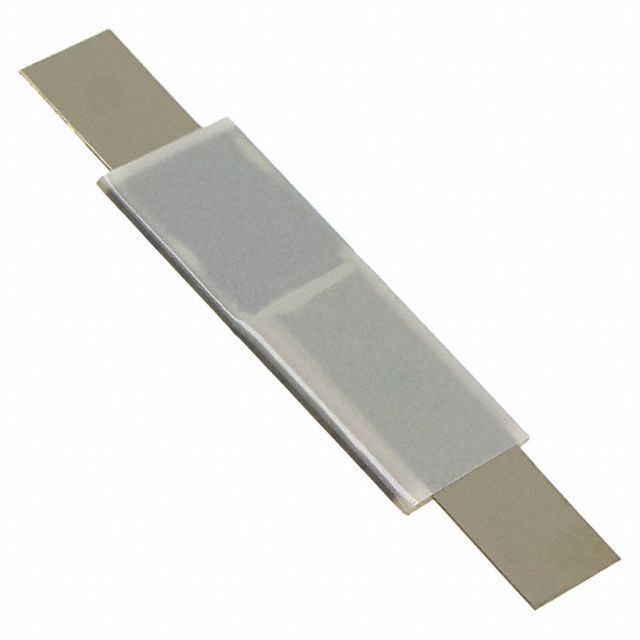

LR4-380F
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, LR4
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3.8A
Current - Trip (It) : 8.3A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 13 mOhms
Resistance - Post Trip (R1) (Max) : 37 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.984" L x 0.283" W (25.00mm x 7.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, LR4
Part Status : Active
Type : Polymeric
Voltage - Max : 15V
Current - Max : 100A
Current - Hold (Ih) (Max) : 3.8A
Current - Trip (It) : 8.3A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 13 mOhms
Resistance - Post Trip (R1) (Max) : 37 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.984" L x 0.283" W (25.00mm x 7.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
15143 in stock

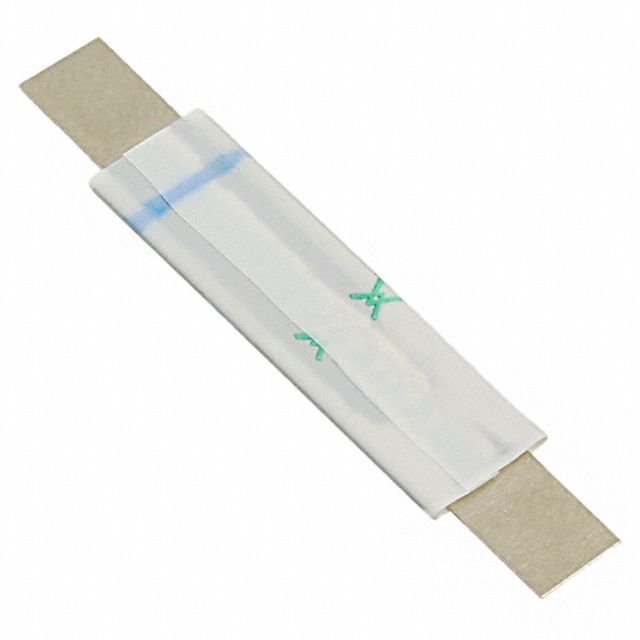

LR4-550F
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, LR4
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5.5A
Current - Trip (It) : 10.5A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 9 mOhms
Resistance - Post Trip (R1) (Max) : 22 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.417" L x 0.283" W (36.00mm x 7.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, LR4
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 5.5A
Current - Trip (It) : 10.5A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 9 mOhms
Resistance - Post Trip (R1) (Max) : 22 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.417" L x 0.283" W (36.00mm x 7.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
3490 in stock

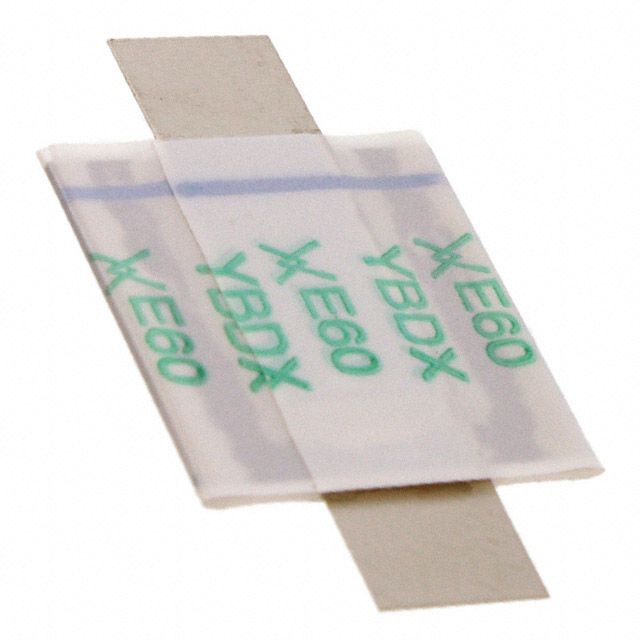

LR4-600F
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, LR4
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 6A
Current - Trip (It) : 11.7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 7 mOhms
Resistance - Post Trip (R1) (Max) : 19 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.984" L x 0.559" W (25.00mm x 14.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, LR4
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 6A
Current - Trip (It) : 11.7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 7 mOhms
Resistance - Post Trip (R1) (Max) : 19 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 0.984" L x 0.559" W (25.00mm x 14.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
12196 in stock

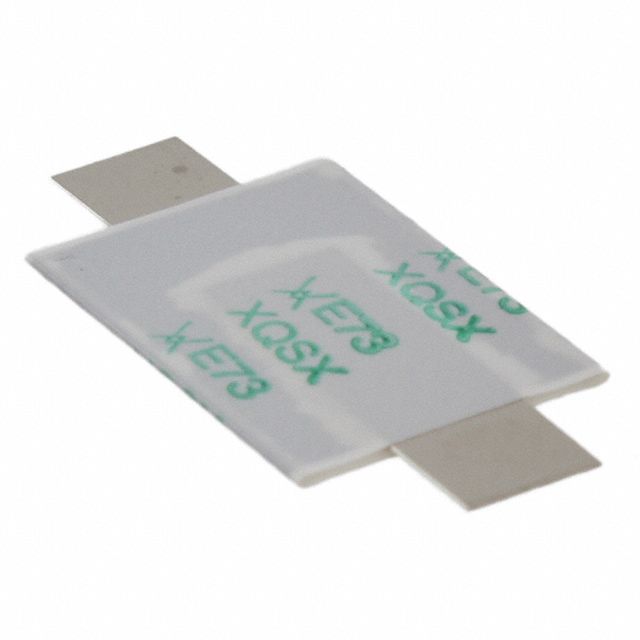

LR4-730F
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, LR4
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 7.3A
Current - Trip (It) : 14.1A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 6 mOhms
Resistance - Post Trip (R1) (Max) : 15 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.106" L x 0.559" W (28.10mm x 14.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, LR4
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 7.3A
Current - Trip (It) : 14.1A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 6 mOhms
Resistance - Post Trip (R1) (Max) : 15 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.106" L x 0.559" W (28.10mm x 14.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
21650 in stock
LR4-900F
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, LR4
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 9A
Current - Trip (It) : 16.7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 6 mOhms
Resistance - Post Trip (R1) (Max) : 14 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.831" L x 0.323" W (46.50mm x 8.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
Packaging : Bulk
Series : PolySwitch®, LR4
Part Status : Active
Type : Polymeric
Voltage - Max : 20V
Current - Max : 100A
Current - Hold (Ih) (Max) : 9A
Current - Trip (It) : 16.7A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 6 mOhms
Resistance - Post Trip (R1) (Max) : 14 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : User Defined
Package / Case : Strap
Size / Dimension : 1.831" L x 0.323" W (46.50mm x 8.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.039" (1.00mm)
Lead Spacing : -
0
7614 in stock

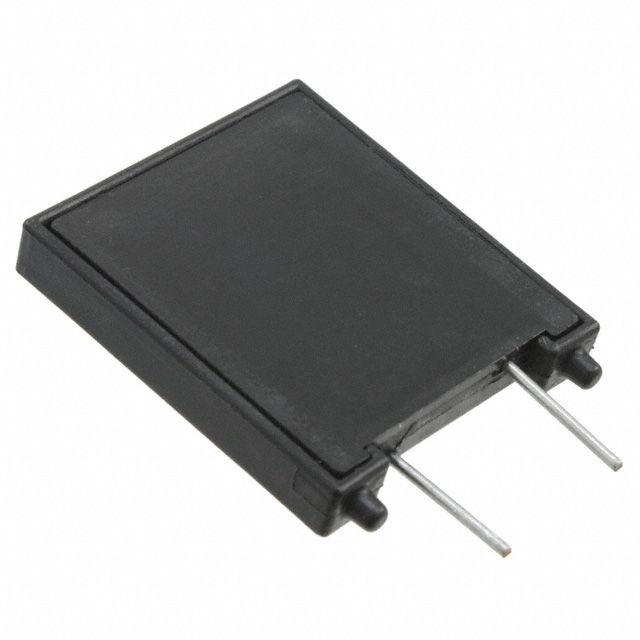

LVB125
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, LVB
Part Status : Active
Type : Polymeric
Voltage - Max : 240V
Current - Max : 12.5A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 152 mOhms
Resistance - Post Trip (R1) (Max) : 482 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.984" L x 0.175" W (25.00mm x 4.40mm)
Height - Seated (Max) : 1.071" (27.20mm)
Thickness (Max) : -
Lead Spacing : 0.400" (10.15mm)
Packaging : Bulk
Series : PolySwitch®, LVB
Part Status : Active
Type : Polymeric
Voltage - Max : 240V
Current - Max : 12.5A
Current - Hold (Ih) (Max) : 1.25A
Current - Trip (It) : 2.5A
Time to Trip : 5s
Resistance - Initial (Ri) (Min) : 152 mOhms
Resistance - Post Trip (R1) (Max) : 482 mOhms
Resistance - 25°C (Typ) : -
Operating Temperature : -40°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.984" L x 0.175" W (25.00mm x 4.40mm)
Height - Seated (Max) : 1.071" (27.20mm)
Thickness (Max) : -
Lead Spacing : 0.400" (10.15mm)
0
480 in stock
LVR005NK
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 120mA
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 18.5 Ohms
Resistance - Post Trip (R1) (Max) : 65 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.272" Dia x 0.181" T (6.90mm x 4.60mm)
Height - Seated (Max) : 0.476" (12.10mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 120mA
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 18.5 Ohms
Resistance - Post Trip (R1) (Max) : 65 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.272" Dia x 0.181" T (6.90mm x 4.60mm)
Height - Seated (Max) : 0.476" (12.10mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
11980 in stock

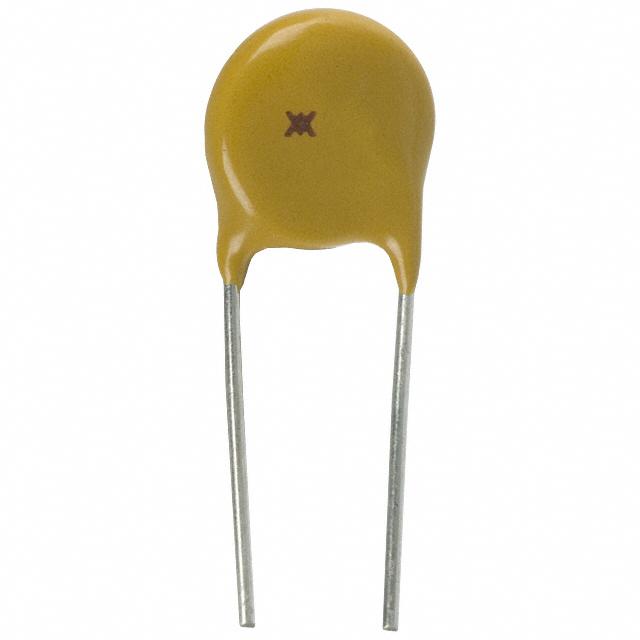

LVR005NS
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 120mA
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 18.5 Ohms
Resistance - Post Trip (R1) (Max) : 65 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.272" Dia x 0.181" T (6.90mm x 4.60mm)
Height - Seated (Max) : 0.390" (9.90mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 120mA
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 18.5 Ohms
Resistance - Post Trip (R1) (Max) : 65 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.272" Dia x 0.181" T (6.90mm x 4.60mm)
Height - Seated (Max) : 0.390" (9.90mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
28028 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
