Part Number

Manufacturer

Description

Unit Price

In Stock

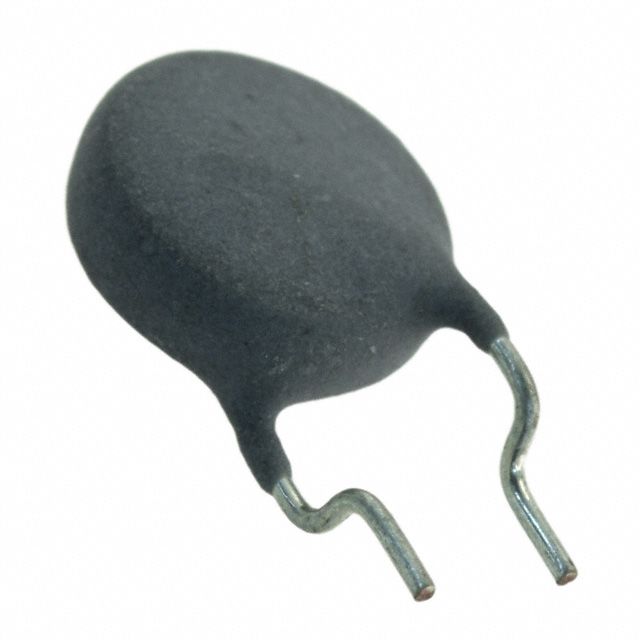

CMF-RL35-0

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Bulk
Series : CMF-RL
Part Status : Active
Type : Ceramic
Voltage - Max : 220V (600V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 75mA
Current - Trip (It) : 150mA
Time to Trip : 150ms
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 35 Ohms
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.386" L x 0.197" W (9.80mm x 5.00mm)
Height - Seated (Max) : 0.532" (13.50mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)

3529 in stock

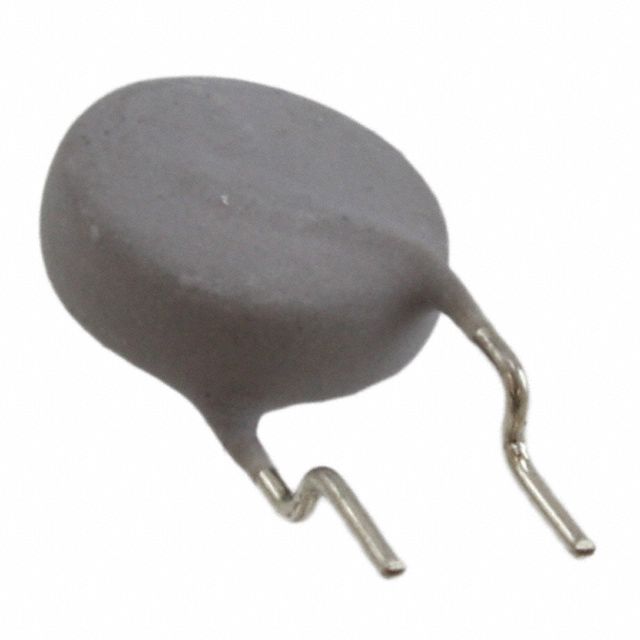

CMF-RL50-0

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Bulk
Series : CMF-RL
Part Status : Active
Type : Ceramic
Voltage - Max : 220V (600V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 65mA
Current - Trip (It) : 150mA
Time to Trip : 150ms
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 50 Ohms
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.386" L x 0.197" W (9.80mm x 5.00mm)
Height - Seated (Max) : 0.532" (13.50mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)

19 in stock

CMF-RL50A-0

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Bulk
Series : CMF-RL
Part Status : Active
Type : Ceramic
Voltage - Max : 220V (600V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 100mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 50 Ohms
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.295" L x 0.220" W (7.50mm x 5.60mm)
Height - Seated (Max) : 0.512" (13.00mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)

10351 in stock

CMF-RL55A-0

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Bulk
Series : CMF-RL
Part Status : Active
Type : Ceramic
Voltage - Max : 220V (600V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 100mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 55 Ohms
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.295" L x 0.220" W (7.50mm x 5.60mm)
Height - Seated (Max) : 0.512" (13.00mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)

4301 in stock

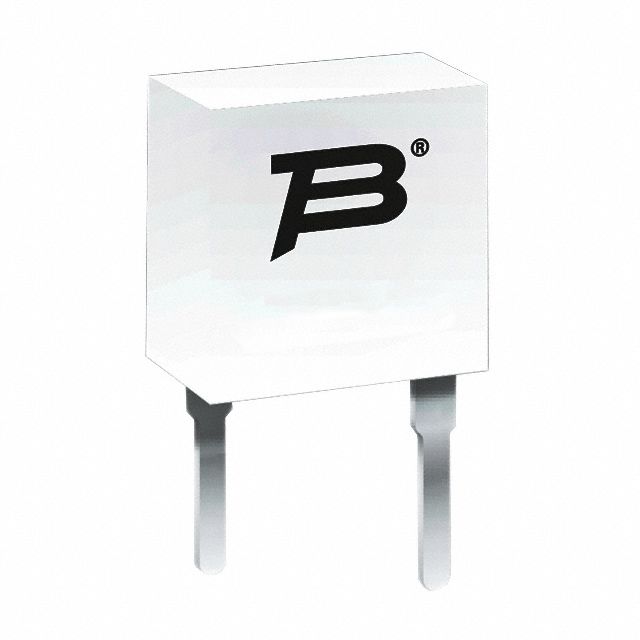

CMF-RLC50-0

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Bulk
Series : CMF-RLC
Part Status : Last Time Buy
Type : Ceramic
Voltage - Max : 230V (650V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 65mA
Current - Trip (It) : 150mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 50 Ohms
Operating Temperature : -
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.354" L x 0.177" W (9.00mm x 4.50mm)
Height - Seated (Max) : 0.378" (9.60mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)

593 in stock

CMF-SD35A-2

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Tape & Reel (TR)
Series : CMF-SD
Part Status : Last Time Buy
Type : Ceramic
Voltage - Max : 230V (600V Int)
Current - Max : 2.5A
Current - Hold (Ih) (Max) : 100mA
Current - Trip (It) : 200mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 35 Ohms
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD Cube
Size / Dimension : 0.319" L x 0.282" W (8.10mm x 7.15mm)
Height - Seated (Max) : -
Thickness (Max) : 0.335" (8.50mm)
Lead Spacing : -

1000 in stock

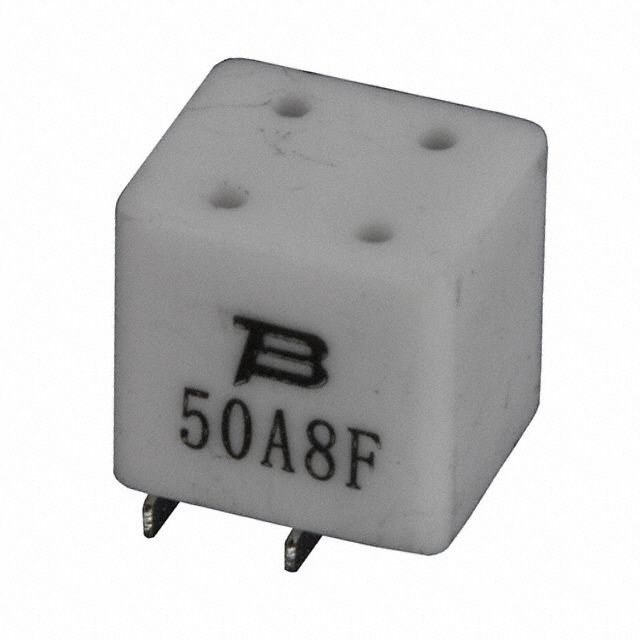

CMF-SD50A-10-2

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Tape & Reel (TR)
Alternate Packaging
Series : CMF-SD
Part Status : Last Time Buy
Type : Ceramic
Voltage - Max : 230V (600V Int)
Current - Max : 3A
Current - Hold (Ih) (Max) : 90mA
Current - Trip (It) : 190mA
Time to Trip : 100ms
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 50 Ohms
Operating Temperature : -
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD Cube
Size / Dimension : 0.319" L x 0.282" W (8.10mm x 7.15mm)
Height - Seated (Max) : -
Thickness (Max) : 0.335" (8.50mm)
Lead Spacing : -

1000 in stock

CMF-SDP10-2

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CMF-SDP
Part Status : Active
Type : Ceramic
Voltage - Max : 230V (250V Int)
Current - Max : 1A
Current - Hold (Ih) (Max) : 180mA
Current - Trip (It) : 360mA
Time to Trip : 3.8s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 10 Ohms
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD Cube
Size / Dimension : 0.433" L x 0.354" W (11.00mm x 9.00mm)
Height - Seated (Max) : -
Thickness (Max) : 0.453" (11.50mm)
Lead Spacing : -

1184 in stock

CMF-SDP25A-2

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CMF-SDP
Part Status : Active
Type : Ceramic
Voltage - Max : 230V (250V Int)
Current - Max : 2.8A
Current - Hold (Ih) (Max) : 130mA
Current - Trip (It) : 260mA
Time to Trip : 300ms
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 25 Ohms
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD Cube
Size / Dimension : 0.344" L x 0.283" W (8.75mm x 7.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.402" (10.20mm)
Lead Spacing : -

388 in stock

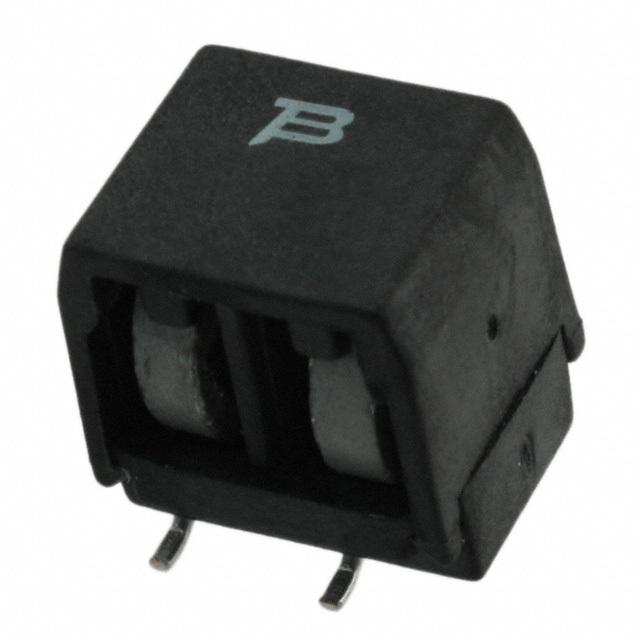

CMF-SDP35A-2

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CMF-SDP
Part Status : Active
Type : Ceramic
Voltage - Max : 230V (600V Int)
Current - Max : 2.5A
Current - Hold (Ih) (Max) : 110mA
Current - Trip (It) : 230mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 35 Ohms
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD Cube
Size / Dimension : 0.344" L x 0.283" W (8.75mm x 7.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.402" (10.20mm)
Lead Spacing : -

5540 in stock

CMF-SDP50-2

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CMF-SDP
Part Status : Active
Type : Ceramic
Voltage - Max : 230V (600V Int)
Current - Max : 2.5A
Current - Hold (Ih) (Max) : 90mA
Current - Trip (It) : 190mA
Time to Trip : 130ms
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 50 Ohms
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD Cube
Size / Dimension : 0.433" L x 0.354" W (11.00mm x 9.00mm)
Height - Seated (Max) : -
Thickness (Max) : 0.453" (11.50mm)
Lead Spacing : -

3145 in stock

CMF-SDP50A-2

Bourns, Inc.

Manufacturer : Bourns Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : CMF-SDP
Part Status : Active
Type : Ceramic
Voltage - Max : 230V (600V Int)
Current - Max : 2.5A
Current - Hold (Ih) (Max) : 90mA
Current - Trip (It) : 190mA
Time to Trip : 200ms
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 50 Ohms
Operating Temperature : -40°C ~ 125°C
Ratings : -
Mounting Type : Surface Mount
Package / Case : 4-SMD Cube
Size / Dimension : 0.344" L x 0.283" W (8.75mm x 7.20mm)
Height - Seated (Max) : -
Thickness (Max) : 0.402" (10.20mm)
Lead Spacing : -

7585 in stock
