Part Number
Manufacturer
Description
Unit Price
In Stock

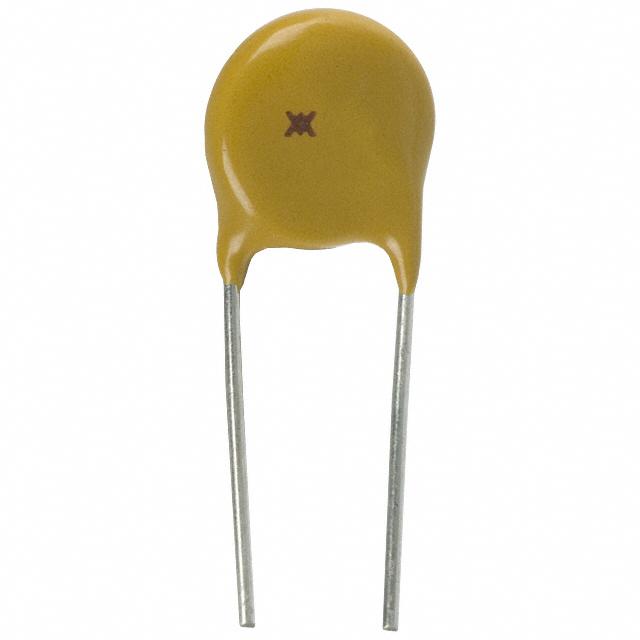

LVR005NS-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 120mA
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 18.5 Ohms
Resistance - Post Trip (R1) (Max) : 65 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.272" Dia x 0.181" T (6.90mm x 4.60mm)
Height - Seated (Max) : 0.390" (9.90mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1A
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 120mA
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 18.5 Ohms
Resistance - Post Trip (R1) (Max) : 65 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.272" Dia x 0.181" T (6.90mm x 4.60mm)
Height - Seated (Max) : 0.390" (9.90mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
3648 in stock
LVR008NK
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1.2A
Current - Hold (Ih) (Max) : 80mA
Current - Trip (It) : 190mA
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 7.4 Ohms
Resistance - Post Trip (R1) (Max) : 26 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.283" Dia x 0.181" T (7.20mm x 4.60mm)
Height - Seated (Max) : 0.488" (12.40mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Bulk
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1.2A
Current - Hold (Ih) (Max) : 80mA
Current - Trip (It) : 190mA
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 7.4 Ohms
Resistance - Post Trip (R1) (Max) : 26 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.283" Dia x 0.181" T (7.20mm x 4.60mm)
Height - Seated (Max) : 0.488" (12.40mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
2870 in stock

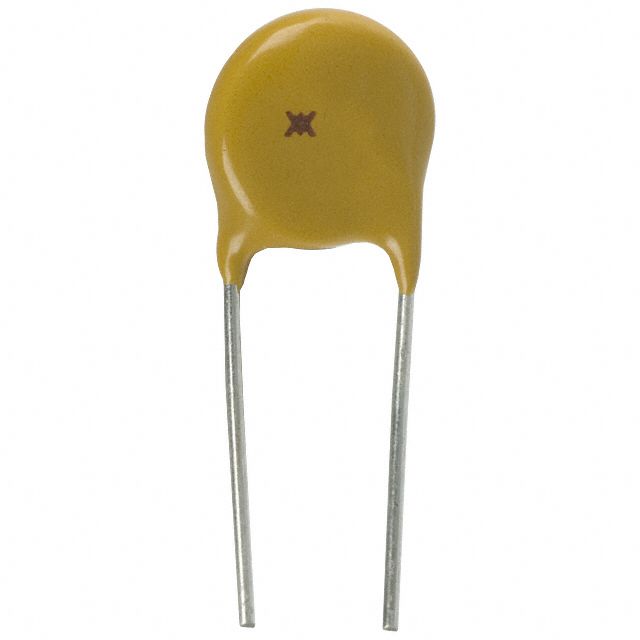

LVR008NS
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1.2A
Current - Hold (Ih) (Max) : 80mA
Current - Trip (It) : 190mA
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 7.4 Ohms
Resistance - Post Trip (R1) (Max) : 26 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.283" Dia x 0.181" T (7.20mm x 4.60mm)
Height - Seated (Max) : 0.402" (10.20mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Bulk
Alternate Packaging
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1.2A
Current - Hold (Ih) (Max) : 80mA
Current - Trip (It) : 190mA
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 7.4 Ohms
Resistance - Post Trip (R1) (Max) : 26 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.283" Dia x 0.181" T (7.20mm x 4.60mm)
Height - Seated (Max) : 0.402" (10.20mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
2858 in stock
LVR008NS-1
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1.2A
Current - Hold (Ih) (Max) : 80mA
Current - Trip (It) : 190mA
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 7.4 Ohms
Resistance - Post Trip (R1) (Max) : 26 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.283" Dia x 0.181" T (7.20mm x 4.60mm)
Height - Seated (Max) : 0.402" (10.20mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Bulk
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1.2A
Current - Hold (Ih) (Max) : 80mA
Current - Trip (It) : 190mA
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 7.4 Ohms
Resistance - Post Trip (R1) (Max) : 26 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.283" Dia x 0.181" T (7.20mm x 4.60mm)
Height - Seated (Max) : 0.402" (10.20mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
1831 in stock
LVR008NS-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1.2A
Current - Hold (Ih) (Max) : 80mA
Current - Trip (It) : 190mA
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 7.4 Ohms
Resistance - Post Trip (R1) (Max) : 26 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.283" Dia x 0.181" T (7.20mm x 4.60mm)
Height - Seated (Max) : 0.402" (10.20mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1.2A
Current - Hold (Ih) (Max) : 80mA
Current - Trip (It) : 190mA
Time to Trip : 10s
Resistance - Initial (Ri) (Min) : 7.4 Ohms
Resistance - Post Trip (R1) (Max) : 26 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.283" Dia x 0.181" T (7.20mm x 4.60mm)
Height - Seated (Max) : 0.402" (10.20mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
4262 in stock
LVR012K
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1.2A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 300mA
Time to Trip : 15s
Resistance - Initial (Ri) (Min) : 3 Ohms
Resistance - Post Trip (R1) (Max) : 12 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.327" Dia x 0.150" T (8.30mm x 3.80mm)
Height - Seated (Max) : 0.508" (12.90mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Bulk
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1.2A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 300mA
Time to Trip : 15s
Resistance - Initial (Ri) (Min) : 3 Ohms
Resistance - Post Trip (R1) (Max) : 12 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.327" Dia x 0.150" T (8.30mm x 3.80mm)
Height - Seated (Max) : 0.508" (12.90mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
1401 in stock
LVR012K-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1.2A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 300mA
Time to Trip : 15s
Resistance - Initial (Ri) (Min) : 3 Ohms
Resistance - Post Trip (R1) (Max) : 12 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.327" Dia x 0.150" T (8.30mm x 3.80mm)
Height - Seated (Max) : 0.508" (12.90mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1.2A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 300mA
Time to Trip : 15s
Resistance - Initial (Ri) (Min) : 3 Ohms
Resistance - Post Trip (R1) (Max) : 12 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.327" Dia x 0.150" T (8.30mm x 3.80mm)
Height - Seated (Max) : 0.508" (12.90mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
2000 in stock
LVR012S
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1.2A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 300mA
Time to Trip : 15s
Resistance - Initial (Ri) (Min) : 3 Ohms
Resistance - Post Trip (R1) (Max) : 12 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.327" Dia x 0.150" T (8.30mm x 3.80mm)
Height - Seated (Max) : 0.430" (10.70mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Bulk
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1.2A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 300mA
Time to Trip : 15s
Resistance - Initial (Ri) (Min) : 3 Ohms
Resistance - Post Trip (R1) (Max) : 12 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.327" Dia x 0.150" T (8.30mm x 3.80mm)
Height - Seated (Max) : 0.430" (10.70mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
2292 in stock
LVR012S-1
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1.2A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 300mA
Time to Trip : 15s
Resistance - Initial (Ri) (Min) : 3 Ohms
Resistance - Post Trip (R1) (Max) : 12 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.327" Dia x 0.150" T (8.30mm x 3.80mm)
Height - Seated (Max) : 0.430" (10.70mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Bulk
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1.2A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 300mA
Time to Trip : 15s
Resistance - Initial (Ri) (Min) : 3 Ohms
Resistance - Post Trip (R1) (Max) : 12 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.327" Dia x 0.150" T (8.30mm x 3.80mm)
Height - Seated (Max) : 0.430" (10.70mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
696 in stock
LVR012S-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1.2A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 300mA
Time to Trip : 15s
Resistance - Initial (Ri) (Min) : 3 Ohms
Resistance - Post Trip (R1) (Max) : 12 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.327" Dia x 0.150" T (8.30mm x 3.80mm)
Height - Seated (Max) : 0.430" (10.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 1.2A
Current - Hold (Ih) (Max) : 120mA
Current - Trip (It) : 300mA
Time to Trip : 15s
Resistance - Initial (Ri) (Min) : 3 Ohms
Resistance - Post Trip (R1) (Max) : 12 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.327" Dia x 0.150" T (8.30mm x 3.80mm)
Height - Seated (Max) : 0.430" (10.70mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
757 in stock
LVR016K
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Bulk
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 2A
Current - Hold (Ih) (Max) : 160mA
Current - Trip (It) : 370mA
Time to Trip : 15s
Resistance - Initial (Ri) (Min) : 2.5 Ohms
Resistance - Post Trip (R1) (Max) : 7.8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.390" Dia x 0.150" T (9.90mm x 3.80mm)
Height - Seated (Max) : 0.543" (13.80mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
Packaging : Bulk
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 2A
Current - Hold (Ih) (Max) : 160mA
Current - Trip (It) : 370mA
Time to Trip : 15s
Resistance - Initial (Ri) (Min) : 2.5 Ohms
Resistance - Post Trip (R1) (Max) : 7.8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.390" Dia x 0.150" T (9.90mm x 3.80mm)
Height - Seated (Max) : 0.543" (13.80mm)
Thickness (Max) : -
Lead Spacing : 0.200" (5.08mm)
0
6972 in stock
LVR016K-2
Littelfuse/Hamlin
Manufacturer : Littelfuse Inc.
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 2A
Current - Hold (Ih) (Max) : 160mA
Current - Trip (It) : 370mA
Time to Trip : 15s
Resistance - Initial (Ri) (Min) : 2.5 Ohms
Resistance - Post Trip (R1) (Max) : 7.8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.390" Dia x 0.150" T (9.90mm x 3.80mm)
Height - Seated (Max) : 0.543" (13.80mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : PolySwitch®, LVR
Part Status : Active
Type : Polymeric
Voltage - Max : 240V (265V Int)
Current - Max : 2A
Current - Hold (Ih) (Max) : 160mA
Current - Trip (It) : 370mA
Time to Trip : 15s
Resistance - Initial (Ri) (Min) : 2.5 Ohms
Resistance - Post Trip (R1) (Max) : 7.8 Ohms
Resistance - 25°C (Typ) : -
Operating Temperature : -20°C ~ 85°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.390" Dia x 0.150" T (9.90mm x 3.80mm)
Height - Seated (Max) : 0.543" (13.80mm)
Thickness (Max) : -
Lead Spacing : 0.199" (5.05mm)
0
2911 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2026 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
