Welcome to Weijie Semiconductor
- Circuit Protection
- PTC Resettable Fuses
Part Number
Manufacturer
Description
Unit Price
In Stock

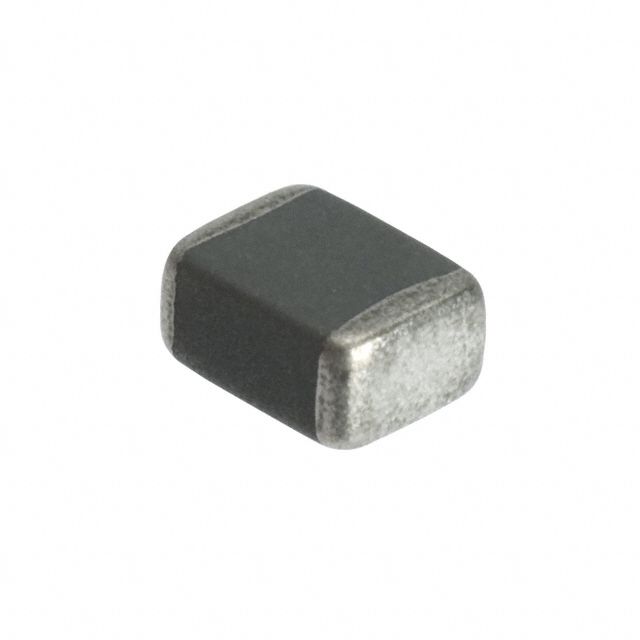

B59707A0120A062
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 80V
Current - Max : 300mA
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 90mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 125 Ohms
Operating Temperature : -20°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : -
Thickness (Max) : 0.071" (1.80mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 80V
Current - Max : 300mA
Current - Hold (Ih) (Max) : 50mA
Current - Trip (It) : 90mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 125 Ohms
Operating Temperature : -20°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : -
Thickness (Max) : 0.071" (1.80mm)
Lead Spacing : -
0
40921 in stock

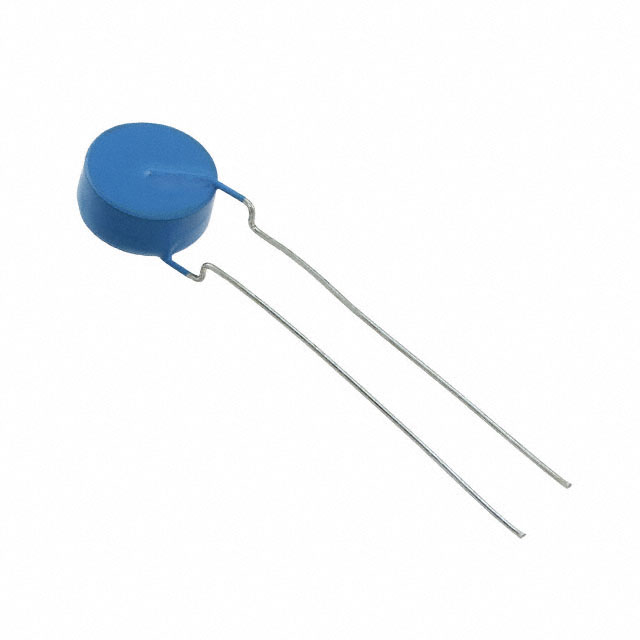

B59751C0120A070
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 440V
Current - Max : 4A
Current - Hold (Ih) (Max) : 87mA
Current - Trip (It) : 173mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 50 Ohms
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.512" Dia x 0.295" T (13.00mm x 7.50mm)
Height - Seated (Max) : 0.709" (18.00mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 440V
Current - Max : 4A
Current - Hold (Ih) (Max) : 87mA
Current - Trip (It) : 173mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 50 Ohms
Operating Temperature : -40°C ~ 125°C
Ratings : AEC-Q200
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.512" Dia x 0.295" T (13.00mm x 7.50mm)
Height - Seated (Max) : 0.709" (18.00mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
479 in stock

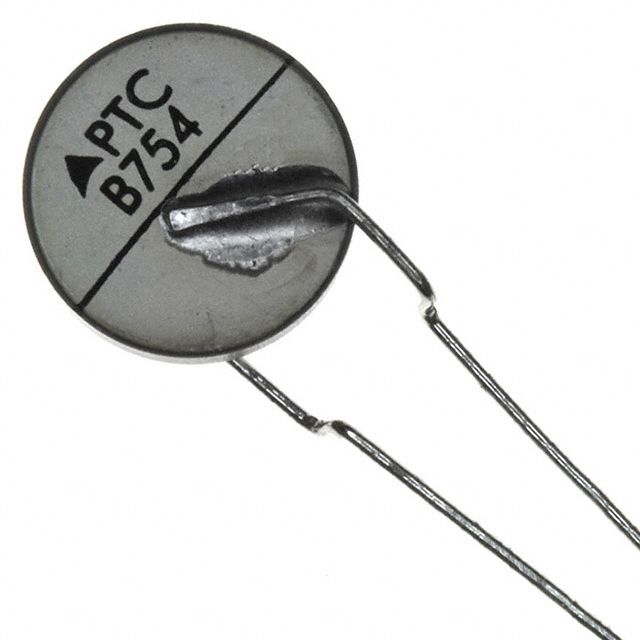

B59754B0120A070
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 420V
Current - Max : 2A
Current - Hold (Ih) (Max) : -
Current - Trip (It) : 100mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 150 Ohms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.492" Dia x 0.276" T (12.50mm x 7.00mm)
Height - Seated (Max) : 0.650" (16.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 420V
Current - Max : 2A
Current - Hold (Ih) (Max) : -
Current - Trip (It) : 100mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 150 Ohms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.492" Dia x 0.276" T (12.50mm x 7.00mm)
Height - Seated (Max) : 0.650" (16.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
739 in stock

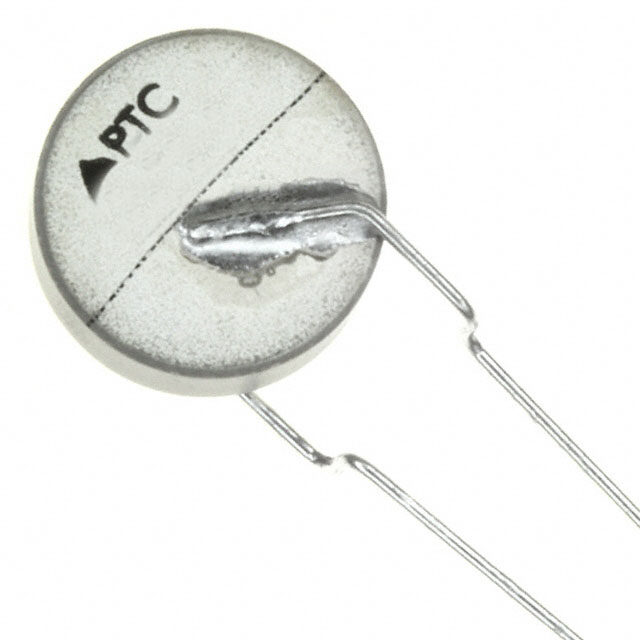

B59770B0120A070
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 420V
Current - Max : 1.4A
Current - Hold (Ih) (Max) : -
Current - Trip (It) : 127mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 70 Ohms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.335" Dia x 0.276" T (8.50mm x 7.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 420V
Current - Max : 1.4A
Current - Hold (Ih) (Max) : -
Current - Trip (It) : 127mA
Time to Trip : 4s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 70 Ohms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.335" Dia x 0.276" T (8.50mm x 7.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
683 in stock

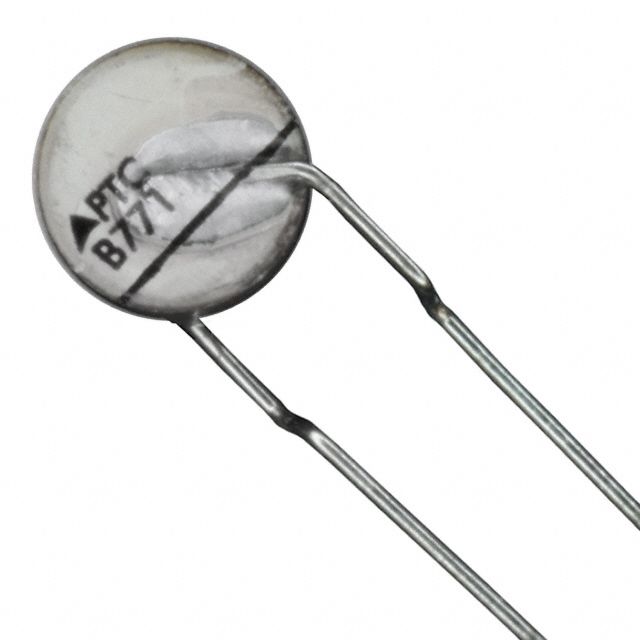

B59771B0120A070
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 420V
Current - Max : 1.4A
Current - Hold (Ih) (Max) : -
Current - Trip (It) : 97mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 120 Ohms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.335" Dia x 0.276" T (8.50mm x 7.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 420V
Current - Max : 1.4A
Current - Hold (Ih) (Max) : -
Current - Trip (It) : 97mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 120 Ohms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.335" Dia x 0.276" T (8.50mm x 7.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
988 in stock
B59772B0120A070
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 420V
Current - Max : 1.4A
Current - Hold (Ih) (Max) : -
Current - Trip (It) : 86mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 150 Ohms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.335" Dia x 0.276" T (8.50mm x 7.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 420V
Current - Max : 1.4A
Current - Hold (Ih) (Max) : -
Current - Trip (It) : 86mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 150 Ohms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.335" Dia x 0.276" T (8.50mm x 7.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
7355 in stock

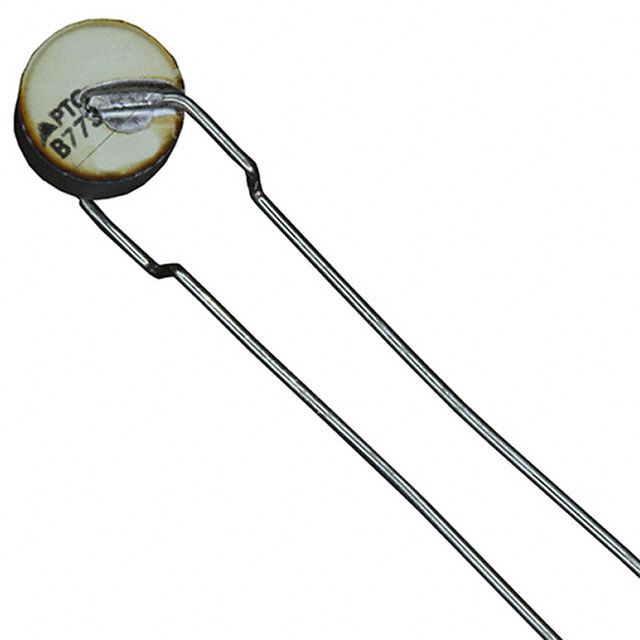

B59773B0120A070
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 550V
Current - Max : 1A
Current - Hold (Ih) (Max) : -
Current - Trip (It) : 48mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 500 Ohms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.335" Dia x 0.276" T (8.50mm x 7.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 550V
Current - Max : 1A
Current - Hold (Ih) (Max) : -
Current - Trip (It) : 48mA
Time to Trip : 3s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 500 Ohms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.335" Dia x 0.276" T (8.50mm x 7.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
2313 in stock

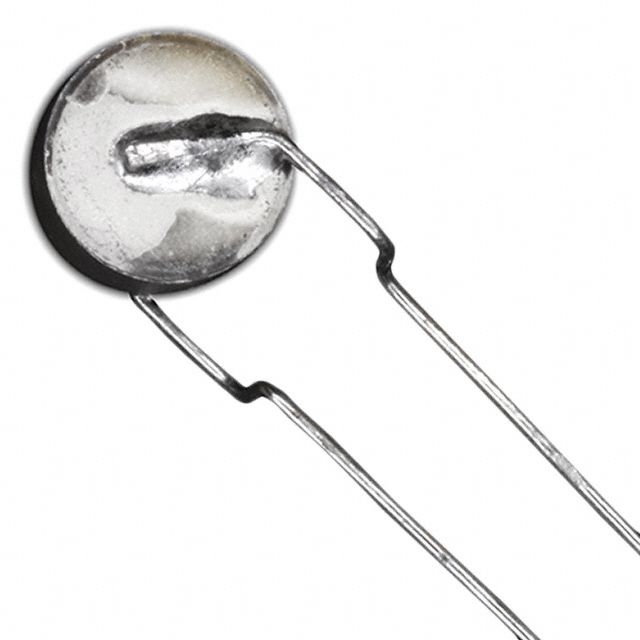

B59774B0115A070
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 550V
Current - Max : 1A
Current - Hold (Ih) (Max) : -
Current - Trip (It) : 32mA
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 1.1 kOhms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.335" Dia x 0.276" T (8.50mm x 7.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 550V
Current - Max : 1A
Current - Hold (Ih) (Max) : -
Current - Trip (It) : 32mA
Time to Trip : 2s
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 1.1 kOhms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.335" Dia x 0.276" T (8.50mm x 7.00mm)
Height - Seated (Max) : 0.197" (5.00mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
1749 in stock

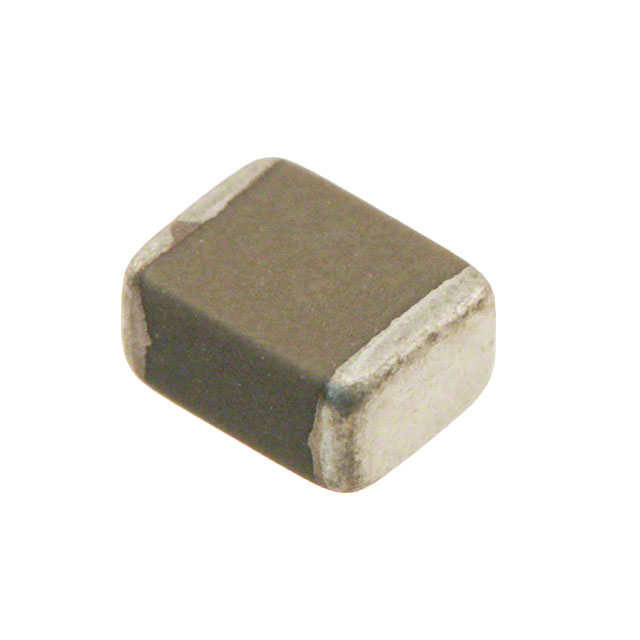

B59807A0090A062
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 200mA
Current - Hold (Ih) (Max) : 15mA
Current - Trip (It) : 40mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 400 Ohms
Operating Temperature : -20°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : -
Thickness (Max) : 0.071" (1.80mm)
Lead Spacing : -
Packaging : Cut Tape (CT)
Alternate Packaging
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 200mA
Current - Hold (Ih) (Max) : 15mA
Current - Trip (It) : 40mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 400 Ohms
Operating Temperature : -20°C ~ 85°C
Ratings : AEC-Q200
Mounting Type : Surface Mount
Package / Case : 1210 (3225 Metric)
Size / Dimension : 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) : -
Thickness (Max) : 0.071" (1.80mm)
Lead Spacing : -
0
12932 in stock

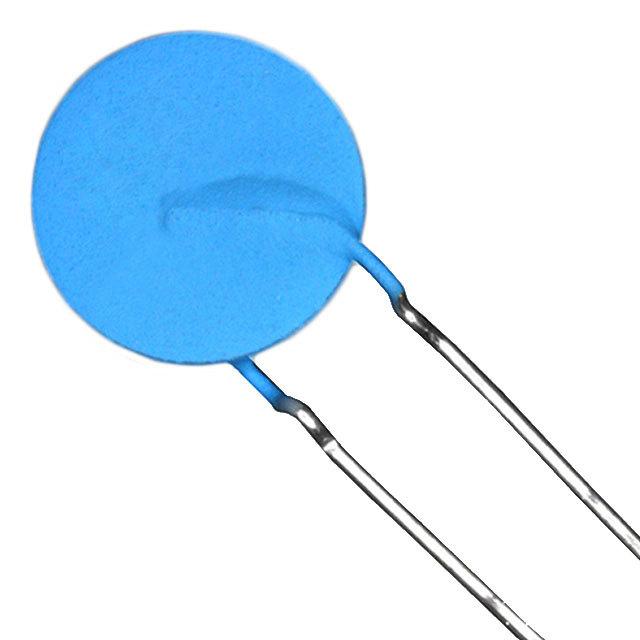

B59810C0130A070
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 7A
Current - Hold (Ih) (Max) : 650mA
Current - Trip (It) : 980mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 3.5 Ohms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.866" Dia x 0.197" T (22.00mm x 5.00mm)
Height - Seated (Max) : 1.004" (25.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 7A
Current - Hold (Ih) (Max) : 650mA
Current - Trip (It) : 980mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 3.5 Ohms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.866" Dia x 0.197" T (22.00mm x 5.00mm)
Height - Seated (Max) : 1.004" (25.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
992 in stock
B59830C0120A070
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 7A
Current - Hold (Ih) (Max) : 460mA
Current - Trip (It) : 920mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 3.7 Ohms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.866" Dia x 0.197" T (22.00mm x 5.00mm)
Height - Seated (Max) : 1.004" (25.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 7A
Current - Hold (Ih) (Max) : 460mA
Current - Trip (It) : 920mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 3.7 Ohms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.866" Dia x 0.197" T (22.00mm x 5.00mm)
Height - Seated (Max) : 1.004" (25.50mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
595 in stock
B59830C0130A070
EPCOS
Manufacturer : EPCOS (TDK)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 4.1A
Current - Hold (Ih) (Max) : 450mA
Current - Trip (It) : 680mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 5 Ohms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.689" Dia x 0.197" T (17.50mm x 5.00mm)
Height - Seated (Max) : 0.827" (21.00mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
Packaging : Bulk
Series : -
Part Status : Active
Type : Ceramic
Voltage - Max : 265V
Current - Max : 4.1A
Current - Hold (Ih) (Max) : 450mA
Current - Trip (It) : 680mA
Time to Trip : -
Resistance - Initial (Ri) (Min) : -
Resistance - Post Trip (R1) (Max) : -
Resistance - 25°C (Typ) : 5 Ohms
Operating Temperature : 0°C ~ 60°C
Ratings : -
Mounting Type : Through Hole
Package / Case : Radial, Disc
Size / Dimension : 0.689" Dia x 0.197" T (17.50mm x 5.00mm)
Height - Seated (Max) : 0.827" (21.00mm)
Thickness (Max) : -
Lead Spacing : 0.197" (5.00mm)
0
1747 in stock
New Original Stock
Competitive Prices
One-stop
Customer Service
Contact Weijie
- sales@ynnelec.com
- jay@ynnelec.com
- 1132 Nanguang Jiejia Building, No. 3037 Shennan Middle Road, Futian District, Shenzhen
Customer service
Copyright © 2025 Ynnelec. All rights reserved.
webdesign www.wzdzkf.com
Powered by www.wzdzkf.com
